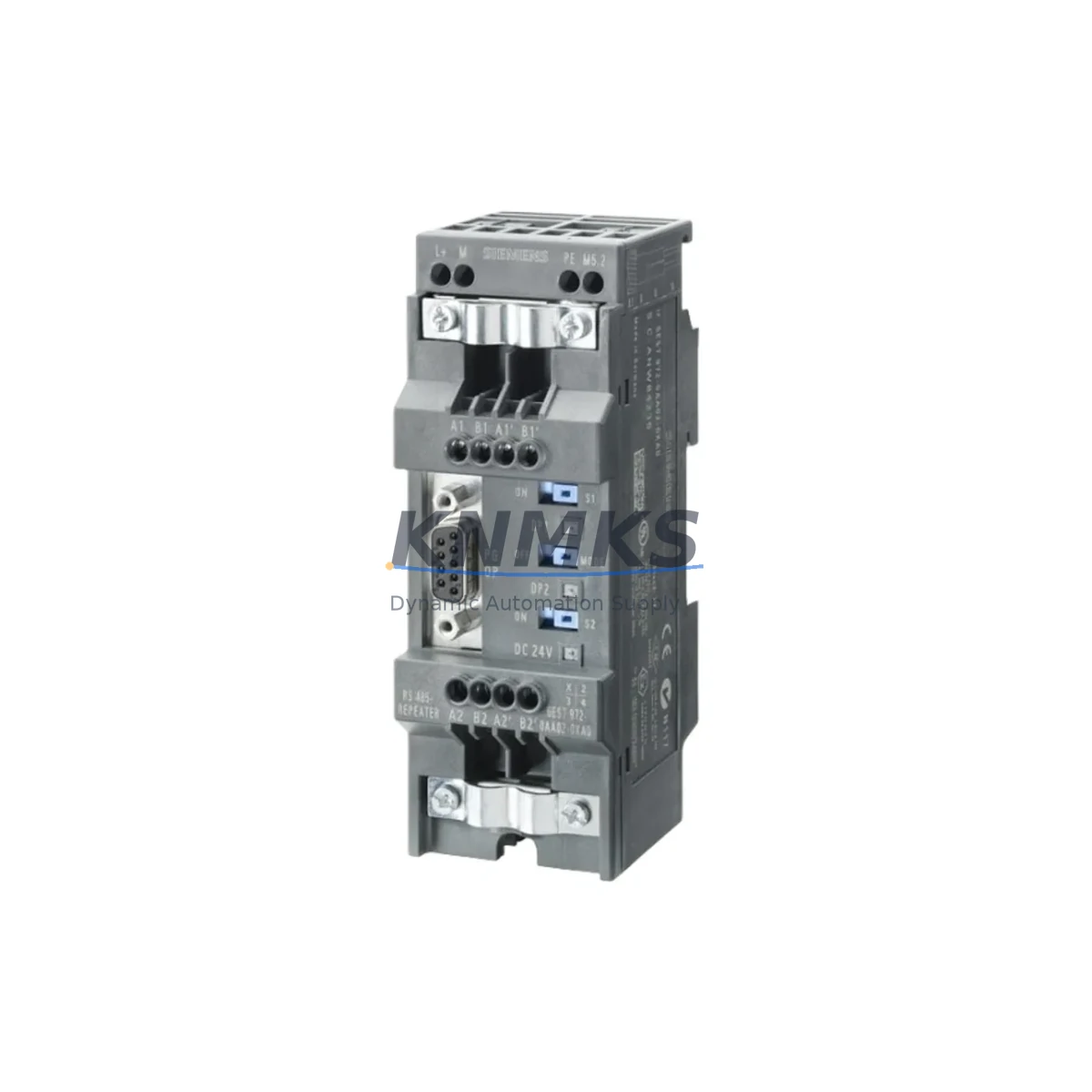

Siemens 6ES7972-0AA02-0XA0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7972-0AA02-0XA0 is an RS-485 PROFIBUS DP repeater designed for SIMATIC S7-300 automation systems operating in demanding industrial environments. As a critical network infrastructure component, this repeater extends PROFIBUS DP segment length and isolates electrical noise between bus segments, ensuring reliable communication between PLCs, remote I/O stations, drives, and field devices. For maintenance engineers managing aging S7-300 control systems in petrochemical plants, power generation facilities, water treatment stations, and manufacturing lines, maintaining a verified stock of this repeater is a fundamental element of any uptime-first spare parts strategy.

KNMKS supplies the 6ES7972-0AA02-0XA0 from verified inventory, with each unit undergoing pre-shipment functional testing and shipped with a support terms confirmed by quotation. Our global logistics network supports urgent replacement orders, minimizing the window between fault detection and system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PROFIBUS DP segment fault is traced to a failed or degraded 6ES7972-0AA02-0XA0 repeater, the replacement procedure should be treated as an opportunity for a broader control cabinet inspection. Maintenance engineers should simultaneously verify the condition of the 6ES7315-2AG10-0AB0 CPU 315-2 DP or equivalent S7-300 CPU module, as PROFIBUS communication errors frequently generate diagnostic alarms at the CPU level that may mask secondary faults.

The 6ES7307-1EA01-0AA0 PS 307 power supply module feeding the S7-300 rack should be checked for output voltage stability under load — a sagging 24 V DC rail is a common root cause of intermittent PROFIBUS communication failures that are misdiagnosed as repeater faults. Similarly, the 6ES7321-1BL00-0AA0 SM 321 digital input module and associated field wiring should be inspected for ground faults or shield continuity issues that can inject noise onto the RS-485 bus.

For systems using distributed I/O over PROFIBUS, the 6ES7153-1AA03-0XB0 IM 153-1 interface module in ET 200M stations downstream of the repeater should be confirmed operational after the repeater swap, as these interface modules can enter a fault state following a bus interruption and may require a manual reset or power cycle. Termination resistors at both ends of each PROFIBUS segment must be verified — incorrect termination is a leading cause of communication instability after hardware replacement.

Where the control cabinet includes PROFIBUS-connected variable frequency drives or soft starters, the drive’s PROFIBUS adapter card (such as the Siemens CBP2 communication board used in MICROMASTER and SINAMICS series) should be checked for correct address assignment and baud rate configuration following the repeater replacement. Finally, the 6ES7972-0BB52-0XA0 PROFIBUS bus connector at each device port should be inspected for pin corrosion, cable strain, or damaged termination switches — these connectors are a frequent source of intermittent faults in high-vibration environments.

Procurement engineers planning annual maintenance budgets should consider stocking one spare 6ES7972-0AA02-0XA0 repeater per PROFIBUS network segment in facilities with more than three segments, particularly where the PROFIBUS backbone connects safety-critical process equipment. Long lead times for legacy Siemens S7-300 components make proactive inventory positioning essential for minimizing unplanned downtime exposure.

Site Replacement Workflow

Step 1 — Fault Isolation: Use STEP 7 or TIA Portal diagnostics to identify the affected PROFIBUS segment. The 6ES7972-0AA02-0XA0 provides LED status indicators for bus activity and power; a dark or red LED on the repeater confirms the fault source before cabinet access.

Step 2 — Safe Isolation: De-energize the 24 V DC supply to the S7-300 rack or isolate the repeater’s power feed via the dedicated circuit breaker. Do not remove the repeater under live bus conditions — hot-swap is not supported on this model.

Step 3 — Physical Replacement: Disconnect PROFIBUS bus connectors from both segment ports. Note the termination switch positions on the removed unit before disconnecting. Slide the repeater off the DIN rail. Mount the replacement 6ES7972-0AA02-0XA0, reconnect bus connectors, and set termination switches to match the original configuration.

Step 4 — Restoration and Verification: Re-energize the rack. Confirm green LED status on the repeater. From the CPU or HMI, verify that all downstream PROFIBUS slaves have returned to RUN state. Clear any residual diagnostic alarms in STEP 7 or TIA Portal. Document the replacement in the maintenance log with the date, replaced unit serial number, and post-replacement bus diagnostics result.

Step 5 — System Compatibility Note: The 6ES7972-0AA02-0XA0 is backward compatible with earlier S7-300 rack configurations and does not require firmware updates or parameter reassignment when used as a direct replacement. It is fully compatible with PROFIBUS DP networks operating at all standard baud rates from 9.6 kbit/s to 12 Mbit/s.

Spare Parts Support FAQ

Q1: Is the 6ES7972-0AA02-0XA0 still available as a new original spare part?
Yes. KNMKS maintains verified stock of the 6ES7972-0AA02-0XA0 sourced from authorized distribution channels. Each unit is inspected and functionally tested prior to shipment. Long-term supply is supported for customers with multi-year maintenance contracts or annual blanket order requirements.

Q2: What is the support terms coverage and what does pre-shipment testing include?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Pre-shipment testing includes power-on verification, LED status confirmation, and bus communication validation where test equipment permits. Units that do not pass inspection are not shipped.

Q3: Can the 6ES7972-0AA02-0XA0 replace earlier repeater versions such as the 6ES7972-0AA00-0XA0 or 6ES7972-0AA01-0XA0?
Yes. The -0XA0 suffix revision is a direct functional replacement for earlier hardware revisions of the same base part number. No configuration changes are required. Customers migrating from older revisions should verify that bus connector pinout and termination switch positions are preserved during the swap.

Q4: How should procurement engineers plan inventory levels for PROFIBUS repeaters in multi-segment systems?
Best practice for facilities with three or more PROFIBUS segments is to maintain one spare repeater per two active segments, with a minimum of two units on-site. For critical process industries such as petrochemical or power generation, a one-to-one spare ratio per segment is recommended. KNMKS supports scheduled replenishment orders and can provide lead time commitments for annual maintenance planning cycles.
