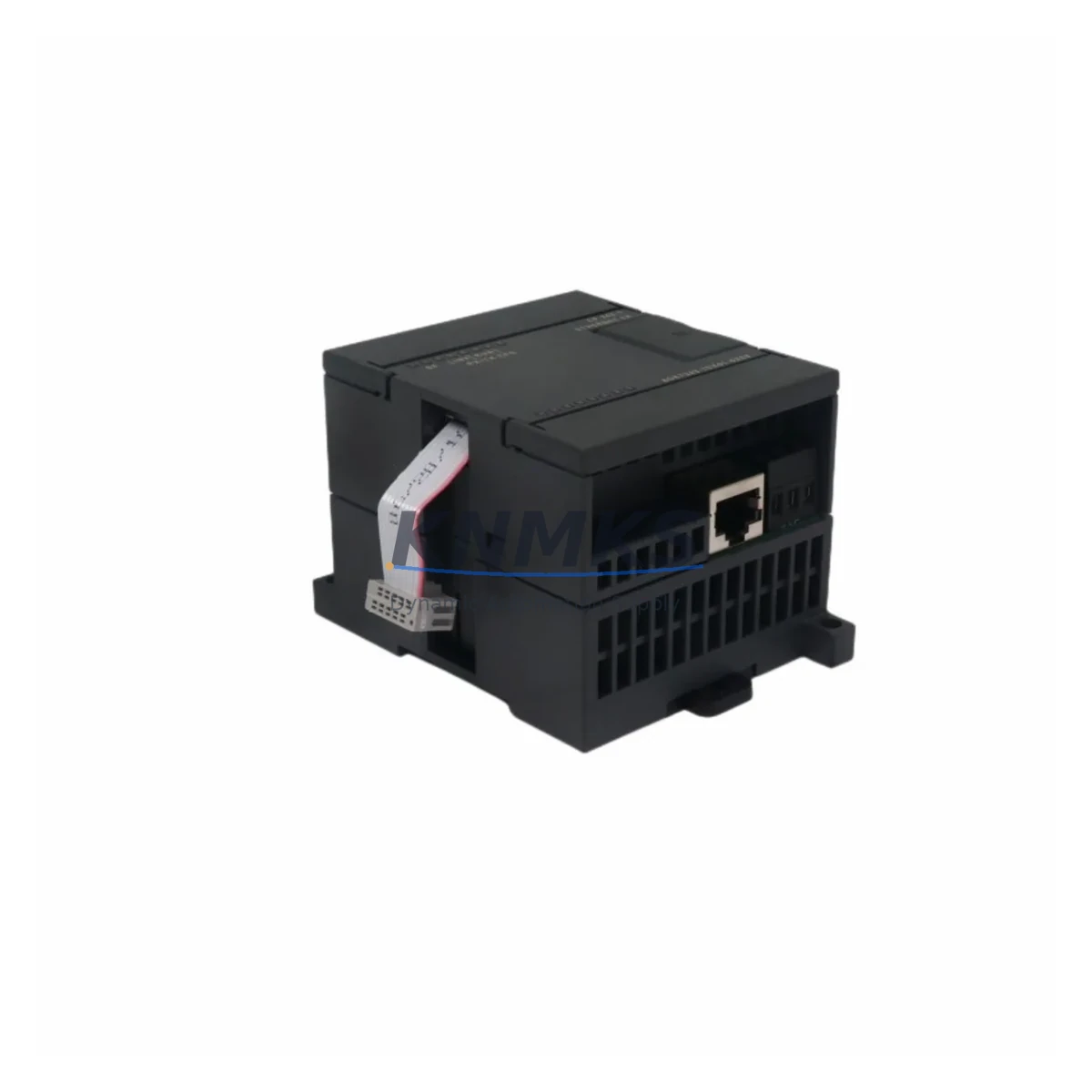

Siemens 6GK7243-1EX01-0XE0 CP243-1 Fail-Safe Ethernet

Overview

Siemens 6GK7243-1EX01-0XE0 CP243-1 Fail-Safe Ethernet: Industrial Control Reliability

The Siemens 6GK7243-1EX01-0XE0 CP243-1 is a high-performance Ethernet communications processor engineered for the SIMATIC S7-200 PLC platform. Designed to meet the demanding requirements of continuous industrial production environments, this module delivers fail-safe Ethernet connectivity that protects critical control loops from communication interruptions, signal drift, and unplanned downtime. Whether deployed in petrochemical processing, power generation, mining operations, water treatment facilities, or heavy manufacturing lines, the CP243-1 provides the network backbone reliability that modern industrial safety architectures demand.

In high-stakes control cabinet installations where electromagnetic interference (EMI), voltage surges, thermal stress, and mechanical vibration are constant threats, the CP243-1 stands out for its robust design. Its integrated surge protection and EMI shielding ensure stable Ethernet communication even in environments with heavy motor drives, high-frequency inverters, and dense cable routing. This makes it an essential component in control cabinets where communication failure could trigger process shutdowns, safety interlock faults, or equipment damage.

The module supports S7 communication, open IE communication via TCP/IP and ISO-on-TCP, and IT services including email and FTP — enabling seamless integration into SCADA systems, DCS architectures, and remote monitoring platforms. Its ability to maintain deterministic communication under load ensures that safety-critical signals reach their destinations without latency or packet loss, a non-negotiable requirement in interlock-protected processes.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6GK7243-1EX01-0XE0 CP243-1 as the Ethernet gateway in a SIMATIC S7-200 control cabinet requires a layered protection strategy to ensure uninterrupted communication across the entire control architecture. In practice, this module is most effective when paired with a Siemens SITOP PSU100S 24V DC power supply, which provides regulated, surge-filtered power to the S7-200 CPU and expansion modules, eliminating voltage fluctuation as a source of communication resets.

For cabinets operating in high-vibration or high-dust environments — common in mining headframes, cement plants, and port crane control rooms — the CP243-1 should be installed alongside a Siemens S7-200 CPU226 or CPU224XP as the primary controller, with the EM 277 PROFIBUS DP module handling field device communication on a separate bus segment. This architecture isolates Ethernet traffic from fieldbus noise, preserving the integrity of both networks.

In applications where the control cabinet interfaces with variable frequency drives (VFDs) or soft starters, the addition of a Siemens SIRIUS 3RT contactor and 3RV circuit breaker in the power distribution section provides upstream overcurrent and short-circuit protection, preventing power faults from propagating to the CP243-1’s communication circuits. For remote I/O expansion, the EM 231 analog input module and EM 232 analog output module can be integrated into the same S7-200 rack, with the CP243-1 managing all upstream Ethernet reporting to the SCADA host.

This multi-layer cabinet design — combining regulated power, isolated fieldbus, protected power distribution, and dedicated Ethernet communications — significantly reduces the risk of control interruption, spurious trips, and unplanned downtime in safety-critical production environments.

Critical Industrial Safety Applications

The Siemens 6GK7243-1EX01-0XE0 CP243-1 is deployed across a wide range of critical industrial sectors where communication reliability directly impacts operational safety and production continuity.

Petrochemical & Refinery: In continuous process plants, the CP243-1 enables real-time Ethernet communication between S7-200 PLCs managing pump stations, valve actuators, and pressure control loops. Its ability to maintain stable TCP/IP sessions under high-EMI conditions — generated by large motor control centers and high-voltage switchgear — makes it a trusted component in safety interlock systems that must respond within milliseconds to process deviations.

Power Generation & Substation Automation: In power plant auxiliary systems and substation control panels, the CP243-1 provides the Ethernet link between local S7-200 controllers and the plant DCS or energy management system. Its surge-protected communication lines withstand the transient voltages common in high-voltage switching environments, ensuring that protection relay status and alarm signals are transmitted without corruption.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and temperature cycling. The CP243-1’s industrial-grade construction and wide operating temperature range make it suitable for conveyor control systems, crusher automation, and ventilation management — applications where a communication failure can halt production or compromise worker safety.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the CP243-1 to connect S7-200 PLCs controlling dosing pumps, filtration systems, and UV disinfection units to central SCADA platforms. Continuous Ethernet connectivity ensures that process parameters remain within safe limits and that alarm conditions are immediately escalated to operators.

Metallurgy & Steel Production: In rolling mills, electric arc furnaces, and continuous casting lines, the CP243-1 supports high-temperature, high-vibration control cabinet installations where conventional communication hardware frequently fails. Its robust design ensures that production data and safety signals remain available throughout demanding production cycles.

Port & Marine Automation: Crane control systems, ship loading arms, and mooring winch controllers in port environments benefit from the CP243-1’s ability to maintain Ethernet communication in salt-air, high-humidity conditions. Its integration into S7-200-based control systems provides the network reliability needed for safe, coordinated heavy-load operations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6GK7243-1EX01-0XE0?
All units are covered by a support terms confirmed by quotation from the date of shipment. Each module undergoes pre-shipment functional testing to verify communication integrity, power consumption, and protocol compliance before dispatch. In the event of a confirmed defect within the confirmed support period, full replacement support is provided with priority processing.

Q2: How is the CP243-1 tested before shipment?
Every 6GK7243-1EX01-0XE0 unit is subjected to a pre-shipment inspection protocol that includes power-on verification, Ethernet port continuity testing, firmware version confirmation, and visual inspection for physical damage. Units that do not pass all test criteria are quarantined and not dispatched, ensuring that only fully functional modules reach the field.

Q3: Is the 6GK7243-1EX01-0XE0 compatible with all S7-200 CPU variants?
The CP243-1 is designed for use with the SIMATIC S7-200 PLC family, including CPU221, CPU222, CPU224, CPU224XP, and CPU226 variants. It occupies one expansion module slot and communicates with the CPU via the S7-200 internal bus. Compatibility with specific firmware versions should be verified against the Siemens STEP 7-Micro/WIN programming software requirements for the target installation.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated inventory of the 6GK7243-1EX01-0XE0 to support both new installations and field replacement requirements. For facilities operating legacy S7-200 systems where the CP243-1 is a critical spare, we recommend establishing a standing supply agreement to ensure availability during planned maintenance windows and emergency replacement scenarios. Contact our technical sales team to discuss volume pricing and reserved stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6GK7243-1EX01-0XE0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6GK7243-1EX01-0XE0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
