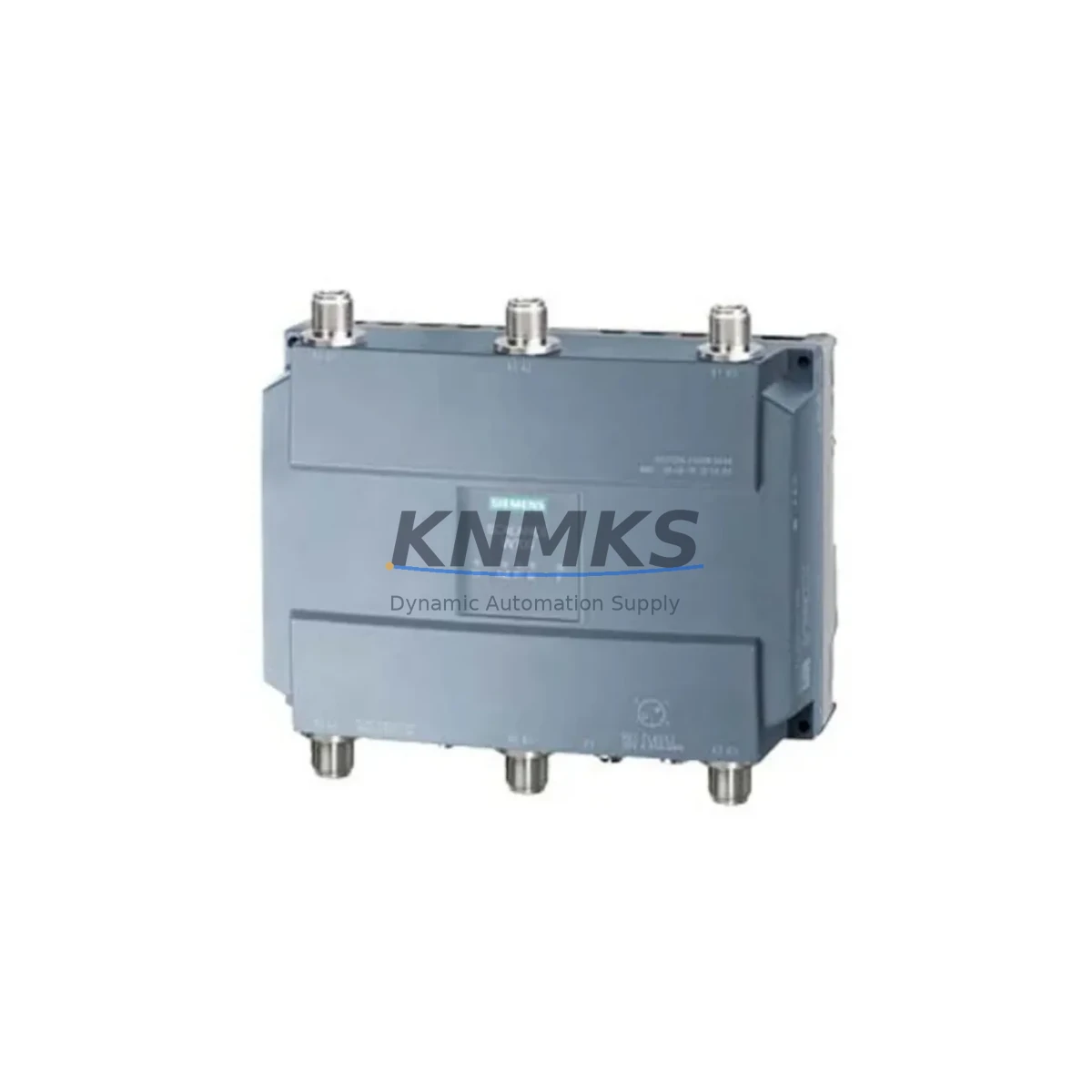

Siemens 6GK5788-2GB00-0AB0 Fail-Safe WLAN Client Module

Overview

Siemens 6GK5788-2GB00-0AB0 Fail-Safe WLAN Client Module: Industrial Control Reliability Through Wireless Fail-Safe Architecture

The Siemens 6GK5788-2GB00-0AB0 is a ruggedized industrial WLAN client module from the SCALANCE W780 series, engineered to deliver uninterrupted wireless communication in the most demanding control environments. Designed for integration into safety-critical automation architectures, this module provides deterministic, low-latency wireless connectivity that supports continuous production operations, critical interlock circuits, and high-availability control cabinet installations where wired infrastructure is impractical or impossible.

In industrial environments characterized by high electromagnetic interference (EMI), airborne dust, condensation, mechanical vibration, and wide thermal cycling, conventional wireless devices fail to maintain the signal integrity required for safe machine control. The 6GK5788-2GB00-0AB0 addresses these challenges through its hardened enclosure, extended operating temperature range, and IEEE 802.11 industrial-grade radio design — ensuring that control signals, safety status data, and diagnostic communications remain stable even under adverse field conditions.

This module is particularly suited for mobile equipment, overhead cranes, automated guided vehicles (AGVs), and rotating machinery where trailing cable assemblies introduce mechanical wear and unplanned downtime risk. By replacing vulnerable cable runs with a certified wireless link, the 6GK5788-2GB00-0AB0 eliminates a common source of control interruption while maintaining the communication reliability demanded by safety-rated automation systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6GK5788-2GB00-0AB0 within a control cabinet wireless architecture requires careful attention to the surrounding protection ecosystem. In high-density cabinet installations, the module is typically paired with a SCALANCE W780 access point (such as the SCALANCE W786-2 or W788-2) configured in infrastructure mode, establishing a dedicated wireless cell for the control zone. This pairing ensures that the client module maintains a stable, low-latency link even when adjacent frequency bands are congested by other industrial radio systems.

Power supply integrity is equally critical. The 6GK5788-2GB00-0AB0 operates on 24 V DC, and in safety-critical installations it is recommended to feed this supply from a SITOP PSU8200 or equivalent redundant power supply unit. Voltage dips, surges, or transient interruptions at the supply rail can cause the wireless client to reset, momentarily dropping the PROFINET connection and triggering safety-related fault responses in the connected controller — such as a SIMATIC S7-1500F or ET 200SP HA safety CPU. Redundant power input capability on the module provides an additional layer of protection against single-point power failure.

For surge and transient protection at the cabinet entry point, a SIMATIC surge protection device or equivalent DIN-rail mounted SPD should be installed upstream of the module’s power feed. In environments with heavy motor drives, welding equipment, or large contactors, inductive switching transients can couple into the 24 V DC bus and degrade wireless module performance or cause nuisance resets. Similarly, proper cabinet grounding and shielded cable routing for the Ethernet connection between the 6GK5788-2GB00-0AB0 and the downstream PROFINET switch — such as a SCALANCE XC208 or XB008 — are essential to maintaining signal integrity in high-EMI zones.

In mobile crane and AGV applications, the module’s fast roaming capability (iPCF protocol) is coordinated with the access point infrastructure to ensure that handover between wireless cells occurs within the timing constraints of the PROFIsafe watchdog. This prevents safety-related E-stop activations caused by communication timeouts during roaming transitions — a common failure mode in installations using standard consumer-grade wireless equipment.

Critical Industrial Safety Applications

The Siemens 6GK5788-2GB00-0AB0 is deployed across a broad range of safety-critical industrial sectors where wireless communication must meet the same reliability standards as hardwired control circuits.

In petrochemical and refinery operations, the module enables wireless PROFINET connectivity for remote valve actuators, field instruments, and safety instrumented system (SIS) I/O nodes located in hazardous areas where cable routing is restricted. Its IP65 rating and extended temperature tolerance allow installation in outdoor process areas subject to chemical exposure, humidity, and solar thermal loading.

In electric power generation and substation automation, the 6GK5788-2GB00-0AB0 supports wireless communication between bay controllers, protection relays, and SCADA gateways in environments with intense electromagnetic fields generated by high-voltage switching equipment. Its EMC-hardened design prevents signal corruption that could mask protection relay status or delay fault clearance commands.

In mining and mineral processing, the module is used on mobile crushing and screening equipment, conveyor drive systems, and underground haulage vehicles where trailing cable assemblies are impractical. Fast roaming ensures that safety interlock status — including emergency stop, overload, and blocked chute signals — is continuously communicated to the surface control room without gaps during vehicle movement.

In water and wastewater treatment, the module provides reliable wireless links for pump station remote I/O, chemical dosing control panels, and UV disinfection system controllers installed in wet, corrosive environments. Its sealed enclosure prevents moisture ingress that would otherwise cause insulation breakdown and control system faults.

In metallurgical and steel plant applications, the 6GK5788-2GB00-0AB0 withstands the extreme thermal radiation, vibration, and electromagnetic interference generated by arc furnaces, rolling mills, and continuous casting lines — environments where standard wireless devices fail within weeks of installation.

In port and maritime logistics, the module enables wireless control of ship-to-shore cranes, rubber-tyred gantry cranes, and automated stacking systems, where the combination of large roaming areas, high wind loading, and salt-laden air demands both mechanical robustness and reliable wireless handover performance.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6GK5788-2GB00-0AB0?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional anomalies that arise under normal operating conditions within the specified environmental ratings. It applies from the date of shipment and includes replacement or repair at no additional cost. Damage resulting from incorrect installation, overvoltage beyond rated limits, or physical impact is excluded. For safety-critical installations, we recommend retaining the pre-shipment test report as part of your equipment maintenance record.

Q2: What pre-shipment testing is performed before dispatch?
Every 6GK5788-2GB00-0AB0 unit undergoes a full functional verification prior to shipment. This includes power-on self-test, wireless radio association and data throughput verification, Ethernet port connectivity check, and visual inspection for physical integrity. Units that do not pass all test criteria are quarantined and not dispatched. A test confirmation is available upon request for quality assurance documentation purposes.

Q3: Is the 6GK5788-2GB00-0AB0 compatible with existing SCALANCE W and SIMATIC S7 installations?
Yes. The module is fully compatible with the SCALANCE W780 access point family and integrates natively with SIMATIC S7-300, S7-400, S7-1200, and S7-1500 series controllers via PROFINET. PROFIsafe over WLAN is supported when the iFeature license is activated, enabling use in safety-rated control loops up to SIL 2 / PLd. Configuration is performed via SINEMA Remote Connect or the SCALANCE web interface, consistent with standard Siemens network management practices.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain stock of the 6GK5788-2GB00-0AB0 to support both immediate replacement needs and planned maintenance programs. For customers operating continuous production facilities or multi-site installations, we offer supply agreements covering 12 to 36 months of forward inventory reservation. This ensures that critical spare parts are available on demand without lead time risk, supporting your maintenance planning and minimizing unplanned downtime exposure.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6GK5788-2GB00-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6GK5788-2GB00-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
