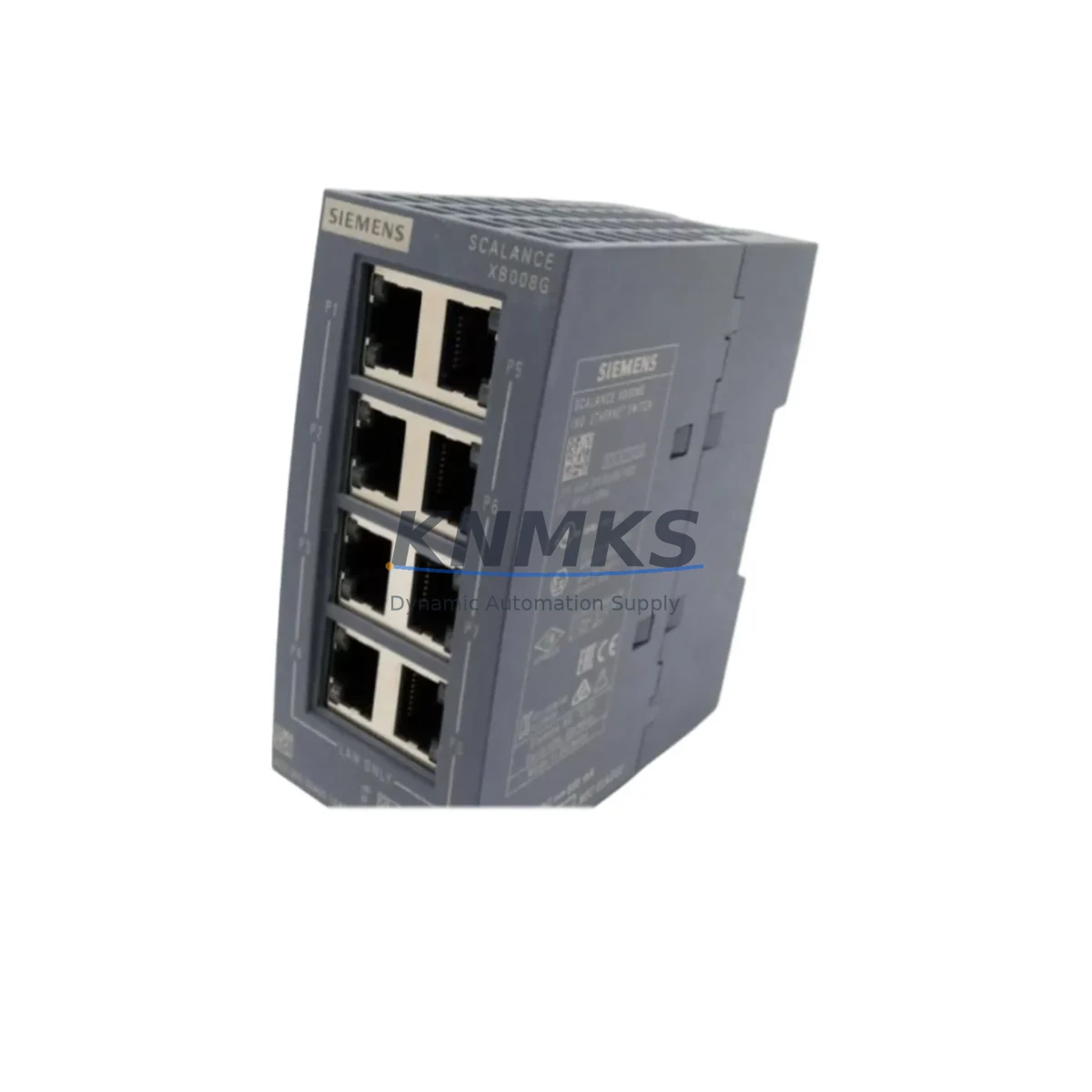

Siemens 6GK5008-0GA00-1AB2 Migration-Ready Ethernet Switch

Overview

Siemens 6GK5008-0GA00-1AB2 Migration-Ready Ethernet Switch: Legacy System Retrofit & Control Network Upgrade

The Siemens 6GK5008-0GA00-1AB2 is an 8-port unmanaged industrial Ethernet switch from the SCALANCE X005 series, purpose-built for demanding factory floor environments. As legacy control networks age and OEM support windows close, this module has become a critical drop-in replacement for end-of-life Ethernet infrastructure in SIMATIC S7-300, S7-400, and early S7-1500 automation architectures. Whether you are modernizing a distributed I/O network, extending a PROFINET segment, or restoring communication continuity after a switch failure, the 6GK5008-0GA00-1AB2 delivers proven interoperability with minimal reconfiguration overhead.

For maintenance engineers managing aging production lines, sourcing a verified replacement for discontinued network hardware is often the highest-risk step in any retrofit project. KNMKS maintains ready stock of the 6GK5008-0GA00-1AB2 with full pre-shipment functional testing, ensuring that every unit shipped meets original Siemens performance specifications. Each module is covered by a support terms confirmed by quotation and ships with traceable documentation to support your site acceptance and audit requirements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit around the 6GK5008-0GA00-1AB2 requires a structured review of the surrounding network and control architecture. In most S7-300 or S7-400 installations, the Ethernet switch sits at the field level, connecting SIMATIC ET 200S or ET 200M distributed I/O stations back to the CPU via PROFINET. Before removing the failed or end-of-life switch, document all port assignments, cable labels, and device IP addresses — particularly for any CP 343-1 or CP 443-1 communication processors that rely on fixed network paths.

Power supply compatibility is the first physical check. The 6GK5008-0GA00-1AB2 draws from the 24 V DC rail; if the existing SITOP PSU 6EP1334-2BA20 or equivalent is already loaded near capacity by the CPU rack and I/O modules, add a dedicated supply branch before installation. Terminal wiring on the power connector follows the standard two-wire 24 V DC input — confirm polarity markings on the cabinet wiring diagram before energizing.

For sites running SIMATIC WinCC or WinCC flexible HMI panels, the switch replacement is transparent at the application layer, but it is good practice to verify that the HMI communication link re-establishes within the configured watchdog timeout after power cycling. If the line includes a SCALANCE W700 wireless access point or a SCALANCE S615 security module upstream, confirm that MAC address tables clear correctly after the swap to avoid residual ARP conflicts.

In I/O expansion scenarios — for example, adding an ET 200SP station to an existing PROFINET ring — the 6GK5008-0GA00-1AB2 provides the additional ports needed without requiring a managed switch or topology reconfiguration. This makes it a cost-effective choice for incremental capacity additions in brownfield lines where a full network redesign is not justified. Pair it with a SIMATIC S7-1200 or S7-1500 CPU if the retrofit also involves a controller upgrade, as both platforms natively support PROFINET IO device discovery on unmanaged switch segments.

Programming cable access during commissioning is straightforward: connect a SIMATIC programming device via any available RJ45 port and use STEP 7 or TIA Portal to perform an online scan. No switch-side configuration is needed, which significantly reduces commissioning time compared to managed alternatives.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live-line switch replacement. For the 6GK5008-0GA00-1AB2, the recommended approach is a pre-staged swap: mount the new unit on a temporary DIN rail section, pre-wire the power connector, and label all patch cables before the maintenance window opens. During the cutover, transfer cables port-by-port in the same sequence as the original installation to preserve device-to-port mapping and avoid triggering PROFINET topology alarms in the CPU diagnostic buffer.

Because the SCALANCE X005 is unmanaged, there is no configuration backup to restore — the switch is stateless. This is an advantage during emergency replacements: the new unit is operational within minutes of power-up, with no CLI access, no IP assignment, and no firmware flashing required. The CPU program logic, HMI screen connections, and field device parameters remain entirely unaffected by the switch swap, provided IP addresses and subnet masks on connected devices are unchanged.

For sites with redundant network paths using SCALANCE X-200 or X-300 managed switches in a ring topology, the 6GK5008-0GA00-1AB2 can be used as a star-segment extension without disrupting the ring. Coordinate with the site controls engineer to confirm that MRP (Media Redundancy Protocol) ring integrity is maintained on the managed backbone during the maintenance window.

KNMKS ships all 6GK5008-0GA00-1AB2 units with a pre-shipment functional test report. This allows your team to validate the unit at goods receipt rather than discovering faults during the maintenance window — a critical risk reduction step for high-availability production environments.

Retrofit Support FAQ

Q1: Is the 6GK5008-0GA00-1AB2 a direct drop-in replacement for older SCALANCE X005 units?
Yes. The 6GK5008-0GA00-1AB2 is the current production variant of the SCALANCE X005 8-port unmanaged switch and is mechanically and electrically compatible with earlier SCALANCE X005 revisions. No wiring changes or software modifications are required for a like-for-like swap.

Q2: Does this switch require any configuration before installation?
No. As an unmanaged switch, the 6GK5008-0GA00-1AB2 requires no IP address, no VLAN setup, and no firmware update. Connect power and patch cables, and the unit is immediately operational on your existing PROFINET or Industrial Ethernet segment.

Q3: What pre-shipment testing does KNMKS perform, and what support terms is included?
Every unit undergoes functional port testing and power-on verification before dispatch. All 6GK5008-0GA00-1AB2 modules supplied by KNMKS carry a support terms confirmed by quotation from the shipment date. Support requests are handled directly by KNMKS with priority turnaround to minimize your production impact.

Q4: Can KNMKS supply multiple units for a phased retrofit or blanket order?
Yes. KNMKS maintains multi-unit stock of the 6GK5008-0GA00-1AB2 to support phased rollouts, site-wide standardization projects, and emergency spare holdings. Contact our team to discuss volume pricing, lead times, and consignment stock arrangements for your facility.
