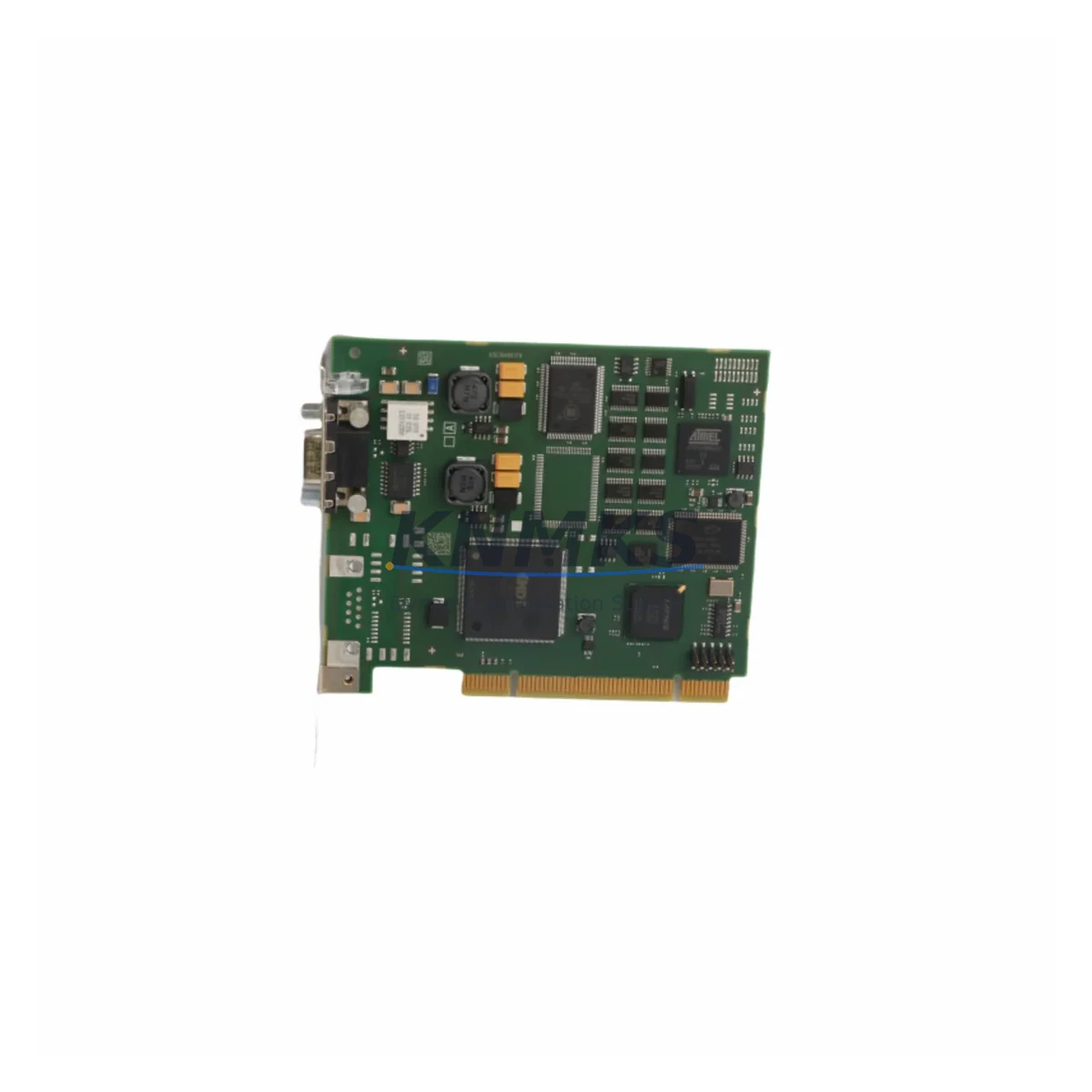

Siemens 6GK1561-2AA00 Fail-Safe PROFIBUS DP/MPI CP for ICS

Overview

Siemens 6GK1561-2AA00 Fail-Safe PROFIBUS DP/MPI CP for ICS: Fault Protection and Critical Industrial Field Reliability

The Siemens 6GK1561-2AA00, commercially designated as the CP 5612 A2, is a PCIe-based PROFIBUS DP/MPI communication processor engineered for mission-critical industrial control environments where communication failure is not an option. Designed to integrate seamlessly into SIMATIC S7 and PC-based control architectures, this module delivers deterministic, fail-safe fieldbus communication across the most demanding process automation, discrete manufacturing, and safety-instrumented system (SIS) applications.

In continuous production facilities — including petrochemical refineries, power generation plants, metallurgical smelters, and water treatment stations — unplanned communication interruptions between the control host and field devices can trigger cascading shutdowns, equipment damage, or safety hazards. The 6GK1561-2AA00 addresses this risk by providing a robust, hardware-isolated PROFIBUS DP/MPI interface that maintains stable data exchange even under high electromagnetic interference (EMI), voltage transients, and ground potential fluctuations common in heavy industrial cabinets.

Its PCIe form factor ensures low-latency, high-bandwidth communication between the host PC or industrial workstation and the PROFIBUS network, supporting both DP master and MPI modes. This dual-protocol capability makes it an ideal backbone component in control cabinets housing Siemens S7-300, S7-400, or ET 200 distributed I/O systems, where reliable cyclic data exchange and acyclic diagnostic communication are simultaneously required.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6GK1561-2AA00 as the primary PROFIBUS DP/MPI communication interface is only one layer of a comprehensive control cabinet protection strategy. In high-availability control architectures, this CP module is typically paired with a Siemens SITOP PSU8600 power supply module, which provides regulated, filtered DC power to the PCIe host system and downstream field devices, suppressing voltage ripple and protecting against mains-borne surges that could corrupt fieldbus communication cycles.

For cabinets integrating safety-instrumented functions, the 6GK1561-2AA00 operates alongside Siemens ET 200SP HA distributed I/O modules, which handle fail-safe digital and analog I/O at the field level. The CP module’s MPI channel maintains a dedicated diagnostic link to the S7-400H redundant CPU, ensuring that safety loop status, alarm acknowledgment, and process variable updates are transmitted without latency even during partial network degradation.

In environments with severe electromagnetic interference — such as variable frequency drive (VFD) cabinets, arc furnace control rooms, or high-voltage switchgear panels — the galvanic isolation of the 6GK1561-2AA00’s PROFIBUS port prevents ground loops and common-mode noise from corrupting cyclic DP data frames. This is further reinforced by pairing the module with Siemens PROFIBUS OLM (Optical Link Module) fiber-optic repeaters, which eliminate copper-based EMI propagation paths entirely across long cable runs between control rooms and field junction boxes.

For communication network redundancy, the 6GK1561-2AA00 can be deployed in conjunction with a Siemens CP 343-1 Lean Ethernet module on the same S7-300 rack, providing a secondary supervisory communication path via PROFINET or Industrial Ethernet while PROFIBUS DP handles time-critical process control loops. Additionally, Siemens SIMATIC NET PC software running on the host workstation provides real-time bus diagnostics, enabling maintenance teams to detect cable faults, address conflicts, or node dropouts before they escalate into unplanned shutdowns.

Critical Industrial Safety Applications

The 6GK1561-2AA00 is deployed across a broad spectrum of safety-critical industrial sectors where communication reliability directly impacts operational safety and regulatory compliance.

In petrochemical and refinery operations, the CP 5612 A2 serves as the PROFIBUS backbone connecting emergency shutdown system (ESD) controllers to field-mounted pressure transmitters, valve positioners, and flame detectors. Its deterministic communication cycle ensures that safety interlock commands reach actuators within the required response time defined by IEC 61511 functional safety standards.

In power generation and grid substations, the module maintains continuous PROFIBUS DP communication between SCADA host systems and protection relay panels, enabling real-time monitoring of generator excitation, transformer tap positions, and busbar protection status. Communication dropout in these environments can delay fault isolation and increase arc flash exposure risk for maintenance personnel.

In mining and mineral processing, where conveyor drives, crusher motors, and slurry pump VFDs generate intense electrical noise, the 6GK1561-2AA00’s isolated fieldbus interface prevents noise-induced false trips of safety PLCs, maintaining continuous ore processing throughput and reducing unscheduled maintenance interventions.

In water and wastewater treatment, the module supports PROFIBUS DP communication to distributed pump stations, chemical dosing systems, and UV disinfection units, ensuring that process control commands and alarm signals are reliably transmitted across geographically dispersed treatment facilities.

In port and maritime logistics, where ship-to-shore cranes, automated stacking cranes, and conveyor systems operate in salt-air, high-humidity environments, the CP 5612 A2’s robust environmental tolerance ensures uninterrupted communication between crane PLCs and central traffic management systems, preventing load handling errors and collision risks.

Safety and Quality FAQ

Q1: Does the 6GK1561-2AA00 come with a support terms confirmed by quotation?
Yes. Every 6GK1561-2AA00 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This support terms covers functional defects identified under normal operating conditions and includes replacement or repair support throughout the confirmed support period.

Q2: What pre-shipment testing is performed on this module?
Each unit undergoes full functional verification prior to dispatch, including PROFIBUS DP communication cycle testing, PCIe interface integrity checks, and visual inspection for physical damage. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6GK1561-2AA00 compatible with both STEP 7 and TIA Portal environments?
Yes. The CP 5612 A2 is supported under SIMATIC NET PC software and is compatible with both STEP 7 Classic (V5.x) and TIA Portal engineering environments. It operates as a PROFIBUS DP master or MPI node, making it suitable for both legacy S7-300/400 systems and modernized PC-based SCADA architectures.

Q4: Can KNMKS guarantee long-term supply availability for this part?
KNMKS maintains multi-region stock of the 6GK1561-2AA00 to support emergency replacement, planned maintenance, and capital project procurement. For high-volume or scheduled supply requirements, contact our team to arrange a dedicated supply agreement with guaranteed lead times.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6GK1561-2AA00
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6GK1561-2AA00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
