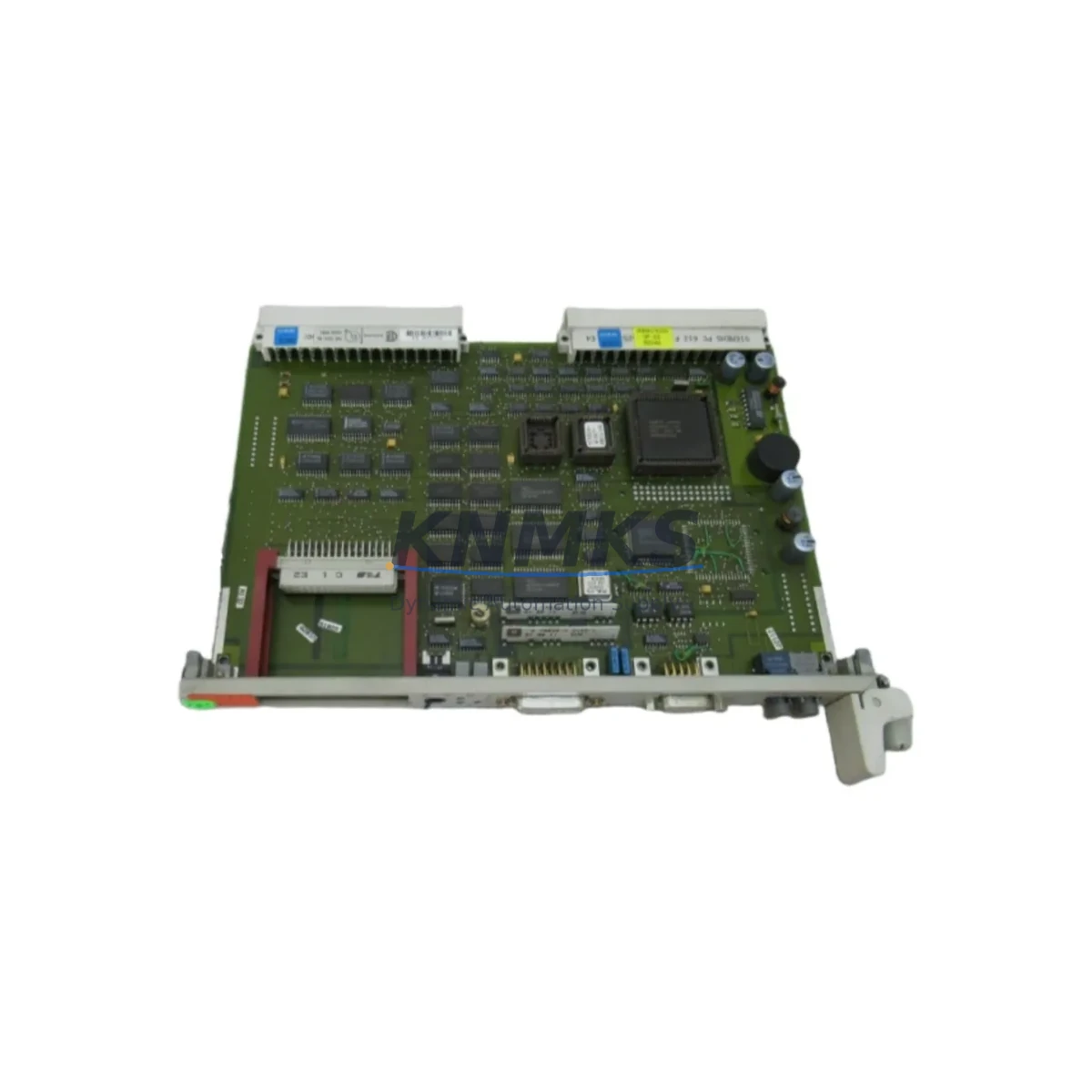

Siemens 6GK1543-1AA00 Migration-Ready CP for S7-400

Overview

Siemens 6GK1543-1AA00 Migration-Ready CP for S7-400: Legacy System Retrofit & Compatibility Upgrade

The Siemens 6GK1543-1AA00 (CP 543-1) is a high-performance Ethernet Communications Processor designed for the SIMATIC S7-400 programmable logic controller platform. As industrial facilities worldwide accelerate the retirement of aging DCS and PLC infrastructure, the 6GK1543-1AA00 has become a critical migration component — enabling engineers to extend the operational life of existing S7-400 control cabinets while simultaneously preparing the communication backbone for a phased transition to modern PROFINET-based architectures.

Whether you are replacing a failed CP 443-1 EX20, upgrading from an older 6GK7 443-series module, or consolidating multiple legacy communication links into a single PROFINET-capable interface, the 6GK1543-1AA00 provides a verified, drop-in-compatible solution that minimises rack reconfiguration, preserves existing program logic, and reduces unplanned downtime during the changeover window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centred on the 6GK1543-1AA00 requires a structured pre-migration audit of the entire S7-400 control cabinet. Begin by documenting the current rack layout: record the slot positions of the CPU 414-3 PN/DP or CPU 416-3 PN/DP, the PS 407 power supply module, any SM 421 digital input or SM 422 digital output modules, and the existing CP 443-1 being replaced. Confirm that the PS 407 10 A power supply can sustain the additional backplane current draw introduced by the new CP module — this is a frequently overlooked step that can cause intermittent rack faults post-installation.

Terminal wiring on the Ethernet side is straightforward: the 6GK1543-1AA00 uses a standard RJ45 interface, so existing structured cabling to the plant network switch can be reused without modification. However, if the legacy system relied on coaxial Industrial Ethernet via an AUI transceiver connected to an older CP 443-1 EX11, a media converter or switch port reconfiguration will be required before the new module can communicate.

For facilities running mixed communication architectures — for example, a PROFIBUS DP network managed by a CP 342-5 on a distributed ET 200M station alongside the S7-400 backbone — the migration plan must account for how the new PROFINET-capable CP interacts with existing PROFIBUS segments. In many cases, the IM 153-2 interface module on the ET 200M rack continues to handle PROFIBUS traffic independently, while the 6GK1543-1AA00 takes over all Ethernet-based SCADA and inter-controller communication. This parallel architecture allows a phased cutover without disrupting field I/O.

If the control system includes a TP 1500 Comfort Panel or MP 377 Multi Panel connected via S7 Ethernet drivers, the HMI project must be updated to reflect the new CP’s IP address and, if applicable, the new PROFINET device name. Failure to update the HMI connection parameters is one of the most common causes of extended commissioning time during CP replacement projects. Export the existing HMI tag list before the swap, verify all S7 connection entries, and perform a full online test of alarm and trend displays before handing the system back to operations.

Where the existing installation uses a PC Adapter USB A2 or CP 5711 programming cable for STEP 7 access via MPI/PROFIBUS, note that after installing the 6GK1543-1AA00 and enabling PROFINET IO, online access can be migrated to direct Ethernet using the STEP 7 hardware manager Accessible Nodes function — eliminating the need for a dedicated programming cable during routine maintenance visits.

Downtime Control During System Migration

Minimising production downtime during a CP module replacement on an active S7-400 system requires careful pre-staging and a disciplined changeover sequence. The recommended approach is to perform all software preparation — hardware configuration compilation, connection table updates, HMI project revision, and IP address reservation on the network switch — during normal production hours, so that the physical swap window is reduced to the minimum time required for module exchange and online download.

Before initiating the physical replacement, upload the current CPU program and hardware configuration to a programming device and archive the project. This preserves the original program logic and allows rapid rollback if the new module exhibits unexpected behaviour during initial commissioning. Confirm that the CPU is in STOP mode before removing the CP 443-1 and inserting the 6GK1543-1AA00 — hot-swap of communication processors is not supported on standard S7-400 racks without the UR2-H redundant rack option.

After module insertion, download the revised hardware configuration to the CPU, then perform a controlled CPU restart. Monitor the CP diagnostic buffer in STEP 7 or TIA Portal for any connection establishment errors. Verify each configured S7 connection, PROFINET IO device relationship, and OPC server link individually before returning the system to AUTOMATIC mode. For critical process lines, coordinate the changeover with the operations team to schedule the swap during a planned maintenance window or shift changeover, targeting a total outage of 30 to 90 minutes for a single CP replacement on a well-prepared system.

All units supplied are pre-tested prior to shipment. In-stock inventory is available for same-week dispatch, supporting urgent breakdown replacement scenarios where extended downtime is not acceptable.

Retrofit Support FAQ

Q1: Is the 6GK1543-1AA00 a direct replacement for the CP 443-1 EX20 (6GK7 443-1EX20-0XE0)?
The 6GK1543-1AA00 occupies the same S7-400 rack slot and supports the same Ethernet communication functions, but it is a different hardware generation. A hardware configuration re-download in STEP 7 or TIA Portal is required after the swap. Existing S7 connections and PROFINET IO configurations must be verified and re-downloaded; the module does not inherit the predecessor’s configuration automatically.

Q2: What firmware and software versions are required for commissioning?
STEP 7 V5.5 SP4 or higher is required for basic configuration. For PROFINET IO controller or device functionality, TIA Portal V13 SP1 or higher is recommended. Ensure the CPU firmware is at a version that supports the CP 543-1 module entry in the hardware catalog before attempting to compile the hardware configuration.

Q3: Does the unit ship with a pre-shipment functional test, and what does the support terms confirmed by quotation cover?
Yes. Every 6GK1543-1AA00 unit undergoes a functional test before dispatch to verify communication interface integrity and basic module operation. The support terms confirmed by quotation cover manufacturing defects and module failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification.

Q4: What is the typical lead time, and is in-stock inventory available for urgent breakdown replacement?
In-stock units are available for same-week dispatch. For urgent breakdown replacement requirements, contact the sales team directly to confirm current stock levels and arrange priority shipment. Blanket order arrangements are available for customers with ongoing maintenance programmes requiring regular CP module replenishment.
