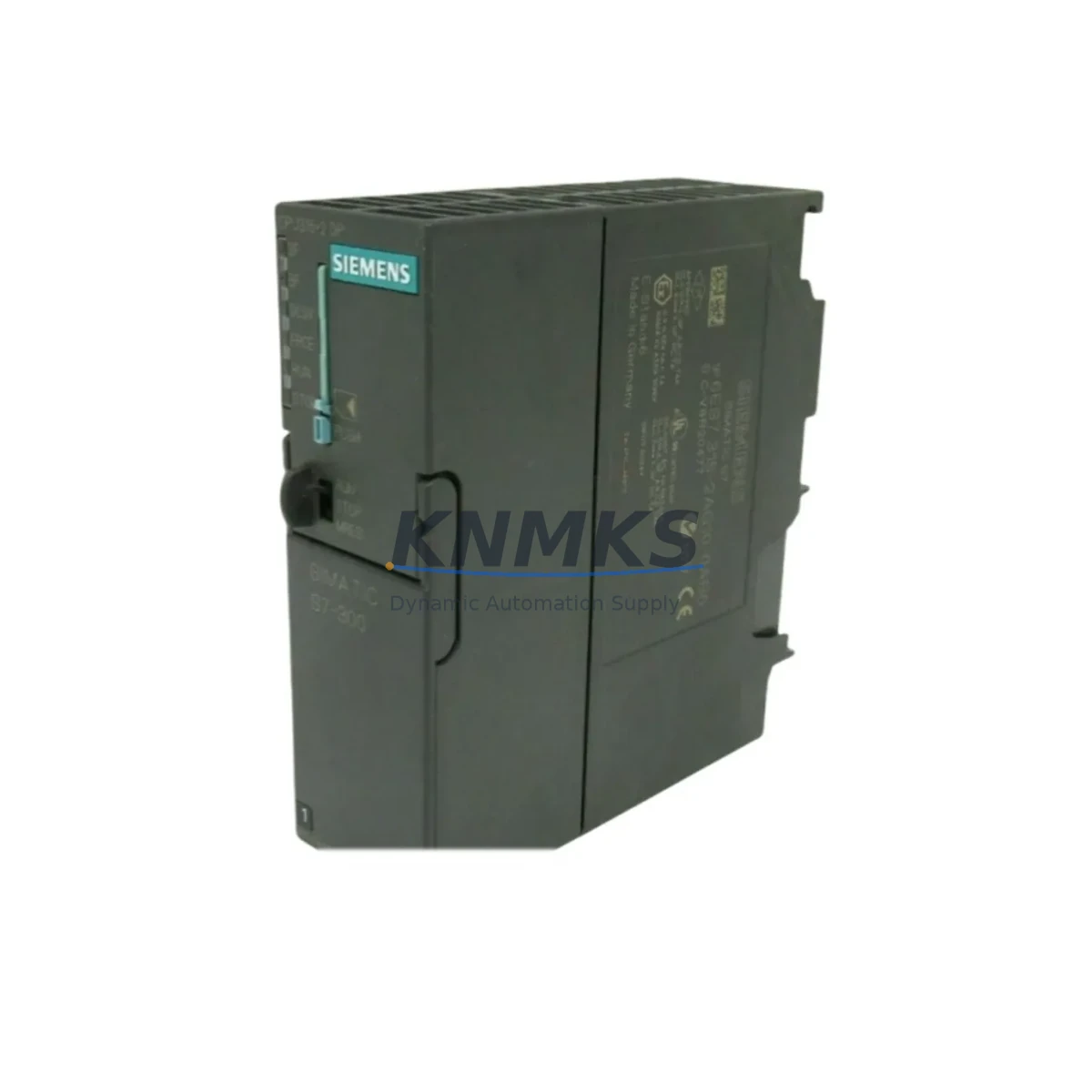

Siemens 6GK1543-0AA02 Migration-Ready Ethernet CP for S7-300

Overview

Siemens 6GK1543-0AA02 Migration-Ready Ethernet CP for S7-300: Legacy System Retrofit & Upgrade

The Siemens 6GK1543-0AA02 (CP 343-1) is a Communications Processor designed for the SIMATIC S7-300 rack, providing Industrial Ethernet connectivity in environments where legacy control infrastructure must be extended, modernized, or migrated to current network standards. As automation engineers face increasing pressure to retire aging DCS and PLC platforms while preserving operational continuity, the 6GK1543-0AA02 serves as a critical bridge component — enabling S7-300 controllers to participate in modern PROFINET and TCP/IP-based architectures without requiring a full controller replacement.

This module is particularly relevant in retrofit scenarios where the existing S7-300 backplane, power supply, and I/O wiring must be preserved while the communications layer is upgraded. The CP 343-1 supports standard Industrial Ethernet protocols including ISO transport, TCP/IP, UDP, and S7 communication, making it compatible with a wide range of SCADA systems, HMI platforms, and engineering workstations running STEP 7 or TIA Portal in legacy compatibility mode.

For facilities managing mixed-generation control cabinets — where an S7-300 rack may sit alongside newer S7-1500 controllers or third-party PLCs — the 6GK1543-0AA02 provides the network interface needed to maintain unified communication across the plant floor. Engineers replacing a failed or end-of-life CP 343-1 variant should verify the firmware version compatibility with their existing STEP 7 project, as earlier hardware revisions may require a firmware update before the module can be addressed correctly by the CPU.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6GK1543-0AA02 into a legacy control system begins well before the module arrives on site. Engineers should start by auditing the existing S7-300 rack configuration: confirm available slot positions (slots 4 through 11 are valid for CP modules), check the current power budget of the PS 307 or PS 305 power supply module, and document all existing module addresses to avoid address conflicts after insertion.

In many retrofit projects, the CP 343-1 is installed alongside existing digital and analog I/O modules such as the SM 321 (digital input), SM 322 (digital output), or SM 331/SM 332 analog modules. If the rack is already near capacity, engineers may need to evaluate whether an expansion rack connected via an IM 360/IM 361 interface module pair is required to accommodate the new communications processor without displacing critical I/O.

For systems where the S7-300 CPU communicates with an operator panel — such as a TP 177B or MP 277 HMI — the addition of the CP 343-1 typically requires updating the HMI project’s network configuration to reflect the new Ethernet connection path. In older installations where the HMI was connected via MPI or PROFIBUS using a PC adapter or CP 5611 card, migrating to Ethernet through the 6GK1543-0AA02 can significantly improve data refresh rates and reduce cabling complexity across the control cabinet.

Where the plant network includes PROFIBUS DP field devices — such as distributed I/O stations or variable frequency drives — the CP 343-1 does not replace the PROFIBUS master function of the CPU. In these cases, the existing IM 153-2 or CP 342-5 PROFIBUS modules remain in service, and the 6GK1543-0AA02 handles only the Ethernet-side communication. This parallel architecture is common in phased migration projects where PROFIBUS infrastructure is retained while the supervisory and programming network is transitioned to Industrial Ethernet.

Signal isolation requirements should also be reviewed during retrofit planning. In environments with high electrical noise — common in motor control centers or near large drives — installing a signal isolator or using shielded Ethernet cabling with proper grounding at the cabinet entry point helps protect the CP module’s RJ45 interface from transient damage.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a communications processor in a running production environment. The recommended approach is to perform the physical module swap during a scheduled maintenance window, with the CPU placed in STOP mode before the old CP 343-1 is removed. Because the module occupies a defined slot address, the CPU will automatically recognize the replacement unit upon restart — provided the hardware configuration in the STEP 7 or TIA Portal project matches the new module’s order number and firmware revision.

Before powering down, engineers should export and archive the current STEP 7 project, including the NetPro network configuration, to ensure the original IP address assignments, connection tables, and S7 communication links are preserved. If the replacement 6GK1543-0AA02 is being installed into a system where the previous module’s configuration was stored only on the CPU (not backed up to a programming device), a full hardware configuration download will be required after the swap.

For systems where continuous process monitoring is critical, a temporary bypass using a portable PROFIBUS or MPI programming cable connected directly to the CPU’s MPI port can maintain HMI visibility during the Ethernet CP replacement. This approach allows operators to monitor key process values on a laptop running WinCC flexible or STEP 7 while the Ethernet network connection is interrupted.

Post-installation commissioning should include verifying the module’s IP address via the STEP 7 Accessible Nodes function, confirming that all configured S7 connections are established (green status in NetPro), and testing communication to the SCADA server or historian. A brief functional test of all HMI screens that rely on Ethernet-sourced data tags should be completed before returning the system to automatic mode. Our pre-shipment function verification ensures the 6GK1543-0AA02 arrives ready for installation, reducing on-site commissioning time and the risk of discovering a hardware fault during a critical maintenance window.

Retrofit Support FAQ

Q1: Is the 6GK1543-0AA02 a direct drop-in replacement for the 6GK1543-0AA01 or 6GK1543-0AA00?
In most cases, yes. The 6GK1543-0AA02 is a later hardware revision of the CP 343-1 and is physically and functionally compatible with the same S7-300 rack slot. However, you should verify that your STEP 7 hardware catalog (HW Config) recognizes the -0AA02 order number. If your project was configured with an earlier revision, a hardware configuration update and re-download may be required. No changes to the user program (OB, FC, FB, DB) are typically necessary.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, connect a programming device to the CPU via MPI or Ethernet, open the STEP 7 project, and perform a hardware configuration download if the module revision has changed. Use the NCM S7 diagnostics or TIA Portal’s online device view to verify the CP’s IP address, subnet mask, and router settings. Confirm all configured connections (S7, TCP, ISO) show an established status. Test communication to all connected devices — SCADA, HMI, and any remote S7 partners — before releasing the system.

Q3: Can the 6GK1543-0AA02 be used in an ET 200M remote I/O station?
Yes. The CP 343-1 can be installed in an ET 200M rack connected via an IM 153-2 interface module on a PROFIBUS DP network. This configuration allows the S7-300 CPU to access Ethernet communication through the remote station. Ensure the IM 153-2 firmware supports the CP module and that the PROFIBUS segment is operating within its rated cable length and node count limits.

Q4: What support terms and supply assurance does KNMKS provide for the 6GK1543-0AA02?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes pre-shipment functional verification. We maintain stock of the 6GK1543-0AA02 and related S7-300 spare parts to support urgent retrofit and breakdown replacement requirements. Contact [email protected] or +86 18359268345 for lead time confirmation and volume pricing.
