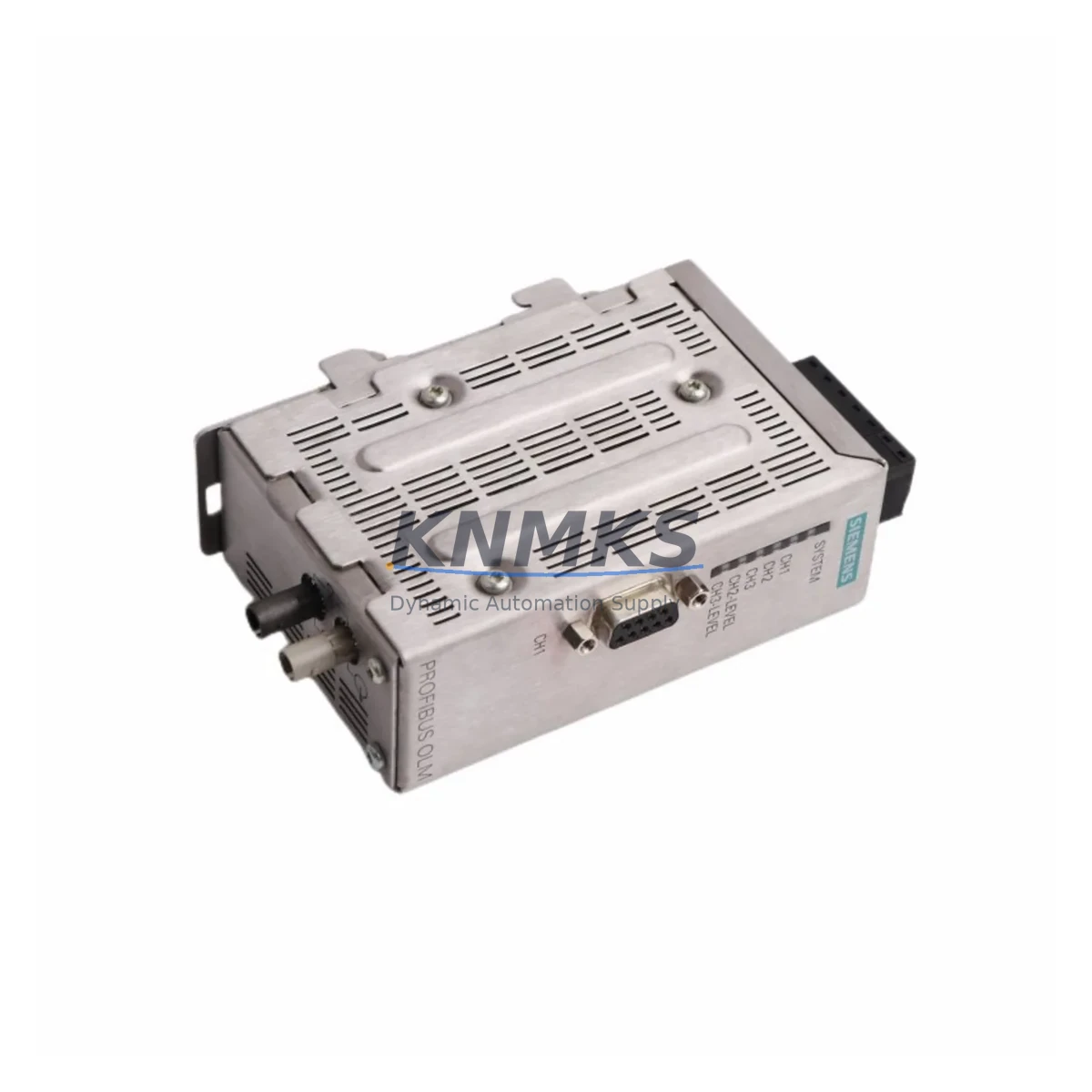

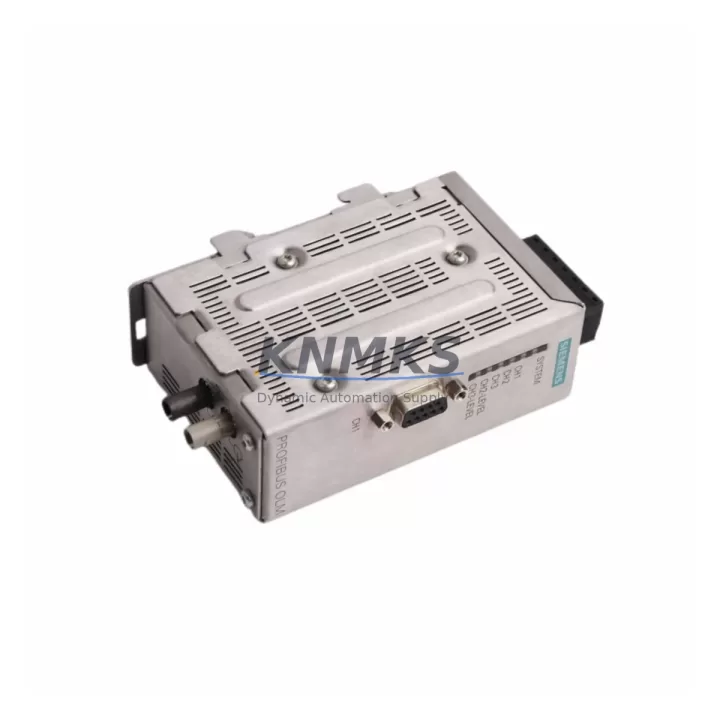

Siemens 6GK1503-2CC00 Fail-Safe Optical Link Module for Industrial Control

Overview

Siemens 6GK1503-2CC00 Fail-Safe Optical Link Module for Industrial Control

The Siemens 6GK1503-2CC00 OLM/G12 is a fiber-optic PROFIBUS optical link module engineered for continuous, fail-safe operation in the most demanding industrial environments. Designed to convert and bridge RS-485 electrical PROFIBUS segments to glass fiber-optic links, the 6GK1503-2CC00 eliminates ground loop interference, surge propagation, and EMI-induced signal corruption that routinely destabilize copper-based fieldbus architectures in heavy industrial sites.

In petrochemical plants, power generation facilities, mining operations, and metallurgical complexes, PROFIBUS network integrity is non-negotiable. A single communication fault on a critical fieldbus segment can cascade into unplanned shutdowns, safety interlock failures, or loss of process visibility. The OLM/G12 addresses this risk at the physical layer — the most vulnerable point in any distributed control architecture — by providing complete galvanic isolation between network segments through glass fiber transmission.

The module supports ring and line topologies, enabling redundant network configurations that maintain communication continuity even when a single fiber link is severed. This redundancy capability is essential for safety-critical loops in continuous process industries where network availability must be maintained at all times. The integrated diagnostic LED indicators and segment monitoring functions allow maintenance teams to detect and localize faults without interrupting live production, reducing mean time to repair and minimizing exposure to unplanned downtime.

Housed in a compact DIN-rail-mountable enclosure rated for operation from 0°C to 60°C, the 6GK1503-2CC00 is built to withstand the thermal cycling, vibration, and humidity conditions typical of control cabinets in field-deployed substations, compressor stations, and port automation systems. Its wide-range 24 VDC power input with integrated surge protection ensures stable operation even when cabinet power rails experience transient spikes from motor starts, contactor switching, or external lightning events.

In control cabinet deployments, the OLM/G12 is commonly paired with the Siemens 6GK1500-0FC10 PROFIBUS bus connector for reliable RS-485 termination, and the Siemens 6XV1830-0EH10 PROFIBUS cable for segment wiring. For fiber runs, the module is compatible with standard 62.5/125 µm multimode glass fiber assemblies. In safety-instrumented system architectures, the OLM/G12 operates alongside Siemens S7-300 CP 342-5 communication processors and ET 200M distributed I/O stations to maintain fieldbus integrity across geographically separated control zones. Where power quality is a concern, a Siemens SITOP PSU100S 24V stabilized power supply is recommended upstream to ensure the module receives clean, regulated DC input free from ripple and transient disturbances.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In high-density control cabinets serving continuous process plants, PROFIBUS segment integrity depends on more than just the fieldbus cable. The 6GK1503-2CC00 OLM/G12 plays a central role in a layered protection strategy that begins at the power supply rail and extends through every communication interface in the cabinet.

A stable, regulated 24 VDC supply is the foundation. The Siemens SITOP PSU100S 24V/10A power supply provides the clean DC rail that the OLM/G12 and co-located I/O modules require to operate without voltage-induced resets or communication timeouts. Upstream of the power supply, a Siemens SITOP UPS1600 uninterruptible power supply module ensures that brief mains interruptions — common in industrial facilities during load switching — do not interrupt the PROFIBUS network or cause controller faults.

On the network side, the OLM/G12 bridges the electrical PROFIBUS segment — typically served by a Siemens S7-400 CPU with CP 443-5 Extended communication processor — to the fiber backbone that connects remote field panels, motor control centers, and distributed I/O racks. At each remote panel, a second OLM/G12 or compatible optical link module reconverts the fiber signal back to RS-485 for connection to Siemens ET 200S or ET 200M distributed I/O stations. This architecture eliminates the ground potential differences and surge coupling paths that cause intermittent faults in copper-only PROFIBUS installations.

For cabinet thermal management, the OLM/G12’s low power dissipation (≤5 W) contributes minimally to cabinet heat load, supporting overall thermal stability alongside other low-dissipation components. In environments with high dust or humidity ingress risk, the DIN-rail mounted module should be installed in a sealed cabinet with appropriate IP-rated enclosure protection, complementing the module’s own IP20 rating.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, PROFIBUS networks connect safety PLCs, emergency shutdown valves, flame and gas detectors, and distributed control system I/O across large, electrically noisy plant areas. The OLM/G12’s fiber isolation prevents ground faults and surge events — common near high-voltage switchgear and large motor drives — from propagating into the control network and triggering spurious trips or masking genuine safety alarms.

Power Generation and Substation Automation: In thermal, hydro, and wind power plants, PROFIBUS fieldbus segments connect turbine control systems, excitation regulators, and protection relays. The extreme electromagnetic environment near high-voltage busbars and transformer banks makes fiber-optic isolation essential. The 6GK1503-2CC00 maintains communication integrity in these environments where copper-based links routinely suffer from induced noise and common-mode voltage stress.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to severe vibration, dust, and humidity. PROFIBUS networks in these environments control conveyor drives, crusher motors, ventilation fans, and hoisting systems. The OLM/G12’s robust construction and fiber-optic transmission ensure reliable communication even when the physical environment degrades copper cable performance through moisture ingress or mechanical stress.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities operate continuously, with PROFIBUS networks controlling pump stations, dosing systems, and filtration processes. The corrosive, high-humidity environment of pump rooms and chemical dosing areas makes galvanic isolation and surge protection critical for long-term network reliability. The OLM/G12 supports the always-on communication requirements of these facilities.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic interference from high-current switching and induction heating systems. PROFIBUS networks in these environments must maintain communication integrity despite severe EMI. The fiber-optic isolation provided by the 6GK1503-2CC00 is a standard design requirement for control networks in steel plant automation.

Port and Maritime Automation: Container cranes, ship loaders, and bulk material handling systems in port environments operate in high-humidity, salt-air conditions with significant vibration from heavy machinery. PROFIBUS networks controlling these systems benefit from the OLM/G12’s environmental robustness and fiber isolation, which eliminates the corrosion-related contact resistance issues that degrade copper connector performance in marine environments.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the 6GK1503-2CC00?
A: The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified functions — including fiber-optic transmission, RS-485 conversion, and diagnostic signaling — within the confirmed support period, we provide replacement or repair at no additional cost. The confirmed support period begins from the date of shipment.

Q: What pre-shipment testing is performed on each unit?
A: Every 6GK1503-2CC00 unit undergoes full functional verification before dispatch. Testing includes power-on verification, RS-485 port continuity and termination checks, fiber-optic port optical power measurement, and PROFIBUS communication validation at multiple baud rates. Units that do not meet Siemens OEM specifications are quarantined and not shipped.

Q: Is the 6GK1503-2CC00 compatible with all PROFIBUS DP masters and slaves?
A: Yes. The OLM/G12 is a transparent physical-layer device that supports all standard PROFIBUS DP baud rates from 9.6 kbps to 12 Mbps with automatic baud rate detection. It is compatible with all PROFIBUS DP-compliant masters and slaves regardless of manufacturer, including Siemens S7-300/400/1500 CPUs, third-party PLCs, and distributed I/O systems from multiple vendors.

Q: Can long-term spare parts supply be guaranteed for this module?
A: We maintain dedicated stock of the 6GK1503-2CC00 to support long-term spare parts strategies for installed PROFIBUS networks. For facilities with multi-year maintenance contracts or planned refurbishment programs, we recommend establishing a consignment stock arrangement to ensure immediate availability when replacement is required. Contact our sales team to discuss volume pricing and long-term supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6GK1503-2CC00
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6GK1503-2CC00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
