Siemens 6GK1500-0AA10 Maintenance-Proven Spare Part

Overview

Siemens 6GK1500-0AA10 Maintenance-Proven Spare Part for Factory Uptime

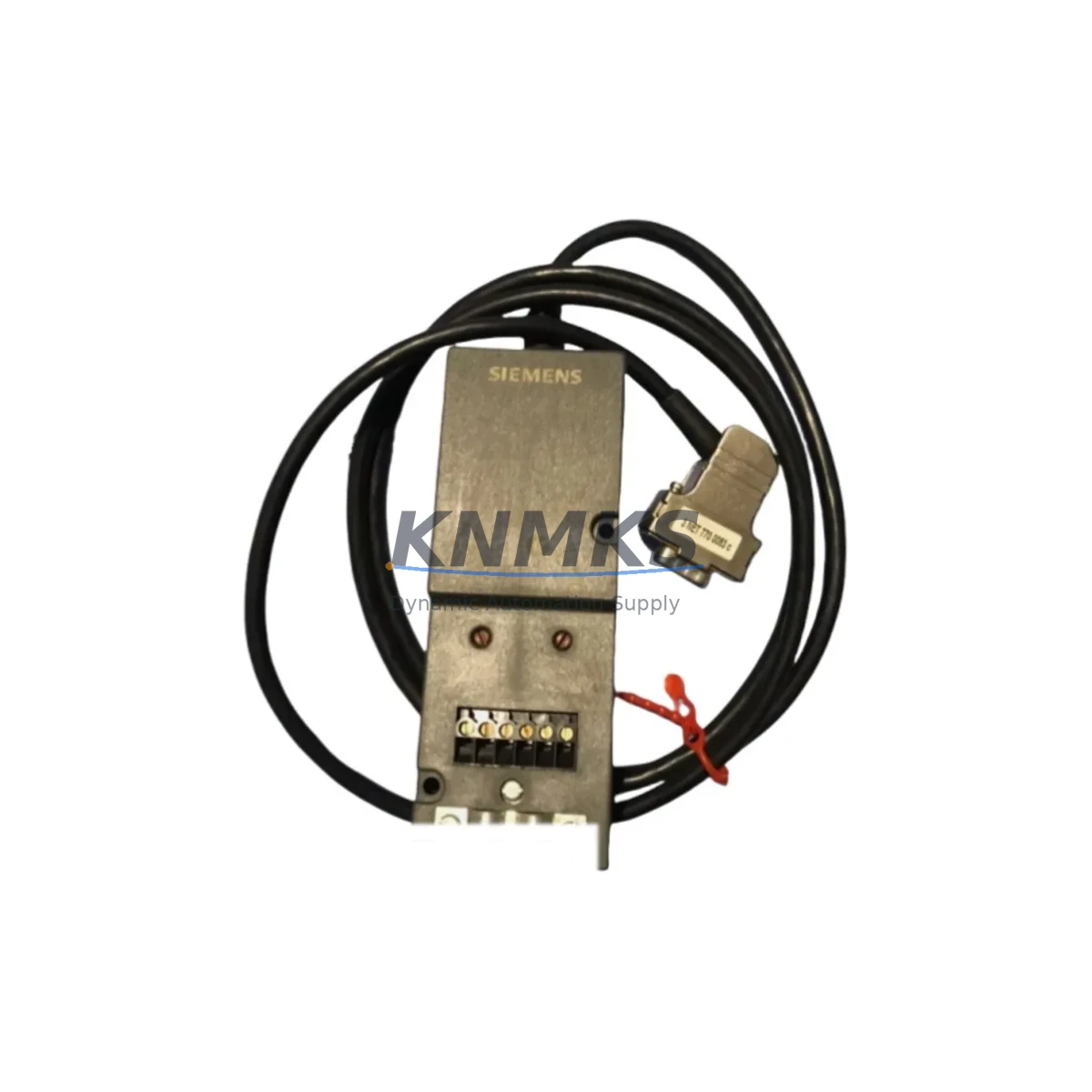

The Siemens 6GK1500-0AA10 is an original PROFIBUS DP bus connector engineered for SIMATIC NET industrial communication networks. Designed with a 90° cable exit angle, this connector is a critical field-replaceable component in distributed control architectures where PROFIBUS DP remains the backbone of machine-level communication. For maintenance engineers managing aging SIMATIC S7-300, S7-400, or ET 200 distributed I/O systems, keeping a verified stock of 6GK1500-0AA10 units is a non-negotiable element of any preventive maintenance program.

At KNMKS, every 6GK1500-0AA10 unit is sourced from authorized supply channels, individually inspected, and shipped with a support terms confirmed by quotation. Our inventory is maintained to support both emergency breakdown replacements and planned annual overhaul procurement cycles, ensuring your production line is never held up by connector availability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PROFIBUS DP segment experiences intermittent communication faults or a complete bus dropout, the 6GK1500-0AA10 connector is frequently the first component to inspect. Mechanical stress from repeated cable flexing, vibration in panel environments, or improper termination switching are common failure modes. However, a thorough site investigation should extend well beyond the connector itself.

Maintenance engineers should simultaneously verify the condition of the PROFIBUS cable — particularly the shielding continuity and the integrity of the cable jacket near the connector entry point. The bus termination resistors at both ends of the PROFIBUS segment must be confirmed active only at the physical endpoints; incorrect termination is a leading cause of intermittent communication errors that are often misdiagnosed as connector failure.

The CP 342-5 or CP 443-5 communication processor module installed in the S7-300 or S7-400 rack should be checked for firmware version compatibility and diagnostic buffer entries. If the PROFIBUS segment connects to an ET 200M distributed I/O station, the IM 153-x interface module and its associated I/O modules — including digital input/output modules such as SM 321 or SM 322 — should be inspected for status LEDs indicating bus fault or module failure.

For systems using a DP/PA Coupler or DP/PA Link to extend into PROFIBUS PA field instrument loops, the coupler’s power supply and segment load should be reviewed. The SITOP PSU power supply units feeding the control cabinet should be load-tested to confirm stable 24 VDC output, as voltage sag under load is a known trigger for PROFIBUS communication instability. Fuse elements in the 24 VDC distribution rail — particularly those protecting the CP module and the IM interface module — should be replaced as a precautionary measure during any PROFIBUS fault investigation.

Where the PROFIBUS network interfaces with an HMI panel such as a SIMATIC TP or MP series touch panel, the HMI’s PROFIBUS DP port and its configured station address should be verified against the network configuration in STEP 7 or TIA Portal. Signal isolators or repeaters used to extend PROFIBUS segment length should also be inspected for proper grounding and termination settings.

Site Replacement Workflow

Replacing the 6GK1500-0AA10 in a live production environment requires a structured approach to minimize downtime and avoid introducing new faults. Begin by documenting the existing cable routing, termination switch position, and station address assignments before disconnecting the faulty connector. Photograph the wiring orientation — PROFIBUS cables use a specific color convention (green = A-line, red = B-line) that must be preserved during reinstallation.

Power down the affected PROFIBUS segment if the system architecture permits a partial shutdown. If the segment serves safety-critical I/O, coordinate with the process control team before isolation. Install the replacement 6GK1500-0AA10, ensuring the cable shield is properly clamped to the connector’s integrated shield clamp — this is a common omission that leads to EMI-induced communication errors post-replacement.

After reinstallation, set the bus termination switch to the correct position (ON only at the physical end nodes of the segment). Power up the segment and monitor the diagnostic LEDs on the CP module and IM interface module. Use STEP 7 or TIA Portal’s hardware diagnostics to confirm all PROFIBUS slaves have returned to cyclic data exchange (green BF LED off, SF LED off). Log the replacement in the maintenance record with the date, technician ID, and the new unit’s serial number for support terms tracking.

For older S7-300 systems where the original 6GK1500-0AA10 has been in service for more than five years, consider replacing all connectors on the affected segment during the same maintenance window. This proactive approach eliminates the risk of a second connector failure shortly after the first repair — a scenario that significantly extends total downtime and increases maintenance labor costs.

Spare Parts Support FAQ

Q1: Is the 6GK1500-0AA10 compatible with all PROFIBUS DP baud rates up to 12 Mbit/s?
Yes. The 6GK1500-0AA10 supports all standard PROFIBUS DP transmission rates from 9.6 kbit/s up to 12 Mbit/s. The integrated bus termination network is designed to meet the IEC 61158 impedance requirements across the full baud rate range, making it suitable for both legacy low-speed segments and high-speed motion control or distributed I/O applications.

Q2: How does KNMKS verify the authenticity and functional condition of 6GK1500-0AA10 units before shipment?
Each unit undergoes a visual inspection for mechanical integrity, connector pin condition, and label authenticity. Functional units are tested for correct termination resistance values and connector contact continuity. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Test reports are available upon request for critical procurement orders.

Q3: What is the recommended inventory strategy for 6GK1500-0AA10 in a multi-line factory environment?
For facilities operating more than three PROFIBUS DP segments, we recommend maintaining a minimum buffer stock of two to four 6GK1500-0AA10 connectors per segment in the on-site spare parts cabinet. Annual procurement aligned with planned shutdown schedules reduces emergency sourcing costs and lead time risk. KNMKS supports blanket order arrangements for customers with recurring annual demand, providing price stability and guaranteed allocation.

Q4: Can the 6GK1500-0AA10 replace older Siemens PROFIBUS connector variants in existing installations?
Yes. The 6GK1500-0AA10 is backward compatible with earlier Siemens PROFIBUS DP connector generations used in SIMATIC S5 migration projects and legacy S7-300 installations. The 9-pin Sub-D interface and cable clamping mechanism are standardized across the SIMATIC NET PROFIBUS connector family. Always verify the cable exit angle (90° for 6GK1500-0AA10) matches the physical space constraints of the control cabinet before installation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6GK1500-0AA10
SIMATIC Series

Product Family

Communication Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Network range

Ethernet, fieldbus and gateway modules

Common needs

Protocol, port and controller family

Project support

Machine networking and data integration

Inquiry Support

• Industrial Ethernet and fieldbus module inquiry
• Protocol compatibility review
• Integration project inquiry support

What to Send Us

• Brand and exact model number: Siemens 6GK1500-0AA10
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
