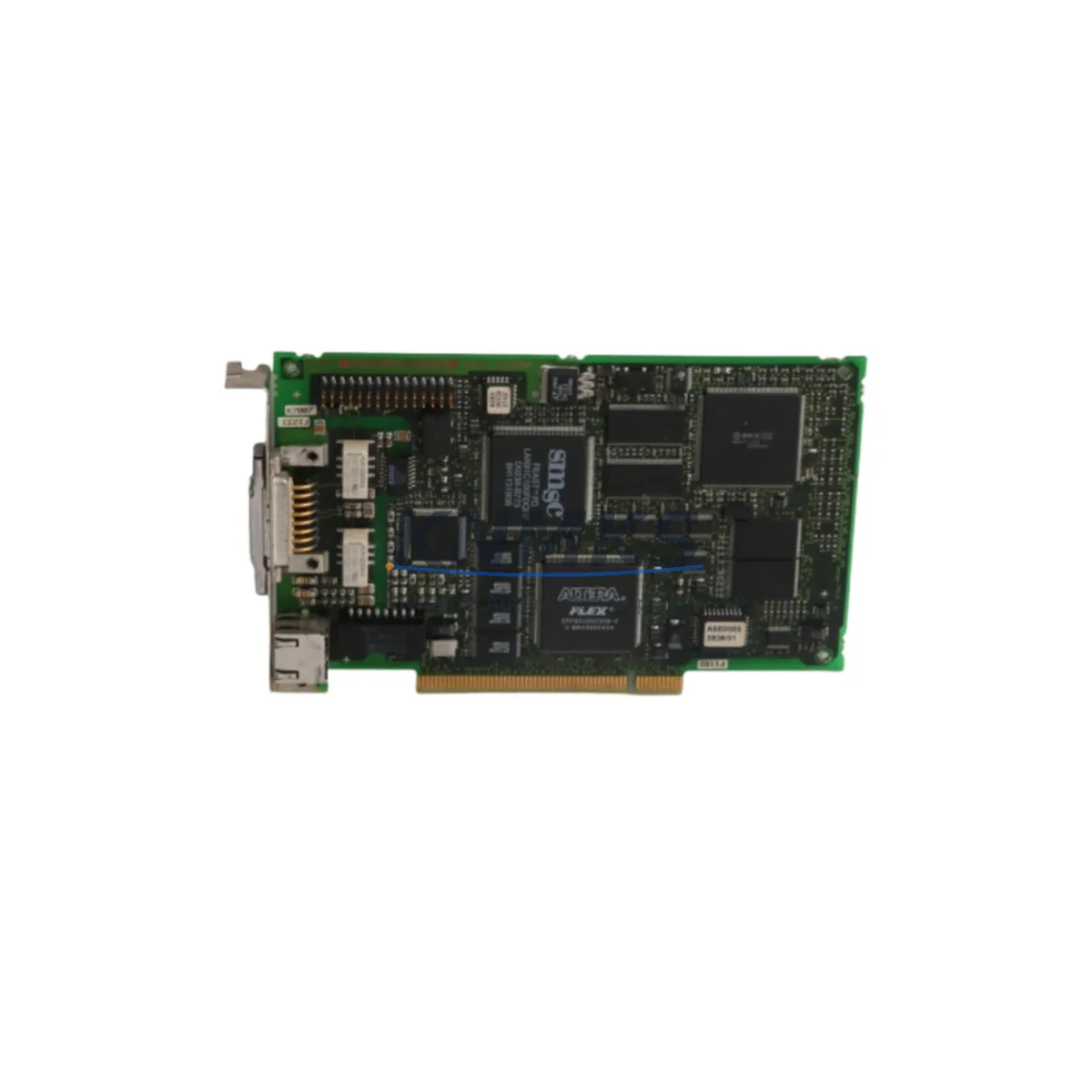

Siemens 6GK1161-3AA00 Fail-Safe Ethernet PCI Module

Overview

Siemens 6GK1161-3AA00 Fail-Safe Ethernet PCI Module: Fault-Tolerant Industrial Control Reliability

The Siemens 6GK1161-3AA00, part of the CP 1613 A2 series, is a ruggedized Industrial Ethernet PCI communication processor engineered for mission-critical automation environments where control interruption is not an option. Designed to integrate directly into industrial PCs and SIMATIC computing platforms, this module delivers deterministic, high-availability Ethernet communication across the most demanding factory floor conditions — including high electromagnetic interference (EMI), dust-laden atmospheres, humidity, thermal cycling, and continuous vibration.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical smelters, water treatment networks, and port logistics systems — the 6GK1161-3AA00 serves as the backbone of real-time PROFINET and Industrial Ethernet communication. Its fail-safe architecture ensures that signal drift, communication anomalies, and transient power fluctuations do not cascade into unplanned shutdowns or dangerous misoperations. The module’s onboard surge protection and EMI shielding guard against voltage spikes and radiated interference that are endemic to heavy industrial switchgear environments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the Siemens 6GK1161-3AA00 does not operate in isolation — it functions as the communication nerve center within a layered protection architecture. When paired with a Siemens SITOP PSU100S 24V DC power supply, the system benefits from regulated, ripple-free DC power that prevents voltage sag from triggering false communication resets or watchdog faults on the CP 1613 A2 module. For cabinet-level surge protection, a Siemens SIMATIC NET OLM/G12 optical link module can be deployed to galvanically isolate Ethernet segments, eliminating ground loop interference between field devices and the control PC.

In high-EMI environments — such as those adjacent to variable frequency drives (VFDs), large contactors, or arc furnaces — the 6GK1161-3AA00 benefits from cabinet-level EMI filtering using Siemens SIMATIC S7-300 series shielded cable assemblies and proper PE bonding rails. For redundant communication path protection, the module integrates seamlessly with Siemens SCALANCE X208 managed Industrial Ethernet switches, which provide RSTP-based ring redundancy and port-level diagnostics to detect and isolate cable faults before they propagate to the PROFINET IO controller layer.

Where cabinet thermal management is a concern — particularly in enclosed panels operating in ambient temperatures above 40 °C — the 6GK1161-3AA00‘s ≤5 W power dissipation profile makes it compatible with passive or low-airflow cooling strategies. Complementing it with a Siemens SIMATIC IPC427E industrial PC ensures the host platform matches the CP 1613 A2’s thermal and vibration ratings, maintaining system-level reliability across the full operating envelope. For safety interlock circuits requiring deterministic response times, the module’s ISO Transport layer support enables direct integration with Siemens S7-400H fault-tolerant PLC configurations, where communication latency and packet loss directly affect safety function response time.

Critical Industrial Safety Applications

The Siemens 6GK1161-3AA00 is deployed across the most demanding industrial safety and process control environments globally:

Petrochemical & Refinery Plants: In continuous hydrocarbon processing, the CP 1613 A2 module enables real-time PROFINET communication between safety PLCs and distributed control systems (DCS). Its EMI immunity and surge protection are critical in environments where high-voltage motor starters and instrumentation share the same cable trays. Any communication dropout in a safety interlock loop — such as emergency shutdown (ESD) or burner management — can trigger costly unplanned shutdowns or, worse, unsafe process states.

Power Generation & Substation Automation: In coal, gas, hydro, and nuclear power plants, the 6GK1161-3AA00 supports IEC 61850-compatible communication architectures when integrated with appropriate protocol gateways. Its robust PCI interface and deterministic Ethernet stack ensure that protection relay data and SCADA polling cycles are not disrupted by the high-frequency switching transients common in generator excitation and transformer switching environments.

Mining & Mineral Processing: Underground and open-pit mining operations subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The CP 1613 A2’s IEC 60068-compliant shock and vibration ratings make it a reliable choice for conveyor control systems, crusher automation, and ventilation safety interlocks where communication failure can endanger personnel.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous SCADA communication for pump control, chemical dosing, and alarm management. The 6GK1161-3AA00 provides the stable Ethernet backbone needed to maintain uninterrupted communication between SIMATIC WinCC SCADA servers and field-level PROFINET IO devices, even in high-humidity pump station environments.

Metallurgy & Steel Production: Rolling mills, electric arc furnaces, and continuous casting lines generate some of the most severe EMI conditions in industry. The CP 1613 A2’s industrial-grade EMC compliance ensures that communication integrity is maintained even when operating in close proximity to high-current bus bars and induction heating systems.

Port & Marine Logistics: Container crane control systems and ship-to-shore communication networks demand high-availability Ethernet connectivity in salt-air, high-humidity environments. The 6GK1161-3AA00‘s sealed RJ45 port and robust PCI form factor support reliable integration into ruggedized operator workstations and crane control PCs.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Siemens 6GK1161-3AA00?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. If the module fails to perform its specified communication functions within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed with priority to minimize your production downtime.

Q2: What pre-shipment testing is performed on the 6GK1161-3AA00 before dispatch?
Every unit undergoes a full functional verification protocol prior to shipment. This includes PCI bus enumeration testing, Ethernet link establishment at 10/100 Mbit/s, PROFINET IO communication handshake verification, and visual inspection for physical integrity. Only units that pass all test criteria are released for dispatch, ensuring you receive a field-ready module.

Q3: Is the 6GK1161-3AA00 compatible with current STEP 7 and TIA Portal engineering environments?
Yes. The CP 1613 A2 is supported by the Siemens CP 1613 A2 driver package, which is compatible with STEP 7 V5.x and TIA Portal V13 and later. It supports PROFINET IO controller and device roles, ISO Transport, and TCP/IP communication. Compatibility with specific OS versions (Windows Server, Windows 10/11 Industrial) should be verified against the current Siemens product compatibility matrix for your project configuration.

Q4: Can you guarantee long-term supply and replacement support for the 6GK1161-3AA00?
We maintain forward stock of the Siemens 6GK1161-3AA00 specifically to support customers with long-lifecycle automation systems where OEM lead times may extend to 16–26 weeks. Our inventory buffer program ensures that replacement units are available for immediate dispatch, supporting your planned maintenance cycles, emergency spares strategy, and MRO procurement requirements without dependency on OEM production schedules.
