Siemens 6GK1143-0TB01 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6GK1143-0TB01 Maintenance-Proven Spare Part for Factory Uptime

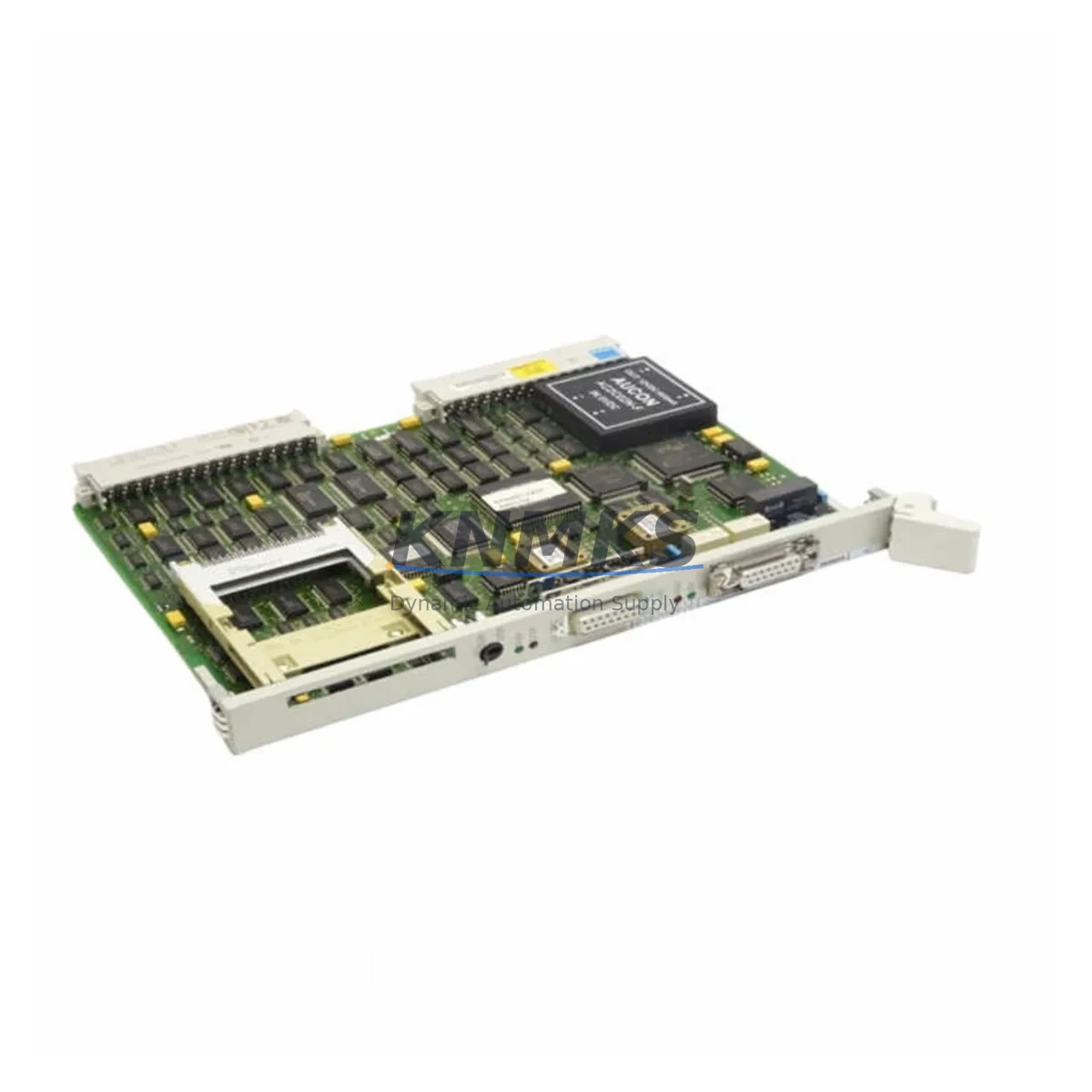

The Siemens 6GK1143-0TB01 is a CP 143 Communications Processor designed for the S7-300 SIMATIC NET platform, providing reliable SINEC TF (Token-Ring) network connectivity for distributed automation systems. As a maintenance-proven spare part, the 6GK1143-0TB01 is a critical component in control cabinets where uninterrupted communication between PLCs, field devices, and supervisory systems is essential for continuous production. Sourced as an original spare, each unit is tested prior to shipment and backed by a support terms confirmed by quotation, ensuring procurement confidence for maintenance engineers and spare parts managers operating in demanding industrial environments.

For facilities running legacy S7-300 racks, the 6GK1143-0TB01 represents a direct, drop-in replacement that preserves existing network topology without requiring system reconfiguration. Its compatibility with the S7-300 backplane and standard SIMATIC NET architecture makes it a preferred choice for annual overhauls, emergency shutdowns, and planned preventive maintenance cycles. Procurement engineers can rely on long-term stock availability and standardized lead times to maintain buffer inventory without capital risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for systems using the 6GK1143-0TB01 requires a holistic view of the control cabinet and network segment. When replacing this communications processor, maintenance engineers should simultaneously inspect and verify the condition of adjacent components to prevent cascading failures and minimize repeat downtime events.

Begin with the S7-300 power supply module (such as the PS 307 series) to confirm stable 24 VDC rail voltage, as voltage fluctuations are a leading cause of premature CP module failure. Inspect the S7-300 backplane bus connector for oxidation or mechanical damage, since a degraded bus connection will cause intermittent communication faults that are difficult to distinguish from a faulty CP module. Review the CPU module (e.g., CPU 315 or CPU 317 series) diagnostic buffer for any logged communication errors that predate the failure, which can indicate whether the fault originated in the CP or upstream in the network.

On the network side, verify the integrity of the SINEC TF Token-Ring cabling and connectors, including termination resistors and ring closure. A single open or shorted segment can bring down the entire ring network. If the installation includes SIMATIC NET OLMs (Optical Link Modules) or media converters, inspect these for fault LEDs and verify fiber continuity. For cabinets that also host ET 200 distributed I/O or IM 360/361 interface modules, confirm that the rack expansion bus is functioning correctly, as I/O communication errors are sometimes misattributed to the CP module.

Additionally, check 24 VDC fuse protection for the CP slot and adjacent modules, and inspect terminal blocks and cable ferrules for loose connections that may cause intermittent ground faults. Where signal isolators are used between the PLC rack and field instrumentation, verify isolation integrity to prevent noise-induced communication disruption. For sites with SIMATIC HMI panels connected via MPI or PROFIBUS, confirm that the HMI communication parameters remain aligned after CP replacement to avoid operator interface downtime.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the 6GK1143-0TB01, document the current network configuration using STEP 7 or TIA Portal (if applicable). Export the hardware configuration and note the CP slot address, network parameters, and any configured connections. This ensures rapid re-commissioning after module swap.

Step 2 — Safe Isolation: Place the S7-300 CPU in STOP mode. De-energize the rack using the main cabinet isolator. Do not remove the CP module under power, as hot-swap is not supported on the S7-300 backplane bus. Verify zero voltage on the rack before proceeding.

Step 3 — Module Removal and Inspection: Remove the 6GK1143-0TB01 by releasing the front panel latch and sliding the module off the backplane. Inspect the backplane connector pins for damage or contamination. Clean with isopropyl alcohol if required before installing the replacement unit.

Step 4 — Replacement Installation: Install the new 6GK1143-0TB01 into the same rack slot. Ensure the backplane connector is fully seated. Re-connect the SINEC TF network cable and verify termination. Restore power and set the CPU to RUN mode.

Step 5 — Functional Verification: Use STEP 7 diagnostics to confirm the CP module is recognized and online. Verify network communication is restored by checking the diagnostic buffer and confirming zero active faults. Test all connected network nodes to confirm ring integrity before returning the system to production.

Compatibility Note: The 6GK1143-0TB01 is a direct replacement for the same SKU in all S7-300 rack configurations. No firmware update or hardware configuration change is required when replacing like-for-like. For cross-series migration scenarios, consult the SIMATIC NET compatibility matrix to confirm slot and protocol alignment.

Spare Parts Support FAQ

Q1: Is the 6GK1143-0TB01 available as a long-term spare with guaranteed stock?
Yes. We maintain buffer stock of the 6GK1143-0TB01 to support both emergency replacement and planned annual maintenance procurement. Long-term supply availability is confirmed at the time of inquiry, and we provide lead time commitments to support your spare parts planning cycle.

Q2: What testing is performed before shipment?
Each 6GK1143-0TB01 unit undergoes functional verification prior to dispatch, including power-on testing and communication interface checks. Units are shipped with a test report and are covered by a support terms confirmed by quotation from the date of delivery, covering defects in materials and workmanship under normal operating conditions.

Q3: Can this module replace a failed CP 143 in an existing S7-300 rack without reconfiguring the hardware?
Yes, for like-for-like replacement within the same S7-300 rack, no hardware reconfiguration is required. The replacement 6GK1143-0TB01 will be recognized automatically by the CPU using the existing STEP 7 hardware configuration. Verify that the network parameters (station address, baud rate, ring topology) are correctly retained in the CPU configuration before returning to RUN mode.

Q4: How should procurement engineers manage inventory risk for discontinued or aging SIMATIC NET components?
For aging S7-300 SIMATIC NET components such as the 6GK1143-0TB01, we recommend maintaining a minimum of one spare unit per active rack in critical production lines. Procurement engineers should align spare parts orders with annual maintenance windows to avoid emergency procurement premiums. We offer volume pricing for multi-unit orders and can provide a certificate of conformity and country of origin documentation to support internal procurement compliance requirements.
