Siemens 6ES7972-0DA00-0AA0 Fail-Safe PROFIBUS DP Terminator

Overview

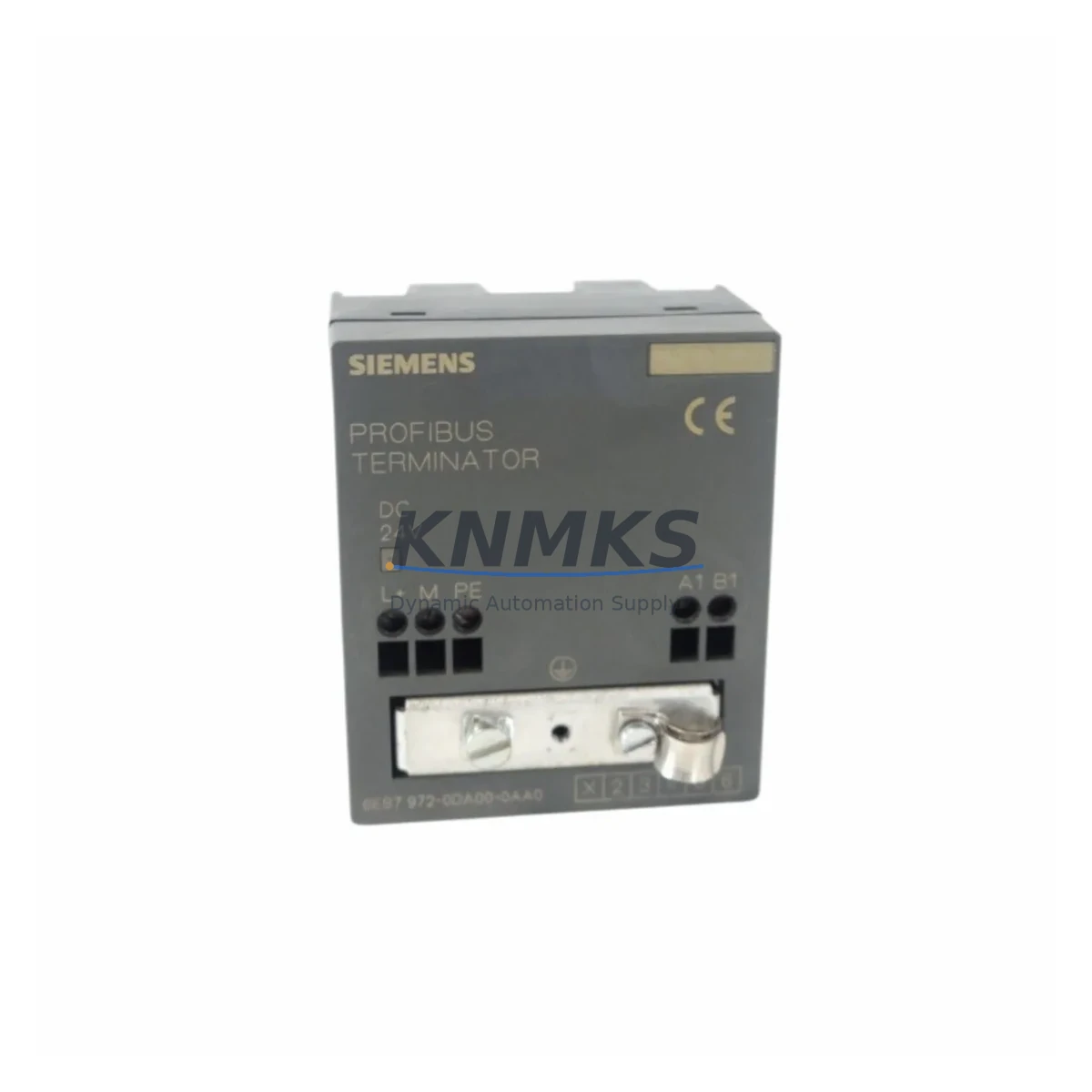

Siemens 6ES7972-0DA00-0AA0 Fail-Safe PROFIBUS DP Terminator for Critical Industrial Control Reliability

The Siemens 6ES7972-0DA00-0AA0 is a PROFIBUS DP Bus Terminator engineered for fail-safe signal integrity in demanding industrial automation environments. As a passive termination component within the SIMATIC NET PROFIBUS DP architecture, it prevents signal reflection and bus instability that can trigger unplanned shutdowns, communication faults, and cascading control failures across distributed I/O networks. In continuous production facilities — including petrochemical plants, power generation stations, metallurgical lines, and water treatment infrastructure — even a single PROFIBUS segment fault can halt an entire process line. This terminator is the last line of defense against that risk.

Designed to operate reliably across the full range of industrial field conditions, the 6ES7972-0DA00-0AA0 maintains stable bus termination under high electromagnetic interference (EMI), voltage fluctuations, surge events, and thermal cycling. Its compact form factor integrates directly into PROFIBUS DP connector assemblies, making it compatible with Siemens SIMATIC S7-300, S7-400, and ET 200 distributed I/O systems without additional wiring or configuration overhead. For maintenance engineers managing legacy control infrastructure, this component provides a direct, drop-in replacement that restores bus integrity without requiring system reconfiguration.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered PROFIBUS DP control cabinet, the 6ES7972-0DA00-0AA0 terminator works in concert with a broader set of protection and communication components to ensure uninterrupted field bus operation. At the network layer, the Siemens 6GK1500-0FC10 PROFIBUS DP bus connector provides the physical interface between the cable segment and the terminator, maintaining correct impedance matching across the segment. For multi-segment or long-distance PROFIBUS runs, the Siemens 6ES7972-0AA02-0XA0 PROFIBUS connector with integrated termination resistor is often deployed at intermediate nodes, while the 6ES7972-0DA00-0AA0 handles the segment end.

Power supply stability is equally critical in these environments. Voltage dips or transients on the 24 VDC rail — common in heavy motor-start or welding-adjacent cabinets — can cause PROFIBUS DP masters such as the Siemens CP 342-5 (6GK7342-5DA02-0XE0) to log spurious communication errors. Pairing the terminator with a regulated SITOP power supply module ensures the bus master maintains stable operation even during load switching events. For cabinets operating in high-vibration environments such as mining conveyors or port crane control rooms, the Siemens 6ES7392-1AJ00-0AA0 front connector with strain relief provides additional mechanical protection at the I/O module interface, reducing the risk of intermittent contact faults that mimic bus termination failures.

In safety-instrumented systems (SIS) or interlock loops where PROFIBUS DP carries signals from pressure transmitters, valve positioners, or emergency shutdown (ESD) modules, the integrity of the bus termination directly affects the reliability of the safety function. A missing or degraded terminator can cause reflection-induced bit errors that trigger nuisance trips or — more critically — mask genuine fault signals. The 6ES7972-0DA00-0AA0 eliminates this failure mode at the hardware level, supporting the overall safety architecture without requiring software intervention.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments with explosive atmospheres, PROFIBUS DP networks connect field instruments, valve actuators, and safety PLCs across long cable runs. Bus termination faults in these segments can cause false ESD activations or communication blackouts during critical process transitions. The 6ES7972-0DA00-0AA0 ensures segment-end signal integrity, supporting uninterrupted HART-over-PROFIBUS and standard DP communication in Zone 1 and Zone 2 classified areas.

Power Generation and Substation Automation: High-voltage switching operations generate significant electromagnetic transients that propagate through control cabinet wiring. PROFIBUS DP segments without proper termination are particularly vulnerable to these transients, leading to master-slave synchronization loss. This terminator’s passive impedance matching absorbs reflections before they can corrupt cyclic data exchange between the S7-400 CPU and remote ET 200 I/O stations.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and humidity. PROFIBUS DP networks in these environments require robust physical layer components that maintain specification across thermal cycling and mechanical stress. The 6ES7972-0DA00-0AA0, mounted within sealed connector assemblies, provides reliable termination even in these conditions, reducing the mean time to repair (MTTR) when bus faults occur by eliminating termination as a diagnostic variable.

Water and Wastewater Treatment: Pump stations and treatment facilities operate 24/7 with minimal on-site technical staff. PROFIBUS DP communication faults in these environments can disable dosing control, flow monitoring, or alarm systems. Correct bus termination with the 6ES7972-0DA00-0AA0 reduces the probability of communication-induced process upsets, supporting long-interval maintenance schedules.

Metallurgy and Steel Production: Rolling mills and furnace control systems operate under extreme thermal and electromagnetic stress. PROFIBUS DP segments in these environments carry real-time position and temperature data where communication latency or errors directly impact product quality and equipment safety. Proper termination is a prerequisite for deterministic bus cycle times in these high-speed control loops.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7972-0DA00-0AA0?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. If the terminator fails to maintain correct bus termination resistance or exhibits physical defects attributable to manufacturing, we will replace or refund the unit. Support requests are processed with pre-return verification to minimize downtime.

Q2: How is the unit tested before shipment?
Each 6ES7972-0DA00-0AA0 unit undergoes pre-shipment functional verification, including termination resistance continuity checks and visual inspection for connector pin integrity and shielding contact. Units that do not meet specification are quarantined and not dispatched. A test record is available upon request for critical spare part procurement.

Q3: Is this terminator compatible with third-party PROFIBUS DP systems, or only Siemens hardware?
The 6ES7972-0DA00-0AA0 conforms to the PROFIBUS DP physical layer standard (EN 50170 / IEC 61158), making it compatible with any PROFIBUS DP network regardless of master or slave manufacturer. It is commonly used with Siemens SIMATIC systems but functions correctly with ABB, Schneider, Rockwell, and other PROFIBUS-compliant devices. Connector compatibility with the standard 9-pin Sub-D PROFIBUS connector format should be verified for non-Siemens connector housings.

Q4: Can long-term supply be guaranteed for this part, and what is the lead time for restocking?
We maintain dedicated stock of the 6ES7972-0DA00-0AA0 to support maintenance and MRO procurement programs. For facilities requiring scheduled spare part replenishment, we offer forward stock reservation and blanket order arrangements. Standard in-stock orders ship within 1–3 business days. For bulk or project quantities, contact our sales team to confirm availability and lead time commitments.
