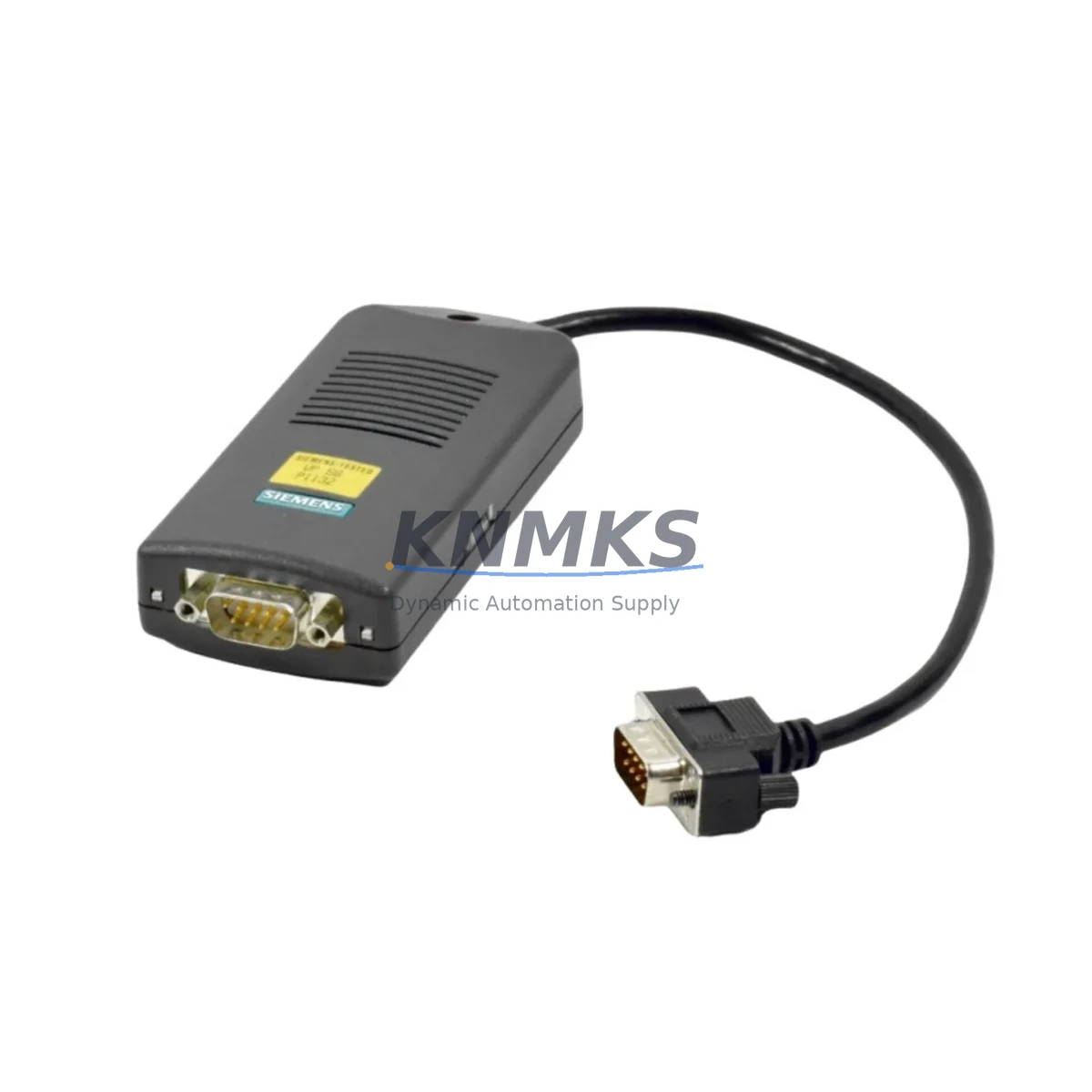

Siemens 6ES7972-0CA23-0XA0 Migration-Ready PC Adapter

Overview

Siemens 6ES7972-0CA23-0XA0 Migration-Ready PC Adapter: Legacy System Retrofit & Compatibility Upgrade

The Siemens 6ES7972-0CA23-0XA0 is a USB-based PC Adapter designed for direct communication between a programming device or laptop and SIMATIC S7-300 and S7-400 PLCs via MPI or PROFIBUS-DP networks. As legacy automation systems face end-of-life pressures, this adapter has become a critical component in retrofit projects, discontinued spare part replacement programs, and control cabinet modernization initiatives across manufacturing, energy, water treatment, and process industries.

Whether you are replacing a failed 6ES7972-0CA20-0XA0 or an older 6ES7972-0CB20-0XA0 RS-232 variant, the 6ES7972-0CA23-0XA0 provides a direct migration path without requiring changes to the underlying PLC program logic, network topology, or STEP 7 project configuration. Its plug-and-play USB interface eliminates the need for serial port adapters or additional driver stacks, significantly reducing commissioning time during planned maintenance windows or emergency replacements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6ES7972-0CA23-0XA0 into an existing control system requires a structured pre-retrofit assessment. Engineers should begin by auditing the current MPI or PROFIBUS-DP network segment, confirming the number of active nodes, the assigned MPI address of the programming device (typically node 0), and the network baud rate. In most S7-300 installations, the CPU — such as a CPU 315-2 DP or CPU 317-2 PN/DP — will be configured at MPI address 2, with the programming device at address 0. Verifying these assignments in the STEP 7 hardware configuration before swapping the adapter prevents address conflicts that could interrupt network communication.

When the retrofit involves a broader control cabinet upgrade — for example, migrating from an older S7-300 rack with a PS 307 power supply module to a newer configuration — engineers should simultaneously inspect the 24 VDC power rail capacity. Adding new I/O modules such as SM 321 digital input modules or SM 331 analog input modules to the existing rack increases the total current draw on the backplane bus, and the power supply must be re-evaluated accordingly. The 6ES7972-0CA23-0XA0 itself draws power from the USB port of the connected PC and does not load the PLC backplane, which simplifies power budgeting during the retrofit.

For systems that include a CP 342-5 PROFIBUS communication processor or a CP 343-1 Ethernet module, the PC Adapter operates in parallel with these modules on the MPI segment without interference, provided that proper bus termination is maintained at both ends of the cable. Engineers should confirm that the PROFIBUS cable — typically a 9-pin Sub-D connector with integrated termination resistor — is correctly terminated, especially when the adapter is connected at a physical end of the bus segment.

In retrofit scenarios involving HMI panels such as a TP 177B or MP 277, the existing HMI project in WinCC flexible must be reviewed to ensure that the MPI connection parameters match the updated network configuration. If the HMI communicates with the CPU via MPI and the programming adapter is simultaneously connected during commissioning, the MPI address of the adapter must not conflict with the HMI node address. This is a common source of communication errors during live commissioning and should be verified before powering up the modified network segment.

For installations where the legacy programming cable was an RS-232 PC Adapter (6ES7972-0CB20-0XA0), the transition to the USB-based 6ES7972-0CA23-0XA0 eliminates the dependency on a physical COM port, which is no longer available on most modern laptops and industrial PCs. This makes the 6ES7972-0CA23-0XA0 the preferred replacement in environments where the programming device has been upgraded as part of a broader IT refresh cycle.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live production environment undergoing a control system retrofit. When replacing a failed or end-of-life PC Adapter, the 6ES7972-0CA23-0XA0 can be installed and operational within minutes, provided that the USB driver has been pre-installed on the programming device before the maintenance window begins. Siemens provides the required driver package as part of the STEP 7 installation, and it can also be installed independently on a laptop that will be used exclusively for field commissioning.

Before disconnecting the existing adapter, engineers should perform a full program upload from the CPU to the programming device and save the project to a local backup. This ensures that the original ladder logic, function block diagrams, and data block contents are preserved and can be restored immediately if the replacement process encounters an unexpected issue. For CPUs with a memory card — such as those using a Siemens MMC (Micro Memory Card) — the program is stored on the card itself, which provides an additional layer of protection against data loss during the adapter swap.

Once the 6ES7972-0CA23-0XA0 is connected and the driver is recognized by the operating system, the STEP 7 PG/PC interface should be set to “PC Adapter (USB)” in the “Set PG/PC Interface” dialog. The adapter will automatically detect the MPI baud rate of the connected network, typically 187.5 kbps for S7-300 systems. After establishing the online connection, engineers should perform a “Module Information” check on the CPU to confirm firmware version, operating mode, and diagnostic buffer status before resuming production operations.

For planned retrofit projects with a defined maintenance window, a pre-tested spare unit of the 6ES7972-0CA23-0XA0 should be kept on-site as a hot standby. This eliminates the risk of extended downtime caused by shipping delays for a critical spare part. All units supplied by KNMKS are pre-tested for MPI and PROFIBUS-DP communication functionality and shipped with a support terms confirmed by quotation, ensuring that the replacement unit is ready for immediate deployment upon arrival.

Retrofit Support FAQ

Q1: Is the 6ES7972-0CA23-0XA0 a direct replacement for the 6ES7972-0CA20-0XA0?
Yes. The 6ES7972-0CA23-0XA0 is the current production version and is a direct functional replacement for the earlier 6ES7972-0CA20-0XA0. Both units use a USB interface and support MPI and PROFIBUS-DP communication. No changes to the STEP 7 project or PLC hardware configuration are required when substituting one for the other.

Q2: Can this adapter be used with TIA Portal for S7-300 and S7-400 programming?
Yes, with limitations. TIA Portal supports S7-300 and S7-400 CPUs in legacy mode. The 6ES7972-0CA23-0XA0 can be used as the communication interface in TIA Portal when the PG/PC interface is configured accordingly. For full TIA Portal functionality with newer S7-1200 or S7-1500 CPUs, a PROFINET-based connection is recommended instead.

Q3: What should I verify regarding wiring and termination before commissioning?
Confirm that the PROFIBUS/MPI cable uses the correct 9-pin Sub-D connector with the termination resistor switch set to “ON” at both physical ends of the bus segment. Verify that the cable length does not exceed the maximum allowed for the configured baud rate (e.g., 1,000 m at 187.5 kbps). Ensure that no intermediate nodes have their termination resistors enabled, as this will cause signal reflections and communication errors.

Q4: Does KNMKS provide pre-shipment testing and support terms coverage?
Yes. Every 6ES7972-0CA23-0XA0 unit supplied by KNMKS undergoes functional testing for MPI and PROFIBUS-DP communication before shipment. All units are covered by a support terms confirmed by quotation from the date of delivery. In-stock units are available for same-day or next-business-day dispatch, supporting urgent replacement requirements in production environments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7972-0CA23-0XA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7972-0CA23-0XA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
