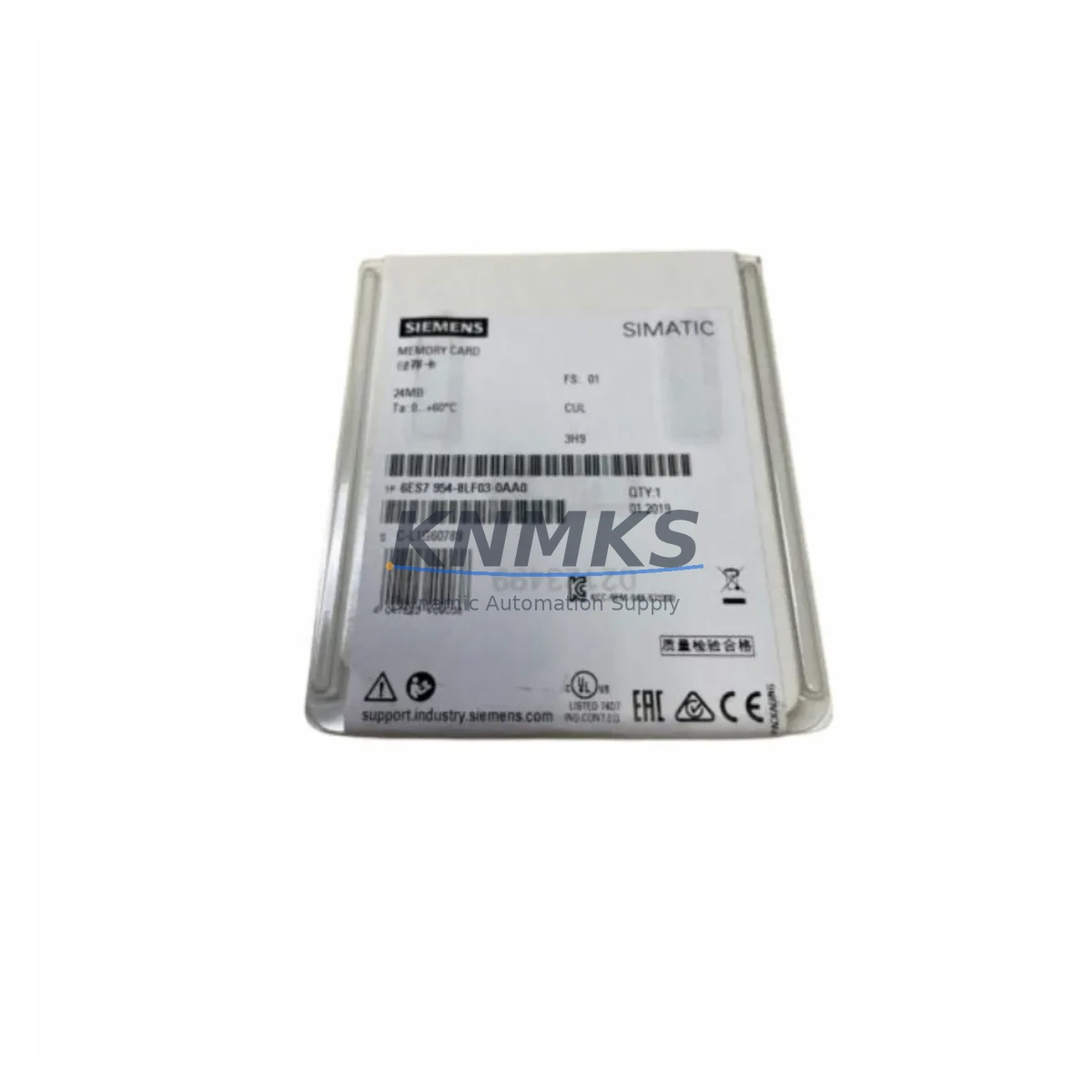

Siemens 6ES7954-8LF03-0AA0 S7 Memory Card Spare Part: Maintenance-Proven for Factory Uptime

The Siemens 6ES7954-8LF03-0AA0 is a 24MB SIMATIC Memory Card designed for use with the S7-1500 and S7-1200 controller families. As a maintenance-proven original spare part, it plays a critical role in factory continuity — enabling rapid program restoration, firmware updates, and CPU replacement without downtime. For maintenance engineers managing aging SIMATIC installations or procurement teams building strategic spare parts inventories, the 6ES7954-8LF03-0AA0 is a non-negotiable line item in any S7-based control cabinet BOM.

This memory card stores the complete CPU project, including program blocks, hardware configuration, and data records. In the event of a CPU failure or planned replacement, inserting a pre-loaded 6ES7954-8LF03-0AA0 into a replacement S7-1500 CPU — such as the CPU 1511-1 PN or CPU 1516-3 PN/DP — allows the system to boot directly from card, restoring production in minutes rather than hours. This capability is central to any lean maintenance strategy targeting minimal mean time to repair (MTTR).

Each unit shipped from KNMKS is sourced from verified supply channels, function-tested prior to dispatch, and covered by a support terms confirmed by quotation. We support long-term supply continuity for customers managing multi-site SIMATIC fleets or executing phased modernization programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or provisioning the 6ES7954-8LF03-0AA0 in a SIMATIC S7-1500 control cabinet, a thorough inspection of adjacent components is essential to prevent cascading failures and ensure system integrity after restoration.

Begin with the CPU power supply module — typically a PM 70W 120/230VAC or PM 190W 120/230VAC — verifying output voltage stability and checking for capacitor aging or thermal stress indicators. A degraded power supply is a common root cause of memory card read errors and CPU faults. Alongside the power supply, inspect the 24VDC system power supply feeding the I/O modules and field devices; voltage ripple outside tolerance can corrupt write cycles on the memory card.

Next, audit the digital and analog I/O modules installed in the same rack — modules such as the SM 521 DI or SM 531 AI — for channel faults, blown fuse indicators, or wiring terminal corrosion. A memory card swap is often the trigger for a full rack inspection, and catching a failing I/O module at this stage avoids a second unplanned outage.

For systems using PROFINET or PROFIBUS communication modules (e.g., CM 1542-1 or CP 1543-1), verify network link status and check for firmware version compatibility with the restored CPU project on the new memory card. Mismatched firmware between the CPU project and communication module firmware is a frequent source of post-restoration faults.

Inspect relay output modules and terminal blocks in the control cabinet for contact wear, loose terminations, and insulation degradation — particularly in high-cycle applications. If the system includes signal isolators or barriers for intrinsically safe field loops, verify isolation resistance and check for drift in analog signal conditioning. Finally, confirm that any HMI panels (such as a KTP700 Basic or TP1200 Comfort) connected to the CPU are running compatible runtime versions and that their project files are aligned with the restored CPU configuration.

Maintaining a pre-loaded spare 6ES7954-8LF03-0AA0 — with the latest validated project image — in your on-site spare parts kit is the single most effective measure for reducing S7-1500 recovery time to under 15 minutes.

Site Replacement Workflow

Step 1 — Power down safely: Follow your site LOTO procedure. Remove the CPU module from the S7-1500 rack after confirming the system is de-energized.

Step 2 — Extract the old memory card: Press the card release on the CPU front panel. Remove the existing 6ES7954-8LF03-0AA0 (or predecessor card) and label it with the removal date and fault description for traceability.

Step 3 — Insert the replacement card: Insert the new 6ES7954-8LF03-0AA0 into the CPU memory card slot until it clicks. Ensure the card is fully seated — partial insertion causes boot errors.

Step 4 — Reinstall and power up: Reinstall the CPU module into the rack. Apply power and observe the CPU RUN/STOP LED. The CPU will load the project from the memory card automatically on first boot.

Step 5 — Verify and validate: Connect via TIA Portal or the CPU web server to confirm the loaded project version, check I/O status, and verify communication links are active. Run a short functional test before returning the line to production.

Step 6 — Update maintenance records: Log the replacement in your CMMS with the new card serial number, project version loaded, and test results. Store the removed card for root cause analysis if applicable.

This workflow is compatible with all S7-1500 CPU variants and supports hot-swap scenarios where the CPU is replaced as a unit. The 6ES7954-8LF03-0AA0’s plug-and-play architecture eliminates the need for a programming device at the point of replacement, making it ideal for sites with limited on-site engineering resources.

Spare Parts Support FAQ

Q1: Is the 6ES7954-8LF03-0AA0 compatible with all S7-1500 CPU variants?
Yes. The 6ES7954-8LF03-0AA0 is the standard SIMATIC Memory Card for the entire S7-1500 family, including compact, standard, and advanced CPUs (CPU 1511 through CPU 1518), as well as S7-1200 CPUs. Always verify that the TIA Portal project version stored on the card matches the firmware version of the target CPU before insertion.

Q2: Can I use this card as a pre-loaded backup for emergency replacement?
Yes, and this is the recommended practice. Load the latest validated project onto the card using TIA Portal, seal it in an ESD-safe bag, and store it in your on-site spare parts cabinet. In an emergency, the replacement CPU will boot directly from the card without requiring a programming device on site.

Q3: What pre-shipment testing does KNMKS perform on this memory card?
Each 6ES7954-8LF03-0AA0 unit is function-verified prior to dispatch — confirming card recognition, read/write integrity, and physical connector condition. Units are shipped in ESD-protective packaging. A support terms confirmed by quotation cover defects in materials and workmanship from the date of receipt.

Q4: How does KNMKS support long-term supply for this part?
KNMKS maintains stock of the 6ES7954-8LF03-0AA0 and monitors supply continuity for SIMATIC S7 memory cards. For customers managing multi-site fleets or annual maintenance contracts, we offer volume pricing and scheduled delivery programs. Contact [email protected] to discuss blanket order arrangements or multi-unit spare kits.
