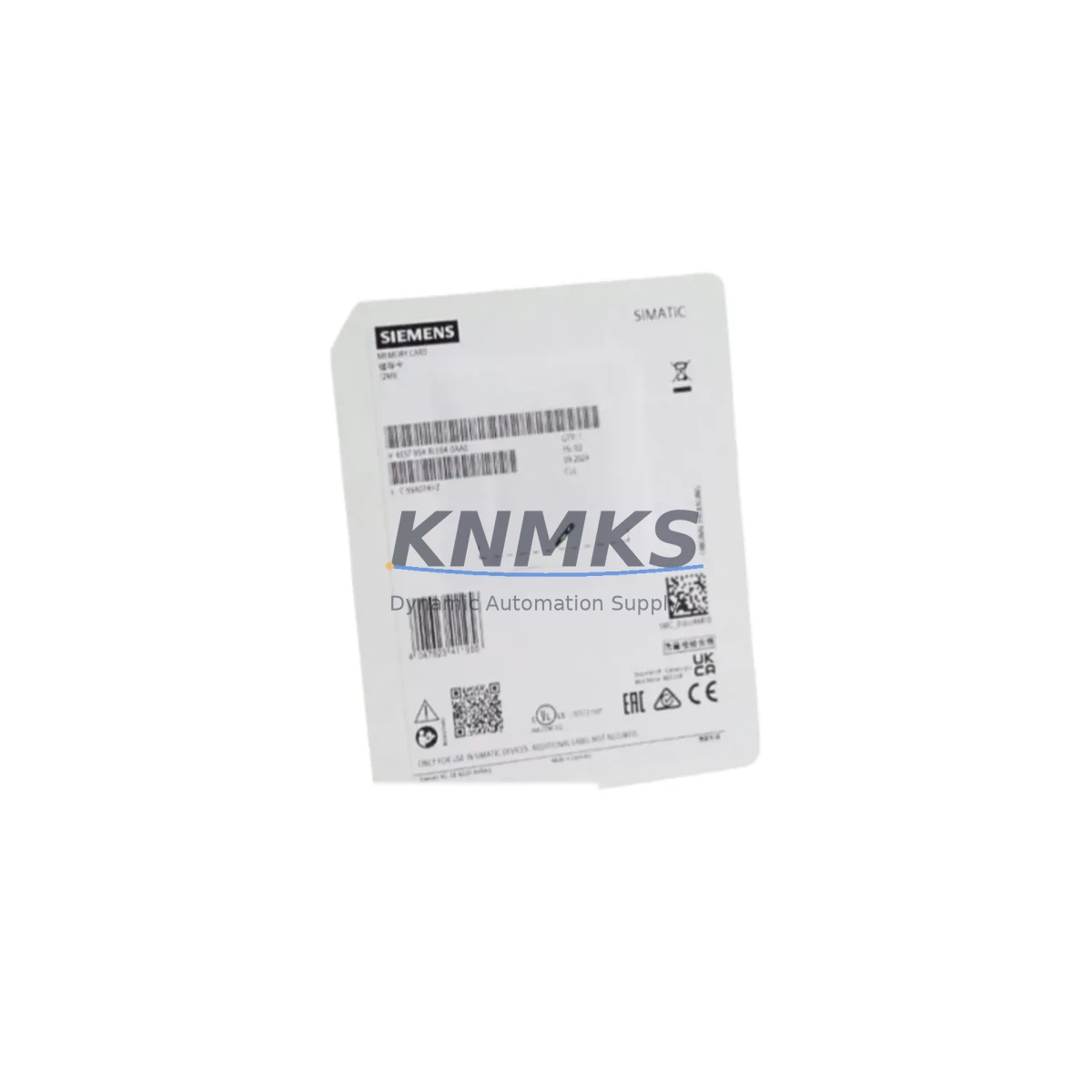

Siemens 6ES7954-8LE04-0AA0 Fail-Safe PLC Memory Card

Overview

Siemens 6ES7954-8LE04-0AA0 Fail-Safe PLC Memory Card: Fault-Protection and Critical Industrial Field Reliability

The Siemens 6ES7954-8LE04-0AA0 is a 4 MB SIMATIC Memory Card engineered for the SIMATIC S7-1200 and S7-1500 controller families — two of the most widely deployed programmable logic controller platforms in continuous process industries worldwide. Designed to operate as the primary program and data storage medium within the CPU module, this memory card is a foundational component for any control cabinet where unplanned downtime, program loss, or data corruption carries serious operational or safety consequences.

In demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous manufacturing cells — the integrity of the PLC program memory is non-negotiable. A corrupted or failed memory card can trigger uncontrolled shutdowns, defeat safety interlocks, or cause cascading faults across an entire production line. The 6ES7954-8LE04-0AA0 addresses these risks through its industrial-grade SIMATIC flash memory architecture, which provides robust resistance to power fluctuations, voltage surges, and the electromagnetic interference (EMI) that is endemic to heavy-load control cabinets housing variable frequency drives, contactors, and high-current switching devices.

Within a properly configured S7-1500 safety system, this memory card stores not only the standard user program but also the F-program (Fail-Safe program) blocks that govern safety-rated I/O modules such as the ET 200SP F-DI and F-DO series. Loss of this data — even momentarily — can force the safety CPU into a safe state, halting production. The 6ES7954-8LE04-0AA0 is rated for the thermal and vibration conditions typical of industrial control enclosures, ensuring that program retention is maintained even during thermal cycling, mechanical shock, or brief power interruptions caused by upstream switching events.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet for continuous process or safety-critical applications is never built around a single component. The Siemens 6ES7954-8LE04-0AA0 memory card functions as the program backbone of the S7-1500 or S7-1200 CPU, but its operational integrity depends on the quality of the surrounding cabinet architecture.

On the power supply side, the Siemens SITOP PSU8200 series 24 VDC regulated power supply provides the stable, low-ripple DC bus that flash memory devices require to avoid write errors during power cycling. Pairing the 6ES7954-8LE04-0AA0 with a SITOP UPS1600 uninterruptible power supply module ensures that the CPU completes any active write cycle to the memory card before a controlled shutdown occurs during mains interruptions — preventing partial writes that could corrupt the stored program.

For communication integrity, the Siemens SCALANCE X208 managed Industrial Ethernet switch provides deterministic PROFINET communication between the S7-1500 CPU and distributed I/O stations. In high-EMI environments, signal integrity on the PROFINET bus directly affects whether the CPU can execute its program cycle without communication faults that might trigger a warm restart — and a warm restart always involves a re-read of the memory card. A stable network reduces unnecessary card access cycles and extends service life.

On the I/O side, ET 200SP F-DI 8x24VDC HF fail-safe digital input modules and ET 200SP F-DO 4x24VDC/2A PP HF fail-safe digital output modules rely on the F-program stored on the 6ES7954-8LE04-0AA0 to execute their safety functions. Any memory card failure that prevents the F-CPU from loading its safety program will force these modules into their safe state — typically de-energizing all outputs — which in a running process can mean an uncontrolled shutdown. Maintaining a verified spare 6ES7954-8LE04-0AA0 with a pre-loaded and tested program image is therefore a standard practice in IEC 61511-compliant safety instrumented systems.

For surge and transient protection at the cabinet entry point, Siemens DEHN or equivalent Type 2 SPD (Surge Protective Device) modules on the 24 VDC rail protect the CPU and its memory card from voltage transients caused by nearby motor starts, capacitor bank switching, or lightning-induced surges on field cable runs. These transients are a leading cause of premature flash memory degradation in field-installed PLCs.

Critical Industrial Safety Applications

The Siemens 6ES7954-8LE04-0AA0 is deployed across a broad range of safety-critical and continuous-process industrial sectors:

Petrochemical and Refinery Plants: In hydrocarbon processing, the S7-1500F CPU running its F-program from this memory card manages emergency shutdown (ESD) logic, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS). Program integrity is a regulatory requirement under IEC 61511 / ISA 84. A spare 6ES7954-8LE04-0AA0 with a validated program image enables rapid CPU replacement without re-engineering downtime.

Power Generation and Substation Automation: Turbine control, generator protection relay coordination, and transformer cooling control systems built on S7-1500 platforms depend on the memory card for deterministic program execution. In grid-connected facilities, a PLC restart caused by memory card failure can trigger protection relay miscoordination and unplanned grid disconnection.

Mining and Mineral Processing: Conveyor interlock systems, crusher protection, and ventilation safety controls in underground and surface mining operations operate in high-vibration, high-dust environments. The industrial flash memory of the 6ES7954-8LE04-0AA0 is qualified for these conditions, and its non-volatile retention ensures that program data survives the frequent power interruptions common in mining electrical systems.

Water and Wastewater Treatment: SCADA-integrated S7-1200 and S7-1500 controllers managing pump stations, dosing systems, and UV disinfection units require continuous, unattended operation. Memory card reliability directly affects the availability of these systems, which are often classified as critical infrastructure.

Metallurgy and Steel Production: Rolling mill automation, furnace temperature control, and ladle handling systems operate under extreme thermal and electromagnetic stress. The 6ES7954-8LE04-0AA0’s rated operating temperature range and EMI compliance make it suitable for control cabinets installed in close proximity to induction furnaces and high-current bus bars.

Port Logistics and Ship-to-Shore Cranes: Container crane PLC systems using S7-1500 controllers for anti-sway, load monitoring, and emergency stop functions require memory cards that can withstand the vibration and humidity cycles of marine port environments. The 6ES7954-8LE04-0AA0 meets these requirements and supports rapid spare-part replacement to minimize crane downtime during peak port operations.

Safety and Quality FAQ

Q1: What support terms coverage does the 6ES7954-8LE04-0AA0 carry?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed with priority to minimize control system downtime. Replacement units are dispatched from in-stock inventory upon claim verification.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7954-8LE04-0AA0 undergoes 100% functional verification before dispatch. Testing includes read/write cycle validation, compatibility confirmation with S7-1200 and S7-1500 CPU firmware versions, and visual inspection for connector integrity. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is this memory card compatible with S7-1500F Fail-Safe CPUs and safety program storage?
Yes. The 6ES7954-8LE04-0AA0 is the standard SIMATIC Memory Card format used by all S7-1500 and S7-1200 CPUs, including the S7-1500F and S7-1200F Fail-Safe variants. It stores both standard user program blocks and F-program (Fail-Safe) blocks. It is compatible with TIA Portal V13 SP1 and all subsequent versions used for safety-rated programming.

Q4: Can KNMKS support long-term and blanket order supply for maintenance programs?
Yes. KNMKS maintains dedicated stock of the 6ES7954-8LE04-0AA0 to support planned maintenance programs, annual spare-part procurement contracts, and emergency replacement orders. Blanket purchase orders with scheduled releases are accepted. For critical infrastructure operators requiring guaranteed availability, please contact our sales team to discuss reserved stock arrangements.
