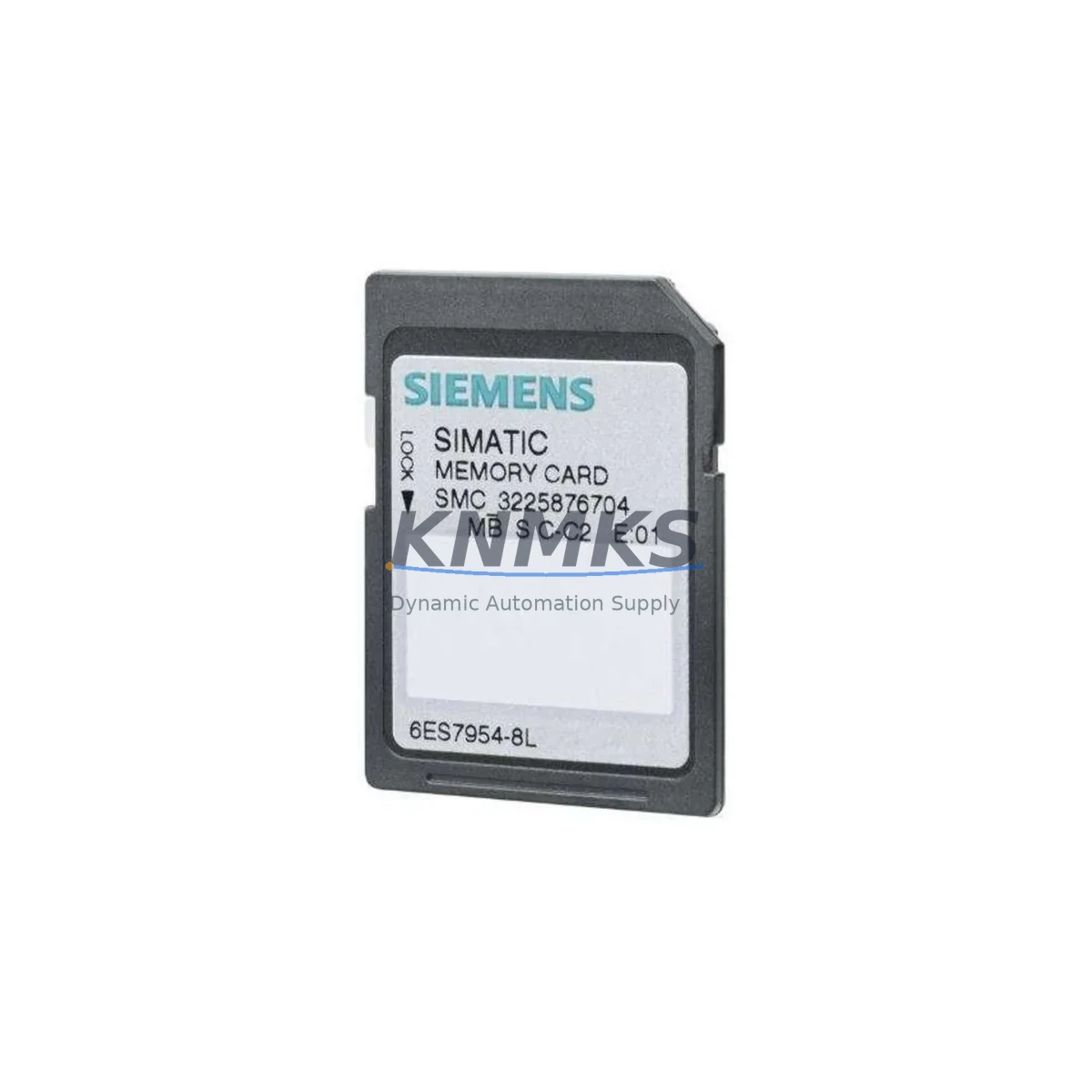

The Siemens 6ES7954-8LE03-0AA0 is a 24 MB SIMATIC Memory Card designed for use with S7-1200 and S7-1500 PLCs, as well as SINAMICS drive systems. As a plug-in program memory card, it stores the complete project data, firmware, and configuration parameters required for controller operation. In maintenance-critical environments — from automotive assembly lines to chemical processing plants — having a verified spare of this card on the shelf is a fundamental element of any uptime protection strategy.

This original Siemens memory card is sourced directly from authorized supply channels, pre-shipment tested for read/write integrity, and backed by a support terms confirmed by quotation. Each unit is verified against the Siemens firmware compatibility matrix before dispatch, ensuring it is ready for immediate installation without additional configuration overhead.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIMATIC S7-1500 or S7-1200 CPU fails to boot or loses its program, the 6ES7954-8LE03-0AA0 memory card is typically the first component to inspect and replace. However, experienced maintenance engineers know that a memory card fault rarely occurs in isolation. A thorough site investigation should extend to the CPU module itself — particularly the 6ES7511-1AK02-0AB0 (CPU 1511-1 PN) or equivalent S7-1500 CPU — to rule out slot damage or firmware incompatibility that may have caused the card to corrupt.

Power quality is another critical factor. The 6EP1333-3BA10 SITOP PSU100S 24V DC power supply feeding the control cabinet should be checked for output ripple and voltage stability. An unstable 24V rail during a write cycle is a known cause of memory card corruption in S7 systems. If the cabinet also houses a 6ES7521-1BL00-0AB0 DI 32×24VDC HF digital input module, verify that the backplane bus connector is seated correctly, as loose backplane connections can generate transient faults that propagate to the CPU and its memory subsystem.

For sites running SINAMICS G120 or S120 drive systems alongside the S7 controller, the memory card may also store drive parameter sets. In these cases, the 6SL3244-0BB12-1PA0 CU240E-2 Control Unit should be inspected for parameter backup status. If the drive’s internal memory has not been synchronized with the PLC project, a card replacement will require a full parameter restore — a step that should be documented in the site’s maintenance procedure.

Communication continuity is equally important. If the S7 system communicates via PROFINET, inspect the 6GK7343-1EX30-0XE0 CP 343-1 communications processor or the onboard PROFINET interface for link faults. A memory card swap that restores the CPU but leaves a broken PROFINET segment will still result in production downtime. Finally, check the cabinet’s 3NW6010-1 fuse holders and fuse elements protecting the 24V DC distribution rail — blown fuses are a common secondary finding during memory card replacement events and should be part of every corrective maintenance checklist.

Site Replacement Workflow

Replacing the 6ES7954-8LE03-0AA0 in the field is a straightforward procedure, but it must be executed with discipline to avoid extended downtime or data loss. Begin by placing the S7 CPU in STOP mode via the mode selector switch or TIA Portal online interface. Do not remove the memory card while the CPU is in RUN mode, as this will corrupt the active program and may damage the card’s file system.

Once the CPU is in STOP, power down the control cabinet at the main disconnect. Remove the existing memory card from the CPU slot — it is located on the front face of the S7-1200 or S7-1500 CPU module and requires no tools to extract. Insert the replacement 6ES7954-8LE03-0AA0, ensuring it is fully seated. Restore cabinet power and observe the CPU’s LED indicators: the RUN/STOP LED should cycle through its initialization sequence and settle on RUN (green) within 60–90 seconds if the stored project is intact.

If the CPU displays a MAINT (maintenance required) LED state after card insertion, this indicates a firmware version mismatch between the card content and the CPU hardware revision. In this case, use TIA Portal to perform a firmware update or re-download the project from the engineering station. Always verify the project version in TIA Portal against the site’s change management log before re-downloading to avoid overwriting a more recent on-site configuration.

For legacy S7-300 or S7-400 systems being migrated to S7-1500, the 6ES7954-8LE03-0AA0 supports the migration workflow by acting as the program transfer medium. This eliminates the need for a direct Ethernet connection between the engineering PC and the new CPU during initial commissioning — a significant advantage in remote or access-restricted plant environments.

Spare Parts Support FAQ

Q1: Is the 6ES7954-8LE03-0AA0 compatible with both S7-1200 and S7-1500 CPUs?
Yes. The 6ES7954-8LE03-0AA0 is compatible with the full range of S7-1200 and S7-1500 CPU modules, as well as SINAMICS drive control units that support SIMATIC Memory Cards. Always verify the required firmware version in the Siemens compatibility matrix for your specific CPU hardware revision before installation.

Q2: How should I manage inventory levels for this memory card in a multi-site operation?
For facilities operating more than three S7-1200 or S7-1500 CPUs, we recommend maintaining a minimum of two spare units of the 6ES7954-8LE03-0AA0 per site. Memory card failures, while infrequent, are typically unplanned and result in immediate production stops. A local spare eliminates the lead time risk associated with emergency procurement. Long-term supply agreements covering 12–36 months are available to support annual maintenance budgets and avoid spot-market pricing volatility.

Q3: What pre-shipment testing is performed on each unit?
Every 6ES7954-8LE03-0AA0 shipped from our inventory undergoes a read/write integrity test using a calibrated SIMATIC Memory Card programmer. Cards that fail any stage of the test are quarantined and not dispatched. A test record is available upon request for quality assurance documentation purposes.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, exposure to voltages outside the specified operating range, or physical damage. In the event of a support terms claim, we provide a replacement unit with priority dispatch to minimize site downtime. Contact [email protected] with your order reference and a brief fault description to initiate a claim.
