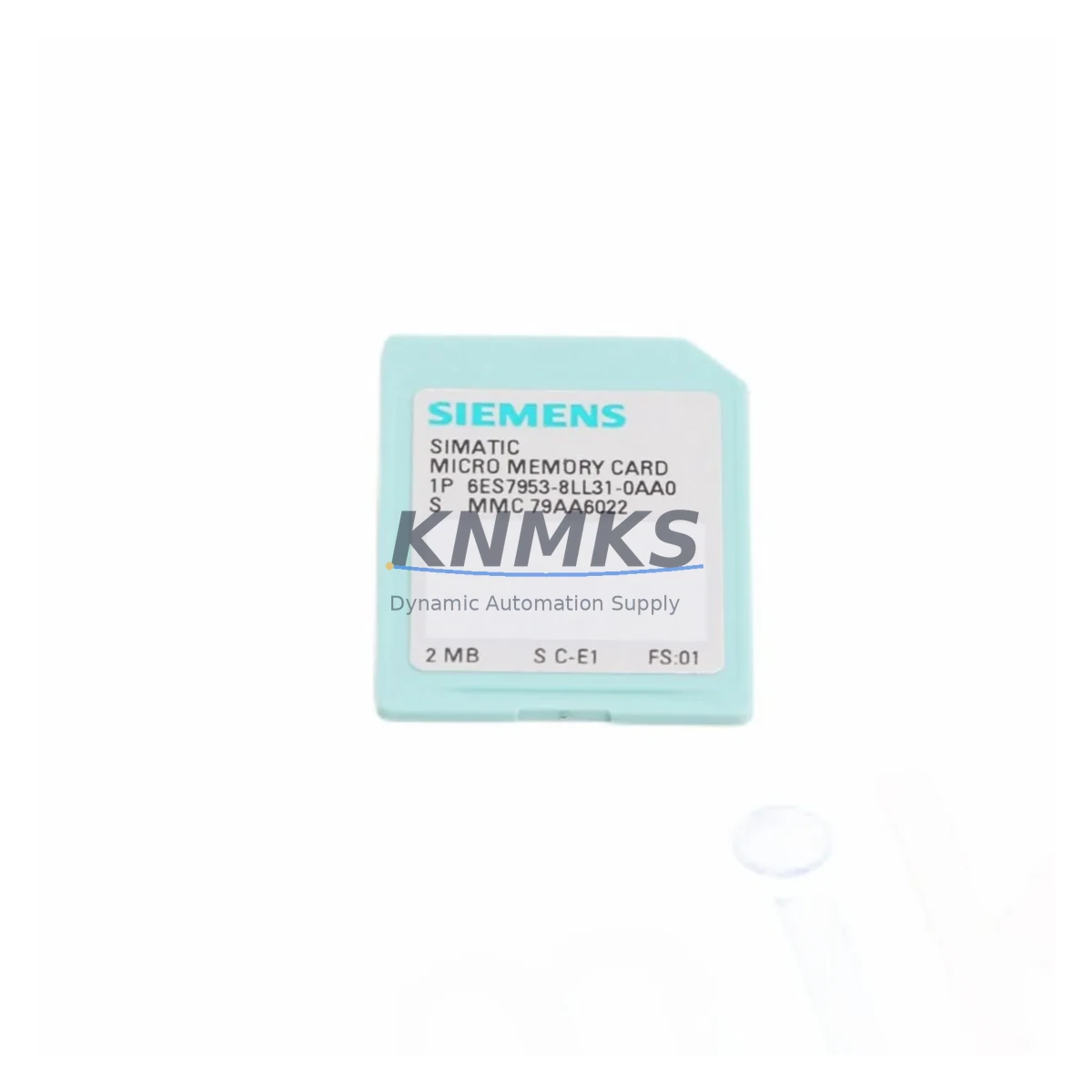

Siemens 6ES7953-8LL31-0AA0 Migration-Ready Micro Memory Card

Overview

Siemens 6ES7953-8LL31-0AA0 Migration-Ready Micro Memory Card for Legacy Control Systems

The Siemens 6ES7953-8LL31-0AA0 is a 2MB SIMATIC Micro Memory Card (MMC) engineered for direct drop-in replacement within the S7-300 PLC platform. As legacy automation systems age and original memory cards reach end-of-life, maintaining uninterrupted program storage and reliable CPU boot sequences becomes a critical engineering priority. This MMC provides a verified, protocol-compatible solution for facilities managing aging SIMATIC S7-300 installations across petrochemical, power generation, mining, water treatment, and continuous manufacturing environments.

Unlike generic flash storage alternatives, the 6ES7953-8LL31-0AA0 is designed to interface directly with the S7-300 CPU card slot — preserving program blocks, data blocks, system function blocks, and hardware configuration data without requiring re-engineering of the existing control logic. For retrofit engineers and maintenance teams, this means the replacement process can be executed during a planned maintenance window with minimal risk to the running program structure.

When planning a memory card replacement or control system migration, engineers must verify several critical parameters before installation: the CPU firmware version must support the 2MB MMC capacity; the existing program size (OB, FB, FC, DB blocks combined) must not exceed the card’s usable storage; and the CPU must be set to the correct operating mode (STOP) before card insertion to prevent data corruption. These steps are essential whether the replacement is part of a scheduled retrofit or an emergency spare deployment.

In broader S7-300 retrofit projects, the 6ES7953-8LL31-0AA0 is frequently deployed alongside the Siemens 6ES7315-2EH14-0AB0 CPU 315-2 PN/DP as the host processor, and paired with 6ES7321-1BL00-0AA0 SM321 digital input modules and 6ES7322-1BL00-0AA0 SM322 digital output modules to reconstruct a complete I/O architecture. When the control cabinet also requires communication infrastructure upgrades, the 6GK7343-1EX30-0XE0 CP343-1 Ethernet communication processor is commonly integrated to bridge legacy PROFIBUS segments with modern PROFINET networks — a migration path that preserves existing field device wiring while enabling higher-level SCADA connectivity.

For facilities where the S7-300 rack and backplane are being retained but the CPU is being upgraded, the MMC serves as the program transfer medium between the old and new CPU. Engineers should confirm that the replacement CPU — such as a 6ES7315-2AG10-0AB0 or equivalent — accepts the same MMC form factor and that the STEP 7 project file is available for re-download if the card’s content needs to be refreshed. In cases where the original programming cable or MPI adapter is no longer available, a 6ES7972-0CB20-0XA0 PC Adapter USB provides a reliable interface for program upload, verification, and download during the commissioning phase.

Downtime control is a primary concern during any S7-300 memory card replacement. The recommended procedure involves: (1) placing the CPU in STOP mode; (2) removing the existing MMC; (3) inserting the 6ES7953-8LL31-0AA0; (4) powering the CPU and allowing the automatic program load sequence to complete; and (5) verifying all I/O module addresses and communication links before returning to RUN mode. When the original program is pre-loaded onto the replacement card prior to site deployment, total field intervention time can be reduced to under 30 minutes — a significant advantage in high-availability production environments.

All units are shipped with pre-delivery functional testing, confirming card recognition, read/write integrity, and compatibility with the S7-300 CPU interface. Stock is maintained for immediate dispatch, supporting both planned retrofit schedules and emergency spare requirements. Each 6ES7953-8LL31-0AA0 is covered by a support terms confirmed by quotation from the date of shipment, with full replacement support for verified hardware defects.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful S7-300 retrofit begins well before the maintenance window opens. Engineers must audit the existing rack configuration — identifying the CPU model, installed I/O modules such as SM321/SM322 digital I/O and SM331/SM332 analog I/O modules, and any special function modules — to confirm that the replacement memory card capacity is sufficient for the full program image. The 2MB capacity of the 6ES7953-8LL31-0AA0 accommodates the majority of S7-300 applications, including those with extensive data block structures and multiple organization blocks.

Where the retrofit scope extends beyond the memory card to include CPU replacement, the engineering team must map all existing hardware configuration addresses, verify that the new CPU’s I/O addressing matches the original rack layout, and confirm that any CP343-1 or CP343-1 Advanced communication processors retain their configured IP addresses and PROFINET device names. Failure to preserve these parameters will result in communication faults that extend commissioning time significantly.

For cabinets that include SITOP PSU100S or PSU200M power supply modules, the retrofit plan should also confirm that the power budget accommodates any additional modules being added during the upgrade. Signal isolators and SIMATIC ET 200S or ET 200M distributed I/O stations connected via PROFIBUS DP should be re-verified for address conflicts after the CPU swap, as address reassignment is a common source of post-retrofit faults in legacy installations.

Downtime Control During System Migration

Minimizing production interruption during an S7-300 memory card replacement requires a structured pre-migration checklist. Before the maintenance window, the engineering team should: archive the complete STEP 7 project to a secure backup location; document all hardware configuration settings including module addresses, communication parameters, and I/O force tables; and pre-load the verified program onto the replacement 6ES7953-8LL31-0AA0 using a bench CPU or programming station.

On-site, the replacement sequence should follow a defined procedure: isolate the control cabinet, place the CPU in STOP, swap the MMC, restore power, and monitor the CPU’s automatic program load LED sequence before transitioning to RUN mode. With a pre-loaded card, this process typically requires less than 30 minutes of field time. Post-replacement, all PROFIBUS and PROFINET communication links should be verified, I/O module diagnostics reviewed, and a controlled test cycle executed before returning the system to full production. This structured approach protects the original program logic, preserves HMI screen variable mappings, and maintains field device communication continuity throughout the migration.

Retrofit Support FAQ

Q1: Is the 6ES7953-8LL31-0AA0 a direct replacement for smaller-capacity S7-300 MMC variants?
Yes. The 6ES7953-8LL31-0AA0 uses the same physical form factor and electrical interface as all S7-300 Micro Memory Cards. It is compatible with the full range of S7-300 CPUs that support MMC-based program storage. When replacing a smaller-capacity card (e.g., 64KB or 512KB), confirm that the CPU firmware supports the 2MB capacity — most S7-300 CPUs manufactured after 2004 do so without firmware update.

Q2: Can the card be pre-loaded with the customer’s program before shipment?
Pre-loading is supported when the customer provides a verified STEP 7 project archive (.zip or .s7p format) prior to dispatch. Pre-loaded cards reduce on-site commissioning time and are recommended for remote sites or facilities with limited programming equipment. All pre-loaded cards undergo a final read-back verification before shipment.

Q3: What testing is performed before shipment?
Each unit undergoes read/write integrity testing and CPU slot recognition verification prior to dispatch. Cards that fail any test parameter are quarantined and not shipped. A support terms confirmed by quotation cover all verified hardware defects from the date of shipment, with full replacement support provided.

Q4: Is long-term stock availability guaranteed for ongoing maintenance programs?
Stock of the 6ES7953-8LL31-0AA0 is maintained to support both immediate spare requirements and scheduled retrofit programs. For facilities managing multiple S7-300 installations, bulk procurement arrangements are available to ensure supply continuity across multi-year maintenance cycles. Contact the sales team to discuss volume pricing and reserved stock agreements.
