Siemens 6ES7952-1KM00-0AA0 Spare Part for Factory Uptime

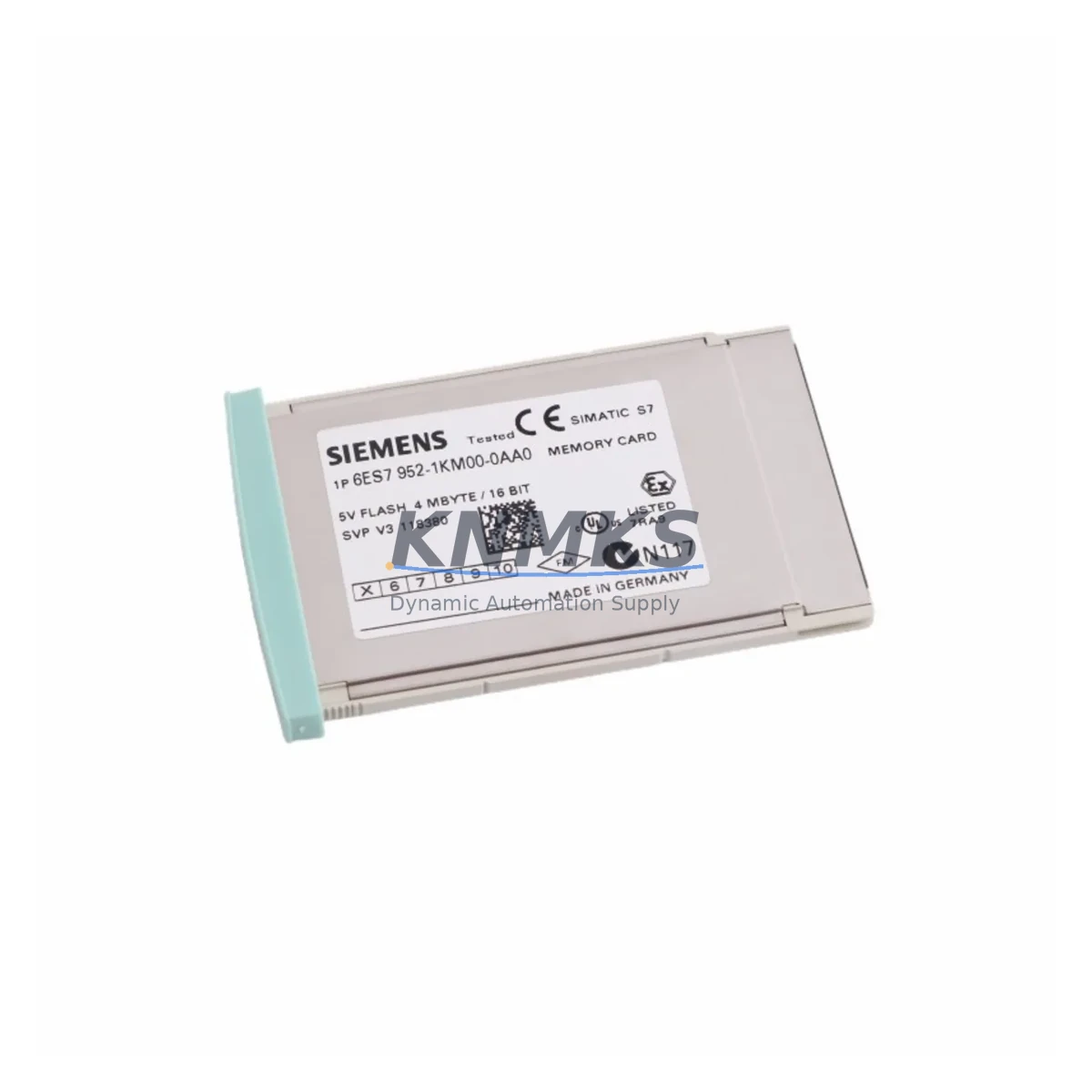

The Siemens 6ES7952-1KM00-0AA0 is a 4MB Flash Memory Card designed for the SIMATIC S7-400 programmable logic controller series. As a critical spare part in industrial automation environments, this memory module stores user programs, data blocks, and system configurations that are essential for continuous production line operation. Sourced as an original Siemens component manufactured in Germany, this spare is tested before shipment and backed by a support terms confirmed by quotation, making it a reliable choice for maintenance engineers managing legacy S7-400 control systems.

In high-availability manufacturing environments — including automotive assembly, chemical processing, power generation, and discrete manufacturing — the S7-400 platform remains widely deployed. When a memory card fails or becomes corrupted, the result is an immediate and unplanned production stoppage. Stocking the 6ES7952-1KM00-0AA0 as a certified spare eliminates extended lead times and enables rapid program restoration, reducing mean time to recovery (MTTR) to minutes rather than days.

Procurement engineers sourcing this module should verify compatibility with their installed S7-400 CPU variant. The 6ES7952-1KM00-0AA0 is compatible with a broad range of S7-400 CPUs including the CPU 412, CPU 414, CPU 416, and CPU 417 families. Confirming the CPU firmware version and memory slot specification prior to installation ensures seamless integration without additional configuration overhead.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7952-1KM00-0AA0 memory card is rarely an isolated task. Experienced maintenance engineers treat a memory card replacement event as an opportunity to perform a broader control cabinet inspection, reducing the risk of secondary failures that could cause another unplanned stoppage shortly after restart.

During the same maintenance window, engineers should inspect the S7-400 CPU power supply module (such as the PS 407 or PS 405 series) to confirm stable 24 VDC and 5 VDC rail output, as voltage fluctuations are a leading cause of memory card corruption. The S7-400 backplane bus connectors and rack should be checked for oxidation or mechanical damage that could interrupt data transfer between the CPU and memory slot.

I/O modules installed in the same rack — including digital input/output modules and analog signal modules — should be verified for correct addressing after program restoration, particularly if the memory card replacement involved reloading a backup program. Signal isolators and terminal blocks connected to field instruments should be inspected for loose wiring that may have contributed to the original fault condition.

Communication modules such as the CP 443-1 Ethernet module or CP 441 serial communication module should be confirmed online after CPU restart to ensure PROFIBUS, PROFINET, or serial links to remote I/O, drives, and HMI panels are re-established correctly. The OP/TP HMI panel connected to the S7-400 system should be tested for correct tag communication and alarm display after the memory card swap.

Fuse protection for the control cabinet — including miniature circuit breakers protecting the PLC power supply input — should be verified as part of the post-replacement commissioning checklist. Procurement teams managing multi-site facilities are advised to maintain at least one 6ES7952-1KM00-0AA0 unit per S7-400 installation as a critical on-site spare, alongside a backup copy of the current CPU program stored on a secure engineering workstation running STEP 7 or TIA Portal.

Site Replacement Workflow

Step 1 — Preparation: Before removing the existing memory card, use STEP 7 or TIA Portal to upload and save the current CPU program to the programming device. Confirm the backup is complete and readable before proceeding.

Step 2 — Safe Shutdown: Place the S7-400 CPU in STOP mode via the mode selector switch or software command. Confirm all outputs are de-energized and field devices are in a safe state before opening the control cabinet.

Step 3 — Memory Card Removal: Locate the memory card slot on the front face of the S7-400 CPU module. Press the card release mechanism and remove the existing 6ES7952-1KM00-0AA0 (or the failed card being replaced). Handle the card by its edges to avoid electrostatic discharge damage.

Step 4 — New Card Installation: Insert the replacement 6ES7952-1KM00-0AA0 into the CPU memory slot until it clicks into place. The card is keyed to prevent incorrect orientation.

Step 5 — Program Download: With the new card installed, switch the CPU to STOP and use STEP 7 or TIA Portal to download the saved program to the CPU. Verify the download completes without errors.

Step 6 — Restart and Verification: Switch the CPU to RUN mode. Confirm the system status display shows no faults. Verify communication links, I/O status, and HMI displays are operating correctly before returning the line to production.

This workflow is compatible with all S7-400 CPU variants that accept the 6ES7952-1KM00-0AA0 memory card and requires no hardware modifications, making it suitable for both planned annual maintenance and emergency unplanned replacement scenarios.

Spare Parts Support FAQ

Q1: Is the 6ES7952-1KM00-0AA0 compatible with all S7-400 CPUs?
The 6ES7952-1KM00-0AA0 is compatible with the majority of SIMATIC S7-400 CPU modules, including the CPU 412, CPU 414, CPU 416, and CPU 417 families. Before ordering, confirm your CPU model number and check the Siemens compatibility matrix or contact our technical team to verify fit for your specific installation.

Q2: How is the spare part tested before shipment?
Each unit undergoes functional verification prior to dispatch. Testing confirms the memory card is readable, writable, and free from physical defects. Units that do not pass testing are not shipped. A support terms confirmed by quotation cover defects in materials and workmanship from the date of delivery.

Q3: What is the recommended inventory strategy for this memory card?
For facilities operating one or more S7-400 systems, we recommend maintaining a minimum of one 6ES7952-1KM00-0AA0 unit on-site as a critical spare. Multi-site operations should consider a centralized regional spare pool with documented replenishment triggers to avoid stockout risk during peak production periods.

Q4: Can this memory card be used to transfer programs between S7-400 CPUs?
Yes. The 6ES7952-1KM00-0AA0 can be used as a program transfer medium between compatible S7-400 CPUs of the same type, provided the program was compiled for the target CPU hardware configuration. This capability is useful during emergency CPU swap scenarios where a replacement CPU must be brought online quickly without a programming device on-site.
