Siemens 6ES7951-1KM00-0AA0 Migration-Ready Flash EPROM for S7-400

Overview

Siemens 6ES7951-1KM00-0AA0 Migration-Ready Flash EPROM for S7-400: Legacy System Retrofit and Compatibility Upgrade

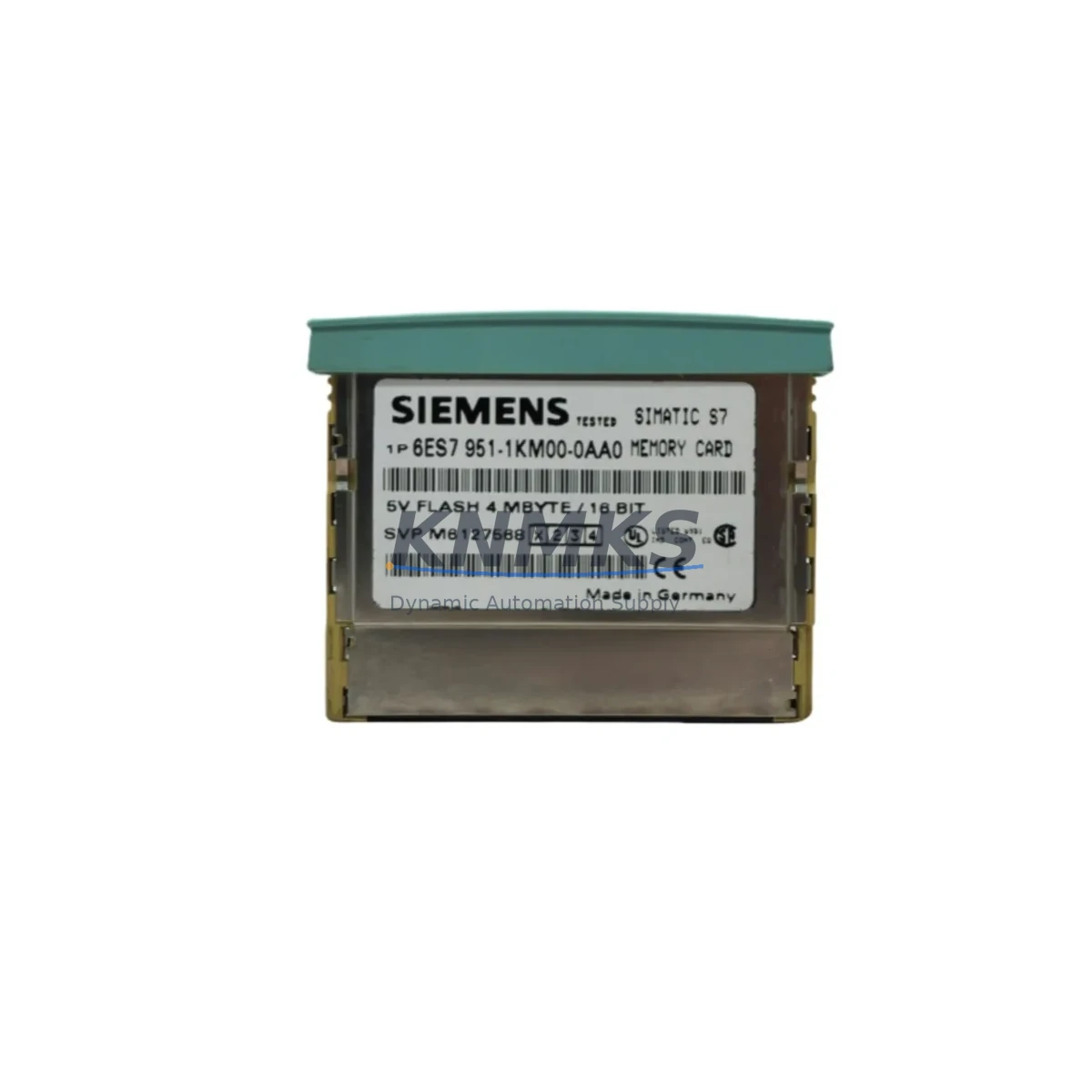

The Siemens 6ES7951-1KM00-0AA0 is a 4MB Flash EPROM memory card designed for the SIMATIC S7-400 programmable logic controller platform. As legacy S7-400 installations continue to operate in process automation, power generation, chemical processing, and heavy manufacturing environments, the demand for verified replacement memory modules has grown significantly. This module serves as a direct migration-ready replacement for aging or failed memory cards in existing S7-400 control cabinets, enabling engineers to restore system functionality without requiring a full controller replacement or PLC platform migration.

When planning a retrofit or spare-part replacement using the 6ES7951-1KM00-0AA0, engineers must confirm several critical parameters before installation. Power supply capacity within the S7-400 rack must be verified — the PS 407 10A or PS 405 4A power supply modules must provide sufficient current headroom for the CPU and all installed I/O modules after the memory card is seated. Terminal wiring on associated signal modules does not require modification for a memory card swap, but the CPU slot assignment and module addressing must be reviewed in STEP 7 or TIA Portal to ensure the program image stored on the Flash EPROM matches the current hardware configuration.

Backplane interface compatibility is a key consideration. The 6ES7951-1KM00-0AA0 is designed for the S7-400 CPU memory card slot and is not interchangeable with S7-300 series memory cards such as the 6ES7951-0KD00-0AA0 or 6ES7951-0KF00-0AA0, which use a different physical form factor and interface standard. Engineers migrating from older S7-400 CPU variants — including the CPU 412-1, CPU 414-2, or CPU 416-2 — should verify that the target CPU firmware version supports the 4MB Flash EPROM capacity. Firmware version mismatches between the CPU and the memory card can prevent successful program loading during commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6ES7951-1KM00-0AA0 into an existing S7-400 control system requires a structured retrofit plan that accounts for the full scope of the control cabinet and communication architecture. In a typical S7-400 installation, the memory card works in conjunction with the CPU module — such as the CPU 414-3 PN/DP or CPU 416-3 PN/DP — and the program stored on the Flash EPROM is loaded automatically at startup, making card integrity critical for system availability.

During retrofit planning, engineers should audit the installed I/O modules on the S7-400 rack. Digital input modules such as the SM 421 and analog output modules such as the SM 432 must have their module addresses and channel assignments documented before any memory card replacement, as these addresses are embedded in the program stored on the EPROM. If the program image on the replacement card was compiled against a different hardware configuration, I/O addressing errors will occur during the CPU’s startup diagnostic cycle.

Communication infrastructure also requires attention. S7-400 systems using PROFIBUS-DP for distributed I/O — connecting remote ET 200M or ET 200S stations — must have their DP master configuration preserved in the program loaded onto the new memory card. Similarly, systems using CP 443-1 Ethernet communication processors for SCADA or MES connectivity must verify that the communication block parameters and IP configuration stored in the program are consistent with the plant network topology. Any discrepancy between the stored program and the live network configuration will result in communication faults that require online diagnostics using STEP 7 or TIA Portal.

For control cabinets where installation space is constrained, the 6ES7951-1KM00-0AA0 requires no additional mounting hardware — it inserts directly into the CPU memory card slot without tools. However, engineers should confirm that the CPU front panel is accessible and that adjacent modules such as the IM 460 interface module or CP 443-5 PROFIBUS communication processor do not obstruct card insertion. HMI panels connected to the S7-400 via MPI or PROFIBUS — including SIMATIC TP or OP series operator panels — should be placed in manual mode during the memory card replacement to prevent spurious control outputs during the CPU restart sequence.

Downtime Control During System Migration

Minimizing unplanned downtime during a memory card replacement on an S7-400 system requires preparation before the maintenance window begins. The most effective approach is to create a verified backup of the existing program from the current memory card using STEP 7 or TIA Portal before the card is removed. This backup should include the complete program blocks (OBs, FBs, FCs, DBs), hardware configuration, and symbol table, stored on an engineering workstation and verified against the as-built documentation.

Before inserting the 6ES7951-1KM00-0AA0, the CPU must be placed in STOP mode via the mode selector switch on the CPU front panel. This prevents the CPU from executing the program during card insertion and protects the integrity of the output signals to field devices. In process environments where a hard STOP of the CPU would trigger safety interlocks or process shutdowns, the control strategy should be reviewed with the process engineer to determine whether a warm standby CPU — such as a redundant CPU 414H or CPU 417H configuration — can maintain process continuity during the memory card swap on the primary CPU.

After the replacement card is inserted and the CPU is powered on, the startup diagnostic log should be reviewed in STEP 7 or TIA Portal to confirm that all program blocks loaded correctly and that no I/O or communication faults are present. Field instruments and actuators should be verified against the HMI display before the system is returned to automatic mode. A structured commissioning checklist — covering power supply status, I/O module diagnostics, PROFIBUS DP slave status, and HMI communication — reduces the risk of returning a system to service with undetected faults.

Retrofit Support FAQ

Q1: Is the 6ES7951-1KM00-0AA0 a direct replacement for other S7-400 Flash EPROM memory cards?
The 6ES7951-1KM00-0AA0 is a 4MB Flash EPROM and is compatible with S7-400 CPUs that support this memory capacity. It is not a direct pin-compatible replacement for smaller-capacity cards such as the 6ES7951-1AH00-0AA0 (1MB) or 6ES7951-1AK00-0AA0 (2MB) if the existing program size exceeds the capacity of those cards. Always verify the program size in STEP 7 before selecting a replacement card capacity.

Q2: What commissioning steps are required after installing the replacement memory card?
After insertion, place the CPU in STOP mode, then power cycle the rack. Use STEP 7 or TIA Portal to download the verified program backup to the new card. Confirm hardware configuration consistency, check the diagnostic buffer for startup errors, verify PROFIBUS DP slave status, and test I/O channel responses before returning the CPU to RUN mode.

Q3: Has this unit been tested before shipment?
Yes. Each 6ES7951-1KM00-0AA0 unit is functionally tested prior to shipment to verify memory integrity and interface compatibility. Units are shipped with anti-static packaging appropriate for sensitive electronic components. A support terms confirmed by quotation from the date of shipment covers defects in materials and workmanship under normal operating conditions.

Q4: What is the stock availability and lead time?
This part is maintained availability confirmed by RFQ to support urgent replacement and planned maintenance requirements. Orders are typically processed and dispatched within 1–2 business days. For bulk orders or blanket purchase agreements to support long-term spare-part programs, contact the sales team directly to confirm availability and lead time commitments.
