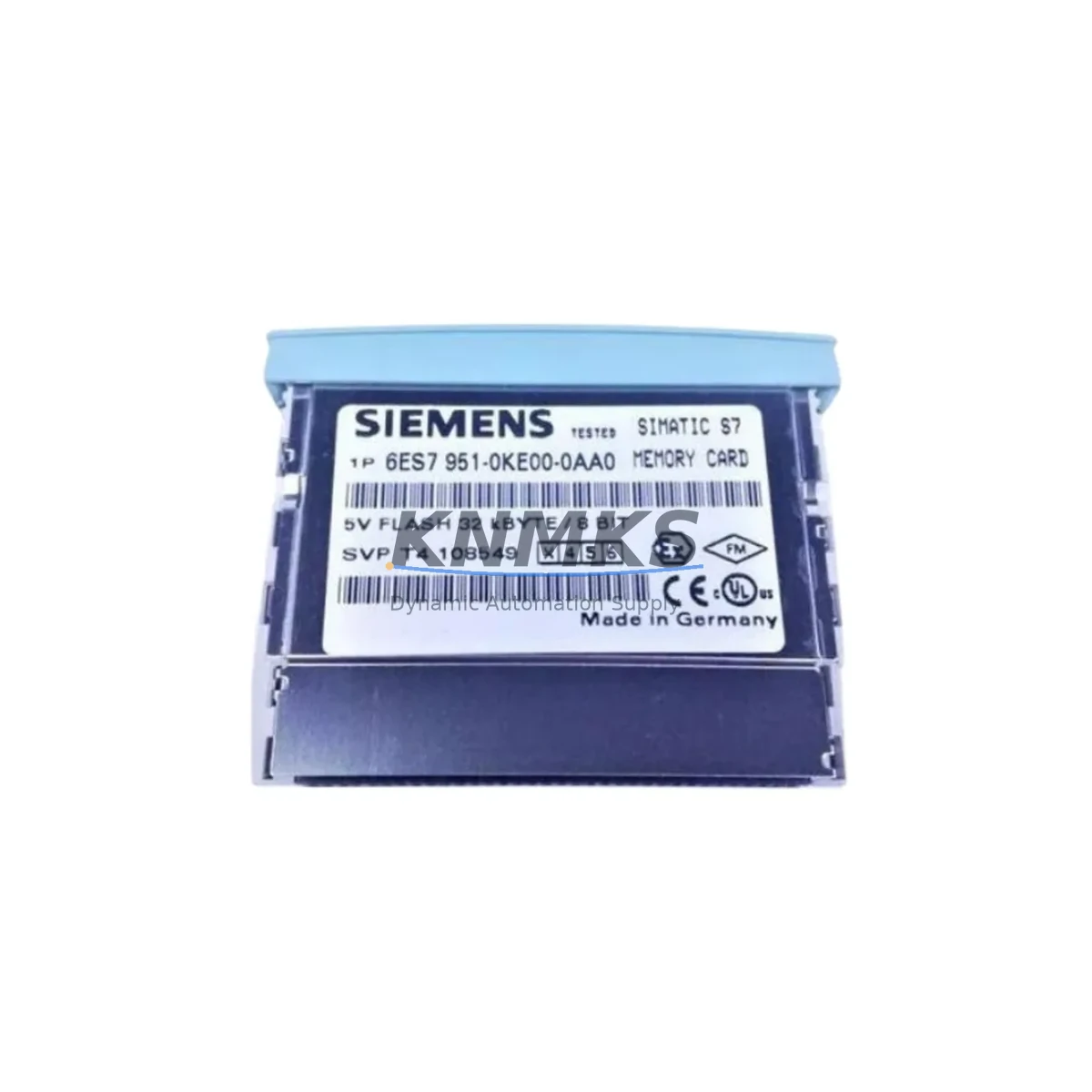

Siemens 6ES7951-0KE00-0AA0 Fail-Safe Flash Memory for S7-300

Overview

Siemens 6ES7951-0KE00-0AA0 Fail-Safe Flash Memory for S7-300: Fault-Protected Program Retention in Critical Industrial Environments

The Siemens 6ES7951-0KE00-0AA0 is a 32KB FEPROM (Flash Erasable Programmable Read-Only Memory) module engineered specifically for the SIMATIC S7-300 programmable logic controller platform. In continuous production environments where unplanned downtime carries severe operational and safety consequences — petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, and marine automation — the integrity of the PLC program memory is a non-negotiable foundation of control system reliability. This module provides that foundation.

Unlike volatile RAM-based storage, the 6ES7951-0KE00-0AA0 retains the full S7-300 user program without battery backup. This eliminates one of the most common failure vectors in aging control cabinets: battery depletion leading to program loss during an unplanned power interruption. In high-stakes interlock systems — emergency shutdown sequences, motor protection logic, valve control routines — program loss is not merely an inconvenience; it is a safety event. The 6ES7951-0KE00-0AA0 removes this risk entirely by storing the program in non-volatile flash memory that survives power cycling, voltage transients, and extended de-energized storage periods.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-300 control cabinet, the 6ES7951-0KE00-0AA0 flash memory module operates as the program anchor — the component that ensures the CPU can reload its control logic autonomously after any power event, without operator intervention. This is particularly critical in remote or unmanned installations where manual program restoration is not operationally feasible.

The module pairs directly with S7-300 CPUs such as the CPU 314C-2 DP or CPU 315-2 PN/DP, which are widely deployed in distributed control architectures across process industries. In these configurations, the CPU communicates over PROFIBUS DP or PROFINET IO with remote I/O stations — including ET 200M distributed I/O racks — where signal modules handle analog inputs from pressure transmitters, temperature sensors, and flow meters. A program loss event in this architecture would simultaneously disable all field signal processing, interlock logic, and communication with remote stations, making the non-volatile retention of the 6ES7951-0KE00-0AA0 a system-level safety asset.

Power supply stability is equally important. The SITOP PSU100S 24V DC power supply is commonly specified alongside S7-300 systems to provide regulated, filtered DC power that protects the CPU and memory modules from voltage sags, surges, and ripple that are endemic in heavy industrial environments — arc furnaces, large motor starts, and variable frequency drives all generate significant electrical noise. The 6ES7951-0KE00-0AA0’s flash architecture is inherently more tolerant of brief power anomalies than battery-backed SRAM, since it does not depend on continuous power to maintain data integrity.

For cabinet-level surge protection, DEHN or Phoenix Contact surge protection devices are frequently installed at the 24V DC bus to clamp transient overvoltages before they reach sensitive electronics. Combined with the non-volatile memory of the 6ES7951-0KE00-0AA0, this layered protection strategy significantly reduces the probability of a control system failure propagating into a process safety event. Additionally, the S7-300 SM 321 digital input module and SM 322 digital output module — which handle the physical interlock signals — depend on a functioning CPU with intact program memory to execute their safety-critical switching logic correctly.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the S7-300 platform with 6ES7951-0KE00-0AA0 memory is deployed in emergency shutdown (ESD) pre-logic systems, compressor anti-surge control, and fired heater burner management support functions. The non-volatile program storage ensures that after a plant-wide power trip — a common occurrence during grid disturbances in remote refinery locations — the control system restores its operating logic without requiring a technician to manually reload the program from an engineering workstation.

In power generation facilities, including coal-fired, gas turbine, and hydroelectric plants, the S7-300 manages auxiliary systems such as cooling water pumps, lube oil systems, and generator excitation control. Program integrity during grid synchronization events and load shedding scenarios is essential. The 6ES7951-0KE00-0AA0 provides the memory stability required to maintain these auxiliary control functions through transient grid conditions.

In mining and mineral processing, where conveyor systems, crushers, ball mills, and flotation circuits operate continuously in dusty, high-vibration environments, the S7-300 CPU must survive mechanical shock and thermal cycling. The flash memory module’s wide storage temperature range and vibration compliance make it well-suited for these demanding conditions, where a control system restart due to program loss could result in material spillage, equipment damage, or personnel safety incidents.

In water and wastewater treatment, the S7-300 controls dosing pumps, aeration blowers, UV disinfection systems, and sludge handling equipment. Regulatory compliance requires continuous, documented operation. A program loss event that interrupts treatment processes can trigger environmental violations and public health risks. The 6ES7951-0KE00-0AA0 eliminates this failure mode from the memory subsystem.

In port and terminal automation, including ship-to-shore crane control, conveyor loading systems, and tank farm management, the S7-300 operates in coastal environments with high humidity, salt air, and temperature variation. The module’s extended storage temperature range and non-volatile architecture support reliable operation in these corrosive, thermally variable conditions.

Safety and Quality FAQ

Q1: What support terms coverage applies to the 6ES7951-0KE00-0AA0?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers functional defects identified under normal operating conditions consistent with the Siemens S7-300 platform specifications. Support requests are supported by our pre-shipment test records, which document the functional verification performed on each unit before dispatch.

Q2: How is each unit tested before shipment?
Every 6ES7951-0KE00-0AA0 unit undergoes a full functional verification process prior to shipment. This includes read/write cycle testing, data retention verification, and compatibility confirmation with S7-300 CPU interfaces. Test results are retained and available upon request to support site acceptance procedures and maintenance documentation requirements.

Q3: Is this module compatible with all S7-300 CPU variants?
The 6ES7951-0KE00-0AA0 is designed for the SIMATIC S7-300 CPU series and is compatible with the standard memory card slot found across the S7-300 CPU range, including CPU 312, 313, 314, 315, 316, and 317 variants. For specific CPU compatibility confirmation, reference the Siemens S7-300 CPU hardware manual or contact our technical team with your CPU part number.

Q4: Can KNMKS support long-term spare parts supply for S7-300 memory modules?
Yes. KNMKS maintains stock of S7-300 memory modules including the 6ES7951-0KE00-0AA0 to support multi-year spare parts programs for facilities with extended maintenance cycles. We understand that industrial sites operating aging S7-300 systems require reliable, long-horizon spare parts availability — particularly for components that are no longer in active production by the OEM. Our procurement and inventory strategy is specifically designed to support 12–36 month spare parts planning horizons for critical control system components.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7951-0KE00-0AA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7951-0KE00-0AA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
