Siemens 6ES7650-8PH00-1AA0 Maintenance-Proven Spare Part

Overview

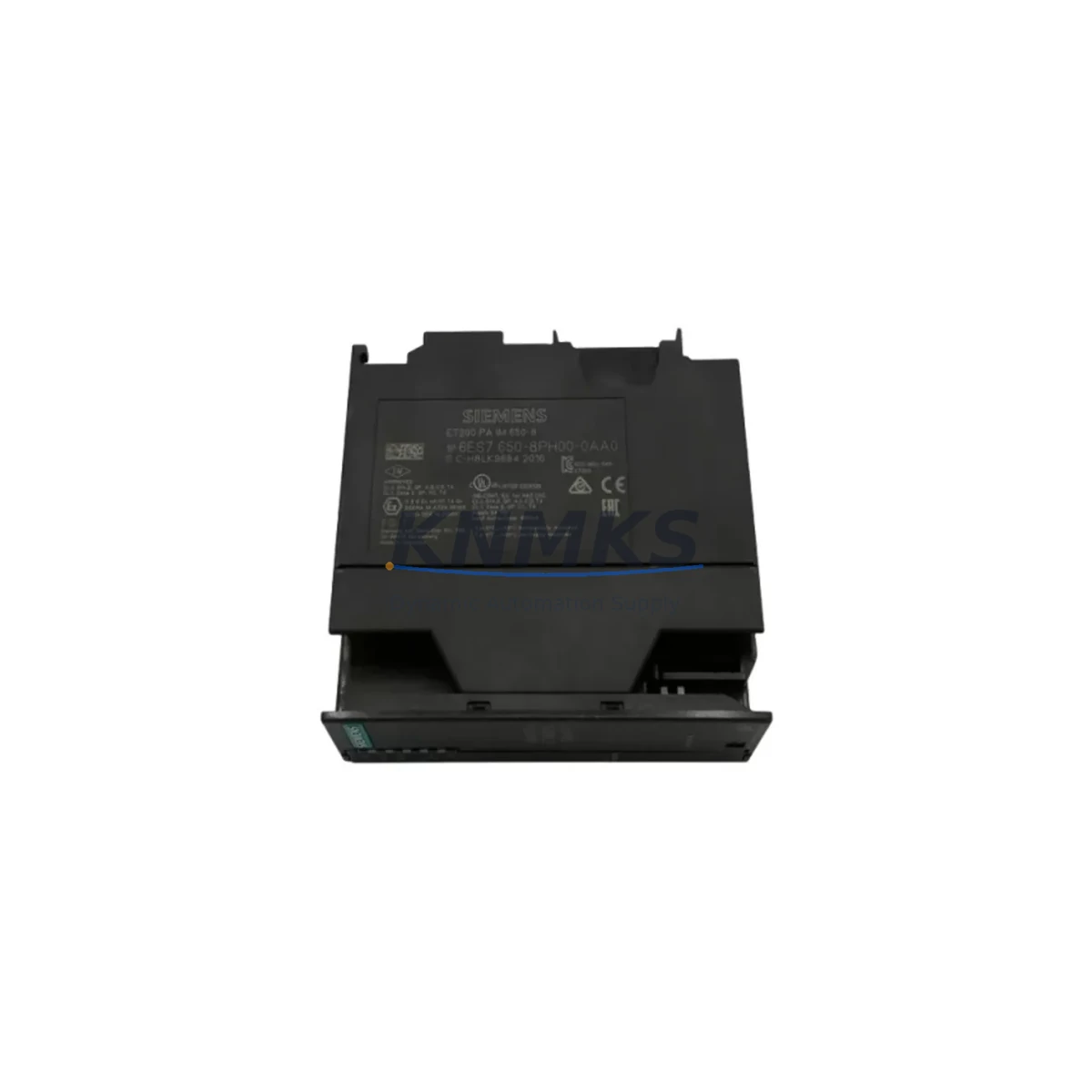

Siemens 6ES7650-8PH00-1AA0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7650-8PH00-1AA0 is an Interface Module (IM) designed for the ET 200SP HA distributed I/O system — a high-availability variant of the SIMATIC ET 200SP platform widely deployed in process automation, continuous manufacturing, and safety-critical control environments. When this module fails or reaches end-of-service life, rapid replacement is essential to restore PROFINET communication between the ET 200SP HA station and the S7-1500 or S7-1500H controller. Sourcing a verified, pre-tested spare directly impacts how quickly your production line recovers from an unplanned shutdown.

Maintenance engineers working with ET 200SP HA systems understand that the interface module is the backbone of the entire I/O station. It manages PROFINET connectivity, redundancy switching, and power distribution to downstream I/O modules. A degraded or failed 6ES7650-8PH00-1AA0 can manifest as intermittent communication faults, loss of redundancy, or complete station dropout — all of which trigger immediate escalation in process plants. Keeping at least one verified spare in your cabinet-side inventory is a standard practice for any facility running continuous processes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7650-8PH00-1AA0 in an ET 200SP HA station is rarely an isolated task. A thorough site inspection during the replacement window should cover the full electrical and communication chain to prevent repeat failures and maximize the value of the planned downtime.

Begin with the 24 V DC power supply feeding the ET 200SP HA station — verify output voltage stability and check for ripple that could cause intermittent resets on the interface module. The PROFINET patch cables and RJ45 connectors at both the IM port and the managed switch should be inspected for corrosion, bend radius violations, or loose locking tabs; a degraded cable is a common root cause of IM communication faults that are misdiagnosed as module failure.

Check the ET 200SP HA BaseUnit (BU-type) for contact wear and proper seating — the IM draws its backplane power and data bus connection through this unit, and a worn contact strip can cause the replacement module to exhibit the same fault codes as the original. While the cabinet is open, inspect the digital and analog I/O modules installed downstream of the IM; modules such as the 6ES7131-6BF01-0BA0 (8-channel DI) or 6ES7132-6BF01-0BA0 (8-channel DO) should be checked for blown channel fuses and correct parameter assignment in TIA Portal.

For systems using PROFIBUS DP as a secondary fieldbus, verify the DP master module and termination resistors. In redundant S7-1500H configurations, confirm that the sync module and fiber-optic ring cables between the two CPUs are intact — a failed sync link will prevent the system from entering redundancy mode even after the IM is replaced. Finally, review the 24 V DC fuse terminal blocks (e.g., Phoenix Contact or Weidmüller fused terminals) protecting the station power feed, and replace any that show signs of thermal stress or discoloration.

Site Replacement Workflow

Before removing the 6ES7650-8PH00-1AA0, document the current PROFINET device name and IP address assigned to the ET 200SP HA station in TIA Portal — this information is stored in the IM and must be reassigned to the replacement module during commissioning. In a redundant S7-1500H system, initiate a controlled switchover to the standby CPU before powering down the affected station to maintain process continuity.

Power down the station by switching off the 24 V DC supply to the ET 200SP HA rack. Remove the IM by releasing the locking lever and sliding it out of the BaseUnit. Insert the replacement 6ES7650-8PH00-1AA0, ensuring the module clicks fully into the BaseUnit contacts. Restore power and use TIA Portal’s online diagnostics to assign the correct PROFINET device name. Perform a download of the hardware configuration to the IM and verify that all I/O modules are recognized and in RUN state before releasing the station back to the process.

This workflow replaces the legacy IM without requiring changes to the PLC program or I/O addressing, preserving system compatibility and minimizing engineering time. For facilities managing multiple ET 200SP HA stations, maintaining a pre-configured spare — with the PROFINET name documented on a label attached to the module — reduces mean time to repair (MTTR) to under 30 minutes.

Spare Parts Support FAQ

Q1: Is the 6ES7650-8PH00-1AA0 compatible with both S7-1500 and S7-1500H controllers?
Yes. The 6ES7650-8PH00-1AA0 is the dedicated interface module for the ET 200SP HA platform, which is designed for use with S7-1500H redundant controllers. It is also compatible with standard S7-1500 and S7-1500F (fail-safe) CPUs when system redundancy is not required, making it a versatile spare for mixed-controller environments.

Q2: How do I verify the module before installation?
Each unit shipped from KNMKS undergoes pre-shipment functional testing, including power-on verification and PROFINET communication checks. The support terms confirmed by quotation cover manufacturing defects and functional failures. Upon receipt, inspect the module for physical damage, verify the firmware version label matches your TIA Portal hardware catalog entry, and confirm the order number on the module housing matches 6ES7650-8PH00-1AA0.

Q3: What is the recommended inventory strategy for ET 200SP HA spare parts?
For continuous process plants, we recommend holding a minimum of one 6ES7650-8PH00-1AA0 per ET 200SP HA station cluster on-site, with a secondary buffer at the central warehouse. Given that Siemens has announced product lifecycle transitions for some ET 200SP variants, securing a 12–36 month forward stock agreement ensures supply continuity without exposure to spot-market price volatility or extended lead times.

Q4: Can KNMKS support long-term supply agreements for this part?
Yes. KNMKS offers long-term supply agreements for the 6ES7650-8PH00-1AA0 and related ET 200SP HA components, with scheduled delivery windows aligned to your annual maintenance calendar. All units are sourced from verified channels, pre-tested before dispatch, and covered by a support terms confirmed by quotation from the date of shipment. Contact our team to discuss volume pricing and delivery scheduling.
