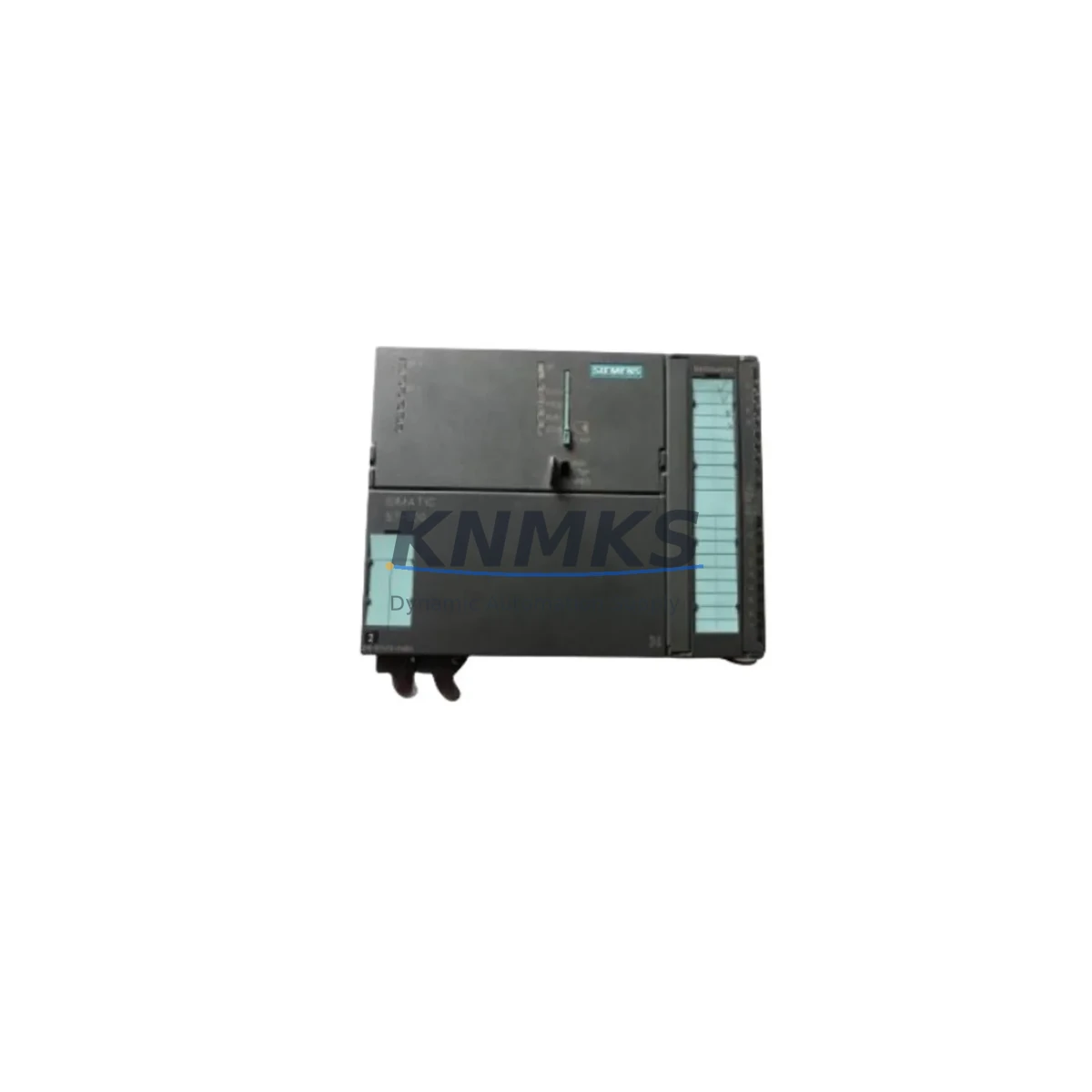

Siemens 6ES7650-8AK70-1AA0 Migration-Ready CPU for Legacy Control Systems

Overview

Siemens 6ES7650-8AK70-1AA0 Migration-Ready CPU for Legacy Control Systems

The Siemens 6ES7650-8AK70-1AA0 is a high-availability CPU module designed for the ET 200SP HA distributed I/O system, purpose-built to support legacy control system migration, discontinued spare part replacement, and control cabinet modernization. Whether you are retiring an aging S7-400H redundant controller or upgrading a distributed I/O rack from an earlier SIMATIC generation, the 6ES7650-8AK70-1AA0 provides a validated migration path with minimal disruption to existing automation logic and field wiring.

This CPU module operates within the ET 200SP HA platform, which is Siemens’ answer to high-availability process automation in industries where unplanned downtime carries significant operational and financial risk. The module supports PROFINET IRT communication, redundant CPU operation, and seamless integration with TIA Portal V16 and later. For sites currently running legacy PROFIBUS-based architectures, migration to PROFINET via the 6ES7650-8AK70-1AA0 can be staged across planned maintenance windows, preserving existing field device wiring while upgrading the communication backbone.

Before committing to a retrofit using the 6ES7650-8AK70-1AA0, engineers should verify several critical compatibility parameters. Power supply capacity is a primary concern: the ET 200SP HA backplane must be assessed for total current draw when the new CPU and any additional I/O modules — such as the 6ES7131-6BF01-0BA0 digital input module or 6ES7132-6BF01-0BA0 digital output module — are installed alongside existing cards. Terminal wiring on the BaseUnit must be confirmed against the new module’s signal type and channel configuration. Backplane interface compatibility between the CPU and the IM 155-6 PN/2 HF interface module (6ES7155-6AU01-0BN0) should be validated in the TIA Portal hardware catalog before physical installation begins.

Module addressing is another area requiring careful pre-migration planning. When replacing a CPU in an existing ET 200SP HA station, the hardware configuration in TIA Portal must be updated to reflect the new module’s firmware version and order number. Program blocks, especially those referencing hardware identifiers or using direct I/O access instructions, should be reviewed for compatibility. HMI screens connected via WinCC or WinCC Unified that display CPU diagnostic data may require tag remapping if the new module exposes different system data blocks or diagnostic addresses.

Communication link integrity is essential during and after migration. If the existing system uses an S7 communication link between a legacy S7-300 or S7-400 controller and the ET 200SP HA station, the transition to the 6ES7650-8AK70-1AA0 may require reconfiguring the communication partner in TIA Portal and verifying that all PUT/GET instructions or open user communication blocks remain functional. PROFINET device names and IP address assignments must be preserved or systematically updated across all affected network nodes to avoid address conflicts during commissioning.

Installation space confirmation is a practical step that is frequently overlooked during desktop planning. The 6ES7650-8AK70-1AA0 occupies a defined slot width on the ET 200SP HA rail, and the control cabinet must provide adequate clearance for the module body, front connector, and cable routing. Thermal management should also be reviewed: the CPU’s power dissipation rating must be factored into the cabinet’s ventilation or cooling capacity, particularly in high-ambient-temperature environments common in process plant installations.

Firmware version compatibility between the 6ES7650-8AK70-1AA0 and the IM 155-6 PN/2 HF interface module is a non-negotiable prerequisite. Siemens publishes firmware compatibility matrices in the product information sheets and SIMATIC NET documentation. Ensuring that both the CPU and the interface module run compatible firmware versions before energizing the station prevents initialization errors and reduces commissioning time. Field commissioning should follow a structured sequence: hardware configuration download, CPU memory reset, program download, and forced I/O verification before releasing the station to automatic mode.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6ES7650-8AK70-1AA0 typically involves coordinating several interdependent components across the control architecture. The IM 155-6 PN/2 HF interface module serves as the PROFINET gateway for the ET 200SP HA station and must be confirmed as compatible with the new CPU firmware before the retrofit begins. I/O expansion modules — including analog input cards such as the 6ES7134-6GD01-0BA1 and digital output modules from the ET 200SP HA range — should be inventoried and their BaseUnit types verified against the new CPU’s supported hardware catalog entries in TIA Portal.

Power supply modules feeding the ET 200SP HA station, such as the 6EP1333-4BA00 SITOP PSU100S or equivalent 24 VDC rail-mount supplies, must be rated to handle the combined load of the CPU, interface module, and all installed I/O cards with an appropriate derating margin for ambient temperature. If the existing power supply is undersized, the retrofit plan should include a power supply upgrade as a parallel workstream.

For sites migrating from PROFIBUS to PROFINET, a PROFIBUS/PROFINET gateway or a DP/PN coupler may be required to maintain communication with legacy field devices during the transition period. The programming cable used for initial firmware updates and hardware configuration downloads — typically a standard Ethernet patch cable connected to the CPU’s PROFINET port — should be prepared in advance along with a dedicated engineering laptop running the correct TIA Portal version. Signal isolators or potential-free relay modules may be needed at the terminal level if the new CPU’s I/O voltage levels differ from the legacy system’s field wiring standards.

Downtime Control During System Migration

Minimizing production downtime during a CPU migration requires a structured pre-migration preparation phase. Before the planned maintenance window, the existing TIA Portal project should be archived and backed up to at least two independent storage locations. All current CPU parameters, including IP addresses, PROFINET device names, and communication partner configurations, should be documented in a migration checklist.

During the physical swap, the original program and hardware configuration should be pre-loaded onto the 6ES7650-8AK70-1AA0 using an offline TIA Portal session before the module is installed in the rack. This approach — sometimes called a “warm swap” preparation — allows the new CPU to be energized and initialized with a known-good configuration immediately after installation, reducing the time the station spends in an unconfigured state. Forced I/O testing on critical output channels should be completed before releasing the station to automatic control, and the HMI operator should be notified of the planned switchover sequence to avoid alarm floods during the transition.

Post-migration, a 24-hour monitoring period is recommended to confirm that all communication links, diagnostic messages, and process values are behaving as expected. Any deviations in analog signal scaling or counter module behavior should be investigated against the original program documentation before the system is signed off for normal operation.

Retrofit Support FAQ

Q: Is the 6ES7650-8AK70-1AA0 a direct drop-in replacement for earlier ET 200SP HA CPU variants?
A: The 6ES7650-8AK70-1AA0 is designed for the ET 200SP HA platform and is compatible with the IM 155-6 PN/2 HF interface module. Direct drop-in compatibility depends on the firmware version of the interface module and the hardware configuration in TIA Portal. We recommend verifying the firmware compatibility matrix and updating the TIA Portal hardware catalog before installation.

Q: What pre-shipment testing is performed on the 6ES7650-8AK70-1AA0?
A: Each unit undergoes a functional power-on test and visual inspection before dispatch. The module is verified to initialize correctly and is packaged in anti-static protective materials. A support terms confirmed by quotation is included from the date of shipment.

Q: How do I confirm wiring compatibility between the new CPU and my existing BaseUnit terminals?
A: The BaseUnit type (BU type A0, B0, etc.) determines the terminal wiring configuration. Cross-reference the BaseUnit type installed in your ET 200SP HA station against the 6ES7650-8AK70-1AA0 product information sheet and the TIA Portal hardware catalog. If the BaseUnit type is incompatible, a BaseUnit replacement may be required as part of the retrofit.

Q: What is the lead time and stock availability for the 6ES7650-8AK70-1AA0?
A: We maintain stock of the 6ES7650-8AK70-1AA0 to support urgent spare part and retrofit requirements. Contact our sales team for current availability and lead time confirmation. Orders are processed with pre-shipment testing and dispatched with full documentation.
