Siemens 6ES7590-0BH00-0AA0 Fail-Safe Bus Module

Overview

Siemens 6ES7590-0BH00-0AA0 Fail-Safe Bus Module: Critical Industrial Control Reliability

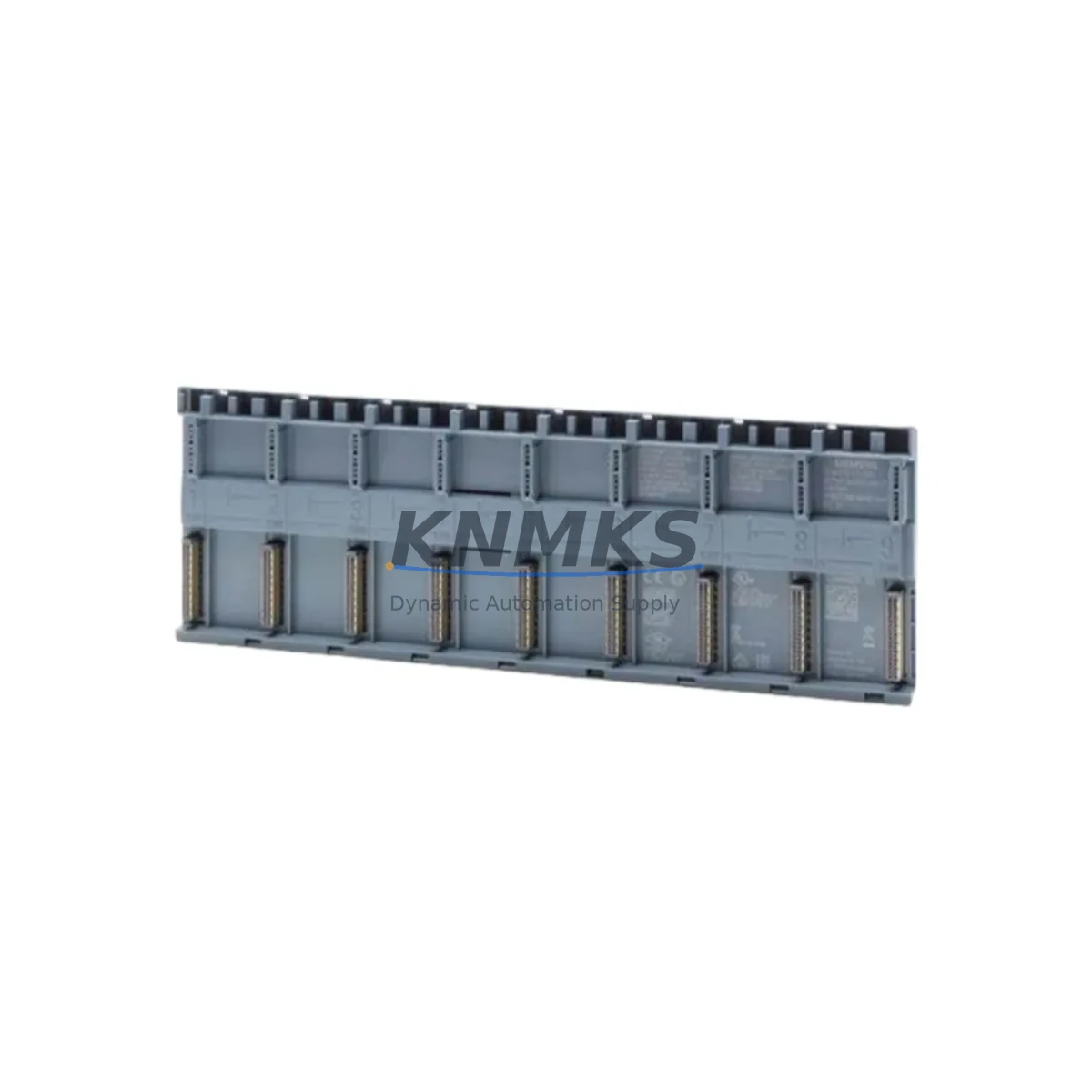

The Siemens 6ES7590-0BH00-0AA0 is a high-integrity backplane bus module engineered for the SIMATIC S7-1500 controller platform, purpose-built to sustain uninterrupted signal integrity and fail-safe communication across the most demanding industrial control environments. In continuous production facilities, critical interlock loops, and heavy-duty control cabinets where even a momentary communication fault can cascade into unplanned downtime or a safety event, the 6ES7590-0BH00-0AA0 delivers the structural backbone that keeps every connected I/O module, CPU, and interface module in precise, synchronized operation.

Designed to Siemens’ rigorous SIMATIC quality standards, this bus module eliminates the risk of signal drift, intermittent backplane faults, and communication anomalies that commonly arise in high-electromagnetic-interference environments such as variable-frequency drive panels, arc furnace control rooms, and high-voltage switchgear cabinets. Its robust mechanical and electrical design resists vibration, thermal cycling, and the ingress of conductive dust and moisture — conditions routinely encountered in metallurgical plants, port crane control systems, offshore platforms, and chemical processing units.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a properly engineered S7-1500 control cabinet, the 6ES7590-0BH00-0AA0 bus module functions as the structural and communicative spine connecting every rack component. Its role becomes especially critical when the cabinet hosts safety-rated modules such as the Siemens 6ES7326-1BK02-0AB0 F-DI digital safety input module, which relies on a stable, low-latency backplane bus to execute SIL 2/3 interlock logic without false trips or missed safety events. Similarly, when paired with the Siemens 6ES7521-1BL00-0AB0 DI 32×24VDC HF digital input module, the bus module ensures that high-frequency input signals from field sensors are captured and transmitted to the CPU without jitter or dropout — a prerequisite for reliable machine guarding and emergency stop circuits.

Power quality within the cabinet is equally important. The Siemens 6EP1333-3BA00 SITOP PSU100S 24V/5A power supply provides regulated DC power to the S7-1500 rack, and the bus module’s low-impedance backplane connection ensures that transient load spikes from output modules — such as the Siemens 6ES7522-1BH01-0AB0 DQ 16×24VDC/0.5A HF digital output module — do not propagate as voltage disturbances that could corrupt CPU cycle timing or trigger spurious fault diagnostics. In cabinets where PROFINET communication is extended to distributed I/O, the Siemens 6GK7543-1AX00-0XE0 CP 1543-1 communications processor depends on the backplane bus module to maintain deterministic data exchange between the CPU and the network interface, preventing communication timeouts that could halt an entire production line.

For installations requiring coordinated motion or drive control, the bus module supports seamless integration with Siemens SINAMICS G120 or S120 drive systems via PROFINET or PROFIBUS interface modules mounted on the same rack, ensuring that torque commands and speed references are transmitted with the cycle-time consistency that heavy-load motor control demands.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6ES7590-0BH00-0AA0 supports S7-1500 racks deployed in emergency shutdown (ESD) panels and burner management systems (BMS), where the backplane bus must sustain zero-error communication between the F-CPU and safety I/O modules across extended operating cycles measured in years, not months. Any backplane fault in these applications risks a spurious trip of a critical process unit, with direct consequences for production continuity and personnel safety.

In electric power generation and substation automation, S7-1500 controllers equipped with this bus module manage protection relay coordination, transformer tap-changer control, and grid synchronization sequences. The module’s vibration and shock resistance ensures that switchgear operation — which generates significant mechanical impulse — does not disturb the backplane bus and cause a CPU fault during a critical switching event.

In mining and mineral processing, where conveyors, crushers, and hoists operate under extreme mechanical stress and high dust concentrations, the 6ES7590-0BH00-0AA0 maintains reliable backplane communication in S7-1500 racks housed in NEMA 4X or IP65 enclosures, supporting continuous motor protection, overload detection, and safe torque-off (STO) interlock functions.

In water and wastewater treatment facilities, the bus module enables S7-1500 systems to manage pump sequencing, chemical dosing control, and SCADA data acquisition without communication interruptions caused by the high humidity and corrosive atmospheric conditions typical of these installations. In port and terminal automation, where ship-to-shore cranes and automated stacking cranes demand millisecond-level control response, the bus module’s signal integrity protection prevents the backplane latency spikes that could cause positioning errors or safety system activations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7590-0BH00-0AA0?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and premature component degradation under normal industrial operating conditions. If the module fails to perform its specified backplane bus function within the confirmed support period, KNMKS will provide a replacement or documented resolution support. Support requests are processed promptly to minimize your site downtime. Contact [email protected] to initiate a support terms claim.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7590-0BH00-0AA0 unit undergoes a full functional verification test prior to dispatch, including backplane connector integrity checks, mechanical locking mechanism inspection, and visual examination for physical damage or counterfeit indicators. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request for critical safety applications.

Q3: Is this bus module compatible with all S7-1500 CPU variants, including F-CPU safety controllers?
Yes. The 6ES7590-0BH00-0AA0 is compatible with the full SIMATIC S7-1500 product family, including standard CPUs (e.g., CPU 1511, 1513, 1515, 1517), fail-safe F-CPUs (e.g., CPU 1511F, 1513F, 1515F), technology T-CPUs, and compact C-CPUs. It is also compatible with ET 200MP distributed I/O racks that use the S7-1500 mounting system. Always verify the specific rack configuration against the Siemens SIMATIC S7-1500 system manual for your firmware version.

Q4: Can KNMKS support long-term supply and emergency replacement for this module?
Yes. KNMKS maintains dedicated stock of the 6ES7590-0BH00-0AA0 and related S7-1500 system components to support both planned maintenance schedules and emergency spare-part requirements. We offer global shipping with expedited options for critical plant situations. For blanket order arrangements, volume pricing, or long-term supply agreements, contact our team directly at [email protected] or +86 18359268345.
