Siemens 6ES7532-5HF00-0AB0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES7532-5HF00-0AB0 Maintenance-Proven Spare Part for Factory Uptime

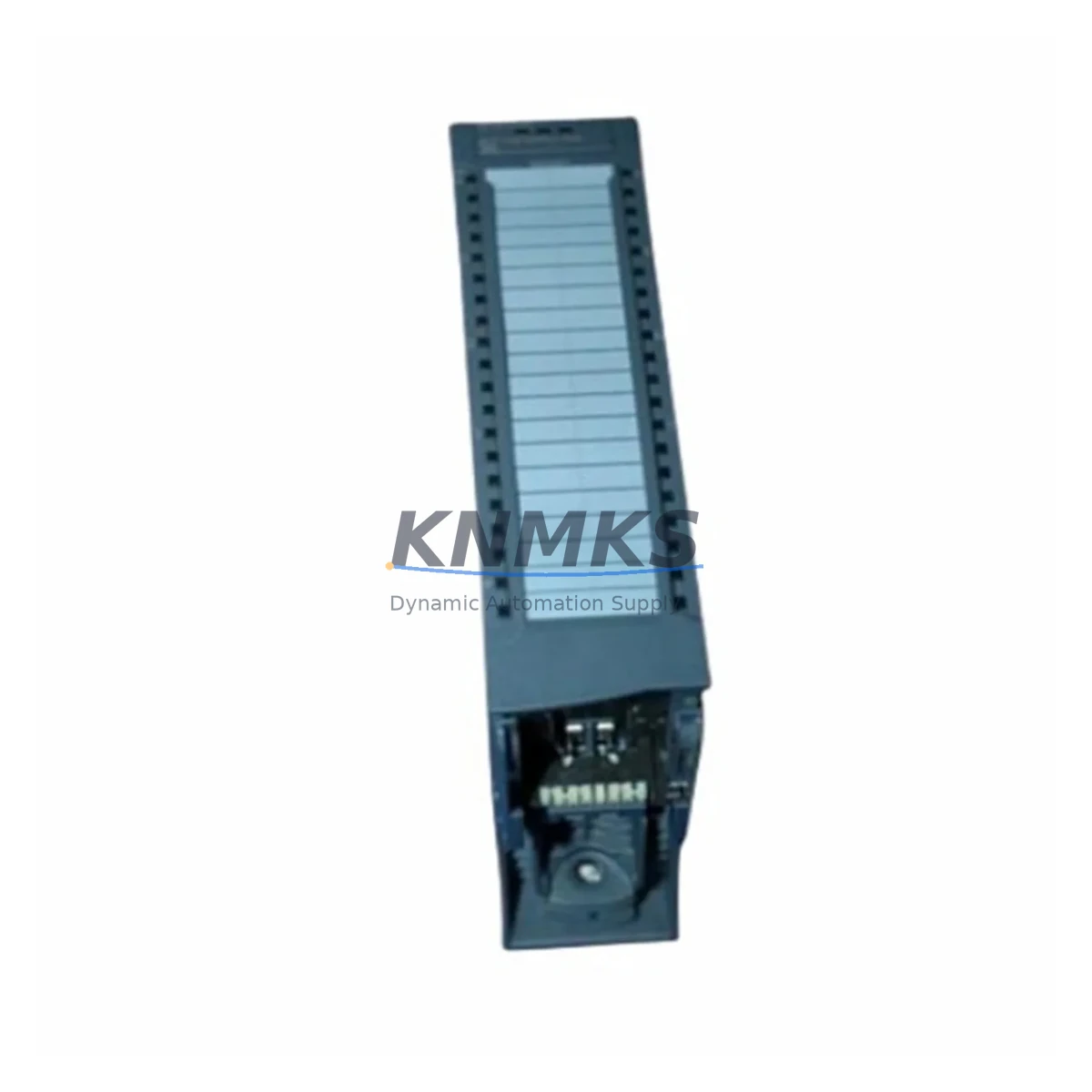

The Siemens 6ES7532-5HF00-0AB0 is an original SIMATIC S7-1500 analog output module (AQ 8×U/I ST) designed for demanding industrial automation environments. With 8 analog output channels supporting both voltage and current signals, this module is a critical component in process control, drive coordination, and actuator management across continuous manufacturing, chemical processing, and energy generation facilities. Maintaining a verified spare of the 6ES7532-5HF00-0AB0 in your parts inventory is a proven strategy for reducing mean time to repair (MTTR) and protecting production continuity against unplanned downtime.

For maintenance engineers managing aging SIMATIC S7-1500 racks, the 6ES7532-5HF00-0AB0 represents a high-priority line item on any annual inspection checklist. Analog output modules are subject to gradual signal drift, output channel degradation, and connector wear — failure modes that often manifest as subtle process deviations before causing a full control loop fault. Proactive replacement during scheduled shutdowns, rather than reactive swap-out during a production emergency, is the recommended maintenance posture for this module class.

Each unit supplied by KNMKS is sourced as original Siemens hardware, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions. Fast global dispatch ensures that procurement engineers can close emergency purchase orders with confidence, even for facilities operating under tight maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement or inspection of the 6ES7532-5HF00-0AB0, maintenance engineers should treat the module as part of a broader analog output subsystem review. Signal integrity across the full output loop depends on the health of several interconnected components, and replacing the module alone without inspecting adjacent hardware can result in recurring faults or premature failure of the new spare.

Begin with the S7-1500 power supply module (such as the PM 70W 120/230V AC or PS 60W 24/48/60V DC variants) — insufficient or unstable rail voltage is a leading cause of analog output drift and channel-level errors. Verify that the backplane bus connector and rack mounting rail show no signs of oxidation or mechanical stress, as poor backplane contact directly affects module communication and output stability.

Inspect all field wiring terminals connected to the AQ channels. Loose or corroded terminal connections on the front connector (6ES7592-1AM00-0XB0 or equivalent) introduce resistance that distorts 4–20 mA loop signals and can trigger nuisance alarms in the DCS or SCADA layer. For current output loops, verify that signal isolators or loop-powered barriers in the circuit are within their rated operating range and have not degraded.

Check the CPU module (e.g., CPU 1515-2 PN or CPU 1516-3 PN/DP) for any pending hardware faults or firmware mismatches that could affect analog output configuration. If the facility uses PROFINET communication modules or CM PtP serial communication modules in the same rack, confirm that rack-level power budgets remain within specification after module replacement. For installations with F-modules or safety-rated I/O in adjacent slots, re-validate the safety configuration in STEP 7 / TIA Portal after any hardware change in the rack.

Finally, review the 24 V DC distribution fusing for the field device circuits driven by the AQ outputs. Blown or weakened fuses in the field circuit are frequently overlooked during module-level troubleshooting and can cause the replacement module to appear faulty on first power-up.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Download and archive the current TIA Portal project configuration before any hardware change. Confirm the replacement 6ES7532-5HF00-0AB0 firmware version is compatible with the installed CPU firmware. If the existing module is still partially functional, record all channel output values and compare against process setpoints to establish a baseline.

Step 2 — Safe Isolation: Place the CPU in STOP mode via the TIA Portal online interface or the physical mode selector. De-energize the 24 V DC field supply to the AQ module’s output circuits. Do not rely solely on software STOP — physically isolate field power to prevent actuator movement during module swap.

Step 3 — Module Removal: Disconnect the front connector (retain wiring harness intact for reinstallation). Release the module locking mechanism and slide the 6ES7532-5HF00-0AB0 out of the rack slot. Inspect the backplane connector pins on both the module and rack for damage or contamination before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new 6ES7532-5HF00-0AB0 into the same rack slot. Reconnect the front connector. Restore 24 V DC field supply. Return the CPU to RUN mode. The S7-1500 will automatically detect the new module and load the stored configuration — no re-parameterization is required if the replacement module matches the original order number exactly.

Step 5 — Post-Replacement Validation: Verify all 8 output channels against process setpoints using the TIA Portal Watch and Force table or a calibrated loop tester. Confirm that no hardware fault LEDs are active on the module or CPU. Log the replacement in the facility CMMS with the new module serial number and installation date to support support terms tracking and future maintenance scheduling.

Spare Parts Support FAQ

Q1: Is the 6ES7532-5HF00-0AB0 compatible with both S7-1500 and ET 200MP systems?
Yes. The 6ES7532-5HF00-0AB0 is designed for the SIMATIC S7-1500 backplane and is also fully compatible with the ET 200MP distributed I/O system, which uses the same module form factor and backplane bus interface. Confirm rack slot assignment and power budget before installation in ET 200MP configurations.

Q2: What pre-shipment testing is performed on each unit?
Each 6ES7532-5HF00-0AB0 supplied by KNMKS undergoes functional output verification across all 8 analog channels prior to dispatch. Testing confirms correct voltage and current output ranges, channel isolation, and backplane communication. A test record is available upon request for quality documentation purposes.

Q3: How should this module be stored as a long-term spare?
Store in original anti-static packaging in a dry environment between −40 °C and +70 °C with relative humidity below 95% (non-condensing). Avoid storage near strong electromagnetic fields or corrosive atmospheres. Inspect connector pins annually and rotate stock on a first-in, first-out basis to maintain readiness. KNMKS supports long-term supply commitments for facilities requiring guaranteed availability over multi-year maintenance contracts.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and operational failures occurring under normal industrial use conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the module’s rated environmental specifications. For support requests, contact KNMKS with the order reference and a description of the observed fault — replacement or repair will be coordinated within the agreed service timeline.
