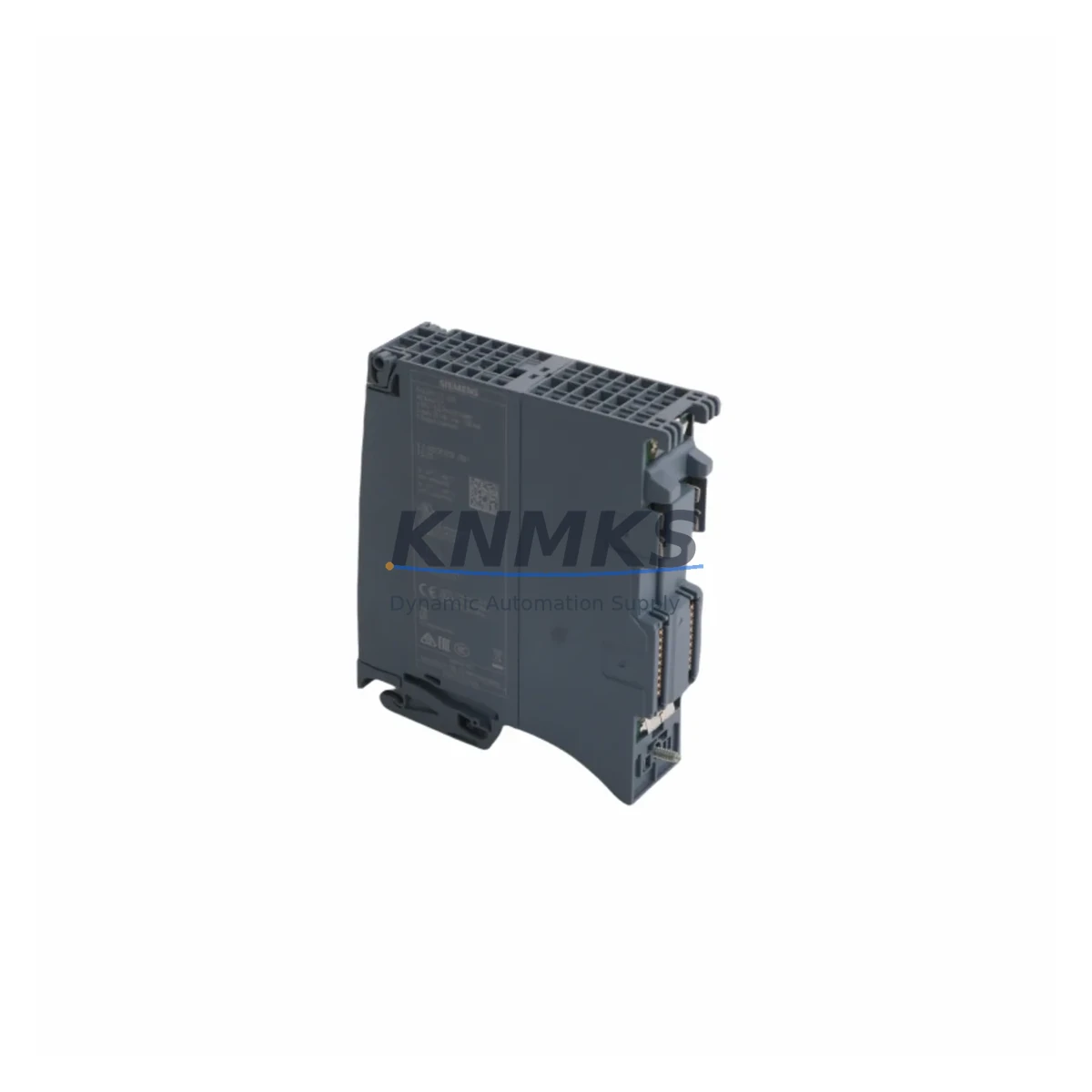

Siemens 6ES7532-5HD00-0AB0 Migration-Ready Analog Output Module

Overview

Siemens 6ES7532-5HD00-0AB0 Migration-Ready Analog Output Module: Legacy System Migration and Compatible Upgrade

The Siemens 6ES7532-5HD00-0AB0 is a high-density analog output module designed for the SIMATIC S7-1500 programmable logic controller platform. Offering four channels of configurable voltage or current output (AQ 4×U/I ST), this module is a direct migration-ready replacement for aging analog output assemblies found in legacy S7-300 and S7-400 control systems. Whether your facility is managing a phased DCS modernization, replacing discontinued spare parts, or upgrading a control cabinet to meet current process demands, the 6ES7532-5HD00-0AB0 delivers the signal precision, backplane compatibility, and firmware alignment required for a reliable cutover.

Each unit is pre-shipment tested against Siemens factory specifications, covering channel-to-channel isolation, output linearity, and communication integrity across the PROFINET/PROFIBUS backplane interface. With support terms confirmed by quotation coverage and verified in-stock availability, this module supports both emergency replacement scenarios and planned retrofit programs with equal confidence.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 6ES7532-5HD00-0AB0 into an existing control architecture requires a structured pre-migration checklist. Begin by auditing the current S7-1500 rack’s power budget: the system power supply — typically a PM 70W or PS 60W — must have sufficient headroom to support the additional analog output load. If the rack is already near capacity, consider redistributing I/O across a secondary ET 200MP distributed I/O station before proceeding.

Terminal wiring is a critical checkpoint. The 6ES7532-5HD00-0AB0 uses a 40-pin front connector, and field cables from legacy S7-300 SM 332 installations will require re-termination or adapter harnesses. Confirm wire gauge, shielding continuity, and grounding scheme before energizing the new module. Signal cables running to actuators, control valves, or variable frequency drives must be re-verified for loop impedance and output range compatibility.

In TIA Portal, the module must be added to the hardware configuration under the correct rack slot. The analog output addresses — both the process image output (PIQ) byte addresses and the diagnostic addresses — will shift if the slot position changes from the legacy layout. Update all associated data blocks, function blocks, and HMI tag tables accordingly. If the system uses a SIMATIC S7-1500 CPU 1516 or CPU 1518 with redundancy, verify that the analog output module is correctly mirrored in the partner rack configuration.

For facilities migrating from older S7-300 platforms using SM 332 analog output cards, the 6ES7532-5HD00-0AB0 provides a functionally equivalent upgrade path. However, the backplane connector and rack geometry differ, so a new S7-1500 mounting rail and U-connector set will be required. Pair this module with a SIMATIC S7-1500 digital input module (such as the 6ES7521-1BL00-0AB0) and a CP 1543-1 communications processor if the legacy system relied on Industrial Ethernet routing outside the standard PROFINET topology. For signal conditioning between legacy 0–10 V field devices and the new 4–20 mA loop standard, a SITRANS signal isolator or equivalent DIN-rail isolator module should be inserted in the signal chain.

If the retrofit involves an ET 200SP or ET 200MP distributed I/O expansion, confirm that the IM 155-5 PN ST interface module firmware is compatible with the CPU version in use. Backplane communication errors during commissioning are frequently traced to firmware mismatches between the interface module and the CPU — a check that takes minutes but can prevent hours of unplanned downtime.

Downtime Control During System Migration

Minimizing production interruption during an analog output module replacement begins with a complete offline backup of the TIA Portal project, including all hardware configurations, program blocks, and HMI screen layouts. Before any physical work begins, export the current analog output tag list and document the existing PIQ addresses, channel scaling parameters, and diagnostic alarm configurations. This baseline ensures that the post-migration system can be validated against known-good values without relying on memory or incomplete documentation.

Where process conditions allow, perform a hot-swap simulation in offline mode: configure the new 6ES7532-5HD00-0AB0 in a test rack, load the updated TIA Portal configuration, and verify all output channels respond correctly to forced values before the live cutover. This approach is particularly valuable in continuous process environments — chemical dosing, boiler control, or HVAC damper positioning — where an unexpected output deviation can trigger safety interlocks or process upsets.

During the physical swap, follow a structured sequence: place the CPU in STOP mode, remove the front connector from the legacy module (preserving field wiring), seat the new module in the correct slot, reattach the front connector, and download the updated hardware configuration before returning the CPU to RUN mode. Monitor the diagnostic buffer in TIA Portal immediately after restart to confirm that no channel faults or configuration mismatches are reported. If the system includes a WinCC SCADA layer, verify that analog output faceplate values are updating correctly and that no stale or frozen values persist in the historian.

For critical applications where zero unplanned downtime is required, maintain a pre-tested spare 6ES7532-5HD00-0AB0 on-site. With support terms confirmed by quotation coverage and pre-shipment testing already completed, the module can be installed and commissioned within a single planned maintenance window, keeping mean time to repair (MTTR) within acceptable limits for most SIL-rated or high-availability control loops.

Retrofit Support FAQ

Q1: Can the 6ES7532-5HD00-0AB0 directly replace a Siemens SM 332 analog output module from an S7-300 system?
A: Not as a direct plug-in replacement — the S7-300 and S7-1500 use different backplane connectors and rack geometries. However, the 6ES7532-5HD00-0AB0 is the functional successor for SM 332 applications when migrating to the S7-1500 platform. A new S7-1500 mounting rail, U-connector set, and TIA Portal hardware reconfiguration are required. Field wiring can typically be re-terminated to the new 40-pin front connector with minimal modification.

Q2: What commissioning steps are required after installing this module?
A: After physical installation, download the updated TIA Portal hardware configuration to the CPU. Verify that the module appears online without faults in the device diagnostics view. Force each output channel individually to confirm correct signal levels at the field terminal. Check that analog output scaling (engineering units, output range, and substitute values on CPU STOP) matches the process requirements. Update HMI tag addresses if slot position has changed from the legacy layout.

Q3: Is the module compatible with both voltage and current output field devices?
A: Yes. Each of the four channels on the 6ES7532-5HD00-0AB0 can be independently configured for voltage output (±10 V) or current output (0–20 mA or 4–20 mA) via TIA Portal parameter assignment. No hardware jumpers are required. Confirm the output mode matches the field device input specification — particularly for variable frequency drives and control valves that may expect a specific signal type.

Q4: What support terms and pre-shipment testing does this unit include?
A: Every 6ES7532-5HD00-0AB0 dispatched from our inventory carries a support terms confirmed by quotation from the date of shipment. Pre-shipment testing covers full four-channel output verification across the rated voltage and current ranges, backplane communication integrity, and isolation resistance checks. Units are packaged in anti-static ESD-safe materials with documentation. In-stock units are available for same-day or next-business-day dispatch to support emergency replacement and planned maintenance schedules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7532-5HD00-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7532-5HD00-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
