Siemens 6ES7531-7NF10-0AB0 Fail-Safe Analog Input Module

Overview

Siemens 6ES7531-7NF10-0AB0 Fail-Safe Analog Input Module: Fault Protection and Critical Industrial Field Reliability

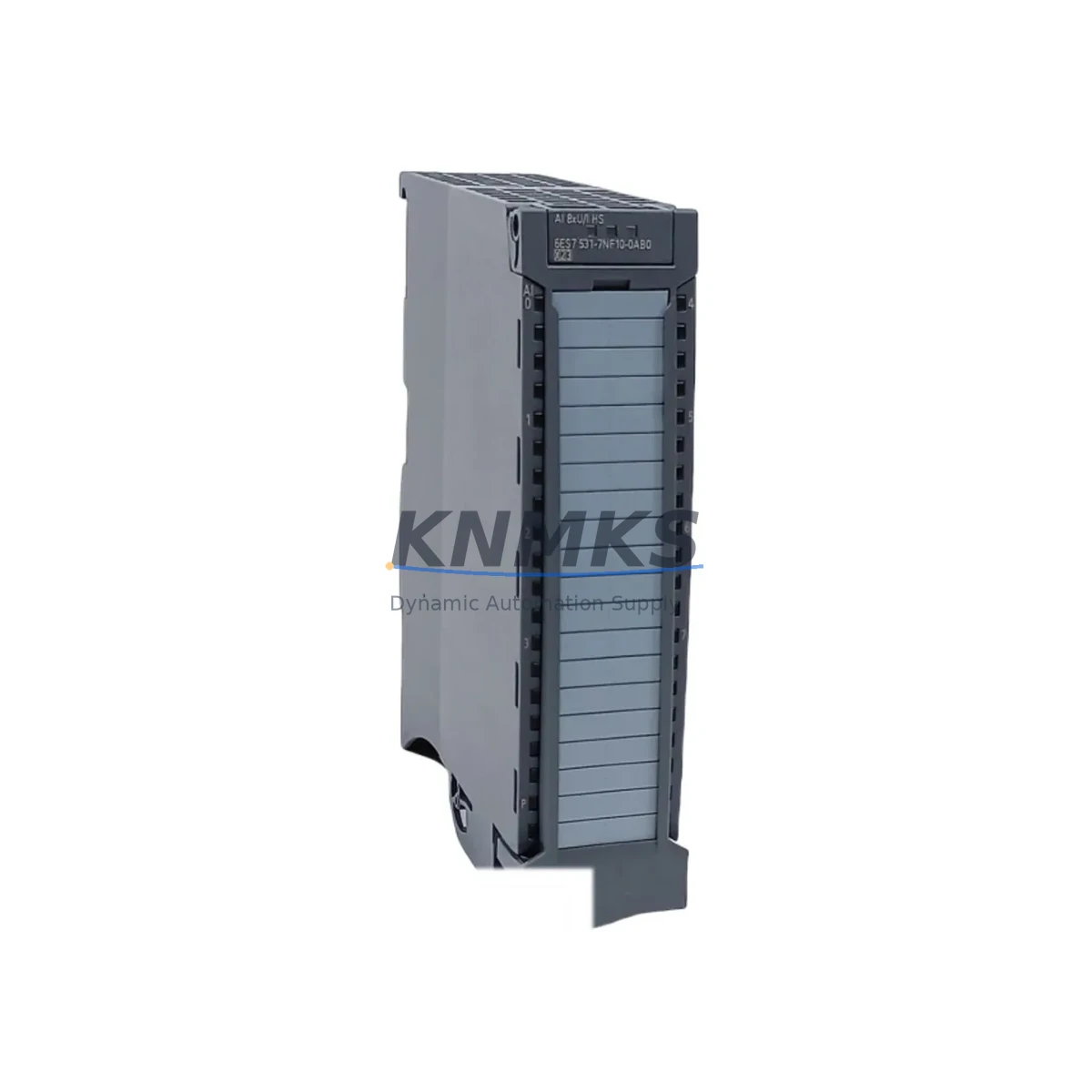

The Siemens 6ES7531-7NF10-0AB0 is a high-density analog input module designed for the SIMATIC S7-1500 programmable logic controller platform. Supporting 16 channels of universal analog input — voltage, current, RTD, and thermocouple (TC ST) — this module delivers the measurement precision and signal integrity demanded by continuous production environments, critical safety interlocks, and high-stakes process control applications. Whether deployed in a heavy-duty control cabinet subject to electromagnetic interference, or installed in a field enclosure exposed to dust, humidity, and thermal cycling, the 6ES7531-7NF10-0AB0 is engineered to maintain stable, uninterrupted signal acquisition where control interruptions carry real operational and safety consequences.

In industrial automation, analog signal integrity is the foundation of safe process control. Signal drift, ground loops, and noise-induced measurement errors can trigger spurious alarms, cause actuator mistrips, or — in worst-case scenarios — mask genuine process deviations that demand immediate response. The 6ES7531-7NF10-0AB0 addresses these risks through high-resolution 16-bit analog-to-digital conversion, per-channel configurable measurement ranges, and integrated diagnostic functions that continuously monitor channel health, wire-break conditions, and overrange events. These diagnostics feed directly into the S7-1500 CPU’s system diagnostics framework, enabling maintenance teams to identify and resolve signal anomalies before they escalate into unplanned shutdowns.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable analog signal acquisition does not exist in isolation — it depends on a well-engineered control cabinet ecosystem. In S7-1500-based automation architectures, the 6ES7531-7NF10-0AB0 operates in close coordination with the SIMATIC S7-1500 CPU module (such as the CPU 1515-2 PN or CPU 1516-3 PN/DP), which processes the acquired analog values and executes the control logic. Power integrity is equally critical: the SITOP PSU8600 modular power supply system provides stable, filtered DC 24 V to the S7-1500 rack, protecting analog input channels from voltage sags and transient surges that could corrupt measurement accuracy.

For applications where analog signals must traverse long cable runs through electrically noisy environments — common in petrochemical plants, steel mills, and port crane systems — the SIMATIC ET 200SP distributed I/O system can be deployed at the field level to pre-process signals closer to the source, reducing noise pickup before data reaches the central S7-1500 rack. In safety-instrumented systems (SIS) operating under IEC 61511, the 6ES7531-7NF10-0AB0 is often paired with the SIMATIC S7-1500F fail-safe CPU and F-DI/F-DO safety I/O modules to form a complete safety loop capable of achieving SIL 2 or SIL 3 integrity levels. Additionally, SIMATIC S7-1500 communication modules — including the CM PtP RS422/485 and CP 1543-1 Industrial Ethernet module — extend the control architecture to field devices and supervisory SCADA systems, ensuring that analog measurement data is reliably transmitted across the plant network without communication loss or data corruption.

Surge protection devices installed at cabinet entry points, combined with proper cable shielding and grounding practices, complete the protection strategy — ensuring that the 6ES7531-7NF10-0AB0 delivers consistent, drift-free analog measurements throughout its service life, even in environments with frequent lightning events or heavy motor switching loads.

Critical Industrial Safety Applications

The 6ES7531-7NF10-0AB0 is deployed across a broad range of critical industrial sectors where analog measurement accuracy directly impacts process safety and operational continuity.

In petrochemical and refinery operations, the module monitors temperature, pressure, and flow transmitters across distillation columns, reactor vessels, and pipeline systems. Its 16-channel capacity allows a single module to cover an entire process unit’s critical measurement points, reducing rack space requirements while maintaining full diagnostic visibility. Wire-break detection ensures that a failed transmitter cable triggers an immediate diagnostic alarm rather than a silent measurement freeze — a critical distinction in processes where undetected sensor failure can lead to runaway conditions.

In electric power generation and substation automation, the module acquires analog signals from current transformers, voltage transducers, and temperature sensors on generator windings and transformer cooling systems. The high EMC immunity of the S7-1500 platform ensures measurement stability even in environments with strong magnetic fields generated by high-voltage switching equipment.

In mining and mineral processing, where conveyor systems, crushers, and grinding mills operate under heavy mechanical loads and generate significant electrical noise, the 6ES7531-7NF10-0AB0 provides reliable acquisition of motor current, vibration, and bearing temperature signals — enabling predictive maintenance programs that reduce unplanned downtime and extend equipment service life.

In water and wastewater treatment, the module supports continuous monitoring of pH, dissolved oxygen, turbidity, and flow rate across treatment stages. Its universal input capability eliminates the need for separate RTD and current input modules, simplifying cabinet design and reducing potential points of failure.

In metallurgical and steel production environments — characterized by extreme temperatures, heavy vibration, and intense electromagnetic interference from arc furnaces and induction heating systems — the module’s robust design and IEC 61131-2 EMC compliance ensure measurement integrity under conditions that would compromise lesser hardware.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7531-7NF10-0AB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing to verify channel accuracy, diagnostic response, and backplane communication integrity. In the event of a support terms claim, replacement or repair is arranged promptly to minimize your operational impact.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7531-7NF10-0AB0 is subjected to a multi-point functional verification process prior to dispatch. This includes power-on self-test validation, analog channel accuracy verification across multiple input ranges, diagnostic function confirmation, and backplane communication integrity checks. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the 6ES7531-7NF10-0AB0 compatible with existing S7-1500 installations and TIA Portal projects?
Yes. The 6ES7531-7NF10-0AB0 is fully compatible with all SIMATIC S7-1500 CPU variants and is supported in TIA Portal V13 SP1 and all subsequent versions. It can be integrated into existing hardware configurations without requiring CPU firmware upgrades, provided the TIA Portal project version is current. Channel configuration, diagnostic settings, and measurement ranges are all managed through the standard TIA Portal hardware configuration interface.

Q4: Can long-term supply continuity be guaranteed for critical maintenance programs?
We maintain dedicated stock reserves of high-demand S7-1500 I/O modules, including the 6ES7531-7NF10-0AB0, to support blanket-order and scheduled-release programs for customers with ongoing maintenance requirements. For facilities managing large S7-1500 installations, we recommend establishing a standing stock agreement to ensure module availability independent of OEM lead-time fluctuations or allocation constraints. Contact our sales team to discuss tailored supply arrangements.
