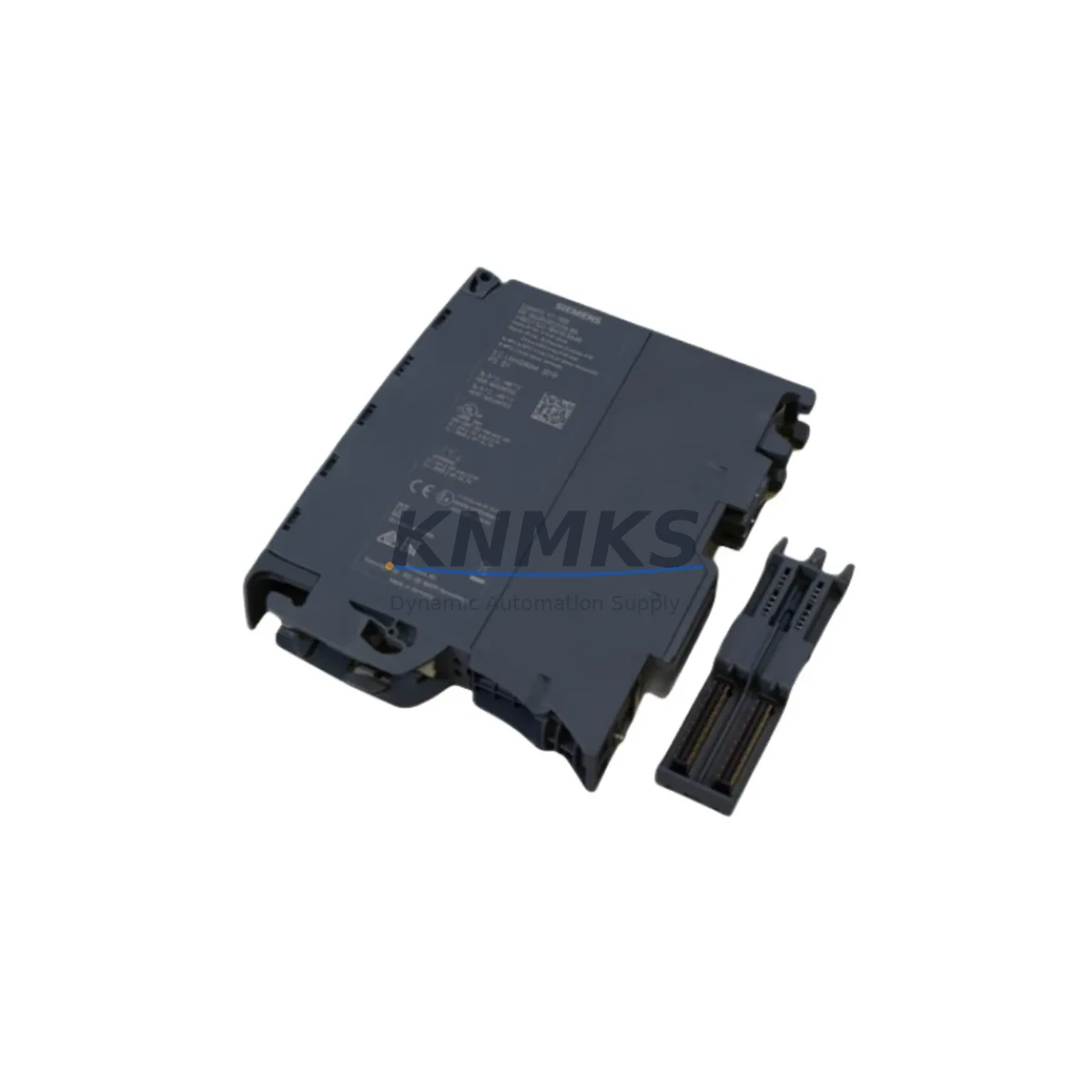

Siemens 6ES7522-1BH10-0AA0 Fail-Safe DQ Module S7-1500

Overview

Siemens 6ES7522-1BH10-0AA0 Fail-Safe DQ Module S7-1500: Fault Protection for Critical Industrial Control Reliability

The Siemens 6ES7522-1BH10-0AA0 is a high-performance digital output module designed for the SIMATIC S7-1500 automation platform. Rated at DQ 16×24VDC/0.5A ST, this module delivers deterministic, fail-safe output switching across 16 channels, making it a cornerstone component in safety-critical control cabinets where unplanned downtime, signal drift, or output misfiring cannot be tolerated. Whether deployed in continuous process manufacturing, heavy-load switchgear panels, or high-EMI environments, the 6ES7522-1BH10-0AA0 maintains output integrity under demanding electrical and thermal conditions.

In industrial facilities where control interruption carries significant operational or safety consequences — petrochemical reactors, power generation auxiliaries, mining conveyor systems, or water treatment dosing lines — the reliability of each digital output channel directly affects process continuity. The 6ES7522-1BH10-0AA0 addresses this by providing robust short-circuit protection per channel, thermal shutdown safeguards, and diagnostic feedback that integrates natively with the S7-1500 CPU’s fault management routines. When paired with a SIMATIC S7-1500 CPU such as the CPU 1516-3 PN/DP or CPU 1515-2 PN, the module’s channel-level diagnostics allow maintenance teams to isolate faults without halting the entire rack, dramatically reducing mean time to repair.

Control cabinet protection begins at the power supply level. The 6ES7522-1BH10-0AA0 operates from a 24VDC load supply, and its performance is closely tied to the stability of that supply rail. In installations where surge events, voltage dips, or inrush currents from motor starters are present, pairing this module with a SITOP PSU8200 24VDC stabilized power supply ensures the output channels receive clean, regulated voltage. The SITOP’s buffering capability protects against brief supply interruptions that would otherwise trigger nuisance output drops in sensitive interlock circuits. For cabinets with mixed analog and digital I/O, the 6ES7522-1BH10-0AA0 can be installed alongside the SM 521 DI 16×24VDC HF digital input module on the same S7-1500 backplane, maintaining a compact and thermally balanced rack layout.

In high-EMI environments — common in arc furnace control rooms, variable frequency drive panels, and heavy crane cabinets — the module’s shielded terminal design and the S7-1500 rack’s grounded backplane structure provide a first line of defense against conducted and radiated interference. For applications requiring additional signal isolation between the PLC output and field actuators, inline signal isolators or relay output modules such as the IM 155-6 PN ST interface module in ET 200SP distributed I/O configurations can extend the protection boundary to remote field panels, keeping the main S7-1500 rack insulated from field-side fault currents.

Firmware compatibility is a key consideration when replacing or upgrading output modules in an existing S7-1500 system. The 6ES7522-1BH10-0AA0 is compatible with TIA Portal V15.1 and later, and its hardware configuration is stored in the project’s device catalog. Before replacement, engineers should verify the firmware version of the installed CPU and confirm that the module’s GSD file revision matches the project configuration. In most cases, a direct swap is possible without program modification, provided the channel assignment and output address mapping remain unchanged. This makes the 6ES7522-1BH10-0AA0 a practical drop-in replacement for aging DQ modules in legacy S7-1500 installations where the CPU and backplane are retained.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S7-1500 control cabinet built around the 6ES7522-1BH10-0AA0 typically integrates several complementary components to ensure system-wide fault tolerance. The SITOP PSU8200 24VDC/10A power supply provides the stable load voltage required by the output channels, with built-in overload and short-circuit protection that prevents cascading failures when a field actuator develops a fault. The S7-1500 CPU 1516-3 PN/DP serves as the central controller, managing the module’s diagnostic data and executing the safety interlock logic that governs output switching sequences.

For distributed field I/O in remote panels or junction boxes, the ET 200SP IM 155-6 PN ST interface module extends the S7-1500 I/O bus over PROFINET, allowing additional DQ and DI modules to be placed closer to field devices without running long signal cables back to the main cabinet. This architecture reduces voltage drop on 24VDC output lines and minimizes the EMI pickup that long cable runs introduce in electrically noisy plant environments. In cabinets where analog signals are present alongside digital outputs, the SM 532 AQ 4×U/I ST analog output module can be installed on the same backplane, sharing the rack’s common backplane power and diagnostic infrastructure.

For applications requiring hardwired safety relay backup — such as emergency stop circuits or safety door interlocks — the 6ES7522-1BH10-0AA0’s outputs can drive the coils of safety relay modules directly, with the relay contacts forming the final switching element in the safety circuit. This layered approach, combining PLC-controlled outputs with hardwired safety relays, is standard practice in machinery safety applications governed by IEC 62061 or ISO 13849.

Critical Industrial Safety Applications

The 6ES7522-1BH10-0AA0 is deployed across a wide range of critical industrial sectors where output reliability is non-negotiable. In petrochemical plants, it controls solenoid valves, motor starters, and shutdown actuators in process units where a spurious output trip or failure to de-energize can trigger a safety instrumented system (SIS) response. In power generation facilities, it manages auxiliary equipment switching — cooling fans, lube oil pumps, and breaker control circuits — where continuous availability is required around the clock.

In mining operations, the module drives conveyor belt starters, ventilation fan contactors, and dewatering pump controls in environments characterized by heavy vibration, coal dust ingress, and wide ambient temperature swings. Its IP20 rating, combined with proper cabinet sealing and filtered ventilation, allows reliable operation in these conditions. Water treatment plants use the 6ES7522-1BH10-0AA0 to control dosing pump contactors, valve actuators, and UV disinfection system enables, where precise output timing and fault detection prevent chemical overdosing or process bypass events.

In metallurgical and port crane applications, the module’s ability to handle inductive load switching — with appropriate external freewheeling diodes on the load side — makes it suitable for driving relay coils and solenoid valves in high-cycle-rate applications. Shipboard automation systems, where space is constrained and the electrical environment is harsh, benefit from the module’s compact S7-1500 form factor and its ability to operate reliably under the vibration and humidity conditions typical of marine engine rooms.

Safety and Quality FAQ

Q1: Does the 6ES7522-1BH10-0AA0 come with a support terms?
Yes. Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes pre-shipment functional testing to verify output switching, channel diagnostics, and backplane communication before dispatch.

Q2: How is compatibility with an existing S7-1500 system verified before installation?
Compatibility is confirmed by matching the module’s order number and firmware version against the TIA Portal project’s hardware catalog. The 6ES7522-1BH10-0AA0 is compatible with TIA Portal V15.1 and later. In most replacement scenarios, the module can be swapped without modifying the program, provided the I/O address mapping and channel configuration remain unchanged. KNMKS can provide technical guidance on firmware version matching upon request.

Q3: Can this module be used in safety-rated (SIL/PLe) applications?
The 6ES7522-1BH10-0AA0 is a standard (non-F) digital output module and is not independently rated for SIL or PLe safety functions. For safety-rated output control, Siemens offers the F-DQ series within the S7-1500 F-CPU ecosystem. However, the 6ES7522-1BH10-0AA0 is widely used in standard control circuits that support safety systems — such as driving safety relay coils or auxiliary contactors — where the safety function is implemented in the hardwired relay layer rather than the PLC output itself.

Q4: What is the long-term supply availability for this module?
KNMKS maintains stocked inventory of the 6ES7522-1BH10-0AA0 to support ongoing maintenance, spare parts programs, and multi-site procurement requirements. Orders can be fulfilled from available stock with standard lead times. For customers requiring guaranteed supply over a 12–36 month horizon, KNMKS can discuss blanket order arrangements to secure pricing and availability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7522-1BH10-0AA0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7522-1BH10-0AA0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
