Siemens 6ES7522-1BH00-0AB0 Fail-Safe Digital Output

Overview

Siemens 6ES7522-1BH00-0AB0 Fail-Safe Digital Output — Critical Industrial Control Reliability

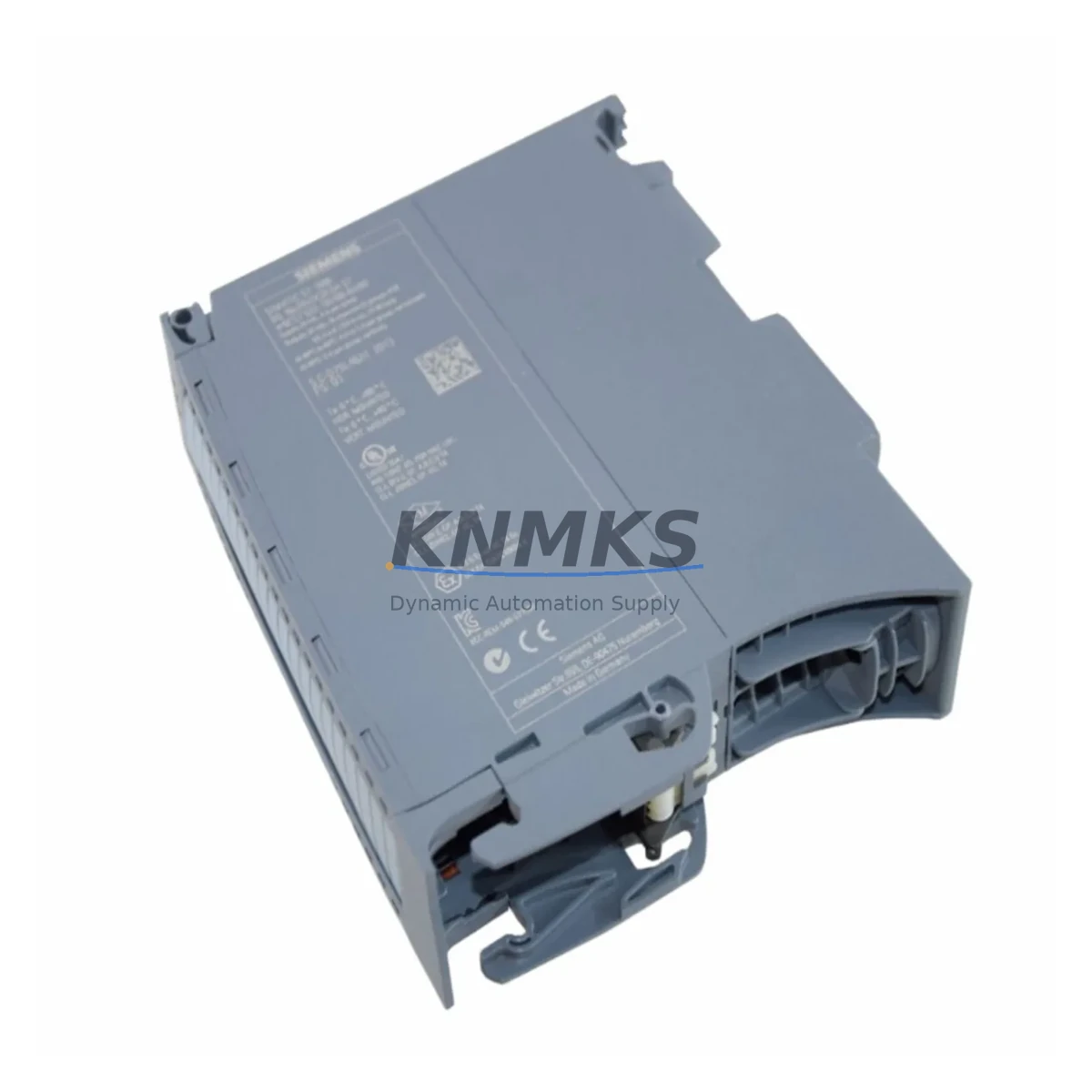

The Siemens 6ES7522-1BH00-0AB0 is a 16-channel, 24 VDC / 0.5 A per channel digital output module engineered for the SIMATIC S7-1500 automation platform. Designed to operate reliably in demanding industrial environments — including high electromagnetic interference zones, dusty and humid process areas, high-temperature control cabinets, and continuous-production facilities — this module delivers the output switching precision and fault-tolerance that safety-critical control loops demand. Its fail-safe architecture ensures that in the event of a power anomaly, communication fault, or CPU watchdog timeout, all outputs revert to a defined safe state, preventing uncontrolled actuator movement and protecting personnel and equipment alike.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous manufacturing environments, unplanned output failures can cascade into costly shutdowns or hazardous conditions. The 6ES7522-1BH00-0AB0 addresses this risk directly: its robust output driver circuitry suppresses inductive load transients and surge impulses from solenoid valves, motor contactors, and relay coils — components that routinely generate back-EMF spikes capable of corrupting adjacent signal channels. By integrating this module into your S7-1500 control cabinet, you reduce the probability of spurious output trips, signal drift, and nuisance faults that erode process uptime.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable S7-1500 control cabinet is built on layered protection — and the 6ES7522-1BH00-0AB0 is a key layer in that architecture. On the power supply side, pairing this output module with a Siemens SITOP PSU8200 24 VDC stabilized power supply ensures that voltage fluctuations and mains disturbances do not propagate into the output switching stage. Upstream, the 6ES7521-1BH00-0AB0 Digital Input Module (DI 16×24VDC HF) provides the high-speed input acquisition that feeds the CPU’s control logic, forming a tightly coupled input-output pair for fast interlock response.

For CPU-level redundancy and program integrity, the 6ES7518-4AP00-0AB0 CPU 1518-4 PN/DP offers the processing headroom and dual-port PROFINET connectivity needed to sustain deterministic scan cycles even under heavy I/O loads. When communication integrity is paramount — particularly in long-distance cabinet-to-field runs susceptible to ground loops and induced noise — the 6GK7542-6UX00-0XE0 PROFINET Interface Module CM 1542-1 isolates and conditions the network path, preventing communication timeouts that could force the output module into a safe-state hold.

In cabinets where thermal management is a concern — common in high-density I/O racks operating in ambient temperatures above 45 °C — supplementing the rack with a Siemens SIMATIC S7-1500 Active Cooling Unit or equivalent forced-air solution maintains the module’s junction temperature within specification, preventing thermally induced output derating. Finally, for surge and transient protection at the field wiring terminals, installing Phoenix Contact TRABTECH or equivalent DIN-rail surge protection devices on the 24 VDC load lines shields the output drivers from lightning-induced surges and switching transients originating from large inductive field devices.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where emergency shutdown (ESD) systems and safety instrumented systems (SIS) must respond within defined reaction times, the 6ES7522-1BH00-0AB0 provides the deterministic output switching needed to drive solenoid valves, motor starters, and alarm annunciators. Its channel-level short-circuit diagnostics allow maintenance teams to isolate a single faulty field device without taking the entire output group offline — a critical capability during live-plant operations.

Power Generation & Substation Control: High-voltage switchgear control panels demand output modules that remain stable under severe electromagnetic interference from bus bars, transformers, and switching transients. The module’s compliance with EN 61000-6-2 industrial immunity standards ensures that control commands to circuit breaker trip coils and protection relays are executed without bit-flip errors or spurious activations.

Mining & Mineral Processing: Underground and open-pit mining environments expose control hardware to vibration, shock, dust ingress, and wide temperature swings. The 6ES7522-1BH00-0AB0’s IEC 60068-2-6 vibration and IEC 60068-2-27 shock ratings confirm its suitability for conveyor drive control, crusher interlock systems, and ventilation fan management in these harsh conditions.

Water & Wastewater Treatment: Pump station automation and chemical dosing control require output modules that can sustain reliable operation in high-humidity, corrosive-atmosphere environments. The IP20 enclosure rating, combined with conformal coating options available on the S7-1500 platform, supports long-term deployment in wet utility environments without accelerated corrosion of the output driver circuitry.

Metallurgy & Steel Mills: Rolling mill and furnace control systems generate intense electromagnetic noise from large variable-frequency drives and arc furnaces. The module’s robust EMI immunity prevents false output commands that could result in uncontrolled roll gap changes or furnace door actuator misfires — events with serious safety and quality consequences.

Port Logistics & Marine Applications: Crane PLC systems and ship automation panels require compact, high-channel-density output modules that can handle the repetitive switching cycles of hoist motors, spreader locks, and navigation light controls. The 6ES7522-1BH00-0AB0’s 16-channel density and per-channel diagnostics reduce panel footprint while maintaining full fault visibility.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover, and how is it enforced?
Every 6ES7522-1BH00-0AB0 unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects, premature component failure, and functional non-conformance under normal operating conditions. Prior to shipment, each module undergoes a pre-shipment functional test verifying output channel switching, diagnostic LED operation, and backplane communication integrity. A test record is available upon request. Support requests are processed with a replacement-first policy to minimize your downtime.

Q2: How is compatibility with existing S7-1500 racks and TIA Portal versions verified?
The 6ES7522-1BH00-0AB0 is compatible with all S7-1500 standard racks (6ES7590-1AB60-0AA0 and equivalents) and is supported from TIA Portal V13 SP1 onward. The module’s GSD/GSDML device description file is included in TIA Portal’s hardware catalog, enabling direct drag-and-drop configuration without manual parameter entry. For legacy TIA Portal versions, updated HSP (Hardware Support Package) files are available from Siemens’ support portal.

Q3: Can this module be used as a direct replacement for an existing failed unit without reconfiguration?
Yes. As a standard catalog replacement (not a firmware-customized variant), the 6ES7522-1BH00-0AB0 supports hot-swap replacement on S7-1500 racks equipped with the appropriate backplane. The CPU automatically downloads the stored module parameters upon insertion, restoring full operation without manual re-parameterization — a critical feature for minimizing mean time to repair (MTTR) during unplanned outages.

Q4: What is the long-term supply commitment for this SKU?
KNMKS maintains dedicated stock of the 6ES7522-1BH00-0AB0 to support long-term maintenance and spare parts programs. For facilities with multi-year maintenance contracts or planned turnaround schedules, we offer reserved stock arrangements and volume pricing. Contact our sales team to discuss a supply agreement tailored to your plant’s spare parts strategy.
