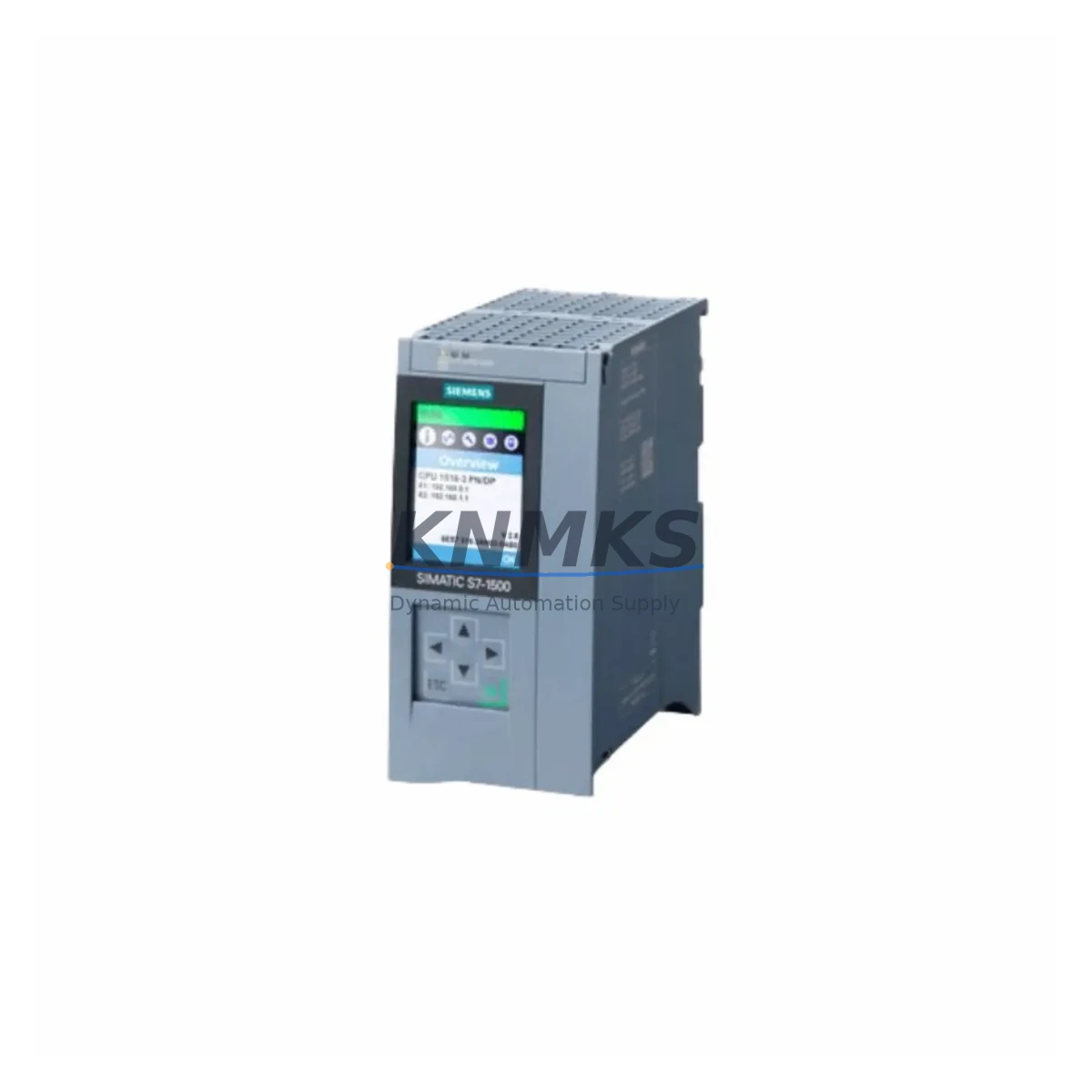

Siemens 6ES7516-3AN02-0AB0 Fail-Safe CPU S7-1500

Overview

Siemens 6ES7516-3AN02-0AB0 Fail-Safe CPU S7-1500: Critical Industrial Control Reliability

The Siemens 6ES7516-3AN02-0AB0 is a high-performance CPU 1516-3 PN/DP module within the SIMATIC S7-1500 programmable logic controller family. Engineered for demanding industrial environments, this CPU delivers fail-safe control logic execution, deterministic cycle times, and robust communication redundancy across PROFINET and PROFIBUS DP interfaces simultaneously. In continuous production facilities, petrochemical plants, power generation stations, and heavy metallurgical operations, unplanned control interruptions carry severe safety and financial consequences. The 6ES7516-3AN02-0AB0 is purpose-built to eliminate those risks through hardware-level fault detection, integrated diagnostic buffers, and multi-layer surge protection on all communication ports.

Industrial control cabinets operating in high electromagnetic interference environments — such as those adjacent to variable frequency drives, large motor starters, or high-voltage switchgear — demand CPUs with superior EMI shielding and signal integrity. The 6ES7516-3AN02-0AB0 maintains stable program execution and accurate I/O signal processing even under sustained electromagnetic disturbance, preventing the signal drift and spurious outputs that can trigger unsafe machine states or unplanned shutdowns. Its onboard memory architecture supports large safety programs without performance degradation, making it suitable for complex interlock logic in critical process control loops.

For control cabinets exposed to dust ingress, high ambient temperatures, or mechanical vibration — common in mining, port crane operations, and cement manufacturing — the S7-1500 platform’s thermal management design and conformal-coated board options provide long-term operational stability. The 6ES7516-3AN02-0AB0 integrates seamlessly with SIMATIC ET 200SP distributed I/O stations, SINAMICS drive systems, and SCALANCE industrial network switches, forming a cohesive, diagnostics-rich control architecture that reduces mean time to repair during field incidents.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet built around the 6ES7516-3AN02-0AB0 requires a coordinated protection strategy across power, communication, and I/O layers. The SIMATIC PS 60W 24/48/60VDC power supply module provides stable, regulated DC power with active power factor correction, protecting the CPU and downstream modules from voltage fluctuations and power surges common in heavy industrial grids. Pairing the CPU with SIMATIC ET 200SP I/O modules on PROFINET enables distributed signal acquisition with sub-millisecond response times, critical for safety interlock circuits in chemical dosing or emergency shutdown systems.

For PROFIBUS DP segments connecting legacy field devices — such as SINAMICS G120 or S120 drive systems — the 6ES7516-3AN02-0AB0’s integrated DP master port eliminates the need for additional communication processors, reducing cabinet complexity and potential failure points. SCALANCE X-200 managed switches on the PROFINET backbone provide port-level diagnostics and VLAN segmentation, isolating safety-critical traffic from standard process data and preventing communication anomalies from propagating across the network.

In high-vibration environments such as mining conveyors or offshore platforms, securing the S7-1500 rack with SIMATIC S7-1500 mounting rails and using shielded PROFIBUS connectors with 90° strain relief prevents connector fatigue and intermittent communication faults. Complementing the CPU with SIMATIC S7-1500 Technology Modules (TM) for high-speed counting or cam control further extends the cabinet’s capability without adding external controllers, maintaining a single, unified diagnostic environment through TIA Portal.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 6ES7516-3AN02-0AB0 serves as the central safety logic controller for emergency shutdown (ESD) systems, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS). Its TÜV-certified F-CPU capability allows SIL 2 and SIL 3 safety function implementation directly within the standard control program, eliminating the need for separate safety relay panels and reducing cabinet footprint in hazardous area control rooms.

Power generation facilities — including thermal, hydroelectric, and wind farm substations — rely on the S7-1500 CPU 1516-3 PN/DP for turbine governor control, generator protection relay coordination, and grid synchronization interlocks. The CPU’s deterministic PROFINET IRT communication ensures that protection trip signals reach actuators within defined safety time windows, preventing equipment damage during grid fault events.

In water and wastewater treatment plants, the 6ES7516-3AN02-0AB0 manages pump station sequencing, chemical dosing control, and overflow prevention interlocks across geographically distributed PROFINET segments. Its large data memory supports historian-ready process data logging, enabling compliance reporting without additional SCADA hardware. Mining and mineral processing operations benefit from the CPU’s ability to coordinate crusher interlock chains, conveyor belt protection systems, and dust suppression control — all within a single, maintainable TIA Portal project structure.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7516-3AN02-0AB0?
Every unit is covered by a support terms confirmed by quotation from the date of shipment. Each module undergoes pre-shipment functional testing including communication port verification, memory integrity checks, and power-on self-test validation before dispatch.

Q2: How is compatibility with existing S7-1500 racks and TIA Portal projects confirmed?
The 6ES7516-3AN02-0AB0 is fully compatible with standard S7-1500 mounting racks and is supported from TIA Portal V14 SP1 onwards. Hardware configuration is managed through the TIA Portal hardware catalog, and firmware updates are applied via the CPU’s integrated web server or SIMATIC Automation Tool without requiring rack removal.

Q3: Is long-term spare parts availability guaranteed for critical plant maintenance?
Yes. We maintain dedicated stock of the 6ES7516-3AN02-0AB0 to support planned maintenance cycles, emergency replacements, and long-term service agreements. Customers with critical infrastructure requirements are encouraged to contact our team to discuss reserved inventory arrangements and lead time commitments.

Q4: What field safety measures are recommended when replacing this CPU in a live control cabinet?
CPU replacement should be performed during a planned maintenance window with the process in a safe state and all safety interlocks verified as active. The replacement procedure includes backing up the current project from the CPU memory card, installing the new module, restoring the program, and performing a full I/O force test before returning the system to automatic mode. Our technical team can provide replacement support documentation upon request.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7516-3AN02-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7516-3AN02-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
