Siemens 6ES7515-2AM02-0AB0 Migration-Ready CPU Module

Overview

Siemens 6ES7515-2AM02-0AB0 Migration-Ready CPU Module: Legacy System Retrofit and Control Upgrade

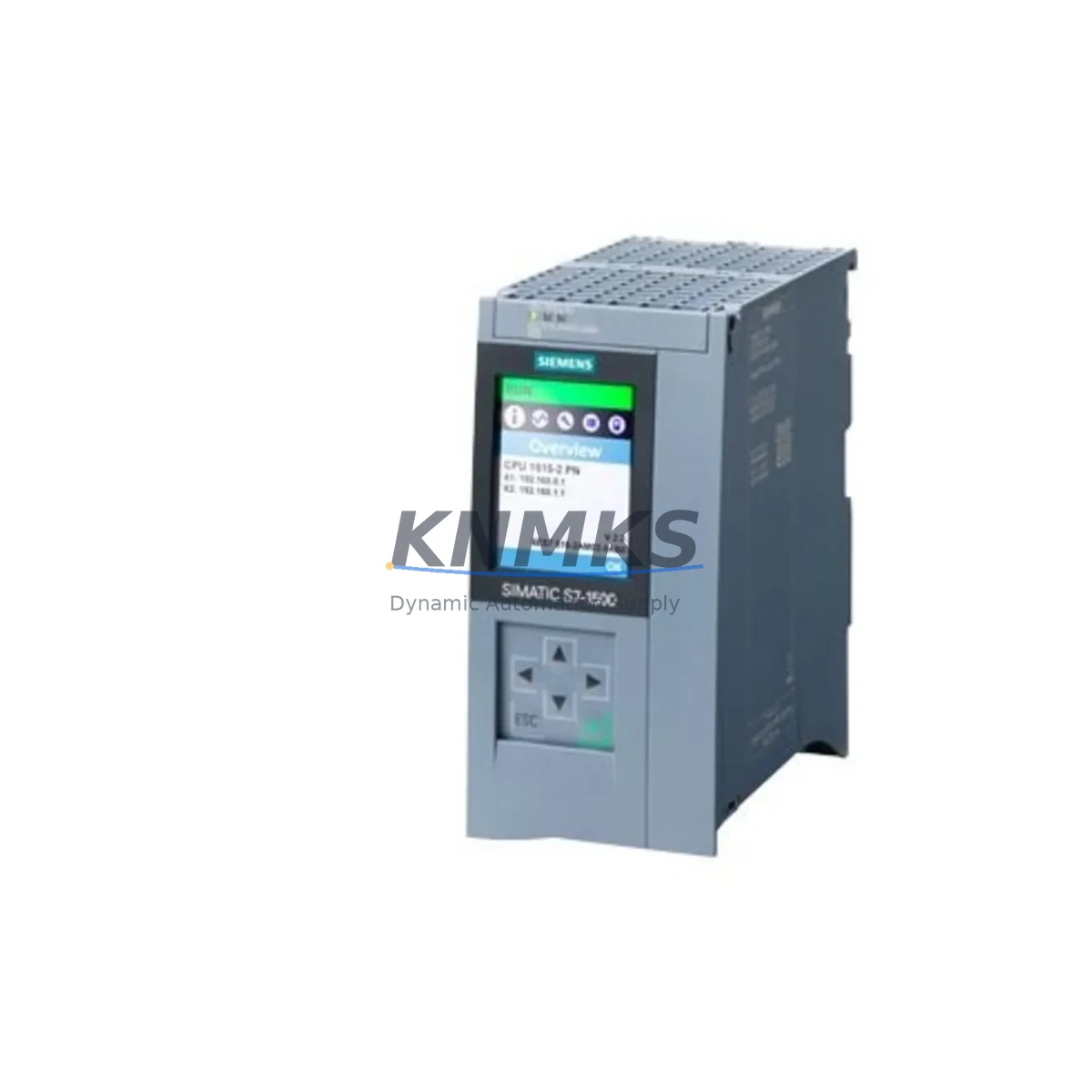

The Siemens 6ES7515-2AM02-0AB0 (CPU 1515-2 PN) is a high-performance central processing unit from the SIMATIC S7-1500 series, purpose-built for demanding industrial automation environments. As legacy S7-300 and S7-400 platforms approach end-of-life and spare parts become increasingly scarce, the 6ES7515-2AM02-0AB0 has emerged as a primary migration target for engineers managing control cabinet upgrades, production line retrofits, and long-term spare parts strategies. This unit ships pre-tested, carries a support terms confirmed by quotation, and is available from verified in-stock inventory — minimizing procurement lead times for time-sensitive maintenance windows.

Whether you are replacing a discontinued CPU 315-2 PN/DP, decommissioning an aging S7-400 rack, or consolidating multiple legacy controllers into a unified S7-1500 architecture, the 6ES7515-2AM02-0AB0 provides the processing headroom, communication bandwidth, and TIA Portal compatibility required for a controlled, low-risk migration. Its dual PROFINET interfaces support both MRP ring topologies and standard star configurations, making it adaptable to existing plant network layouts without requiring full infrastructure redesign.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6ES7515-2AM02-0AB0 begins well before the physical swap. Engineers must audit the existing control cabinet for available DIN rail space, confirm that the 24 V DC supply rail can support the additional current draw of the S7-1500 CPU and its associated signal modules, and verify that the existing PROFINET switch infrastructure supports the IRT cycle times required by the new CPU. In most S7-300 to S7-1500 migrations, the legacy backplane and I/O modules cannot be reused directly — the SM 521 DI 16×24VDC HF and SM 522 DQ 16×24VDC/0.5A HF signal modules are the recommended replacements for standard digital I/O channels, while the SM 531 AI 8×U/I/RTD/TC ST covers analog input migration.

For installations that previously relied on PROFIBUS DP field devices — such as distributed ET 200S or ET 200M I/O stations — the CM 1542-5 PROFIBUS communication module mounts directly on the S7-1500 rack and preserves the existing PROFIBUS segment without requiring immediate field device replacement. This phased approach allows production to continue on the legacy field bus while the new CPU handles higher-level logic and PROFINET communication to updated HMI panels.

Power supply selection is a critical checkpoint. The PS 60W 24/48/60V DC (6ES7505-0KA00-0AB0) is the standard system power supply for the S7-1500 rack and must be sized against the total current consumption of all installed modules. In high-density I/O configurations, a second power supply segment may be required. Engineers should also confirm that the 24 V DC load power supply feeding field devices is isolated from the system supply to prevent ground loop interference during commissioning.

HMI migration is frequently the most time-consuming element of a retrofit project. Existing SIMATIC HMI TP700 Comfort or TP1200 Comfort panels connected via PROFINET can be re-linked to the 6ES7515-2AM02-0AB0 with minimal screen rework, provided the tag names and communication drivers are updated in TIA Portal. Older OP/TP panels using MPI connections will require either a protocol gateway or panel replacement. The SIMATIC WinCC Runtime Advanced environment supports tag import from legacy WinCC flexible projects, reducing manual screen recreation effort.

For sites using SIMATIC S7-PLCSIM Advanced, the 6ES7515-2AM02-0AB0 supports full virtual commissioning prior to physical installation — allowing engineers to validate program logic, HMI interactions, and PROFINET device configurations in a simulated environment before the scheduled maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live production environment retrofit. The recommended approach for 6ES7515-2AM02-0AB0 migrations is a parallel commissioning strategy: the new S7-1500 rack is assembled, wired, and fully commissioned offline — including program download, I/O mapping, and PROFINET device name assignment — before the legacy CPU is powered down. This reduces the physical cutover window to the time required for terminal block transfer and network cable reconnection, typically achievable within a planned 4–8 hour maintenance shift.

Program logic preservation is the most technically sensitive step. Step 7 Classic (V5.x) programs cannot be directly imported into TIA Portal and must be migrated using the TIA Portal Migration Tool. Engineers should perform a full program export from the legacy CPU, run the migration tool, and manually verify all organization blocks, function blocks, and data blocks for compatibility. Safety-relevant logic — particularly in F-CPU configurations — requires re-certification after migration and must be handled by a qualified functional safety engineer.

To protect field control continuity during the cutover, it is advisable to place all output modules in a defined safe state (outputs de-energized or held at last value, depending on process requirements) before disconnecting the legacy CPU. The 6ES7515-2AM02-0AB0 supports configurable startup behavior, allowing engineers to define whether outputs activate immediately on CPU RUN or only after a successful I/O consistency check — a critical setting for processes where premature output activation could cause equipment damage or safety incidents.

Post-cutover, the commissioning checklist should include: PROFINET device name verification for all connected I/O stations and HMI panels, analog input calibration confirmation, communication link status check for all CM modules, and a full I/O forcing test to verify wiring continuity. All test results should be documented and retained as part of the site modification record. Units supplied by KNMKS are pre-tested before shipment, reducing the risk of DOA hardware contributing to extended commissioning delays.

Retrofit Support FAQ

Q1: Can the 6ES7515-2AM02-0AB0 directly replace a Siemens CPU 315-2 PN/DP in an existing S7-300 rack?
No — the 6ES7515-2AM02-0AB0 is an S7-1500 series CPU and requires an S7-1500 mounting rail and compatible signal modules. It cannot be installed in an S7-300 rack. A full rack replacement is required, including new signal modules (SM 521/522/531 series) and a compatible 24 V DC system power supply. The migration is a platform upgrade, not a drop-in slot replacement.

Q2: What firmware version should be loaded before commissioning?
Firmware V2.9 or above is recommended for full TIA Portal V17/V18 compatibility and access to the latest diagnostic and security features. Firmware can be updated via TIA Portal or the SIMATIC Automation Tool. Always verify firmware compatibility with your specific TIA Portal project version before updating in a live environment.

Q3: How is pre-shipment testing performed, and what does the support terms confirmed by quotation cover?
Each 6ES7515-2AM02-0AB0 unit supplied by KNMKS undergoes functional power-on verification and communication interface testing before dispatch. The support terms confirmed by quotation cover hardware defects and functional failures under normal operating conditions from the date of shipment. Units that fail during the confirmed support period are replaced or repaired at no additional cost. Contact [email protected] to initiate a support terms claim.

Q4: Is in-stock inventory available for immediate shipment, and what are the lead times?
Yes — KNMKS maintains verified in-stock inventory of the 6ES7515-2AM02-0AB0 to support urgent maintenance and planned retrofit projects. Standard orders are processed and dispatched within 1–3 business days. For large-quantity procurement or long-term supply agreements (12–36 months), contact our sales team directly to discuss reserved stock arrangements and volume pricing. Reach us at [email protected] or +86 18359268345.
