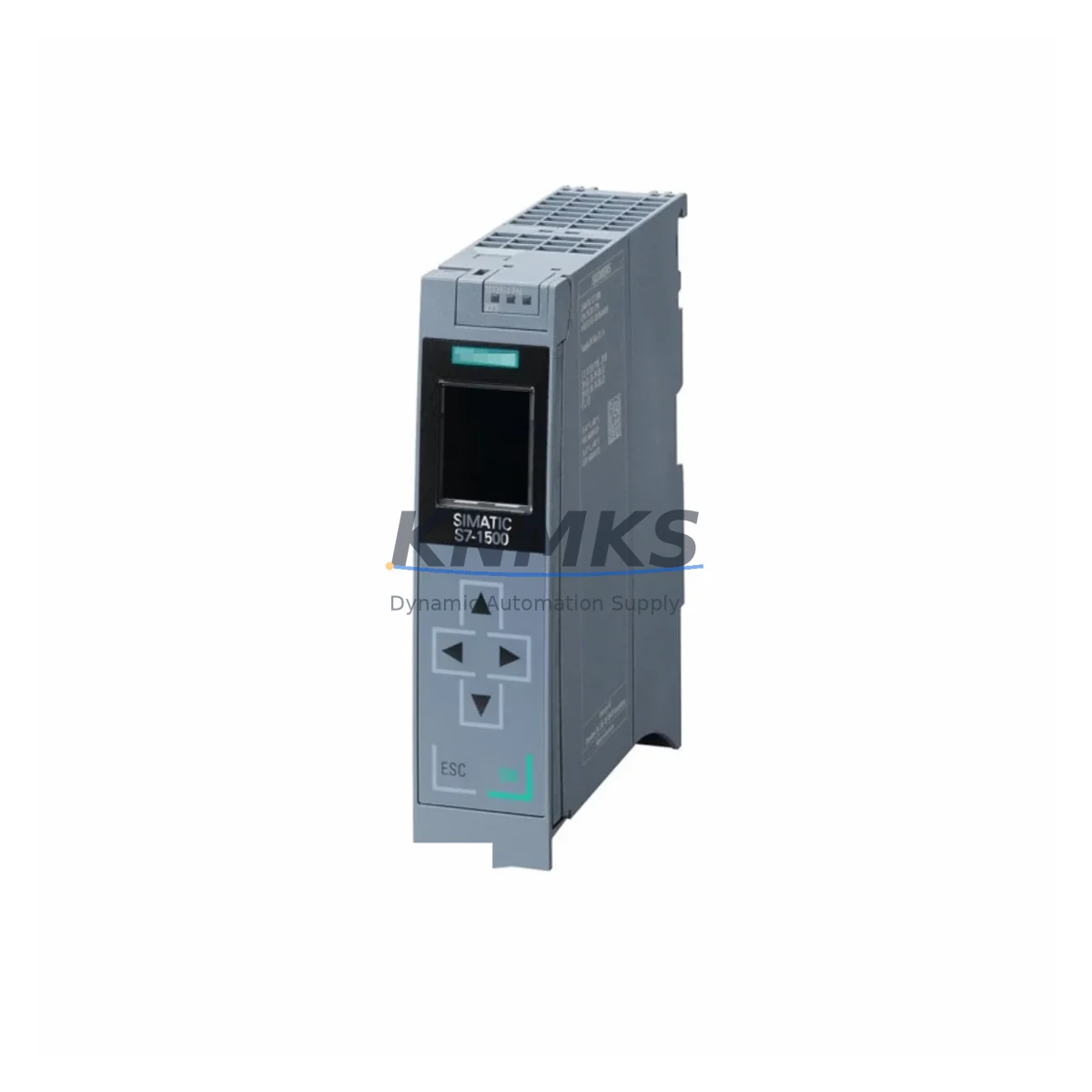

Siemens 6ES7513-1RL00-0AB0 Fail-Safe Redundant CPU S7-1500R

Overview

Siemens 6ES7513-1RL00-0AB0 Fail-Safe Redundant CPU S7-1500R: Fault-Tolerant Protection for Critical Industrial Control

The Siemens 6ES7513-1RL00-0AB0 is a high-availability, fail-safe redundant CPU module from the SIMATIC S7-1500R series, engineered for mission-critical industrial automation environments where unplanned downtime is not an option. Designed to operate in redundant H-system configurations, this CPU delivers bumpless switchover between primary and backup controllers, ensuring continuous process execution even in the event of a single-point hardware failure. For plant engineers and automation specialists managing continuous production lines, critical interlock systems, or high-consequence control cabinets, the 6ES7513-1RL00-0AB0 represents a cornerstone of industrial safety architecture.

In demanding field environments — including petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, and marine vessel automation — control interruptions carry severe operational and safety consequences. The 6ES7513-1RL00-0AB0 addresses these risks directly through hardware redundancy, integrated diagnostics, and robust signal integrity management. Its dual-CPU synchronization mechanism eliminates single points of failure in the control loop, while its deterministic scan cycle maintains precise timing even under high electromagnetic interference (EMI) conditions common in heavy industrial switchgear rooms and variable frequency drive (VFD) environments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7513-1RL00-0AB0 within a redundant control cabinet demands a carefully coordinated protection architecture. The CPU module operates in synchronization with its paired redundant counterpart over a dedicated fiber-optic sync link, ensuring that both CPUs maintain identical process images at all times. This architecture eliminates the risk of control interruption during CPU switchover events — a critical requirement in continuous chemical reactors, turbine governor systems, and high-voltage substation automation.

To fully realize the fail-safe potential of the 6ES7513-1RL00-0AB0, the surrounding cabinet infrastructure must match its reliability standard. The SIMATIC PM 70W 24VDC power supply module provides stable, regulated 24 V DC power to the S7-1500 backplane, protecting the CPU from voltage sags, surges, and transient spikes that are common in industrial power distribution environments. Upstream surge protection devices — such as the SIMATIC ET 200SP surge arrester modules — should be installed at all field signal entry points to prevent surge-induced signal corruption from reaching the CPU’s I/O interface.

For distributed I/O integration, the SIMATIC ET 200MP IM 155-5 PN ST interface module extends the S7-1500R’s reach to remote field panels via PROFINET, maintaining deterministic communication even in electrically noisy cable trays shared with high-current motor feeders. In safety-critical interlock loops — such as emergency shutdown (ESD) systems or fire and gas detection circuits — the SIMATIC F-DI 8x24VDC HF fail-safe digital input module ensures that field sensor signals are processed with SIL 2-compliant diagnostics, detecting wire breaks, short circuits, and discrepancy faults before they can propagate to the control logic.

Cabinet thermal management is equally important for long-term CPU reliability. In high-ambient-temperature environments such as outdoor substations or foundry control rooms, supplementary cabinet cooling units or thermostat-controlled fan assemblies should be paired with the 6ES7513-1RL00-0AB0 installation to maintain internal temperatures within the CPU’s rated operating range. The SIMATIC S7-1500 diagnostic buffer continuously logs thermal events, communication faults, and redundancy switchover records, enabling predictive maintenance teams to identify degradation trends before they escalate into unplanned outages.

Critical Industrial Safety Applications

The 6ES7513-1RL00-0AB0 is deployed across the most demanding industrial safety applications globally. In petrochemical and refinery operations, it serves as the primary controller for emergency shutdown (ESD) and safety instrumented systems (SIS), where IEC 61511 compliance and SIL 2 integrity are mandatory. Its redundant architecture ensures that a single CPU hardware fault does not compromise the integrity of the safety function, maintaining process containment and personnel protection without requiring a plant shutdown for controller replacement.

In power generation and grid substation automation, the S7-1500R CPU manages turbine protection relays, generator excitation control, and busbar protection interlocks. The bumpless switchover capability is essential in these applications, where even a 50 ms control gap can trigger protective relay operations and cascade into grid instability events. The CPU’s PROFINET IRT communication ensures deterministic data exchange with protection IEDs and SCADA systems within the required time windows.

For mining and mineral processing environments — characterized by extreme dust ingress, high vibration from crushing and conveying equipment, and frequent voltage transients from large motor starts — the 6ES7513-1RL00-0AB0’s robust EMC design and redundant architecture provide the control reliability needed to manage conveyor interlocks, crusher protection systems, and ventilation safety circuits. In water and wastewater treatment facilities, the CPU controls pump station interlocks, chemical dosing safety loops, and overflow prevention systems, where continuous operation is mandated by environmental compliance requirements.

In metallurgical and steel production plants, the CPU manages high-temperature furnace control, ladle transfer automation, and rolling mill safety interlocks — environments where thermal stress, electromagnetic interference from arc furnaces, and mechanical vibration place extreme demands on control hardware reliability. Port and marine vessel automation applications leverage the S7-1500R’s redundancy for crane anti-collision systems, mooring winch control, and cargo handling safety interlocks, where saltwater corrosion and vessel motion add additional environmental stress factors.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7513-1RL00-0AB0?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional malfunctions under normal operating conditions. Each unit undergoes full functional verification testing prior to shipment, including power-on diagnostics, communication interface checks, and redundancy synchronization validation. Support requests are supported with direct technical assistance and replacement unit dispatch.

Q2: How is the 6ES7513-1RL00-0AB0 tested before shipment?
Every unit is subjected to a pre-shipment inspection protocol that includes visual inspection for physical integrity, power-on functional testing, PROFINET communication verification, and firmware version confirmation. Units that do not pass all test criteria are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6ES7513-1RL00-0AB0 compatible with existing S7-1500 and S7-1500R system configurations?
The 6ES7513-1RL00-0AB0 is designed for integration within the SIMATIC S7-1500R redundant system architecture. It is compatible with the standard S7-1500 mounting rail, power supply modules, and PROFINET infrastructure. Firmware compatibility with TIA Portal engineering software should be verified against the project’s existing CPU firmware version. For mixed-generation system upgrades, our technical team can advise on compatibility matrices and migration paths.

Q4: Can long-term supply and spare part availability be guaranteed for critical plant maintenance programs?
Yes. We maintain forward buffer stock of the 6ES7513-1RL00-0AB0 to support planned maintenance cycles, emergency replacement requirements, and long-term service agreements. For plants operating continuous production schedules, we recommend establishing a consignment stock or annual supply agreement to ensure immediate availability of replacement units without dependence on spot-market lead times. Contact our sales team to discuss tailored supply programs for your facility’s maintenance strategy.
