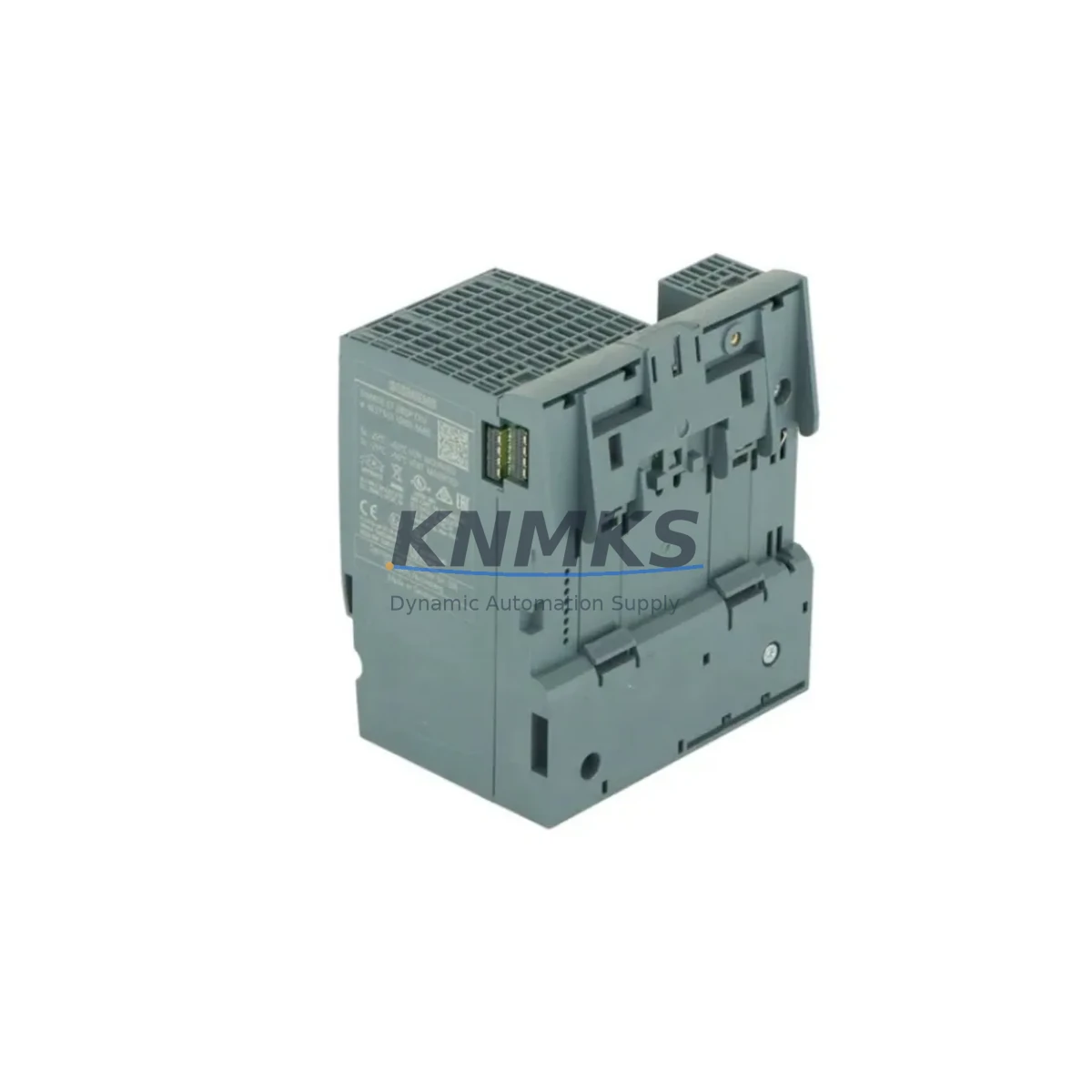

Siemens 6ES7512-1DK01-0AB0 Maintenance-Proven Spare Part

Overview

Siemens 6ES7512-1DK01-0AB0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7512-1DK01-0AB0 is a CPU 1512D DP/PN module within the SIMATIC S7-1500 series — a dual-interface central processing unit integrating both PROFINET and PROFIBUS DP communication on a single compact module. Designed for demanding industrial automation environments, this CPU is widely deployed in automotive assembly lines, chemical processing plants, power distribution substations, and discrete manufacturing cells where deterministic control and high-speed I/O response are non-negotiable.

For maintenance engineers managing aging S7-1500 control cabinets, the 6ES7512-1DK01-0AB0 represents a critical spare that must be available on-site or within rapid procurement reach. Unplanned CPU failure in a SIMATIC S7-1500 rack can halt an entire production line within seconds. Having a verified, pre-tested replacement unit in your spare parts inventory is the single most effective measure to minimize mean time to repair (MTTR) and protect factory uptime commitments.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, firmware compatibility checks, and packaging inspection before dispatch. A support terms confirmed by quotation is included as standard, covering manufacturing defects and operational failures under normal industrial use conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7512-1DK01-0AB0 in a live S7-1500 system, a disciplined maintenance workflow extends well beyond swapping the CPU module itself. Experienced maintenance engineers treat a CPU replacement event as a full cabinet health audit — an opportunity to inspect and validate every component in the electrical loop before returning the system to production.

Begin with the system power supply (e.g., 6EP1333-4BA00 or equivalent SITOP PSU series). A degraded power supply delivering marginal 24 V DC output is a common root cause of intermittent CPU faults and should be load-tested before the new CPU is commissioned. Inspect the backplane rack (6ES7590-1AB60-0AA0 or similar) for bent connector pins, corrosion, or mechanical damage — a faulty rack slot can damage a replacement CPU within hours of installation.

Check all PROFIBUS DP termination resistors and cable shielding on the DP network. The 1512D’s integrated DP master is sensitive to bus impedance mismatches; a missing terminator or damaged DP cable can cause repeated CPU diagnostic errors that mimic hardware failure. Similarly, inspect PROFINET patch cables and managed switch port configurations — particularly if the CPU connects to a SCALANCE X series switch or third-party PROFINET infrastructure.

Review the digital and analog I/O modules installed in adjacent rack slots (such as SM 521, SM 522, SM 531, or SM 532 series). A shorted output channel on a neighboring I/O module can generate backplane bus errors that appear as CPU faults. Inspect signal isolators on analog input channels connected to field transmitters — degraded isolation can introduce ground loops that corrupt process values and trigger CPU protective shutdowns.

Do not overlook fuse and circuit protection on the 24 V DC distribution rail feeding the rack. Verify that miniature circuit breakers (MCBs) and fuse holders are rated correctly and show no signs of thermal stress. Finally, if the system includes a CP 1543-1 communications processor or an HMI panel (such as a KTP700 or TP1500 Comfort) connected via PROFINET, confirm that these devices are running firmware versions compatible with the replacement CPU’s firmware level before going live.

Site Replacement Workflow

Step 1 — Backup and Documentation: Before powering down, use TIA Portal to perform a full project upload from the existing CPU (if still partially functional) and save the current memory card contents. Label all PROFIBUS DP and PROFINET cable connections with numbered tags.

Step 2 — Safe Isolation: Follow your site LOTO (Lockout/Tagout) procedure. Isolate the 24 V DC supply to the S7-1500 rack via the upstream MCB. Confirm zero voltage at the rack power connector before proceeding.

Step 3 — Module Removal: Release the CPU module locking mechanism and slide the 6ES7512-1DK01-0AB0 out of slot 1. Transfer the SIMATIC Memory Card from the old CPU to the replacement unit — the memory card retains the project program and CPU configuration, enabling a direct swap without re-downloading from TIA Portal in most cases.

Step 4 — Replacement Installation: Insert the new 6ES7512-1DK01-0AB0 into slot 1, ensuring the backplane connector is fully seated. Reconnect all PROFINET and PROFIBUS DP cables in the documented order. Restore 24 V DC power.

Step 5 — Commissioning Verification: Monitor the CPU’s RUN/STOP LED and diagnostic buffer in TIA Portal. Confirm all I/O modules report OK status and that PROFIBUS DP slaves are communicating. Run a short production cycle at reduced speed before returning to full production rate.

This workflow is compatible with direct replacement of earlier S7-1500 CPU variants in the same rack, provided firmware and TIA Portal project versions are aligned. KNMKS technical support is available to assist with compatibility verification prior to ordering.

Spare Parts Support FAQ

Q1: Is the 6ES7512-1DK01-0AB0 a direct replacement for earlier S7-1500 CPU 1512D variants?
In most cases, yes. The 6ES7512-1DK01-0AB0 is backward-compatible with earlier hardware revisions of the CPU 1512D DP/PN family when used with TIA Portal V14 SP1 or later. We recommend confirming the firmware version on your existing system before ordering. KNMKS can provide pre-sales compatibility guidance upon request.

Q2: What pre-shipment testing does KNMKS perform on this unit?
Every 6ES7512-1DK01-0AB0 dispatched by KNMKS undergoes a functional power-on test, interface communication check, and visual inspection for physical damage. Units that do not pass all checks are not shipped. A test report summary is available upon request for critical procurement orders.

Q3: Can KNMKS support long-term supply agreements for this SKU?
Yes. KNMKS offers 12–36 month supply agreements for the 6ES7512-1DK01-0AB0 and related S7-1500 spare parts, including scheduled delivery schedules and priority stock reservation. This is particularly suited for multi-site maintenance programs and annual shutdown planning. Contact our sales team to discuss terms.

Q4: What does the support terms confirmed by quotation cover?
The KNMKS support terms confirmed by quotation cover manufacturing defects and operational failures under normal industrial operating conditions (per IEC 61010 environmental class). It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. Support requests are processed with a target response time of 3 business days.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7512-1DK01-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7512-1DK01-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
