Siemens 6ES7512-1CK01-0AB0 Migration-Ready CPU for S7-1500

Overview

Siemens 6ES7512-1CK01-0AB0 Migration-Ready CPU for Legacy S7-1500 Control Systems

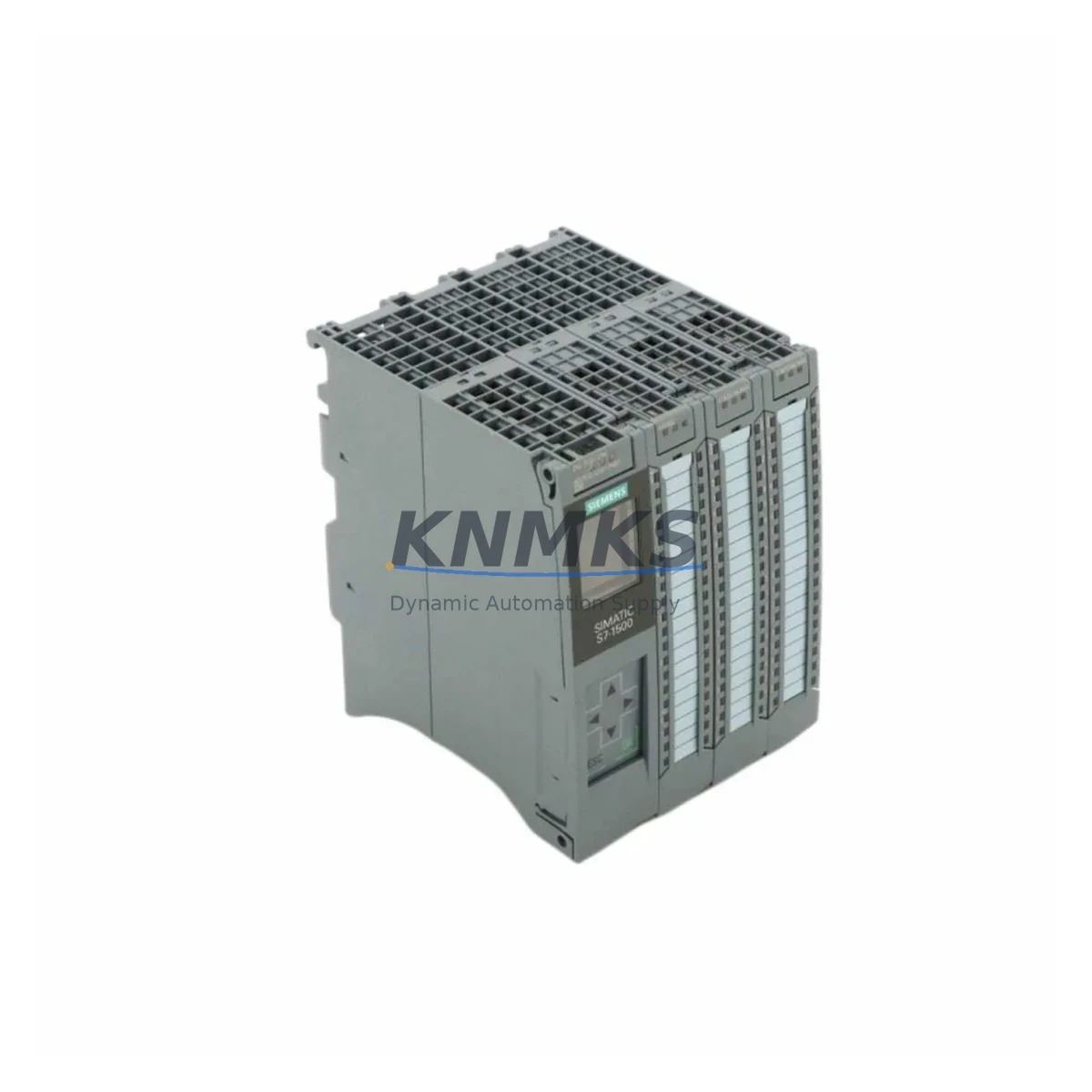

The Siemens 6ES7512-1CK01-0AB0 (CPU 1512C-1 PN) is a compact, high-performance central processing unit designed for the SIMATIC S7-1500 automation platform. As legacy S7-300 and S7-400 installations reach end-of-life and spare parts become increasingly scarce, the 6ES7512-1CK01-0AB0 provides a validated, migration-ready upgrade path that preserves existing control logic, minimizes rewiring effort, and extends the operational life of your control cabinet infrastructure by a decade or more.

This CPU integrates onboard digital and analog I/O channels, a built-in PROFINET interface, and motion control functionality — making it an ideal consolidation module for plants transitioning from distributed legacy architectures to a unified S7-1500 platform. Whether you are upgrading a petrochemical DCS satellite cabinet, replacing a failed CPU in a water treatment SCADA loop, or modernizing a port crane control system, the 6ES7512-1CK01-0AB0 delivers the processing headroom and protocol compatibility required for long-cycle industrial deployments.

Each unit supplied by KNMKS is sourced from verified channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation covering hardware defects under normal operating conditions. Stock is maintained to support urgent replacement orders and planned retrofit schedules alike.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful migration from a legacy S7-300 or S7-400 platform to the 6ES7512-1CK01-0AB0 begins with a thorough audit of the existing control cabinet. Engineers should document every module slot, terminal assignment, and communication link before any hardware is removed. The CPU 1512C-1 PN integrates 32 digital inputs, 32 digital outputs, and 5 analog inputs directly on the module body, which can absorb a significant portion of the I/O load previously handled by discrete SM 321 or SM 331 expansion modules — reducing overall module count and simplifying the new rack layout.

For plants where PROFIBUS DP remains the backbone of field device communication, a SIMATIC PN/DP coupler allows the new CPU to communicate with legacy PROFIBUS slaves without replacing every field device simultaneously. This phased approach is particularly valuable in continuous-process industries such as petrochemicals or power generation, where a full cutover in a single maintenance window is not feasible.

The onboard PROFINET port supports both RT and IRT communication modes, enabling integration with modern distributed I/O such as the ET 200SP (6ES7155-6AU01-0BN0) or ET 200MP station clusters. Where analog signal conditioning is required at the field level, signal isolators and loop-powered transmitters connected to the onboard AI channels or external SM 1531 analog input modules maintain measurement integrity across the migration boundary.

Power supply sizing is a critical step often underestimated during retrofit planning. The 6ES7512-1CK01-0AB0 draws 24 VDC at up to 3.5 A under full I/O load. When combined with a SITOP PSU8200 or equivalent 10 A rail-mount power supply, the cabinet can support the CPU, a full rack of signal modules, and a PROFINET switch without risk of brownout during motor start transients. Engineers should also verify that the existing 24 VDC distribution bus can handle the consolidated load before energizing the new rack.

Programming cable connectivity during commissioning typically uses a standard RJ45 Ethernet connection from the engineering workstation running TIA Portal V17 or later directly to the CPU’s PROFINET port — eliminating the need for a dedicated PC adapter (such as the legacy CP 5611) that was required for MPI-based S7-300 programming.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any control system retrofit. A structured migration plan for the 6ES7512-1CK01-0AB0 typically follows a parallel-run strategy: the new S7-1500 rack is assembled, programmed, and tested offline while the existing S7-300 or S7-400 system continues to operate the process. The TIA Portal Migration Wizard converts the legacy Step 7 project into a TIA Portal project, preserving data block structures, symbol tables, and most ladder logic rungs. Engineers should perform a line-by-line review of any system function block (SFB) calls, as some legacy SFBs have been replaced by equivalent instructions in the S7-1500 instruction set.

Before the physical cutover, a full simulation run using PLCSIM Advanced validates the converted program against the expected I/O behavior without connecting to live field devices. This step catches addressing errors, timer scaling differences, and any organization block (OB) startup behavior changes introduced by the new CPU firmware. Once simulation passes, the cutover window can be reduced to the time required to transfer terminal wiring from the old front connectors to the new push-in front connectors on the 6ES7512-1CK01-0AB0 and its associated signal modules.

HMI screens connected via PROFINET require a device name assignment step that must be completed before the CPU enters RUN mode. Using the PRONETA network analysis tool, engineers can assign PROFINET device names to all IO devices on the subnet in under five minutes, ensuring that the CPU can establish communication with every distributed I/O station and HMI panel immediately upon startup. Retaining the original variable names and tag addresses in the HMI project eliminates the need to remap screen objects, further compressing the commissioning timeline.

KNMKS ships each 6ES7512-1CK01-0AB0 with a pre-shipment test report confirming that the CPU powers up correctly, passes internal diagnostics, and communicates over PROFINET. This documentation supports your site acceptance test (SAT) procedure and provides traceability for quality management systems operating under ISO 9001 or IEC 61511 frameworks.

Retrofit Support FAQ

Q1: Can the 6ES7512-1CK01-0AB0 directly replace a Siemens 6ES7315-2EH14-0AB0 (CPU 315-2 PN/DP) in an existing S7-300 rack?
No — the CPU 1512C-1 PN requires a dedicated S7-1500 rack and cannot be inserted into an S7-300 backplane. However, the program logic can be migrated using the TIA Portal Migration Wizard, and the onboard PROFINET interface maintains compatibility with any PROFINET IO devices already connected to the CPU 315-2 PN/DP. The physical rack, power supply module, and front connectors must be replaced as part of the upgrade.

Q2: What wiring changes are required when migrating from SM 321 digital input modules to the onboard DI channels of the 6ES7512-1CK01-0AB0?
The onboard digital inputs use a 40-pin push-in front connector with a 3.5 mm pitch. Field cables previously terminated on screw-type SM 321 front connectors must be re-terminated on the new connector. Signal voltage levels (24 VDC sourcing/sinking) are compatible, so no intermediate relay or signal converter is required for standard discrete field devices. Label each wire before removal to ensure accurate re-termination.

Q3: Is the 6ES7512-1CK01-0AB0 compatible with TIA Portal V15.1 projects, or is a TIA Portal upgrade required?
The CPU 1512C-1 PN with firmware V2.9 requires TIA Portal V16 or later for full feature support, including the integrated motion control and trace functions. Projects created in TIA Portal V15.1 can be upgraded automatically when opened in V16 or V17. KNMKS recommends using TIA Portal V17 for new retrofit projects to ensure access to the latest instruction library updates and PLCSIM Advanced compatibility.

Q4: What does the support terms confirmed by quotation from KNMKS cover, and is a pre-shipment test report available?
The support terms confirmed by quotation cover hardware defects arising under normal operating conditions, including CPU board failures, memory faults, and communication port malfunctions. It does not cover damage resulting from incorrect installation, overvoltage, or unauthorized modification. A pre-shipment functional test report — confirming power-on diagnostics, PROFINET link establishment, and firmware version — is available upon request and can be included with the shipment documentation for SAT and quality audit purposes. Contact [email protected] for support requests or test report requests.
