Siemens 6ES7511-1AK02-0AB0 Migration-Ready CPU for S7-1500

Overview

Siemens 6ES7511-1AK02-0AB0 Migration-Ready CPU for Legacy Control Systems

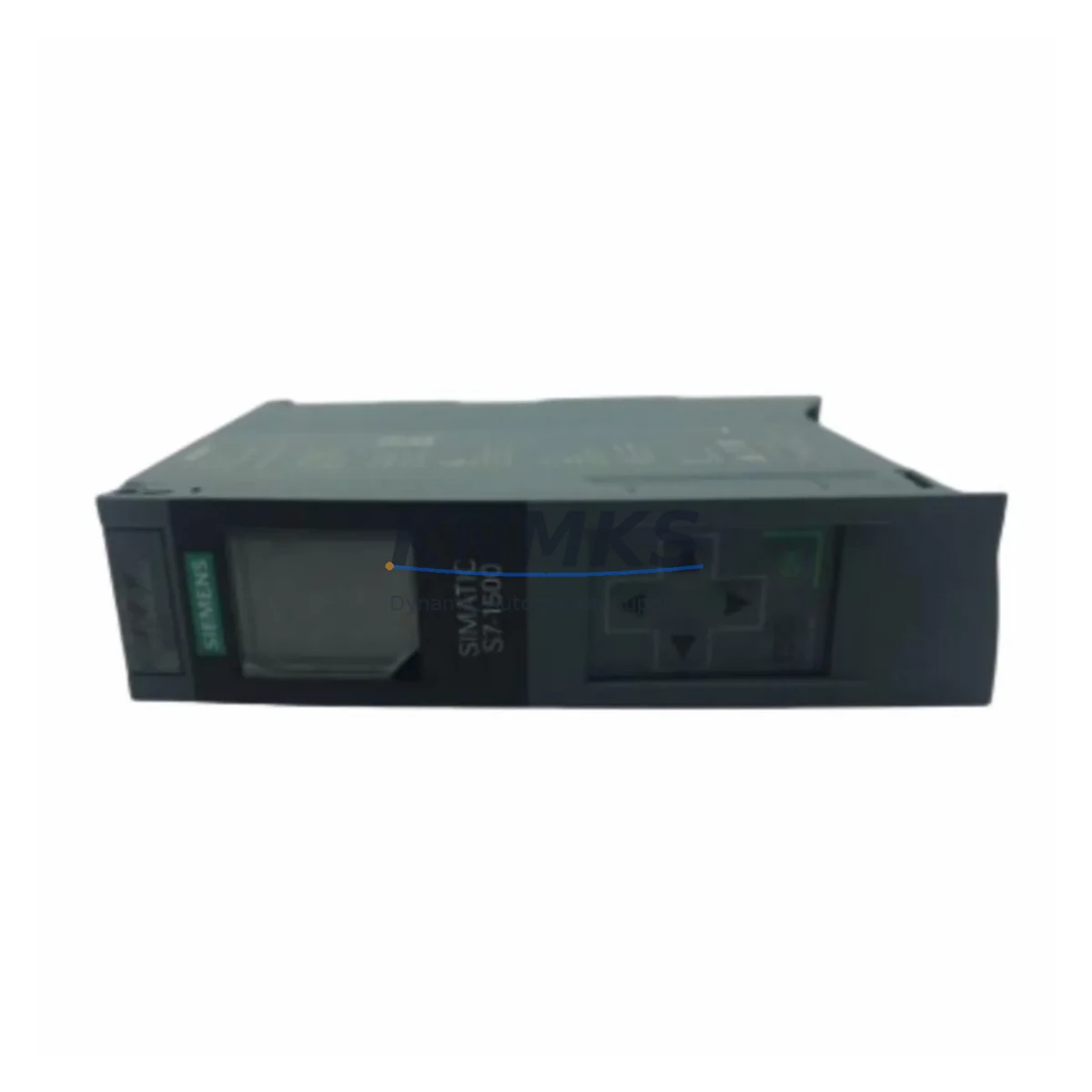

The Siemens 6ES7511-1AK02-0AB0 (CPU 1511-1 PN) is a high-performance central processing unit from the SIMATIC S7-1500 series, purpose-built for demanding industrial automation environments. As legacy S7-300 and S7-400 platforms reach end-of-life and spare parts availability narrows, the 6ES7511-1AK02-0AB0 has become a primary migration target for engineers managing control cabinet upgrades, production line retrofits, and system modernization projects across discrete manufacturing, process control, and infrastructure sectors.

This CPU module supports PROFINET IO as its primary communication interface, enabling seamless integration into existing Ethernet-based plant networks without requiring additional communication processors. Its onboard PROFINET interface supports both controller and device roles, making it compatible with a wide range of distributed I/O stations, drives, and HMI panels already deployed in the field. Engineers migrating from older S7-315 or S7-317 CPUs will find that the 6ES7511-1AK02-0AB0 supports structured text, ladder logic, function block diagram, and instruction list programming via TIA Portal, preserving the majority of existing program logic with manageable adaptation effort.

When planning a retrofit around the 6ES7511-1AK02-0AB0, the first step is confirming power supply compatibility. The S7-1500 rack requires a dedicated PS 25W 24VDC or PS 60W 24/48/60VDC power supply module — these are not interchangeable with S7-300 power supplies, and the control cabinet layout must accommodate the updated rail and terminal block arrangement. The CPU itself draws power from the backplane bus, so total rack power budget must be calculated against all installed signal modules, including digital input/output modules such as the SM 521 or SM 522 series, and analog modules from the SM 531 or SM 532 families.

Terminal wiring adaptation is a critical checkpoint during migration. S7-1500 signal modules use a front connector system with push-in or screw terminals that differ from the S7-300 sub-D connector style. Field wiring must be re-terminated to the new front connectors, and terminal addresses must be remapped in the TIA Portal hardware configuration to match the new slot assignments. Where the original system used centralized I/O on a single rack, engineers may consider redistributing I/O to ET 200SP or ET 200MP remote stations connected via PROFINET, which can reduce cabinet wiring density and improve system modularity.

Communication protocol migration is another area requiring careful planning. If the legacy system used PROFIBUS DP for field device communication — common in older S7-300 installations — a CP 1543-1 communication processor or a PROFIBUS master module such as the CM PtP RS422/485 may be required to maintain connectivity with existing PROFIBUS slaves during a phased migration. Alternatively, field devices can be upgraded to PROFINET-capable variants in parallel with the CPU replacement, allowing a clean protocol cutover. MPI programming interfaces used with older CPUs are not supported on the S7-1500 platform; a standard Ethernet programming cable connected to the PROFINET port is used for TIA Portal communication.

HMI panel compatibility should be verified before finalizing the migration plan. SIMATIC HMI panels running WinCC flexible or older TP/OP series panels may require firmware updates or replacement with current KTP or TP Comfort series panels to establish reliable communication with the S7-1500 CPU. The HMI project must be migrated to TIA Portal and tag addresses updated to reflect the new CPU memory organization, which uses optimized block access by default rather than the absolute addressing model used in S7-300 systems.

Installation space confirmation is essential. The S7-1500 mounting rail and CPU profile are physically larger than S7-300 components. Cabinet depth, rail length, and module spacing must be verified against the 6ES7511-1AK02-0AB0 dimensional specifications before ordering. Where space is constrained, the compact ET 200SP CPU variants may offer an alternative, but for standard rack installations the S7-1500 form factor is the correct migration path.

Firmware version compatibility between the CPU and installed signal modules must be checked in the TIA Portal hardware catalog. Mismatched firmware versions can prevent module recognition during startup. All modules should be updated to compatible firmware levels before commissioning, and the CPU firmware should be confirmed against the TIA Portal version in use at the site.

Pre-shipment testing is performed on every unit prior to dispatch. Each 6ES7511-1AK02-0AB0 is powered on, diagnostics are verified, and communication interfaces are confirmed functional. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions. Inventory is maintained availability confirmed by RFQ for immediate dispatch, supporting urgent breakdown replacement and planned maintenance schedules alike.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit around the 6ES7511-1AK02-0AB0 typically involves coordinating several interdependent components. The power supply module must be selected first — the PS 25W 24VDC is sufficient for smaller rack configurations, while larger installations with multiple signal modules will require the PS 60W variant. Signal modules from the SM 521 DI 16x24VDC HF and SM 522 DQ 16x24VDC/0.5A HF families provide high-speed digital I/O with diagnostic capability, replacing older S7-300 SM 321 and SM 322 modules with improved response times and integrated channel-level diagnostics.

For analog signal handling, the SM 531 AI 8xU/I/RTD/TC ST covers the majority of temperature and process value acquisition tasks previously handled by SM 331 modules. Where the existing system used a CP 343-1 for Ethernet communication, the integrated PROFINET port on the 6ES7511-1AK02-0AB0 eliminates the need for a separate communication processor in most cases, freeing a rack slot for additional I/O expansion.

Remote I/O migration to ET 200SP stations connected via PROFINET is a common approach for reducing cabinet wiring complexity. The ET 200SP BaseUnit and I/O modules can replicate the channel assignments of existing centralized I/O while distributing the physical installation closer to field devices. This approach also simplifies future expansion without requiring changes to the main control cabinet.

Where PROFIBUS field devices remain in service during a phased migration, a CM DP communication module installed in the S7-1500 rack provides PROFIBUS master functionality, allowing the new CPU to manage legacy PROFIBUS slaves — including older drives, valve islands, and remote I/O stations — without requiring immediate field device replacement. This preserves the existing field wiring investment while the migration proceeds in stages.

Downtime Control During System Migration

Minimizing unplanned downtime during a control system migration requires a structured approach to program conversion, hardware staging, and commissioning sequencing. The TIA Portal migration wizard supports import of S7-300 and S7-400 projects, converting block structures and retaining the majority of program logic. Engineers should review all absolute address references and convert them to symbolic addressing compatible with the S7-1500 optimized block access model before attempting online commissioning.

Hardware staging — assembling and pre-configuring the new rack with the 6ES7511-1AK02-0AB0, power supply, and signal modules in a workshop environment before the planned maintenance window — significantly reduces on-site installation time. The TIA Portal hardware configuration can be downloaded to the CPU offline, and I/O module parameters verified against the field wiring schedule before the system is connected to live field devices.

During the cutover window, maintaining a parallel backup of the original CPU program and hardware configuration ensures that the legacy system can be restored quickly if unexpected issues arise. Field device communication should be verified channel by channel against the original I/O list before releasing the system to production. HMI screens should be tested against live CPU tags to confirm that all process values, alarms, and control functions operate correctly before handover.

Post-commissioning, a structured burn-in period of 24–72 hours under normal production conditions is recommended before closing the migration project. Any residual address mapping errors or communication timeouts identified during this period should be resolved before the legacy hardware is decommissioned. Retaining the original CPU and rack in storage for 30–60 days after successful commissioning provides a fallback option if latent issues emerge.

Retrofit Support FAQ

Q: Is the 6ES7511-1AK02-0AB0 a direct drop-in replacement for S7-300 CPUs?
A: The 6ES7511-1AK02-0AB0 is a functional replacement for S7-300 CPU 315-2 PN/DP and CPU 317-2 PN/DP in terms of processing capability and PROFINET communication, but it is not a mechanical drop-in. The S7-1500 mounting rail, power supply, and front connector system differ from S7-300 hardware. Program migration via TIA Portal is required, and terminal wiring must be re-terminated to S7-1500 front connectors. A detailed migration checklist covering rack, power, wiring, and software steps is recommended before scheduling the cutover.

Q: What commissioning steps are required after installing the 6ES7511-1AK02-0AB0?
A: After mechanical installation and wiring, connect a programming device to the PROFINET interface and establish an online connection via TIA Portal. Download the hardware configuration and program to the CPU. Verify all I/O module diagnostics are clear, confirm PROFINET device names are assigned correctly, and perform a channel-by-channel I/O test against the field wiring schedule. Check HMI communication and confirm all tags are updating correctly before releasing to production.

Q: Can the 6ES7511-1AK02-0AB0 communicate with existing PROFIBUS field devices?
A: The CPU 1511-1 PN does not include an integrated PROFIBUS interface. PROFIBUS master functionality can be added by installing a CM DP communication module in the S7-1500 rack. This allows the new CPU to manage existing PROFIBUS slaves — including drives, remote I/O, and valve terminals — without requiring immediate field device replacement, supporting a phased migration approach.

Q: What support terms and supply terms apply to this unit?
A: Every 6ES7511-1AK02-0AB0 supplied by KNMKS is covered by a support terms confirmed by quotation from the date of dispatch, covering manufacturing defects and operational failures under normal industrial use conditions. Pre-shipment testing including power-on diagnostics and interface verification is performed on every unit. Stock is maintained for immediate dispatch to support both planned maintenance schedules and urgent breakdown replacement requirements. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
