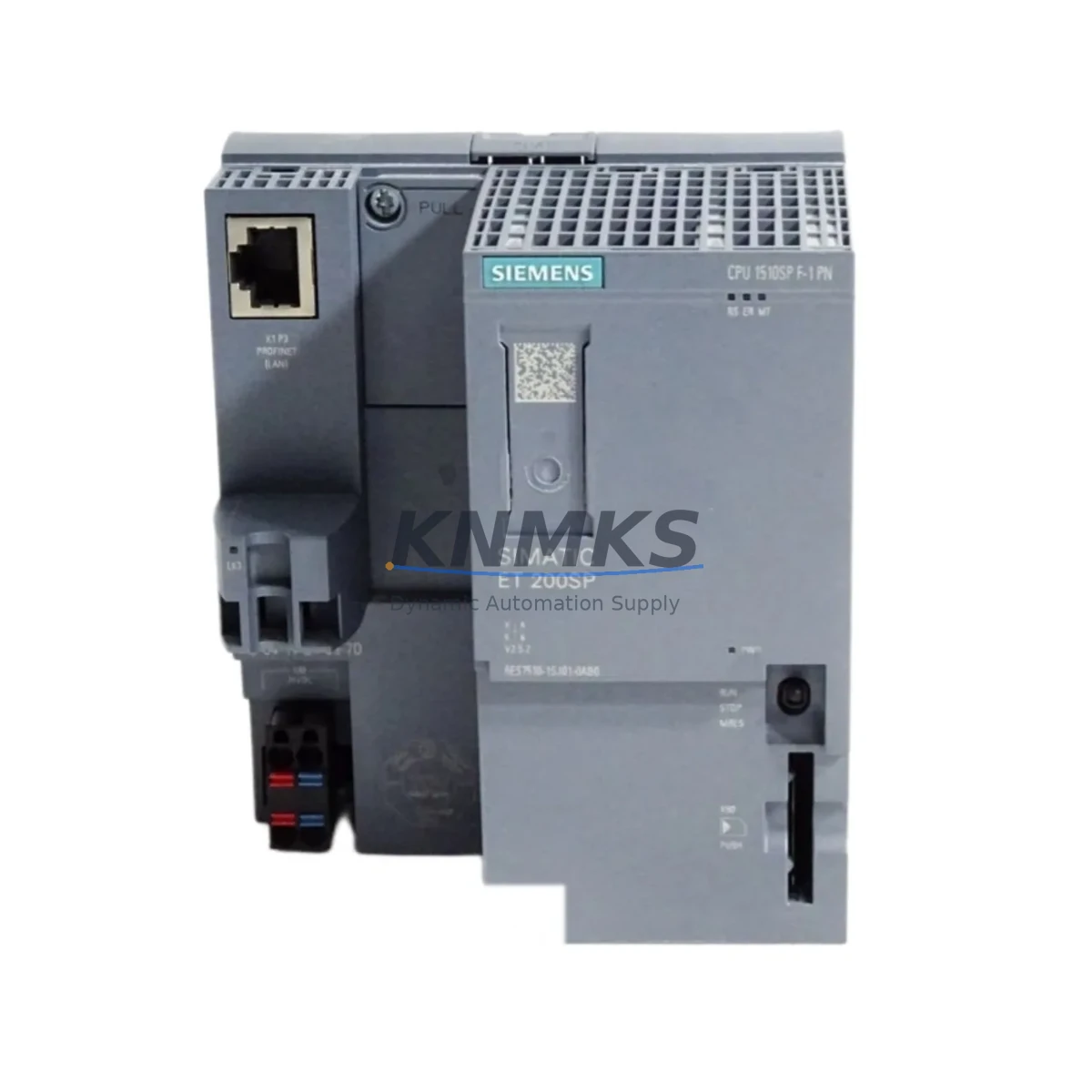

Siemens 6ES7510-1SJ01-0AB0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES7510-1SJ01-0AB0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7510-1SJ01-0AB0 CPU 1510SP-1 PN is a core processing unit within the SIMATIC S7-1500 and ET 200SP distributed controller family. Designed for high-availability industrial environments, this CPU module delivers deterministic PROFINET communication, integrated motion control capability, and robust diagnostic functions that maintenance engineers rely on to sustain continuous production. Whether you are managing a scheduled annual overhaul, responding to an unplanned line stoppage, or building a strategic spare parts inventory for aging S7-1500 installations, the 6ES7510-1SJ01-0AB0 is a direct, firmware-compatible replacement that restores full system functionality without re-engineering the control architecture.

At KNMKS, every unit of the 6ES7510-1SJ01-0AB0 is sourced from verified industrial channels, inspected prior to dispatch, and shipped with a support terms confirmed by quotation. Our stock is maintained to support both emergency same-week replacement orders and long-term procurement contracts for OEM and end-user maintenance teams across manufacturing, energy, water treatment, and process industries.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the 6ES7510-1SJ01-0AB0 CPU is flagged during a routine control cabinet inspection or triggers a diagnostic alarm in TIA Portal, experienced maintenance engineers know that a CPU fault rarely occurs in isolation. A thorough fault-isolation procedure should extend beyond the CPU module itself to the surrounding electrical and communication infrastructure.

Begin by verifying the 24 V DC supply rail feeding the ET 200SP BaseUnit. A degraded or fluctuating power supply — such as the Siemens SITOP PSU100S 24 V/10 A — is a common root cause of intermittent CPU resets and should be load-tested before the CPU is condemned. Next, inspect the BaseUnit itself (e.g., BU15-P16+A10+2B type) for signs of contact wear, corrosion on the push-in terminals, or mechanical damage to the bus connector, as a faulty BaseUnit can cause the replacement CPU to exhibit identical fault symptoms.

Check all PROFINET patch cables and RJ45 connectors at the CPU port and at the managed switch or SCALANCE X series network switch in the cabinet. Degraded cable shielding or a loose connector can produce cyclic communication errors that mimic CPU hardware failure. If the installation includes distributed I/O expansion modules — such as the Siemens 6ES7131-6BF01-0BA0 digital input module or 6ES7132-6BF01-0BA0 digital output module on the same ET 200SP station — verify that these modules are correctly seated on their BaseUnits and that no I/O channel faults are masking the true fault source.

For installations that include analog signal conditioning, inspect any signal isolators or barriers in the 4–20 mA loops connected to ET 200SP analog I/O modules. A failed isolator can inject noise that causes the CPU to log spurious process alarms. Similarly, review the 24 V fuse protection for each I/O group; blown fuses on the power bus terminal (e.g., Siemens 8WH series terminal blocks with integrated fuse holders) should be replaced as part of the corrective maintenance action.

If the S7-1500 ET 200SP system communicates with an HMI panel — such as a Siemens SIMATIC HMI KTP700 Basic or TP1200 Comfort — confirm that the HMI project is compatible with the replacement CPU firmware version to avoid post-replacement communication loss. Document all firmware versions, IP addresses, and device names before removing the faulty CPU, as these parameters must be restored exactly to maintain network topology integrity.

Procurement engineers building a spare parts list for an ET 200SP-based control system should consider stocking the 6ES7510-1SJ01-0AB0 CPU alongside compatible power modules, a selection of digital and analog I/O modules, and at least one spare BaseUnit per station type. This multi-component approach reduces mean time to repair (MTTR) and eliminates the risk of a secondary component shortage extending an already costly production stoppage.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Export the current CPU configuration from TIA Portal (Project → Save and archive). Record the CPU IP address, device name, PROFINET station name, and firmware version displayed on the CPU front panel or in the online device view.

Step 2 — Safe isolation: Place the system in a safe state per your site LOTO (Lockout/Tagout) procedure. Switch the CPU to STOP mode via TIA Portal or the mode selector switch. De-energize the ET 200SP station power supply after confirming all outputs are in a safe de-energized state.

Step 3 — Module removal: Unlock and remove the front connector (if fitted). Press the release lever on the BaseUnit and slide the CPU module upward to disengage from the bus connector. The BaseUnit remains in place — no field wiring needs to be disturbed.

Step 4 — Replacement installation: Insert the 6ES7510-1SJ01-0AB0 replacement unit into the BaseUnit slot until it clicks into the bus connector. Reconnect the PROFINET cable and front connector.

Step 5 — Firmware and configuration restore: Power on the station. Use TIA Portal or the SIMATIC Automation Tool to download the archived project to the new CPU. Assign the correct IP address and device name. Perform a full I/O force test before returning the system to AUTO mode.

Step 6 — Functional verification: Monitor the CPU diagnostic buffer for 15–30 minutes after restart to confirm no residual faults. Update the maintenance log with the replacement date, new module serial number, and firmware version.

This workflow is compatible with both hot-swap scenarios (where a redundant controller maintains production) and cold-swap scenarios (planned shutdown window). The 6ES7510-1SJ01-0AB0 is a direct hardware replacement for the prior revision 6ES7510-1SJ00-0AB0, requiring no hardware re-configuration of the BaseUnit or adjacent I/O modules.

Spare Parts Support FAQ

Q1: Is the 6ES7510-1SJ01-0AB0 compatible with my existing TIA Portal project without re-programming?
Yes. The 6ES7510-1SJ01-0AB0 is a direct hardware successor to the -0AB0 revision family. Existing TIA Portal projects created for the CPU 1510SP-1 PN can be downloaded to the replacement unit without modification, provided the firmware version on the replacement CPU meets the minimum version required by the project. Firmware can be updated via TIA Portal prior to project download if needed.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7510-1SJ01-0AB0 unit dispatched by KNMKS undergoes a power-on functional check and visual inspection for physical damage, connector integrity, and label authenticity. Units are packed in anti-static ESD-safe packaging with protective foam inserts to prevent transit damage. A test report is available upon request for critical infrastructure procurement.

Q3: Can KNMKS support long-term supply for multi-year maintenance contracts?
Yes. KNMKS maintains buffer stock of high-demand S7-1500 and ET 200SP components to support annual maintenance contracts, OEM service agreements, and emergency call-off orders. Contact our sales team at [email protected] to discuss volume pricing, reserved stock arrangements, and lead-time guarantees for the 6ES7510-1SJ01-0AB0 and associated ET 200SP spare parts.

Q4: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions as defined by Siemens technical specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a support terms claim, contact [email protected] with the order reference, unit serial number, and a description of the fault. KNMKS will arrange return logistics and dispatch a replacement unit upon fault confirmation, minimizing your downtime exposure.
