Siemens 6ES7507-0RA00-0AB0 Migration-Ready CPU for S7-1500

Overview

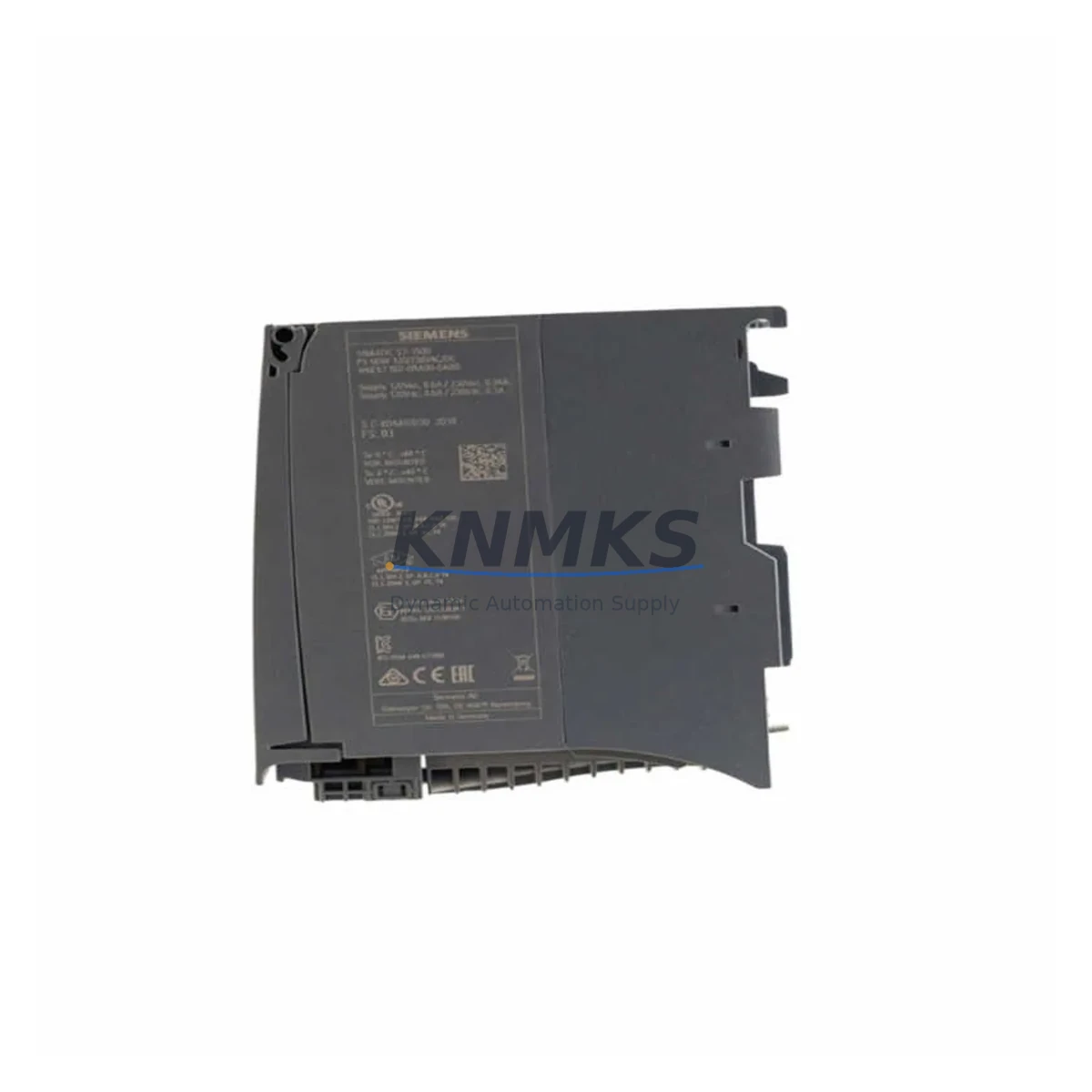

Siemens 6ES7507-0RA00-0AB0 Migration-Ready CPU for Legacy Control Systems

The Siemens 6ES7507-0RA00-0AB0 is a high-performance CPU module within the SIMATIC S7-1500 series, engineered to serve as a migration-ready replacement for aging S7-300 and S7-400 control platforms. As legacy PLC infrastructure reaches end-of-life, plant engineers and system integrators face mounting pressure to modernize control cabinets without disrupting production continuity. This CPU module provides a verified upgrade path that preserves existing program logic, reduces retrofit risk, and extends the operational lifespan of automation systems across discrete manufacturing, process control, and infrastructure applications.

Before initiating any replacement procedure, engineers must confirm power supply capacity within the existing control cabinet. The 6ES7507-0RA00-0AB0 requires a compatible SIMATIC S7-1500 power supply module — such as the PM 70W 120/230VAC (6EP1333-4BA00) — and the existing rail or backplane must support the physical and electrical load of the new CPU. Terminal wiring from field devices, including digital and analog I/O signals, must be mapped and verified against the new module’s I/O addressing scheme prior to commissioning. Any mismatch in module slot addressing or rack configuration will require corresponding updates in the TIA Portal project.

Program compatibility is a critical checkpoint in the migration workflow. Projects originally developed for S7-300 CPUs using STEP 7 Classic must be migrated to TIA Portal V16 or later before they can be loaded onto the 6ES7507-0RA00-0AB0. Siemens provides a migration wizard within TIA Portal that automates much of the conversion process, but engineers should manually verify all organization blocks (OBs), function blocks (FBs), and data blocks (DBs) after migration to ensure logic integrity. HMI screens developed in WinCC flexible or older SIMATIC HMI platforms will also require re-engineering in WinCC Advanced or WinCC Unified to maintain operator interface continuity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6ES7507-0RA00-0AB0 begins with a thorough audit of the existing control architecture. In most legacy S7-300 installations, the CPU is mounted on a standard S7-300 rack alongside SM 321/322 digital I/O modules, SM 331/332 analog I/O modules, and CP 343-1 PROFINET communication processors. When migrating to the S7-1500 platform, these components must be replaced with their S7-1500 equivalents — for example, SM 1221 and SM 1222 digital I/O modules, SM 1231 and SM 1232 analog I/O modules, and the integrated PROFINET interface on the 6ES7507-0RA00-0AB0 itself eliminates the need for a separate CP module in most topologies.

For installations where MPI or PROFIBUS DP communication links connect the PLC to remote I/O stations, distributed drives, or third-party field devices, a CM 1542-5 PROFIBUS communication module should be added to the S7-1500 rack to maintain protocol continuity during the transition period. This is particularly important in phased migration projects where legacy S7-300 remote I/O racks — such as ET 200M stations with IM 153-2 interface modules — remain in service while the central CPU is upgraded.

Signal isolation requirements must also be evaluated during retrofit planning. Where field signals originate from legacy 4–20mA transmitters or thermocouple inputs wired to older SM 331 analog modules, the replacement SM 1231 AI modules on the S7-1500 platform offer equivalent input ranges but may require terminal adapter rewiring. In high-noise industrial environments, signal isolators or barriers between field wiring and the new I/O modules are recommended to protect the CPU from transient interference.

The IM 155-5 PN ST interface module for ET 200SP distributed I/O systems is frequently deployed alongside the 6ES7507-0RA00-0AB0 in modernized control cabinets, enabling flexible I/O expansion without increasing the footprint of the central rack. This combination is particularly effective in retrofit projects where the original control cabinet has limited DIN rail space and field wiring must be preserved with minimal retermination.

Downtime Control During System Migration

Minimizing production downtime is the primary operational constraint in any legacy PLC replacement project. For the 6ES7507-0RA00-0AB0 retrofit, a structured cutover plan should be developed and rehearsed before the scheduled maintenance window. The TIA Portal project should be fully compiled, simulated using PLCSIM Advanced, and validated against the original STEP 7 program logic before any physical hardware is removed from the control cabinet.

Where possible, the new S7-1500 rack should be pre-assembled, pre-wired, and pre-tested on a bench setup that replicates the field I/O configuration. PROFINET device names and IP addresses should be assigned and stored in the CPU before installation to eliminate network commissioning delays during the cutover window. HMI panels — whether SIMATIC TP700 Comfort, TP1200 Comfort, or PC-based WinCC Runtime systems — should have updated project files loaded and tested in offline simulation mode prior to the cutover.

During the physical cutover, field wiring should be transferred systematically from the old terminal blocks to the new S7-1500 I/O modules using pre-labeled wire markers and a verified termination schedule. After wiring transfer, a full I/O force test should be performed to confirm signal integrity before the CPU is switched to RUN mode. Retaining a backup copy of the original STEP 7 project and the original CPU memory card ensures that rollback is possible within the maintenance window if unexpected issues arise during commissioning.

Post-cutover, a 24–48 hour supervised production run is recommended to monitor CPU cycle times, PROFINET communication health, and analog signal accuracy before the system is handed back to operations. All commissioning steps, firmware versions, and I/O test results should be documented in the project handover record to support future maintenance and support requests.

Retrofit Support FAQ

Q1: Is the 6ES7507-0RA00-0AB0 a direct drop-in replacement for S7-300 CPUs?
A: Not physically. The S7-1500 platform uses a different rack, backplane, and power supply architecture compared to S7-300. However, it is the recommended migration target for S7-300 systems, and TIA Portal provides a structured project migration wizard to convert existing STEP 7 programs. I/O modules, communication modules, and HMI projects must also be updated as part of the migration.

Q2: What firmware version should be loaded before commissioning?
A: Always download and install the latest firmware for the 6ES7507-0RA00-0AB0 from the Siemens Industry Online Support portal before commissioning. Firmware updates are applied via TIA Portal or via a formatted SIMATIC Memory Card. Confirm that the TIA Portal version used for the project is compatible with the installed firmware version to avoid project download errors.

Q3: Can existing PROFIBUS DP field devices be retained after migrating to this CPU?
A: Yes. By adding a CM 1542-5 PROFIBUS DP communication module to the S7-1500 rack, existing PROFIBUS DP field devices — including remote I/O stations, variable frequency drives, and intelligent field instruments — can remain connected without rewiring. The PROFIBUS network configuration must be re-imported or rebuilt in TIA Portal’s hardware configuration.

Q4: What support terms and supply terms apply to this module?
A: All units are supplied with a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment functional testing is performed on each unit. Stock availability is maintained to support urgent spare parts requirements and planned retrofit projects. Contact our sales team for lead time confirmation and volume pricing.
