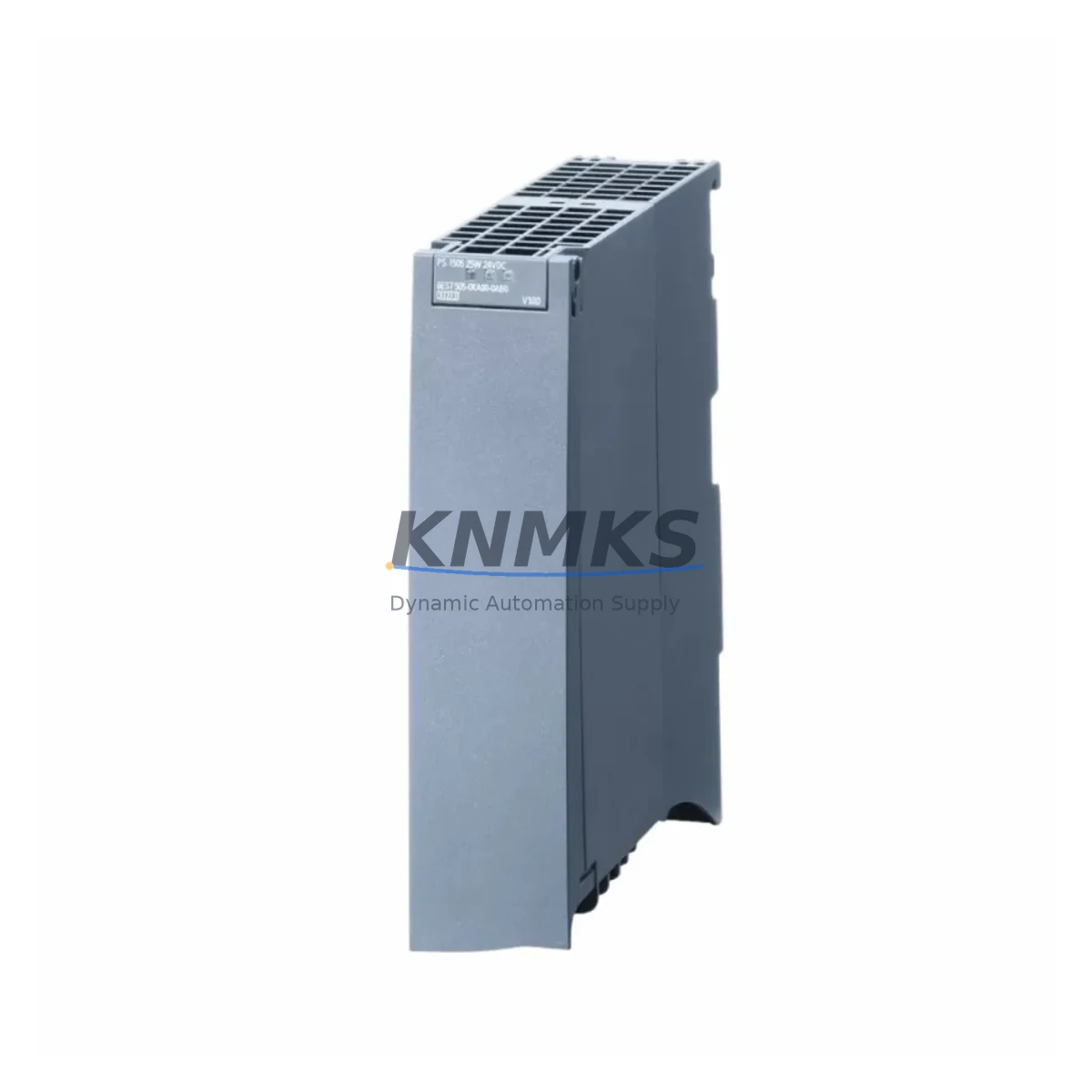

Siemens 6ES7505-0KA00-0AB0 Fail-Safe Load Group PSM

Overview

Siemens 6ES7505-0KA00-0AB0 Fail-Safe Load Group PSM: Fault-Tolerant Power for Critical Industrial Control

The Siemens 6ES7505-0KA00-0AB0 is a dedicated Load Group Power Supply Module (PSM) engineered for the SIMATIC ET 200SP distributed I/O platform. Designed to deliver fail-safe, isolated power segmentation within control cabinets, this module is a cornerstone component for engineers who cannot afford unplanned downtime in continuous production, critical interlock circuits, or hazardous-area automation systems.

In demanding industrial environments — petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous manufacturing cells — power integrity is not optional. The 6ES7505-0KA00-0AB0 addresses the most persistent field failure modes: voltage sag propagation across load groups, surge-induced logic faults, EMI-coupled signal drift, and thermal runaway within densely packed I/O stations. By providing galvanically isolated power segmentation, it ensures that a fault in one load group cannot cascade into adjacent safety or control circuits.

This module is fully compatible with the ET 200SP station architecture, integrating seamlessly alongside SIMATIC ET 200SP BaseUnits (BU), 6ES7131-6BF01-0BA0 digital input modules, and 6ES7132-6BF01-0BA0 digital output modules to form a robust, modular I/O backbone. When deployed in conjunction with Siemens SITOP PSU8600 system power supplies or 6EP1333-3BA10 stabilized 24 VDC supplies, the 6ES7505-0KA00-0AB0 provides an additional layer of load isolation that protects upstream power infrastructure from downstream transient events.

For safety-instrumented systems and SIL-rated interlock loops, the module’s deterministic power delivery supports the predictable response times required by SIMATIC ET 200SP F-modules such as the 6ES7136-6DC00-0CA0 F-DQ fail-safe digital output module. Pairing the 6ES7505-0KA00-0AB0 with appropriate SIMATIC S7-1500 CPU modules and PROFINET IO controllers creates a fully validated, safety-rated control architecture capable of meeting IEC 61508 and IEC 62061 requirements in process and discrete manufacturing applications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A resilient control cabinet for continuous or safety-critical processes is never built around a single component. The 6ES7505-0KA00-0AB0 is most effective when integrated as part of a layered protection architecture. In a typical ET 200SP station deployed in a high-availability process cell, the PSM works in concert with upstream SITOP PSU8600 power supply modules that provide active redundancy and load monitoring, ensuring that any upstream voltage deviation is absorbed before it reaches the I/O tier.

Within the station itself, the 6ES7505-0KA00-0AB0 creates discrete power domains — isolating actuator-driving output modules such as the 6ES7132-6BF01-0BA0 from sensor-feeding input modules like the 6ES7131-6BF01-0BA0. This segmentation prevents inductive kickback from solenoid valves, motor starters, or relay coils from corrupting the 24 VDC logic rail shared by diagnostic and communication modules.

For cabinets operating in high-dust, high-humidity, or high-vibration environments — common in mining headframes, offshore platforms, or cement plant control rooms — the module’s robust mechanical design and conformal-coating-compatible construction reduce the risk of insulation breakdown and contact corrosion. When combined with SIMATIC ET 200SP CM PTP communication modules for serial fieldbus integration or PROFINET media redundancy (MRP) ring topologies, the 6ES7505-0KA00-0AB0 contributes to an end-to-end architecture where no single point of failure can halt production.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous distillation and reactor control loops, the 6ES7505-0KA00-0AB0 isolates the power supply to emergency shutdown (ESD) output modules, ensuring that a transient fault on the process I/O rail cannot inadvertently de-energize or energize a safety-critical valve actuator. Its deterministic power delivery supports the sub-100 ms response times required by SIL 2 interlock functions.

Power Generation & Substation Automation: In turbine control panels and HV substation RTU cabinets, where switching transients and ground loops are endemic, the module’s galvanic isolation prevents common-mode noise from propagating into PROFINET communication cards or analog input modules monitoring generator excitation and bearing temperature.

Mining & Mineral Processing: Conveyor drive control panels in underground or open-cut mines are subject to extreme vibration, dust ingress, and voltage fluctuation from large motor starts. The 6ES7505-0KA00-0AB0 provides the load group boundary that prevents motor-start inrush from collapsing the logic supply to proximity sensors and speed monitors.

Water & Wastewater Treatment: In pump station automation and SCADA-connected remote I/O panels, the module ensures that a failed submersible pump output does not disrupt the 24 VDC supply to flow transmitters and level sensors, maintaining process visibility even during actuator fault conditions.

Metallurgy & Steel: Rolling mill and continuous casting control systems demand zero-tolerance for spurious trips. The PSM’s load isolation capability allows maintenance teams to de-energize individual I/O groups for hot-swap servicing without shutting down the entire ET 200SP station, reducing planned maintenance windows and eliminating unnecessary production interruptions.

Port & Marine Logistics: Ship-to-shore crane control systems and automated stacking crane panels operate in salt-air, high-humidity environments with frequent load cycling. The 6ES7505-0KA00-0AB0’s surge suppression and isolation characteristics protect the control logic from the aggressive electrical environment generated by large crane drive systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7505-0KA00-0AB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified load group isolation and power supply function within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed with priority to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7505-0KA00-0AB0 unit undergoes a 100% functional test before dispatch. This includes verification of input voltage acceptance range, output load regulation, galvanic isolation integrity, and communication with a live ET 200SP station. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all ET 200SP BaseUnit configurations?
The 6ES7505-0KA00-0AB0 is designed for use with the standard ET 200SP station architecture and is compatible with the full range of ET 200SP BaseUnits (Type A0, A1, B0, B1) and associated I/O modules. It is fully supported by SIMATIC STEP 7 (TIA Portal V13 SP1 and later) for hardware configuration and diagnostics. Confirm your specific station configuration against the ET 200SP system manual (6ES7505-0KA00-0AB0 product documentation) for slot assignment rules.

Q4: Can long-term supply and spare part replacement be guaranteed?
We maintain dedicated stock of the 6ES7505-0KA00-0AB0 to support both immediate replacement needs and planned spare part programs. For facilities operating ET 200SP-based control systems with multi-year lifecycle commitments, we offer reserved stock arrangements and advance shipment agreements. Contact our technical sales team to discuss your site’s spare part strategy and lead time requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7505-0KA00-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7505-0KA00-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
