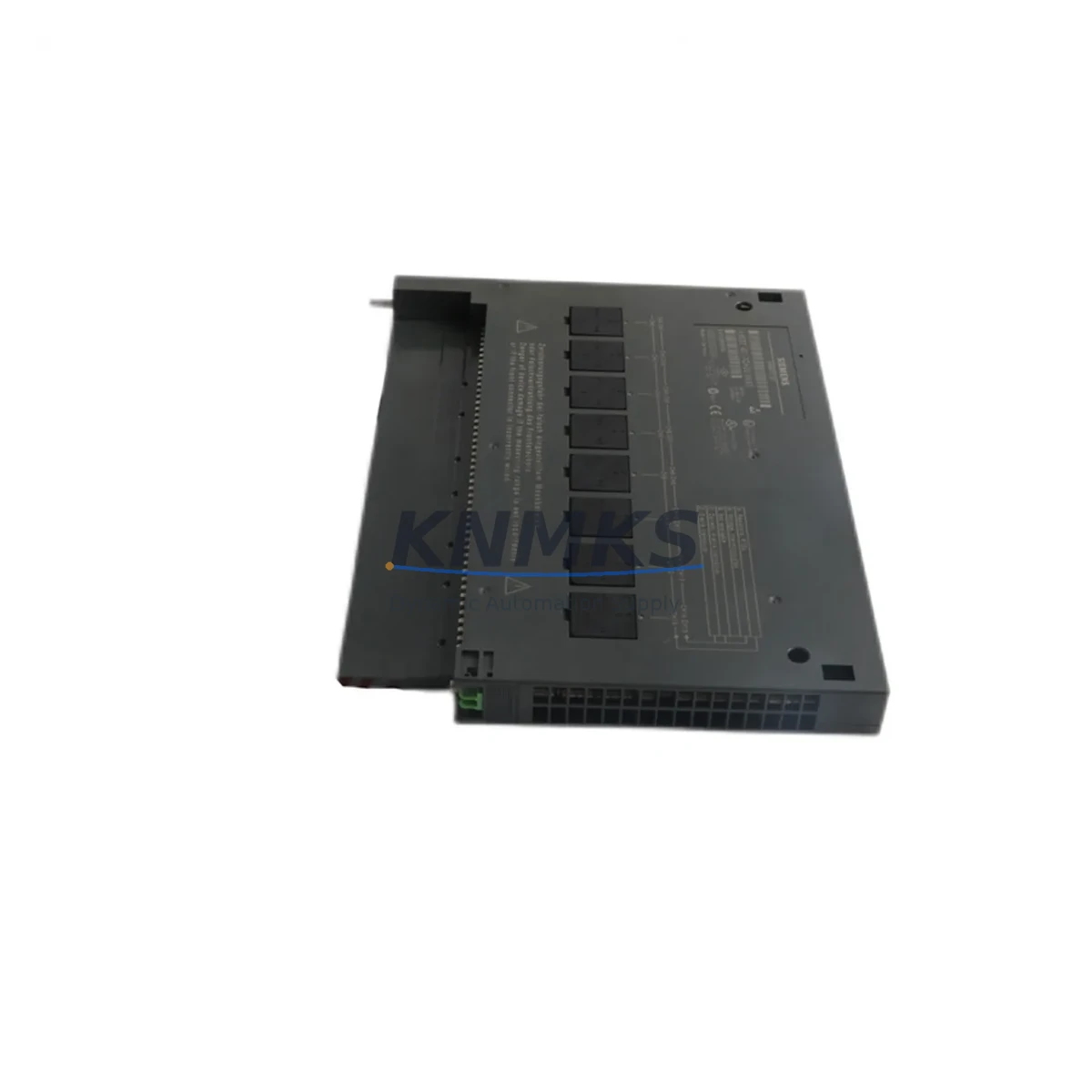

Siemens 6ES7431-7QH00-0AB0 Fail-Safe Analog Input Module

Overview

Siemens 6ES7431-7QH00-0AB0 Fail-Safe Analog Input Module: Fault-Tolerant Signal Acquisition for Critical Industrial Control

The Siemens 6ES7431-7QH00-0AB0 is a high-density, 16-channel analog input module from the SM431 series, engineered for the SIMATIC S7-400 programmable logic controller platform. Designed to meet the demanding requirements of continuous process industries, this module delivers precision signal acquisition with built-in fail-safe characteristics that protect control loops from measurement drift, signal loss, and electrical interference — all of which can trigger unplanned shutdowns or dangerous misoperations in critical field environments.

In high-stakes industrial settings — petrochemical distillation columns, power plant turbine control, mine ventilation interlocks, water treatment dosing systems, metallurgical furnace regulation, and port crane load monitoring — analog signal integrity is non-negotiable. A single drifted 4–20 mA channel or an undetected open-wire fault can cascade into a full process trip, equipment damage, or a safety incident. The 6ES7431-7QH00-0AB0 addresses this risk through hardware-level diagnostics, channel-by-channel fault detection, and robust EMI shielding that maintains measurement accuracy even in environments with heavy motor drives, arc furnaces, or high-frequency switching equipment operating nearby.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable analog signal acquisition begins at the cabinet level. The 6ES7431-7QH00-0AB0 is most effective when deployed as part of a coordinated protection architecture within the S7-400 control cabinet. In high-load or high-interference environments, it is commonly paired with the Siemens 6ES7407-0KA02-0AA0 PS407 power supply module, which provides stable, regulated 24 VDC backplane power — eliminating voltage ripple that can introduce measurement noise into sensitive analog channels.

For applications requiring redundant CPU control, the module integrates seamlessly with the Siemens 6ES7414-4HM14-0AB0 CPU414H redundant processor, ensuring that analog measurement data remains continuously available even during a CPU switchover event. In safety-instrumented systems operating under IEC 61511 requirements, the SM431 analog input module is often installed alongside the Siemens 6ES7326-1BK02-0AB0 SM326 F-DI digital safety input module, forming a combined analog-digital safety acquisition layer for process variable monitoring and emergency shutdown initiation.

Signal conditioning at the field terminal level is equally important. Shielded twisted-pair cables terminated through Siemens 6ES7392-1AJ00-0AA0 front connectors ensure that field wiring is properly managed and that shield grounding is maintained at a single point, preventing ground loop interference from corrupting analog readings. In cabinets exposed to high-frequency switching from variable frequency drives or servo amplifiers, supplementary EMC filters and surge protection devices — such as those from the SIMATIC ET 200SP accessory range — are recommended upstream of the SM431 input terminals to clamp transient spikes before they reach the module’s input circuitry.

For distributed I/O architectures where the S7-400 CPU communicates over PROFIBUS-DP, the Siemens 6GK7443-5DX05-0XE0 CP443-5 communications processor provides deterministic, high-speed bus access that ensures analog data from the 6ES7431-7QH00-0AB0 is transmitted to the CPU within the required scan cycle — critical for fast-response control loops in compressor surge protection or turbine speed governing applications.

Critical Industrial Safety Applications

Petrochemical & Refining: In distillation column temperature profiling and reactor pressure monitoring, the 6ES7431-7QH00-0AB0 provides the multi-channel analog acquisition needed to track process variables across multiple measurement points simultaneously. Its wire-break detection capability ensures that a failed thermocouple or pressure transmitter is immediately flagged as a diagnostic alarm rather than silently delivering a zero or frozen reading that could mask a developing overpressure condition.

Power Generation: Turbine inlet temperature, generator bearing vibration (via 4–20 mA transmitters), and cooling water flow monitoring all rely on accurate, low-drift analog acquisition. The module’s galvanic channel isolation prevents ground potential differences between field instruments and the control room from introducing common-mode noise into turbine protection measurements.

Mining & Mineral Processing: In underground ventilation control and conveyor belt load monitoring, the SM431 module operates reliably in environments with high dust concentrations and significant electromagnetic interference from large motor starters. Its IP20-rated housing, combined with proper cabinet sealing, provides adequate protection for control room and substation installations in mining facilities.

Water & Wastewater Treatment: Chemical dosing control, flow measurement, and pH/ORP monitoring require stable, repeatable analog inputs across wide temperature ranges. The 6ES7431-7QH00-0AB0 supports both current and voltage input types, allowing a single module to interface with diverse field instruments — flow transmitters, level sensors, and analytical instruments — within the same S7-400 rack.

Metallurgy & Steel: Furnace temperature control in electric arc furnaces and continuous casting machines demands analog modules that can withstand intense electromagnetic fields generated by high-current bus bars and induction heating equipment. The module’s EMI immunity ratings and surge protection make it a proven choice for steel plant automation cabinets where lesser modules experience frequent measurement errors or module faults.

Port & Marine Automation: Crane load cell monitoring, ship engine room automation, and ballast water management systems benefit from the SM431’s wide operating temperature range and vibration resistance, ensuring stable operation in mobile or marine-adjacent environments subject to mechanical shock and humidity variations.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the 6ES7431-7QH00-0AB0?
A: The support terms confirmed by quotation cover all hardware defects, including channel measurement failures, backplane communication faults, and diagnostic reporting errors. In the event of a confirmed defect, we provide full module replacement or repair at no additional cost. Support requests are processed within 5 business days of fault confirmation.

Q: How is each module tested before shipment?
A: Every 6ES7431-7QH00-0AB0 unit undergoes pre-shipment functional verification, including backplane communication check, channel-by-channel analog input measurement test across the full input range, and diagnostic function validation. Modules that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q: Is this module compatible with all S7-400 rack configurations and CPU versions?
A: The 6ES7431-7QH00-0AB0 is compatible with all standard SIMATIC S7-400 racks (UR1, UR2, UR2-H, CR2, CR3) and is supported by S7-400 CPUs from firmware V2.0 onwards, including the CPU412, CPU414, CPU416, and CPU417 families. Configuration is performed via STEP 7 V5.x or TIA Portal with the appropriate hardware catalog entry. If you require compatibility confirmation for a specific CPU or rack combination, contact our technical team before ordering.

Q: Can you guarantee long-term supply and support for this module?
A: Yes. We maintain dedicated stock of the 6ES7431-7QH00-0AB0 and key S7-400 series components to support customers with long-lifecycle plant installations. For facilities running continuous processes where unplanned downtime is not acceptable, we recommend holding at least one spare module on-site. We can assist with spare parts planning, cross-reference to compatible replacement modules, and sourcing support for the full S7-400 I/O range.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7431-7QH00-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7431-7QH00-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
