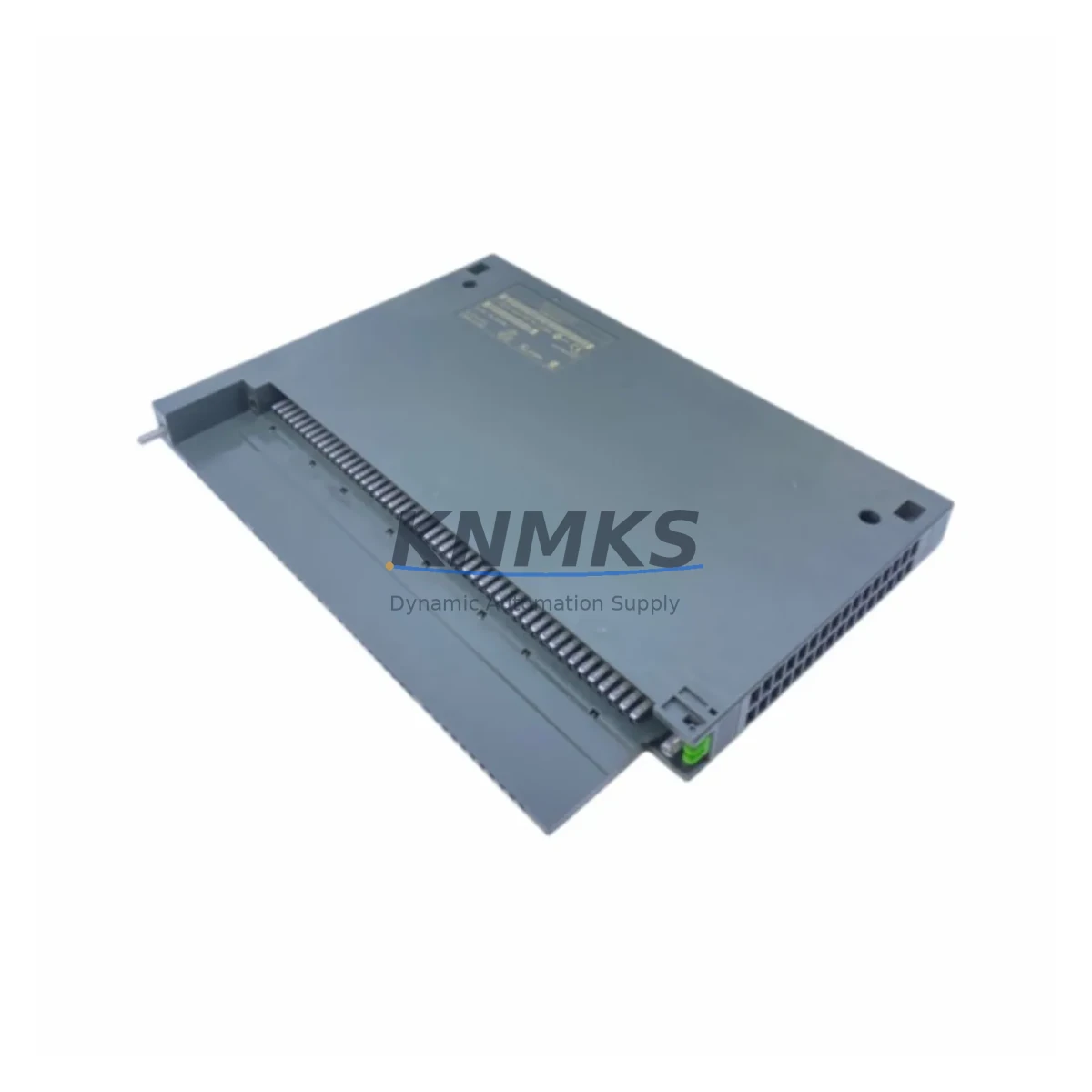

Siemens 6ES7431-7KF10-0AB0 Fail-Safe RTD Analog Input

Overview

Siemens 6ES7431-7KF10-0AB0 Fail-Safe RTD Analog Input: Critical Industrial Field Reliability

The Siemens 6ES7431-7KF10-0AB0 is an 8-channel RTD analog input module from the SM431 series, engineered for the SIMATIC S7-400 programmable logic controller platform. Designed to operate in the most demanding industrial environments, this module delivers fail-safe temperature signal acquisition with exceptional resistance to electromagnetic interference, power fluctuations, and harsh ambient conditions. For facilities where unplanned downtime is not an option — including petrochemical plants, power generation stations, metallurgical operations, and continuous process manufacturing — the 6ES7431-7KF10-0AB0 provides the measurement accuracy and signal integrity that safety-critical control loops demand.

In high-density control cabinets where multiple drives, contactors, and power supplies generate significant EMI, analog signal modules are particularly vulnerable to noise-induced drift. The 6ES7431-7KF10-0AB0 incorporates hardware-level filtering and galvanic isolation to suppress common-mode interference, ensuring that RTD readings remain stable even when installed adjacent to variable frequency drives or high-current switching equipment. This directly reduces the risk of false process alarms, spurious interlock trips, and undetected sensor faults — all of which can cascade into costly production interruptions or, in safety-critical applications, hazardous conditions.

The module integrates seamlessly within the S7-400 backplane alongside complementary components such as the 6ES7407-0KA02-0AA0 PS407 power supply module, which provides regulated 24 VDC/5 VDC rail power with surge protection to the entire rack. Pairing the 6ES7431-7KF10-0AB0 with a 6ES7400-1JA01-0AA0 UR2 universal rack ensures proper mechanical support and backplane bus integrity across the full S7-400 system. For applications requiring redundant CPU architectures, the module is compatible with 6ES7412-3HJ14-0AB0 CPU412H hot-standby configurations, maintaining continuous analog acquisition even during CPU switchover events.

In safety interlock circuits — such as high-temperature shutdown loops in fired heaters, reactor vessel overpressure protection, or turbine bearing temperature monitoring — signal continuity from the RTD input layer is non-negotiable. The 6ES7431-7KF10-0AB0 supports wire-break and short-circuit detection on each channel, providing diagnostic feedback to the CPU that enables the control system to distinguish between a genuine process excursion and an instrumentation fault. This diagnostic transparency is essential for maintaining SIL-rated safety function availability and for satisfying functional safety audit requirements under IEC 61511.

For cabinet thermal management in high-ambient installations — such as outdoor substations, tropical process plants, or enclosed motor control centers — the module’s rated operating temperature range and low self-heating characteristics reduce the thermal load on the control cabinet. When combined with a 6ES7408-1TB00-0XA0 fan/filter unit for forced-air cooling, the overall cabinet thermal budget remains within safe limits, protecting all installed modules from heat-induced degradation and extending mean time between failures across the entire control system.

Communication integrity between the S7-400 CPU and SCADA or DCS layers is equally critical. The 6ES7431-7KF10-0AB0 analog values are transmitted over the S7-400 internal backplane bus to the CPU, which then forwards process data via 6GK7443-1EX30-0XE0 CP443-1 Ethernet communication processors to supervisory systems. Any disruption in analog acquisition — whether from module failure, wiring fault, or power anomaly — is immediately flagged through the CPU’s diagnostic buffer, enabling maintenance teams to respond before a process deviation escalates to a safety event.

Every 6ES7431-7KF10-0AB0 unit supplied by KNMKS undergoes pre-shipment functional verification, including channel-by-channel RTD simulation testing, backplane connector inspection, and firmware version confirmation. Units are sourced from verified supply channels and are accompanied by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions. Stock is maintained to support both immediate spare-part replacement requirements and longer-term maintenance agreements for multi-site operations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust S7-400 control cabinet deployment built around the 6ES7431-7KF10-0AB0 requires a layered protection strategy that addresses power quality, signal integrity, thermal management, and communication resilience simultaneously. At the power layer, the 6ES7407-0KA02-0AA0 PS407 10A power supply provides regulated, surge-protected DC power to the backplane, preventing voltage transients from propagating into the analog measurement circuitry. For installations in areas with unstable grid power — common in mining, port, and offshore environments — an upstream UPS or line conditioner further isolates the S7-400 rack from supply anomalies.

Signal wiring for RTD inputs should use shielded twisted-pair cable with shield grounded at a single point to prevent ground loops. In cabinets where the 6ES7431-7KF10-0AB0 is installed alongside high-current output modules such as the 6ES7422-1BL00-0AA0 SM422 digital output module, physical separation of analog and digital wiring ducts is essential to minimize capacitive and inductive coupling. Terminal block surge protection devices rated for the RTD signal range provide an additional layer of defense against lightning-induced transients on field wiring.

For CPU-level redundancy, pairing the analog input layer with a 6ES7400-1JA01-0AA0 UR2 rack and a hot-standby CPU configuration ensures that a CPU fault does not interrupt analog data acquisition. The 6GK7443-1EX30-0XE0 CP443-1 Ethernet communication processor maintains SCADA connectivity during CPU switchover, preserving real-time process visibility throughout the transition. Cabinet door-mounted 6ES7408-1TB00-0XA0 fan/filter units maintain internal air circulation, preventing thermal stratification that could cause localized overheating of densely populated module slots.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 6ES7431-7KF10-0AB0 is deployed in fired heater tube skin temperature monitoring, reactor feed/effluent heat exchanger control, and compressor bearing temperature interlock circuits. Accurate, drift-free RTD acquisition is essential for maintaining process temperatures within safe operating limits and for triggering emergency shutdown sequences before equipment damage occurs.

In power generation and substation environments, the module supports transformer winding temperature monitoring, generator cooling system control, and turbine exhaust temperature measurement. The module’s galvanic isolation and EMI resistance are particularly valuable in high-voltage switchgear environments where induced interference on signal cables is a persistent challenge.

In metallurgical and steel mill applications, the 6ES7431-7KF10-0AB0 handles furnace zone temperature control, ladle preheating supervision, and rolling mill cooling water temperature monitoring. These applications demand continuous, uninterrupted analog acquisition across wide temperature ranges, with immediate diagnostic notification of any sensor or wiring fault.

In water and wastewater treatment facilities, the module monitors process temperatures in biological treatment reactors, sludge digester heating systems, and UV disinfection equipment. Reliable temperature measurement directly impacts treatment efficacy and regulatory compliance, making module reliability and diagnostic transparency critical operational requirements.

In mining and mineral processing, the module is used in conveyor drive motor temperature monitoring, crusher bearing temperature interlock, and flotation cell temperature control. The ability to detect wire-break faults before they cause undetected sensor loss is particularly valuable in remote or unmanned processing facilities where maintenance response times are extended.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7431-7KF10-0AB0?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and operational failures under normal industrial service conditions. Support requests are supported by our technical team with replacement dispatch or repair coordination as appropriate.

Q2: What pre-shipment testing is performed before dispatch?
Each 6ES7431-7KF10-0AB0 unit undergoes channel-by-channel RTD simulation testing to verify measurement accuracy across the full input range, backplane connector pin inspection, and firmware version confirmation. Test records are available upon request for quality audit purposes.

Q3: Is the 6ES7431-7KF10-0AB0 compatible with all S7-400 rack configurations?
The module is compatible with all standard S7-400 universal racks including UR1, UR2, UR2-H, CR2, and CR3. It operates with all S7-400 CPUs that support SM431 analog input modules. Compatibility with specific CPU firmware versions and hardware revisions should be confirmed against the Siemens SIMATIC S7-400 system manual prior to installation in safety-critical applications.

Q4: Can KNMKS support long-term spare parts supply agreements for the 6ES7431-7KF10-0AB0?
Yes. KNMKS maintains stock of the 6ES7431-7KF10-0AB0 and related S7-400 components to support both immediate replacement requirements and structured long-term maintenance agreements for multi-site industrial operations. Contact our sales team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs tailored to your maintenance planning cycle.
