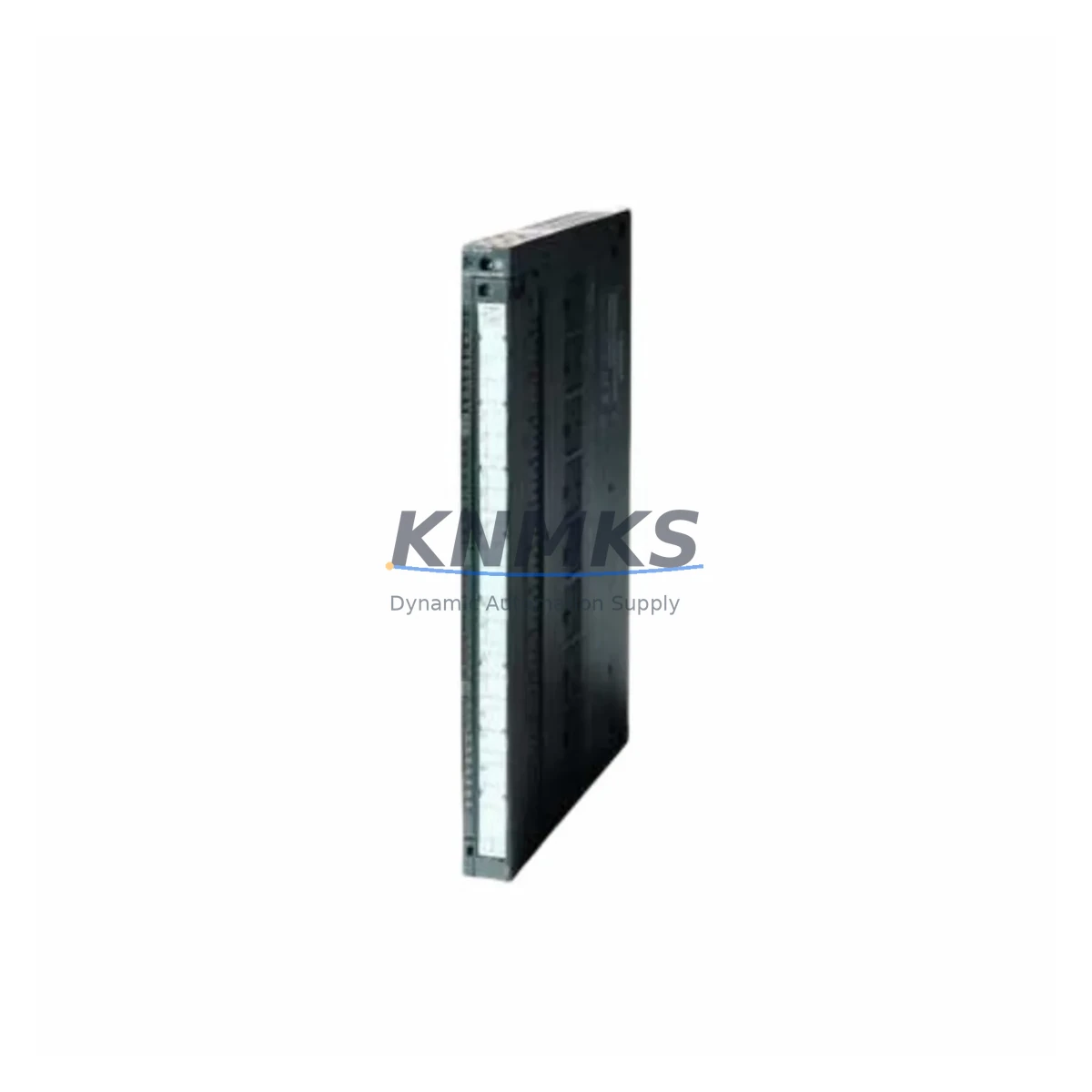

Siemens 6ES7431-7KF00-6AA0 Fail-Safe TC Input Module

Overview

Siemens 6ES7431-7KF00-6AA0 Fail-Safe TC Input Module: Fault-Protected Thermocouple Sensing for Critical Industrial Control

The Siemens 6ES7431-7KF00-6AA0 is an 8-channel thermocouple analog input module engineered for the SIMATIC S7-400 programmable logic controller platform — one of the most widely deployed high-availability PLC architectures in heavy industry. Designed to deliver fail-safe, drift-resistant temperature acquisition in demanding field environments, this module is a cornerstone component for control engineers who cannot afford signal anomalies, unplanned shutdowns, or measurement errors in critical process loops.

In continuous production facilities — petrochemical reactors, power generation turbines, metallurgical furnaces, and mineral processing plants — thermocouple signal integrity is not a convenience; it is a safety imperative. The 6ES7431-7KF00-6AA0 addresses this directly through hardware-level EMI suppression, cold junction compensation, and per-channel diagnostics that detect open-circuit, short-circuit, and out-of-range faults before they propagate into control logic errors or process upsets. When a thermocouple fails silently, the consequences can range from product loss to catastrophic equipment damage. This module eliminates that risk by surfacing faults immediately to the S7-400 CPU — enabling safe-state transitions rather than blind continuation.

Control cabinet environments in heavy industry are electrically hostile. Variable frequency drives, high-current contactors, and bus-coupled power supplies generate conducted and radiated interference that degrades analog signal quality. The 6ES7431-7KF00-6AA0 is built to operate reliably within these cabinets, maintaining measurement accuracy even when installed adjacent to high-power switching components. Its shielded input architecture and internal filtering reduce susceptibility to surge transients and common-mode noise — protecting the integrity of temperature data that drives burner management, cooling control, and thermal protection interlocks.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7431-7KF00-6AA0 as part of a structured control cabinet architecture significantly reduces the risk of thermal runaway, process deviation, and interlock failure. In a typical S7-400-based safety cabinet, this module works in close coordination with the Siemens 6ES7407-0KA02-0AA0 PS407 power supply module, which provides regulated 24 VDC backplane power with built-in overload and short-circuit protection — ensuring that analog input accuracy is never compromised by power rail instability.

For applications requiring redundant CPU processing, the 6ES7431-7KF00-6AA0 integrates seamlessly with the Siemens 6ES7412-2XK07-0AB0 CPU 412-2 or higher-tier processors such as the 6ES7414-4HM14-0AB0 CPU 414-4H, which supports H-system redundancy for zero-downtime failover. In these configurations, thermocouple data from the 6ES7431-7KF00-6AA0 feeds directly into redundant process images, ensuring that a CPU fault does not interrupt temperature monitoring of critical loops.

On the communications side, the module operates within cabinets that typically include Siemens CP 443-1 Ethernet communication processors (e.g., 6GK7443-1EX30-0XE0) for PROFINET integration, enabling remote diagnostics and SCADA visibility of per-channel thermocouple status. In high-vibration or high-dust environments — mining headframes, cement kilns, port crane cabinets — the backplane connection reliability of the S7-400 rack system, combined with the module’s robust mechanical design, ensures sustained signal integrity without requiring frequent maintenance interventions.

For field-side surge protection, pairing the 6ES7431-7KF00-6AA0 with DIN-rail mounted thermocouple surge arresters and shielded twisted-pair cabling further reduces the risk of lightning-induced or switching-transient damage to the analog front end — a common failure mode in outdoor substations and open-process plants.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fired heater and reactor temperature control, the 6ES7431-7KF00-6AA0 provides the per-channel diagnostic transparency required by burner management systems (BMS). Open-circuit detection on a thermocouple measuring furnace tube skin temperature can trigger a safe burner shutdown before tube overheating causes structural failure — a direct contribution to SIL-rated safety loop integrity.

Power Generation: Steam turbine bearing temperature monitoring and generator stator winding protection rely on continuous, drift-free thermocouple acquisition. The module’s cold junction compensation and high-resolution conversion ensure that alarm setpoints are not triggered by measurement error, reducing nuisance trips while maintaining genuine protective sensitivity.

Metallurgy & Steel: In electric arc furnace (EAF) and continuous casting control, temperature measurement accuracy directly affects product quality and refractory life. The 6ES7431-7KF00-6AA0 withstands the extreme electromagnetic environment of EAF installations, where high-current bus bars and arc ignition generate severe conducted interference.

Mining & Mineral Processing: Conveyor drive motor winding temperature, crusher bearing monitoring, and kiln shell scanning all benefit from the module’s multi-channel architecture and fault diagnostics. A single module can monitor eight critical temperature points simultaneously, reducing cabinet footprint and wiring complexity in remote field substations.

Water & Wastewater Treatment: Pump motor thermal protection and digester temperature control in municipal and industrial water treatment plants require reliable, low-maintenance analog input hardware. The 6ES7431-7KF00-6AA0‘s compatibility with the standard S7-400 rack eliminates the need for signal converters, simplifying system architecture and reducing potential failure points.

Marine & Port Equipment: Ship engine room automation and port crane control systems operate in high-humidity, salt-laden environments. Cabinet-mounted S7-400 systems with the 6ES7431-7KF00-6AA0 provide the temperature monitoring backbone for engine protection and cargo handling safety interlocks, where measurement failure could result in equipment damage or personnel hazard.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7431-7KF00-6AA0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform within its specified parameters during the confirmed support period, we provide replacement or repair at no additional cost. Each unit undergoes pre-shipment functional testing to verify channel accuracy, diagnostic response, and backplane communication integrity before dispatch.

Q2: How is the module tested before shipment?
Every 6ES7431-7KF00-6AA0 unit is subject to outgoing quality inspection including power-on functional verification, channel-level signal response testing, and diagnostic register readback. Units that do not meet Siemens-specified performance parameters are quarantined and not shipped. Test records are retained and available upon request for critical applications.

Q3: Is this module compatible with existing S7-400 racks and power supplies without hardware modification?
Yes. The 6ES7431-7KF00-6AA0 is a standard S7-400 signal module that installs directly into any UR1, UR2, or ER1/ER2 rack without modification. It is recognized automatically by STEP 7 and TIA Portal hardware configuration tools. No additional interface modules or signal converters are required for integration into existing S7-400 systems.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts planning?
We maintain dedicated inventory of the 6ES7431-7KF00-6AA0 to support ongoing maintenance, planned shutdowns, and emergency replacement requirements. For facilities with multi-year maintenance contracts or critical spare parts programs, we offer reserved stock arrangements and priority dispatch to minimize unplanned downtime risk. Contact our technical sales team to discuss your supply continuity requirements.
