Siemens 6ES7431-1KF20-0AB0 Spare Part for Factory Uptime

Overview

Siemens 6ES7431-1KF20-0AB0 Maintenance-Proven Spare Part for Factory Uptime

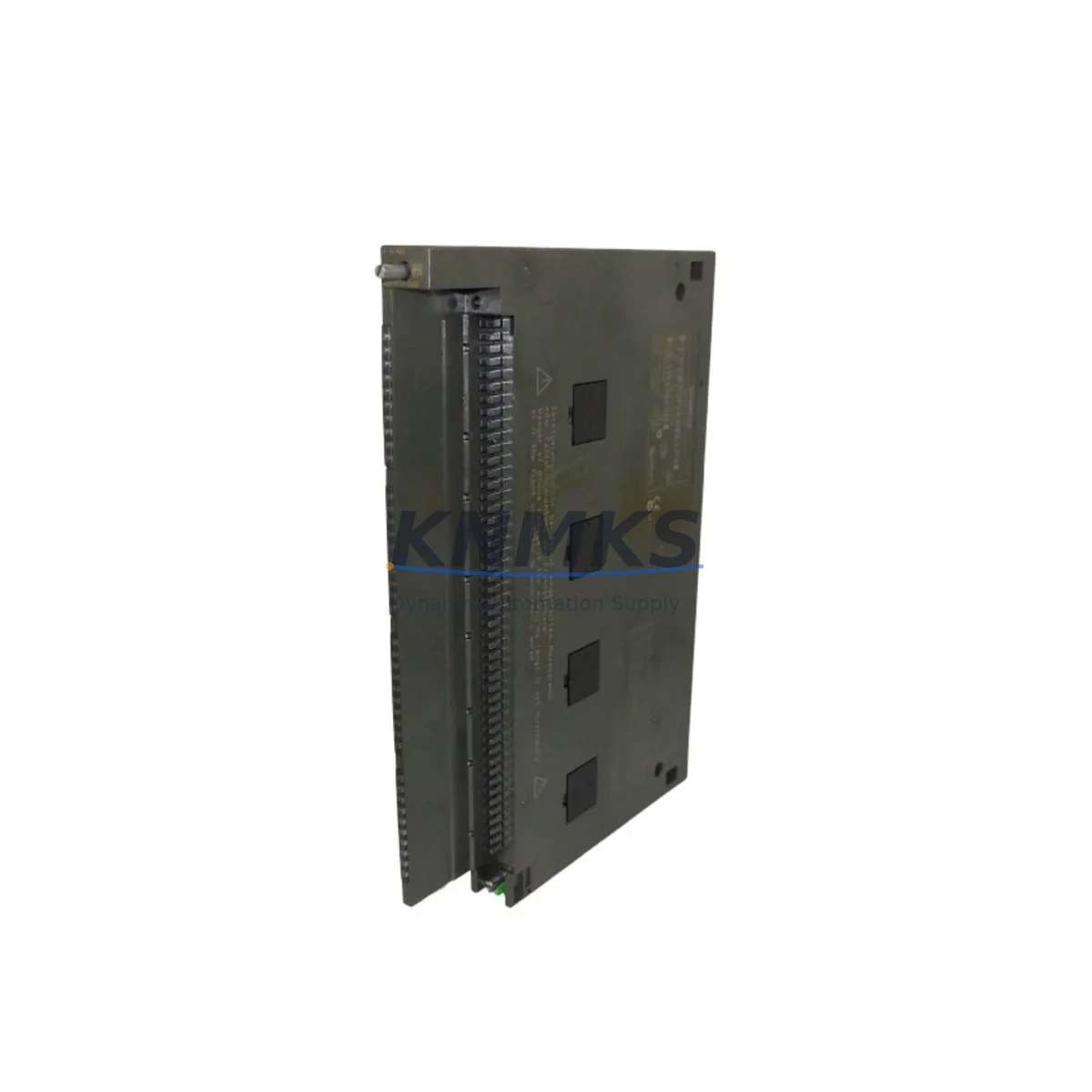

The Siemens 6ES7431-1KF20-0AB0 is an original SM 431 series analog input module designed for the SIMATIC S7-400 programmable logic controller platform. With 16 configurable analog input channels supporting ±10 V voltage signals and 4–20 mA current loops, this module delivers the measurement accuracy and signal integrity that process-critical applications demand. For maintenance engineers managing aging S7-400 control systems, keeping a verified spare of the 6ES7431-1KF20-0AB0 on the shelf is a fundamental strategy for minimizing unplanned downtime and protecting production continuity.

Industrial facilities running SIMATIC S7-400 racks — whether in chemical processing, power generation, automotive assembly, or heavy manufacturing — rely on the SM 431 family for real-time analog data acquisition from field instruments including pressure transmitters, temperature sensors, flow meters, and level transducers. When a module fails, the loss of analog feedback can halt an entire production line within minutes. Sourcing a pre-tested, original 6ES7431-1KF20-0AB0 from a reliable supplier with documented quality inspection and a support terms confirmed by quotation is the fastest path to restoring normal operation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 6ES7431-1KF20-0AB0 during a planned shutdown or emergency callout, experienced maintenance engineers treat the module swap as an opportunity to audit the surrounding electrical environment. The SM 431 analog input module sits at the intersection of field instrumentation and the S7-400 CPU, making it a focal point for signal quality issues that can masquerade as module faults.

Begin by inspecting the front connector (6ES7492-1AL00-0AA0) for corroded or loose terminals — a degraded connector is a common root cause of intermittent channel faults that are incorrectly attributed to the module itself. Next, verify the 24 V DC power supply feeding the S7-400 rack; voltage sags or ripple above specification can cause analog measurement drift across all 16 channels simultaneously. Siemens PS 407 series power supply modules are the recommended pairing for S7-400 racks and should be included in any annual inspection checklist.

Signal shielding integrity deserves particular attention in environments with variable-frequency drives or high-current switching equipment nearby. Confirm that cable shields are terminated at a single point using appropriate shield termination clamps on the DIN rail, and that the analog signal cables are routed away from power conductors. For installations using 4–20 mA transmitters, check loop resistance and verify that the transmitter supply voltage remains within the acceptable range under full load.

If the S7-400 rack hosts communication modules such as the CP 443-1 Ethernet module or a PROFIBUS DP master (CP 443-5), confirm that the backplane bus connectors are fully seated and free of oxidation after the analog module replacement. A partially seated bus connector can generate sporadic diagnostic alarms that complicate fault isolation. Similarly, if the system includes an IM 460/461 interface module for expansion rack connectivity, verify that the rack-to-rack cable is undamaged and that terminating resistors are correctly installed.

For facilities maintaining older S7-400 systems beyond their standard product lifecycle, it is advisable to stock at least one spare SM 431 analog input module alongside a spare SM 421 digital input module and an SM 422 digital output module to cover the most common I/O failure modes in a single cabinet. This three-module spare kit approach significantly reduces mean time to repair (MTTR) during unplanned outages and is a recognized best practice in IEC 62443-compliant maintenance programs.

Site Replacement Workflow

Replacing the 6ES7431-1KF20-0AB0 on-site follows a structured sequence to ensure system compatibility and minimize restart time. Before removing the module, use STEP 7 or TIA Portal to export the current hardware configuration and note the channel parameter assignments — input range, smoothing level, and diagnostic interrupt settings — so they can be verified after the new module is inserted.

Power down the S7-400 rack or switch the CPU to STOP mode before extracting the front connector. Label all field wiring before disconnection if the terminal assignments are not already documented on the as-built drawings. Insert the replacement 6ES7431-1KF20-0AB0, reconnect the front connector, and restore power. The module will be recognized automatically by the CPU if the hardware configuration matches; no re-download is required in most cases. Perform a channel-by-channel signal verification using a calibrated signal source to confirm that all 16 inputs are reading within specification before returning the system to automatic mode.

For sites transitioning away from legacy S7-400 hardware, the 6ES7431-1KF20-0AB0 is directly compatible with ET 200M remote I/O stations using the IM 153-2 interface module, providing a migration path that preserves existing field wiring and analog channel configurations while relocating I/O to distributed cabinets closer to the process.

Spare Parts Support FAQ

Q: Is the 6ES7431-1KF20-0AB0 compatible with all S7-400 CPU variants?
A: Yes. The SM 431 module is compatible with all SIMATIC S7-400 CPUs in the 41x series, including CPU 412, 414, 416, and 417, as well as ET 200M configurations using the IM 153-2 interface module. Always verify the hardware configuration in STEP 7 or TIA Portal to confirm slot assignment and parameter settings before installation.

Q: What is included in the support terms confirmed by quotation and how does it apply to spare parts?
A: Every 6ES7431-1KF20-0AB0 supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment. The confirmed support period begins from the date of delivery and covers repair or replacement at no additional cost.

Q: How should I verify the module is genuine before installation?
A: Inspect the module label for the correct part number (6ES7431-1KF20-0AB0), firmware version marking, and CE/UL certification marks. The module housing should carry the SIMATIC S7 logo and country of origin marking (Germany). Connect the module to a test rack and use STEP 7 hardware diagnostics to confirm that the module is recognized with the correct order number and that all 16 channels pass a signal injection test.

Q: Can KNMKS support long-term supply for this module if it is discontinued?
A: KNMKS maintains stock of industrial automation spare parts including SM 431 series modules and can support long-term procurement requirements. For critical infrastructure projects requiring guaranteed supply over a multi-year horizon, contact our sales team to discuss a blanket order or consignment stock arrangement.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7431-1KF20-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7431-1KF20-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
