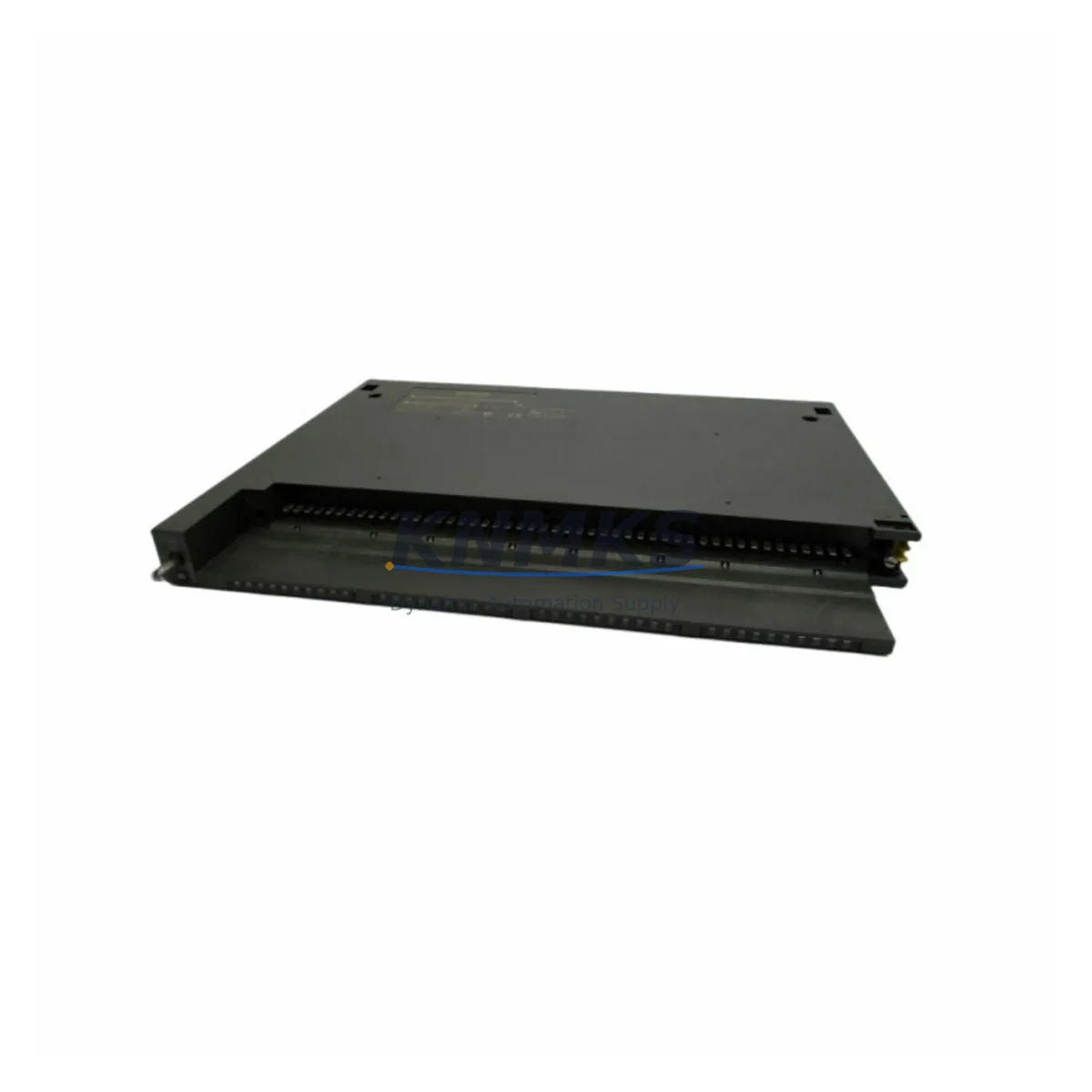

The Siemens 6ES7421-7BH01-0AB0 is a 16-channel, 24 VDC digital input module from the SIMATIC S7-400 SM421 series, engineered for fail-safe signal acquisition in critical industrial control environments. Designed to operate reliably under high electromagnetic interference, wide temperature swings, mechanical vibration, and elevated humidity, this module is a cornerstone component for safety-critical control cabinets in continuous process industries. Its robust hardware architecture minimizes the risk of signal drift, spurious trips, and unplanned shutdowns — making it a preferred choice for maintenance engineers who cannot afford control interruptions on the plant floor.

Every unit supplied by KNMKS undergoes pre-shipment functional testing against Siemens factory specifications, covering channel-by-channel input verification, isolation integrity, and backplane communication handshake with the S7-400 CPU rack. Long-term inventory availability is maintained to support both planned maintenance cycles and emergency spare part replacement, backed by a support terms confirmed by quotation on all supplied modules.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-400 control cabinet, the 6ES7421-7BH01-0AB0 DI module does not operate in isolation. Its signal integrity depends on the quality of the surrounding power and communication infrastructure. A stable 24 VDC supply rail — typically sourced from a Siemens SITOP PSU300S or equivalent regulated power supply — is essential to prevent input voltage fluctuations from causing false signal states or module resets. Surge protection devices installed at the cabinet entry point further shield the DI channels from transient overvoltages common in heavy industrial environments such as motor start-stop cycles or nearby welding operations.

On the communication side, the S7-400 CPU module — such as the 6ES7414-2XK05-0AB0 or 6ES7416-3XR05-0AB0 — coordinates all rack-level diagnostics, including module health reporting for the SM421 DI. Pairing the 6ES7421-7BH01-0AB0 with a properly configured IM461-0 interface module (6ES7461-0AA01-0AA0) in multi-rack configurations ensures that remote I/O expansion does not introduce latency or communication gaps in safety-critical interlocks.

For cabinets operating in high-dust or high-humidity environments, cabinet thermal management components — including fan-and-filter units rated for the enclosure class — work in tandem with the module’s rated operating temperature range to prevent thermal derating of input thresholds. Additionally, when the 6ES7421-7BH01-0AB0 is used alongside analog input modules such as the SM431 series (e.g., 6ES7431-7QH00-0AB0) in mixed-signal cabinets, proper cable segregation and shielded field wiring are critical to maintaining the DI module’s EMI immunity performance.

Critical Industrial Safety Applications

The 6ES7421-7BH01-0AB0 is deployed across a wide range of safety-sensitive industrial sectors where control interruption carries significant operational and safety consequences:

Petrochemical & Refining: Used in emergency shutdown (ESD) and process interlock systems where 24 VDC discrete signals from pressure switches, level sensors, and valve position feedback must be acquired with zero tolerance for signal loss or spurious activation. The module’s channel isolation prevents a single-point field fault from propagating across the input bus.

Power Generation & Utilities: In turbine control and substation automation panels, the SM421 DI module captures protection relay status signals and breaker position feedback. Its high EMI immunity is critical in environments with strong magnetic fields from high-voltage switchgear and bus bars.

Mining & Mineral Processing: Conveyor interlock systems, crusher protection circuits, and ventilation safety controls rely on robust DI acquisition. The module’s vibration resistance per IEC 60068-2-6 ensures stable operation in environments with continuous mechanical shock from heavy machinery.

Water & Wastewater Treatment: Pump station control panels and chemical dosing systems use the 6ES7421-7BH01-0AB0 to monitor float switches, flow sensors, and valve actuator feedback in humid, corrosive atmospheres where signal reliability directly impacts environmental compliance.

Metallurgy & Steel: In rolling mill and furnace control systems, the module handles high-cycle discrete inputs from position sensors and safety gates, where input response time and noise immunity are critical to preventing equipment damage and personnel hazards.

Port & Marine Automation: Crane PLC cabinets and shipboard automation systems operating in salt-laden, high-humidity environments benefit from the module’s robust construction and proven S7-400 platform compatibility, supporting long service intervals between maintenance interventions.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7421-7BH01-0AB0?
The support terms confirmed by quotation cover hardware defects, functional failures under normal operating conditions, and any issues attributable to the module itself. Each unit is pre-shipment tested to confirm channel functionality, isolation, and backplane communication before dispatch. Support requests are supported with direct technical assistance and replacement coordination.

Q2: How is each module tested before shipment?
Every 6ES7421-7BH01-0AB0 undergoes a structured pre-shipment inspection that includes channel-by-channel input signal verification at 24 VDC, backplane interface continuity check, visual inspection for physical integrity, and firmware/hardware revision confirmation against Siemens documentation. Test records are available upon request.

Q3: Is this module compatible with all S7-400 CPU and rack configurations?
The 6ES7421-7BH01-0AB0 is designed for the SIMATIC S7-400 rack system and is compatible with standard UR1, UR2, and ER1/ER2 racks. It operates with all S7-400 CPUs that support SM421 DI modules. For multi-rack configurations using IM460/IM461 interface modules, standard rack addressing applies. Compatibility with specific CPU firmware versions should be verified against the Siemens hardware compatibility matrix for your project revision.

Q4: Can long-term supply be guaranteed for planned maintenance and future replacements?
Yes. KNMKS maintains dedicated inventory of the 6ES7421-7BH01-0AB0 to support both scheduled preventive maintenance and emergency spare part replacement scenarios. For facilities with multi-year maintenance contracts or critical production lines, volume reservation and priority supply arrangements are available. Contact our team to discuss long-term supply agreements tailored to your maintenance schedule.

—
