Siemens 6ES7421-1BL01-0AA0 Fail-Safe Digital Input Module

Overview

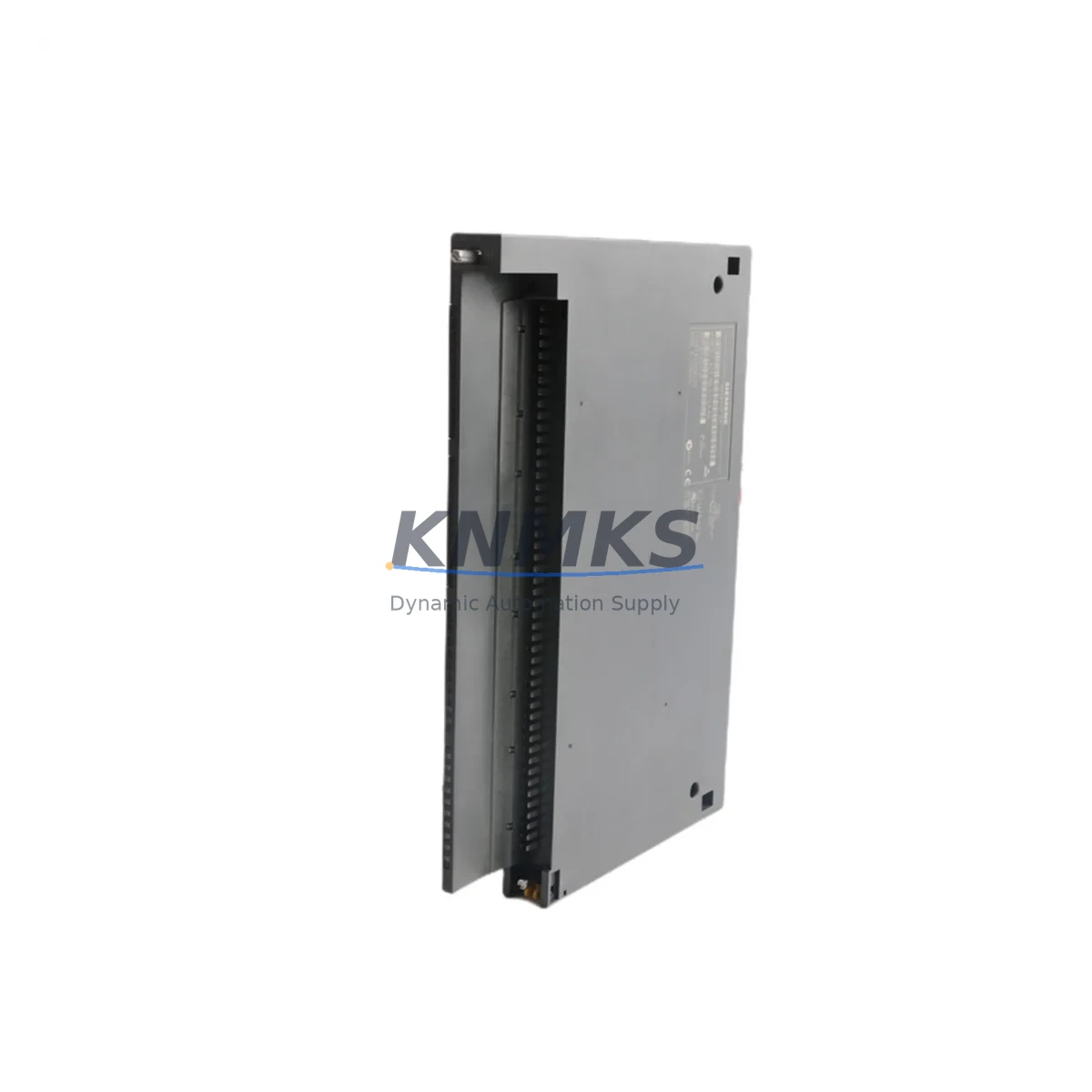

Siemens 6ES7421-1BL01-0AA0 Fail-Safe Digital Input Module: Fault-Tolerant Control for Critical Industrial Environments

In continuous production facilities, a single undetected input signal failure can cascade into unplanned shutdowns, equipment damage, or — in the worst case — a safety incident. The Siemens 6ES7421-1BL01-0AA0 is a 32-channel, 24 VDC digital input module engineered for the SIMATIC S7-400 platform, purpose-built to eliminate exactly these risks. With robust EMI shielding, wide operating temperature tolerance, and full compatibility with the S7-400 backplane architecture, this module delivers the signal integrity and fail-safe reliability that critical industrial control cabinets demand.

Whether deployed in a petrochemical interlock loop, a power plant DCS auxiliary panel, a mining conveyor safety circuit, or a water treatment SCADA system, the 6ES7421-1BL01-0AA0 maintains stable, noise-immune digital input acquisition even under high electromagnetic interference, voltage fluctuations, vibration, and humidity. Its 32-channel density reduces cabinet footprint while maintaining full diagnostic transparency — every channel state is visible to the CPU without additional hardware overhead.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 6ES7421-1BL01-0AA0 does not operate in isolation — its reliability is amplified when integrated into a well-engineered S7-400 control cabinet architecture. In high-load or safety-critical panels, it is commonly paired with the Siemens 6ES7407-0KA02-0AA0 PS407 power supply module, which provides stable 24 VDC bus power with built-in overload and short-circuit protection, ensuring that input signal acquisition is never compromised by upstream power instability.

For applications requiring redundant CPU processing — such as continuous chemical reactors or offshore platform control systems — the 6ES7421-1BL01-0AA0 integrates seamlessly with the Siemens 6ES7412-2XK07-0AB0 CPU 412-2 or the 6ES7414-4HM14-0AB0 CPU 414H in H-system configurations, where both CPUs simultaneously read input states, eliminating single-point-of-failure risk at the processor level.

In environments with heavy inductive loads — motor starters, solenoid valves, relay coils — transient voltage spikes on field wiring are a persistent threat to input module longevity. Deploying Siemens 6ES7390-1AE80-0AA0 shielding bus connectors and properly grounded cable ducts alongside the 6ES7421-1BL01-0AA0 significantly reduces conducted interference. For inter-rack communication in distributed cabinet layouts, the Siemens 6ES7468-1BB50-0AA0 IM 468 interface module maintains high-speed, error-checked data transfer between expansion racks, preserving input data integrity across the full I/O tree.

Where analog and digital signals share the same cabinet, the Siemens 6ES7431-1KF20-0AB0 SM 431 analog input module can be installed in adjacent slots, with the 6ES7421-1BL01-0AA0 handling discrete safety interlocks while the analog module monitors process variables — together forming a complete, layered field signal acquisition strategy within a single S7-400 rack.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the 6ES7421-1BL01-0AA0 is deployed in emergency shutdown (ESD) panels to monitor valve position feedback, pressure switch states, and flame detector signals. Its optocoupler-isolated inputs prevent ground loop interference from corrupting safety interlock logic, and its wide temperature tolerance ensures reliable operation in high-ambient-temperature compressor rooms and heat exchanger areas.

Electric Power Generation & Transmission: Turbine control systems and substation automation panels rely on this module to acquire breaker status, protection relay trip signals, and auxiliary contact states. In high-voltage switchgear environments, the module’s surge-protected inputs withstand the transient overvoltages generated during switching operations, maintaining control system availability during grid disturbances.

Mining & Mineral Processing: Underground conveyor safety systems and surface crushing plant PLCs use the 6ES7421-1BL01-0AA0 to monitor belt misalignment switches, pull-cord emergency stops, and level sensors in dusty, vibration-intensive environments. Its IEC 60068-2-6 vibration compliance ensures long-term mechanical integrity without contact degradation.

Water & Wastewater Treatment: SCADA-integrated pump station control panels deploy this module to read float switch states, flow switch signals, and valve limit positions. In outdoor or partially enclosed installations subject to humidity cycling, the module’s 10–95% RH rating and conformal-coated PCB construction prevent moisture-induced leakage currents that could cause false input readings.

Metallurgy & Steel Production: Rolling mill and continuous casting control systems require input modules that can withstand intense electromagnetic fields generated by large drive systems and induction furnaces. The 6ES7421-1BL01-0AA0’s IEC 61000-4 EMC compliance makes it a proven choice for these high-interference environments, where signal integrity directly affects product quality and personnel safety.

Port & Marine Automation: Ship-to-shore crane control systems and vessel engine room automation panels use this module in salt-air environments where corrosion resistance and vibration tolerance are non-negotiable. Its compact 25 mm width allows high-density I/O configurations in space-constrained marine control cabinets.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7421-1BL01-0AA0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions as specified in the Siemens datasheet. This includes input channel failure, backplane connector defects, and internal component faults. Support requests are processed with full technical support, and replacement units are dispatched from verified stock to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7421-1BL01-0AA0 unit undergoes functional verification prior to shipment, including channel-by-channel input signal response testing, backplane interface continuity checks, and visual inspection for physical damage. Units sourced from original manufacturer channels are cross-referenced against Siemens authenticity standards before dispatch.

Q3: Is this module compatible with all S7-400 CPU versions and rack configurations?
Yes. The 6ES7421-1BL01-0AA0 is compatible with all standard SIMATIC S7-400 racks including UR1, UR2, UR2-H, CR2, and CR3, and operates with all S7-400 CPU variants from CPU 412 through CPU 417, including H-system redundant configurations. No firmware update or special configuration is required — the module is recognized automatically by STEP 7 and TIA Portal hardware configuration tools.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated stock of the 6ES7421-1BL01-0AA0 to support planned maintenance schedules, emergency replacements, and multi-unit spare parts programs. For facilities managing large S7-400 installed bases, we offer reserved stock arrangements and priority fulfillment agreements to ensure that a critical input module shortage never becomes a production stoppage event.
