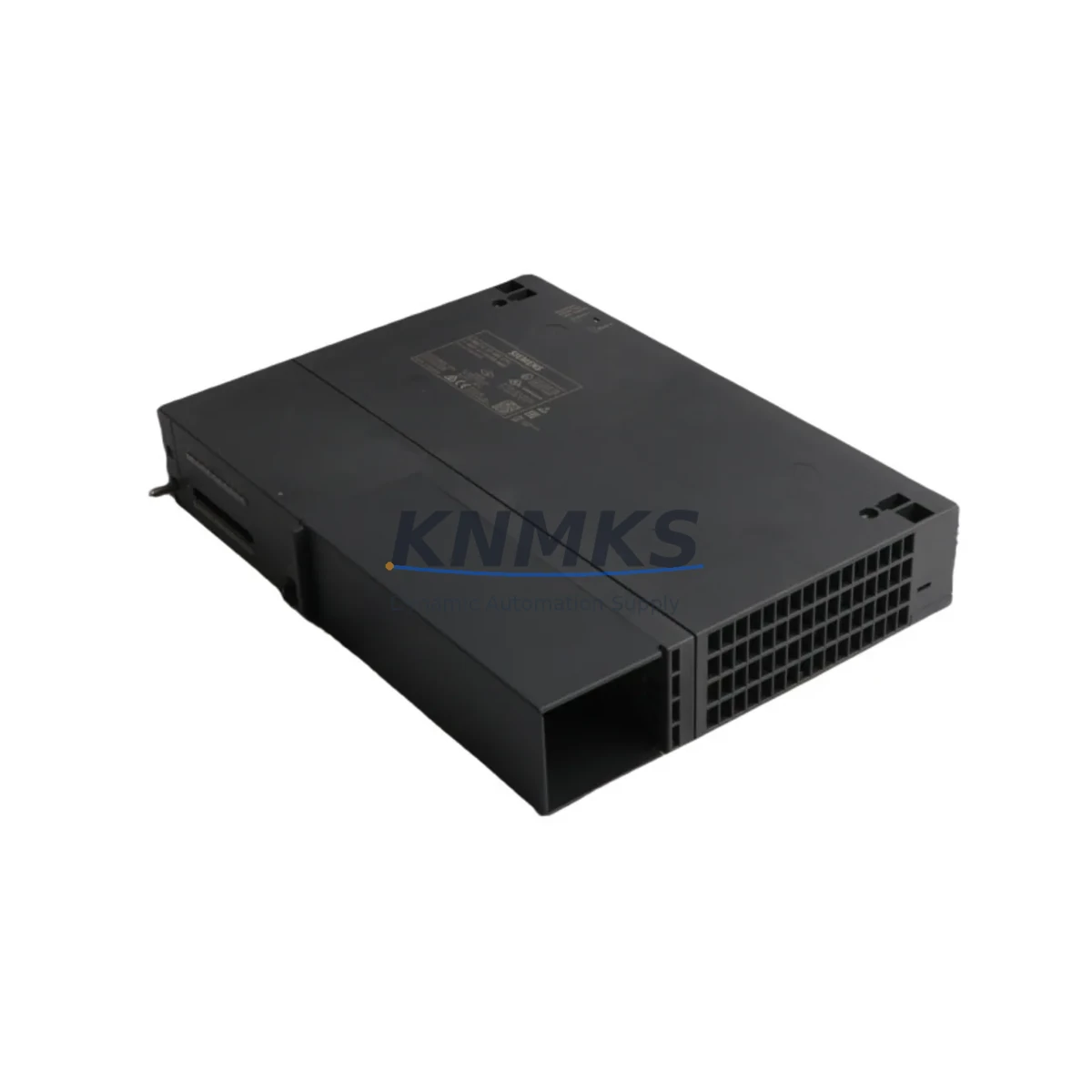

Siemens 6ES7417-5HT06-0AB0 Fail-Safe Redundant CPU

Overview

Siemens 6ES7417-5HT06-0AB0 Fail-Safe Redundant CPU: Fault-Tolerant Control for Critical Industrial Reliability

The Siemens 6ES7417-5HT06-0AB0 is a high-availability, fail-safe redundant CPU module designed for the SIMATIC S7-400H platform — one of the most trusted redundant programmable logic controller architectures deployed across continuous process industries worldwide. Engineered to eliminate single points of failure in safety-critical control loops, this CPU module delivers uninterrupted process control even under hardware fault conditions, power fluctuations, or communication anomalies that would otherwise trigger unplanned shutdowns in conventional PLC architectures.

In demanding industrial environments — including petrochemical refineries, power generation facilities, mining operations, water treatment plants, metallurgical smelters, port logistics systems, and continuous manufacturing lines — control interruption is not merely a productivity issue. It is a safety event. The 6ES7417-5HT06-0AB0 addresses this reality by operating in a hot-standby redundant configuration, where a secondary CPU mirrors the primary in real time. Upon detection of any fault condition, bumpless switchover occurs within milliseconds, maintaining process continuity without operator intervention and without triggering downstream safety interlocks unnecessarily.

This module is purpose-built for applications where signal drift, electromagnetic interference, power surges, cabinet overheating, vibration, dust ingress, and high-humidity conditions represent persistent operational threats. Its robust design tolerates the harsh electromagnetic environments common in heavy industry, where variable frequency drives, high-voltage switchgear, and large motor starters generate significant conducted and radiated interference. The CPU’s shielded backplane communication and noise-immune PROFIBUS DP interface ensure data integrity across the control cabinet even under severe EMI loading.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7417-5HT06-0AB0 within a redundant control cabinet demands a holistic protection strategy that extends beyond the CPU itself. In a properly engineered S7-400H system, the CPU pair operates across two synchronized UR2-H racks, each independently powered and interconnected via fiber-optic sync cables to eliminate ground loop interference between chassis. The Siemens 6ES7400-1TA01-0AA0 UR2-H rack provides the mechanical and electrical foundation for this dual-rack architecture, ensuring physical separation of redundant subsystems.

Power supply integrity is equally critical. The Siemens 6ES7407-0KA02-0AA0 PS407 10A power supply module delivers regulated 24 VDC to the CPU and I/O modules, with built-in overload and short-circuit protection that prevents power rail collapse from propagating into the control logic. In high-availability installations, dual power supplies in parallel redundancy mode are recommended to eliminate the power supply as a single point of failure.

For process I/O, the Siemens 6ES7431-1KF20-0AB0 SM431 analog input module provides high-resolution signal acquisition from field transmitters, with galvanic isolation that protects the CPU backplane from ground faults and surge events originating at field instrument terminals. Pairing this with the Siemens 6ES7432-1HF00-0AB0 SM432 analog output module completes the closed-loop control chain with equivalent isolation and surge protection on the output side.

Communication redundancy is maintained through the Siemens 6GK7443-1EX30-0XE0 CP443-1 Ethernet communication processor, which enables the S7-400H system to participate in PROFINET and Industrial Ethernet networks with hardware-redundant network paths. This prevents communication loss from becoming a process upset trigger in distributed control architectures where the PLC serves as a SCADA gateway or DCS interface node.

For safety loop integrity, the Siemens 6ES7326-1BK02-0AB0 SM326 F-DI digital safety input module interfaces directly with emergency shutdown pushbuttons, safety door interlocks, and SIL-rated field devices, feeding safety-relevant signals into the CPU’s fail-safe program partition. Together, these components form a layered cabinet protection strategy that addresses power, signal, communication, and safety dimensions simultaneously — reducing the probability of dangerous failure to levels consistent with SIL 2 and SIL 3 process safety requirements.

Critical Industrial Safety Applications

The 6ES7417-5HT06-0AB0 is deployed across the most demanding continuous process and safety-critical applications in global industry. In petrochemical and refinery operations, it serves as the primary controller for reactor temperature and pressure management loops, where a control interruption could trigger emergency depressurization sequences, flare system activation, or uncontrolled exothermic reactions. The hot-standby redundancy ensures that instrument air failures, power dips, or CPU hardware faults do not propagate into process upsets.

In power generation facilities — including thermal, hydroelectric, and combined-cycle plants — the S7-400H CPU manages turbine governor control, boiler drum level regulation, and generator protection interlocks. The bumpless switchover capability is essential here, as even a 500 ms control gap in turbine speed regulation can trigger overspeed protection trips that require hours of restart procedure to recover from.

In mining and mineral processing environments, the module controls conveyor drive sequencing, crusher load management, and slurry pump protection systems in locations characterized by extreme dust loading, vibration from blasting operations, and wide ambient temperature swings. Its industrial-grade EMC immunity prevents spurious trips caused by the large variable speed drives common in these facilities.

For water and wastewater treatment plants operating under continuous 24/7 mandates, the redundant CPU ensures that dosing pump control, UV disinfection sequencing, and membrane filtration backwash cycles continue without interruption regardless of individual hardware component failures. Municipal water authorities increasingly specify redundant PLC architectures for facilities serving populations above 50,000 to meet regulatory continuity requirements.

In metallurgical and steel production facilities, the 6ES7417-5HT06-0AB0 manages electric arc furnace electrode positioning, rolling mill speed synchronization, and ladle transfer car control — applications where millisecond-level control consistency directly affects product quality and equipment longevity. The module’s high-speed backplane communication ensures that redundant CPU synchronization does not introduce latency into time-critical control loops.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7417-5HT06-0AB0?
All units supplied by KNMKS carry a support terms confirmed by quotation covering hardware defects, communication failures, and functional anomalies under normal operating conditions. Support requests are processed with priority dispatch of replacement units to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7417-5HT06-0AB0 undergoes full functional verification prior to dispatch, including CPU initialization, MPI/DP communication interface testing, memory integrity check, and redundancy synchronization protocol validation. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with existing S7-400H installations running older firmware versions?
The 6ES7417-5HT06-0AB0 (V6.0) is backward-compatible with S7-400H systems running STEP 7 V5.5 and above. For installations using TIA Portal, V13 SP2 or later is recommended. Customers with specific firmware version requirements should confirm compatibility with their existing CPU partner module before ordering.

Q4: Can long-term supply continuity be guaranteed for critical maintenance programs?
KNMKS maintains regional warehouse stock of the 6ES7417-5HT06-0AB0 and its S7-400H ecosystem components to support blanket-order and scheduled-release procurement programs. For facilities with multi-year maintenance contracts or planned turnaround schedules, standing stock arrangements can be established to guarantee availability against allocation risk from the primary supply chain.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7417-5HT06-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7417-5HT06-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
