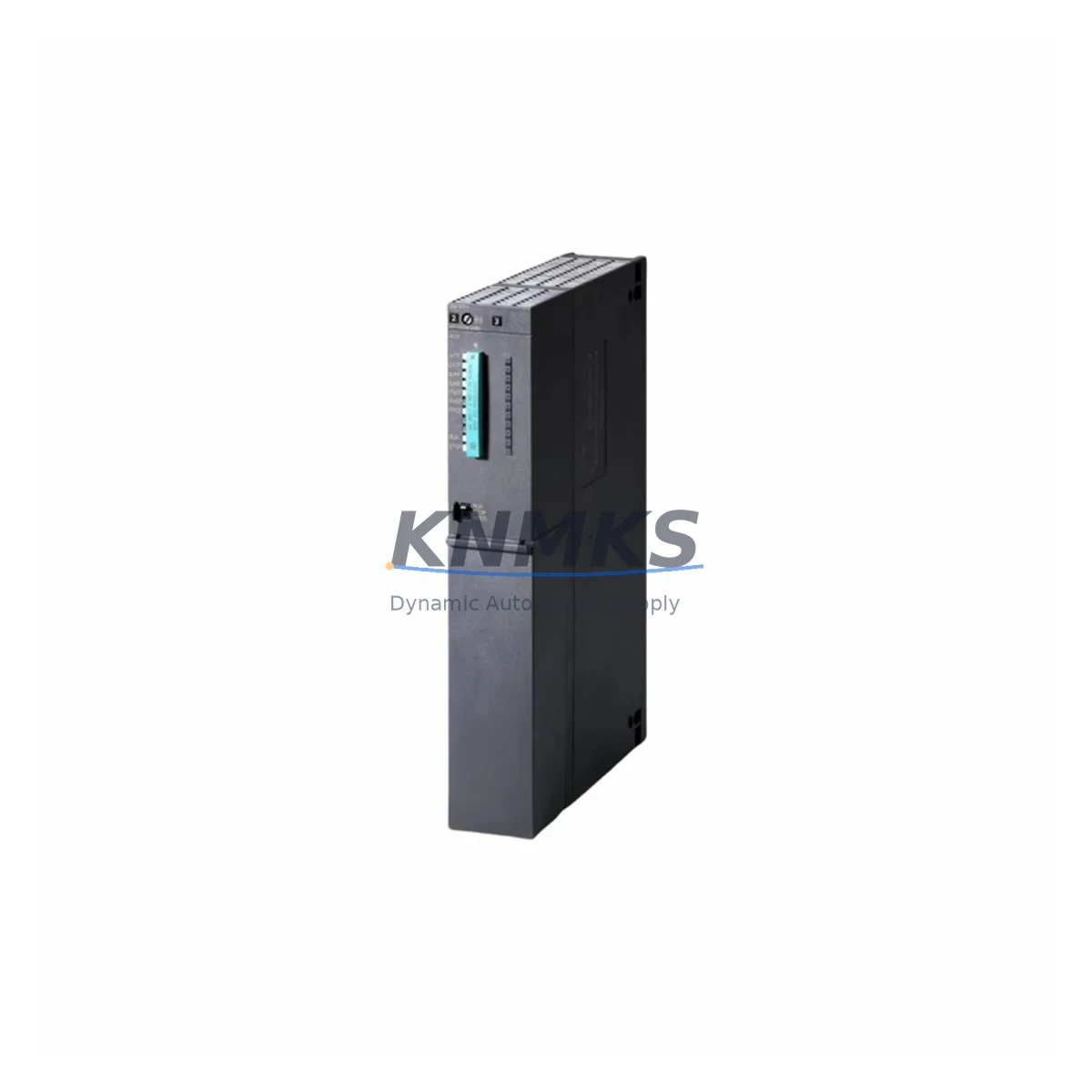

Siemens 6ES7417-4XT05-0AB0 Migration-Ready CPU Module for Legacy S7-400H Control Systems

The Siemens 6ES7417-4XT05-0AB0 is a high-availability CPU 417-4H designed for redundant SIMATIC S7-400H systems deployed across process automation, power generation, and critical infrastructure. As legacy S7-400 installations approach end-of-support milestones, engineering teams are increasingly sourcing verified replacement CPUs to sustain uptime, extend system life, and bridge the gap toward full migration. This unit ships pre-tested, carries a support terms confirmed by quotation, and is stocked for immediate global dispatch to support both emergency replacements and planned outages.

Whether you are executing a like-for-like swap of a failed CPU in a redundant pair, upgrading firmware to align with current STEP 7 project versions, or preparing a phased migration from S7-400H to S7-400H V6 or SIMATIC PCS 7, the 6ES7417-4XT05-0AB0 provides the processing headroom and communication flexibility required for demanding continuous-process environments. Its dual-port MPI/DP interface and integrated PROFIBUS DP master channels allow it to maintain existing field device connections without rewiring the backplane or reconfiguring distributed I/O racks.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful S7-400H CPU retrofit begins well before the maintenance window opens. The first step is a full rack audit: confirm that the installed UR2-H redundancy rack has sufficient free slots and that the existing PS 407 power supply can sustain the additional current draw of the replacement CPU under worst-case I/O load. In many aging installations, the power supply has been running at or near capacity for years, and a CPU swap is the right moment to evaluate whether a parallel PS 407 10A unit should be added to the rack.

Next, document all PROFIBUS DP master configurations currently active on the outgoing CPU. Each DP master channel will have a defined bus address, baud rate, and slave list. When the 6ES7417-4XT05-0AB0 is installed, these parameters must be restored exactly — any mismatch will cause ET 200M distributed I/O stations, frequency converters, or remote I/O modules to drop off the bus during the first power-on. Pay particular attention to DP slaves that use GSD files with non-standard slot assignments, as these are a common source of commissioning delays.

The H-system synchronization link is equally critical. The fiber-optic sync submodule seated in the dedicated sync slot of each CPU must be matched in revision level between the two redundant CPUs. A mismatch here will prevent the H-system from entering RUN-Redundant mode, leaving the system in single-CPU operation with no failover protection. Verify the sync cable routing and connector condition before closing the cabinet.

For sites running SIMATIC PCS 7, the CPU swap must be coordinated with the OS server configuration. The PCS 7 OS communicates with the S7-400H via Industrial Ethernet through a CP 443-1 communication processor module. Confirm that the CP 443-1’s IP address assignment and S7 connection table remain intact after the CPU replacement. If the project was compiled with a specific CPU hardware configuration, a partial download targeting only the system data blocks is usually sufficient to restore communication without affecting running process objects or HMI faceplates.

During the retrofit window, it is also advisable to inspect the SM 421 digital input modules and SM 422 digital output modules installed in the expansion racks. Aging I/O modules with high cycle counts are a leading cause of nuisance faults in the months following a CPU replacement, and replacing borderline modules during the same outage avoids a second unplanned shutdown. Similarly, if the installation uses IM 460/461 interface modules for rack expansion, verify that the send/receive configuration matches the new CPU’s I/O address map.

Downtime Control During System Migration

Minimizing downtime during an S7-400H CPU replacement requires a structured pre-outage preparation protocol. Begin by creating a full STEP 7 project backup — including all hardware configuration files, symbol tables, and data block contents — and storing it on both the programming laptop and an offline archive. This ensures that if the new CPU requires a complete program reload, the download can proceed without delays caused by missing source files or version conflicts.

For redundant H-systems, the preferred replacement sequence is to first take the standby CPU offline, replace it, restore the program, and verify H-sync before switching over and repeating the process on the formerly active CPU. This approach keeps the process running on one CPU throughout the maintenance window, eliminating the need for a full process shutdown in most cases. The switchover itself takes less than one scan cycle, which is transparent to most field devices and HMI displays.

Before the switchover, run a full consistency check in STEP 7 to confirm that the loaded program matches the archived project. Verify that all OB1, OB35, OB86, and OB121/OB122 organization blocks are present and correctly configured. Missing error-handling OBs are a common cause of CPU STOP faults immediately after a replacement, particularly in systems that have accumulated incremental program changes over many years without a full project reconciliation.

After the replacement is complete and both CPUs are in RUN-Redundant mode, conduct a forced switchover test to confirm that the standby CPU can assume control cleanly. Document the switchover time and verify that all PROFIBUS DP slaves, CP 443-1 Ethernet connections, and HMI variable links recover within the expected timeframe. This test record serves as the commissioning sign-off and supports the support terms confirmed by quotation claim process if any issues arise post-installation.

Retrofit Support FAQ

Q1: Is the 6ES7417-4XT05-0AB0 a direct drop-in replacement for an existing CPU 417-4H in an S7-400H system?
Yes, provided the replacement unit carries the same or a compatible firmware revision. The mechanical form factor, backplane connector, and slot assignment are identical. Confirm the sync submodule revision matches the partner CPU before closing the rack. A firmware update via STEP 7 may be required if the installed project was compiled against a specific CPU version.

Q2: What pre-shipment testing is performed on this unit?
Each 6ES7417-4XT05-0AB0 unit undergoes functional power-on verification, memory integrity check, and communication port validation prior to shipment. Units are shipped with original protective packaging and include a test record. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q3: Can this CPU be used in a non-redundant S7-400 rack if the H-system is being decommissioned?
Yes. The CPU 417-4H can operate in standard (non-redundant) mode in a UR1 or UR2 rack without the sync submodule installed. The H-specific OBs and sync configuration can be removed from the project. This is a common interim step during phased migrations where the redundancy infrastructure is being retired before the full control system upgrade is completed.

Q4: What is the lead time and stock availability?
This SKU is maintained in multi-region stock to support emergency replacements and scheduled outages globally. Standard dispatch is within 1–3 business days. For large-quantity orders or long-term supply agreements, contact the sales team directly to confirm allocation and delivery schedule.
