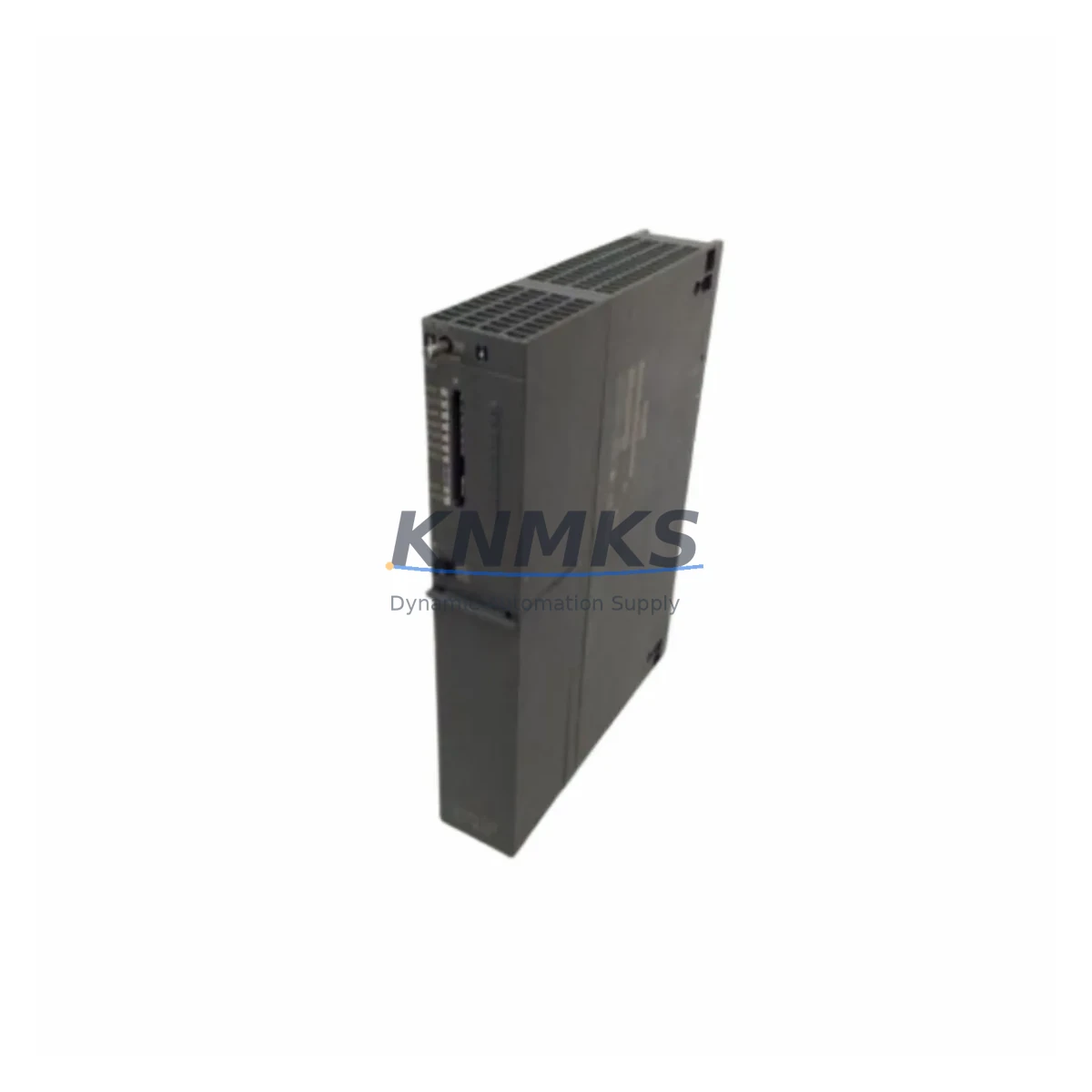

Siemens 6ES7417-4XL04-0AB0 Migration-Ready CPU for Legacy Control Systems

Overview

Siemens 6ES7417-4XL04-0AB0 Migration-Ready CPU for Legacy Control Systems

The Siemens 6ES7417-4XL04-0AB0 is a high-performance CPU417-4 module designed for the SIMATIC S7-400 programmable logic controller platform. As legacy S7-400 installations approach end-of-life and original Siemens production of certain CPU variants is discontinued, the 6ES7417-4XL04-0AB0 remains one of the most sought-after drop-in replacements for aging control cabinets across global manufacturing, petrochemical, power generation, and heavy industry sectors. This module supports multi-protocol communication — PROFIBUS DP, MPI, and PROFINET — making it directly compatible with existing field device networks without requiring protocol converters or gateway hardware during migration.

For engineers managing a controlled retrofit of an S7-400 rack, the 6ES7417-4XL04-0AB0 slots directly into the UR1 or UR2 universal rack alongside existing I/O modules such as the SM 321 digital input, SM 322 digital output, and SM 331/SM 332 analog signal modules. Power supply compatibility with the PS 407 10A or PS 405 series must be verified against the total current draw of the populated rack before installation. The CPU’s memory capacity — up to 30 MB work memory — accommodates complex ladder logic, function block diagrams, and structured text programs migrated from older CPU416 or CPU414 variants without requiring program restructuring.

When replacing a CPU416-3 PN/DP or CPU414-3 PN/DP in an existing cabinet, engineers should confirm the backplane slot addressing, module rack configuration in STEP 7 or TIA Portal, and the MPI node address assignment to avoid address conflicts with existing HMI panels such as the SIMATIC MP 377 or TP 1500 Comfort. The 6ES7417-4XL04-0AB0 retains backward compatibility with STEP 7 V5.6 project structures, allowing direct program download without recompilation in most migration scenarios.

Communication link continuity is critical during migration. The integrated PROFIBUS DP master/slave interface on the 6ES7417-4XL04-0AB0 maintains existing field device connections — including ET 200M distributed I/O stations and IM 153-2 interface modules — without requiring reconfiguration of the DP network topology. Where PROFINET IO is in use, the onboard PN interface supports IRT and RT communication modes, preserving cycle time requirements for motion-critical or process-critical applications.

Firmware version compatibility should be confirmed prior to installation. The 6ES7417-4XL04-0AB0 ships with firmware that supports the full S7-400 instruction set. If the existing project was compiled under an older STEP 7 version, a consistency check and incremental download procedure is recommended to protect the original program logic. All units supplied by KNMKS are pre-tested prior to shipment, with functional verification of CPU startup, memory integrity, and communication interface initialization confirmed before dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6ES7417-4XL04-0AB0 into an existing S7-400 control cabinet requires a structured pre-migration audit. Begin by documenting the current rack configuration: record the slot positions of all installed modules, including the active power supply (PS 407 or PS 405), the existing CPU, any CP 443-1 Ethernet communication processors, and the installed SM 321/SM 322 digital I/O modules or SM 331/SM 332 analog modules. This baseline ensures that the replacement CPU is configured with identical slot assignments in STEP 7 or TIA Portal before the physical swap.

Where the control system includes distributed I/O via PROFIBUS DP — such as ET 200M stations with IM 153-2 interface modules — the DP master configuration stored in the CPU must be exported and re-imported into the replacement unit’s hardware configuration. This preserves station addresses, baud rates, and GSD file assignments without requiring field rewiring. For systems using PROFINET IO with IRT communication, the device names and IP address assignments of connected IO devices must be documented and re-applied after CPU replacement.

Terminal wiring on the S7-400 backplane is passive and does not require modification during a CPU swap — the backplane bus connector transfers all rack-level signals. However, any external wiring connected directly to the CPU’s MPI port or DP interface (such as programming cables using the PC Adapter USB or CP 5711) should be disconnected before removal and reconnected after the new CPU has completed its startup sequence. Signal isolators installed between the CPU’s analog outputs and field instruments should be verified for loop continuity after restart.

Downtime Control During System Migration

Minimizing production downtime during a CPU replacement on an active S7-400 system requires preparation before the maintenance window begins. Upload and archive the complete program from the existing CPU — including all data blocks, organization blocks, and system function blocks — using STEP 7 or TIA Portal before powering down the rack. Store the archived project with version control notation to enable rollback if required.

During the physical swap, the S7-400 rack power supply should be switched off at the PS module rather than at the cabinet main breaker, to avoid uncontrolled shutdown of other equipment sharing the same panel. After installing the 6ES7417-4XL04-0AB0, perform a cold restart and confirm the CPU reaches RUN mode before reconnecting field devices. Download the archived program in incremental mode where possible to reduce transfer time and minimize the risk of overwriting retain data blocks that store process setpoints or batch counters.

HMI panels connected via MPI or PROFINET — such as SIMATIC TP 1500 Comfort or MP 377 — will automatically reconnect once the CPU is in RUN mode and the communication addresses are restored. Verify all HMI screen tags are updating correctly before handing the system back to operations. The total planned downtime for a prepared CPU swap on an S7-400 system is typically 30–90 minutes, depending on program size and the number of distributed I/O stations requiring re-initialization.

Retrofit Support FAQ

Q1: Is the 6ES7417-4XL04-0AB0 a direct replacement for the CPU416-3 PN/DP?
The 6ES7417-4XL04-0AB0 (CPU417-4) is a higher-specification CPU within the S7-400 family and is physically and electrically compatible with the same rack slots. Program migration from a CPU416-3 project is supported via STEP 7 or TIA Portal with a hardware reconfiguration step. Communication interfaces (MPI, DP, PN) are preserved. Functional testing after download is recommended before returning the system to production.

Q2: What commissioning steps are required after installation?
After physical installation, confirm the MPI node address using the CPU’s integrated display or STEP 7 online diagnostics. Verify the PROFIBUS DP master configuration matches the existing field device topology. Perform a program download, check all I/O force tables are cleared, and confirm the CPU reaches RUN mode without fault LEDs. For PROFINET-connected devices, re-assign device names if the CPU’s MAC address has changed.

Q3: Are units tested before shipment, and what support terms is provided?
All 6ES7417-4XL04-0AB0 units supplied by KNMKS are functionally tested prior to dispatch. Testing covers CPU startup, memory integrity verification, and communication interface initialization. Each unit is supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Expedited replacement is available for support requests to minimize customer downtime.

Q4: What is the stock availability and lead time?
KNMKS maintains in-stock inventory of the 6ES7417-4XL04-0AB0 to support urgent replacement and planned retrofit projects. Standard global shipping is available with typical lead times of 3–7 business days depending on destination. For long-term spare parts agreements covering 12–36 months of supply, contact our sales team to discuss reserved stock arrangements and volume pricing.
