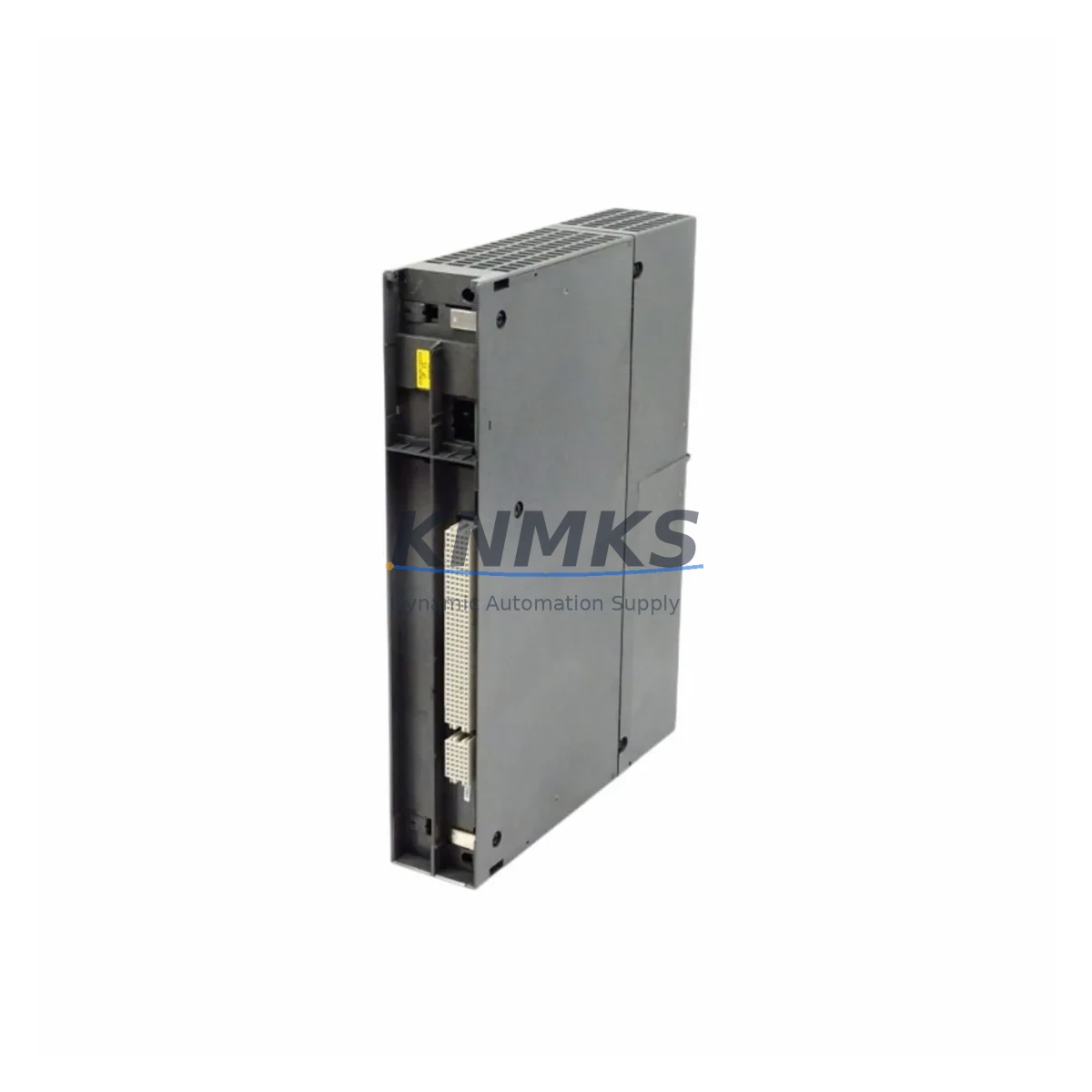

Siemens 6ES7417-4HL04-0AB0 Fail-Safe Redundant CPU Module

Overview

Siemens 6ES7417-4HL04-0AB0 Fail-Safe Redundant CPU Module: Fault Protection and Critical Industrial Reliability

The Siemens 6ES7417-4HL04-0AB0 is a high-availability CPU 417-4H redundant processor module designed for the SIMATIC S7-400H fault-tolerant control system. In continuous production environments — petrochemical plants, power generation facilities, metallurgical lines, and water treatment stations — unplanned downtime is not merely a cost issue; it is a safety event. The 6ES7417-4HL04-0AB0 addresses this directly by operating in a hot-standby redundant configuration, where two synchronized CPUs monitor each other in real time. If one CPU detects a fault, the standby unit assumes control within milliseconds, eliminating control interruption and preventing dangerous process deviations.

Signal drift, power fluctuation, and communication anomalies are among the most common causes of spurious trips and unplanned shutdowns in heavy industrial environments. The 6ES7417-4HL04-0AB0 is engineered to suppress these failure modes. Its robust EMI shielding and noise-immune backplane communication architecture maintain signal integrity even in high-electromagnetic-interference cabinets where variable frequency drives, large contactors, and high-current bus bars operate in close proximity. Surge immunity and transient protection built into the module’s power interface prevent voltage spikes — common in facilities with large motor starts or capacitor bank switching — from corrupting CPU state or triggering false safety responses.

In control cabinets housing the S7-400H system, the 6ES7417-4HL04-0AB0 works in close coordination with the IM 460-4 / IM 461-4 interface modules for distributed I/O expansion, the PS 407 power supply modules that provide regulated 24 VDC and 5 VDC rails to the rack, and the CP 443-1 Ethernet communication processors that maintain PROFINET and Industrial Ethernet connectivity to SCADA and DCS supervisory layers. The synchronization link between the two redundant CPUs is maintained via dedicated fiber-optic sync cables, ensuring that even in environments with severe electromagnetic interference or physical vibration, the redundancy heartbeat remains uninterrupted. For safety-instrumented system (SIS) integration, the 6ES7417-4HL04-0AB0 can interface with F-modules and ET 200M remote I/O stations configured for PROFIsafe, enabling a unified safety and standard control architecture within a single redundant platform.

Thermal management is a critical consideration in densely populated control cabinets. The 6ES7417-4HL04-0AB0 operates reliably across an ambient temperature range of 0°C to 60°C and is rated for installation in environments with relative humidity up to 95% (non-condensing), making it suitable for coastal facilities, tropical climates, and process areas with steam or moisture ingress. Its vibration and shock ratings comply with IEC 68-2-6 and IEC 68-2-27 standards, confirming suitability for installation near rotating machinery, compressors, and heavy presses where structural vibration is continuous.

Every 6ES7417-4HL04-0AB0 unit supplied is subject to pre-shipment functional testing under simulated load conditions, verifying CPU initialization, redundancy switchover response, memory integrity, and communication port operation before dispatch. Units are sourced from verified supply channels and are inspected for firmware version compatibility with existing S7-400H rack configurations. A support terms confirmed by quotation cover all supplied modules against manufacturing defects and functional failure under normal operating conditions, with technical support available for integration and commissioning queries.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable S7-400H control cabinet is built around the 6ES7417-4HL04-0AB0 as its processing core, but its fault-protection capability depends equally on the quality of surrounding components. The PS 407 10A power supply module provides stable, regulated power to the CPU rack, protecting the 6ES7417-4HL04-0AB0 from input voltage fluctuations and ensuring clean 5 VDC and 24 VDC rails under varying load conditions. For distributed I/O, the IM 460-4 send interface module and IM 461-4 receive interface module extend the S7-400H rack to remote ET 200M stations, maintaining deterministic I/O response times even across long cabinet runs.

PROFINET communication to supervisory systems is handled by the CP 443-1 Advanced communication processor, which supports redundant network paths and maintains connectivity to SCADA and historian systems without burdening the CPU’s integrated MPI/DP port. In safety-critical loops, F-DI and F-DO modules within ET 200M remote stations — operating under PROFIsafe protocol — provide the certified safety I/O layer that complements the 6ES7417-4HL04-0AB0’s redundant control architecture. For applications requiring high-speed analog process control, the SM 431 analog input modules deliver 16-bit resolution with channel-level diagnostics, enabling early detection of sensor drift before it propagates into a process deviation or safety trip.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6ES7417-4HL04-0AB0 is deployed in emergency shutdown (ESD) and burner management system (BMS) control panels, where the consequence of a CPU failure is a full plant trip or, in worst cases, a safety barrier breach. Its hot-standby redundancy ensures that a single CPU hardware fault does not interrupt the safety logic execution cycle, maintaining interlock integrity throughout the fault event and recovery period.

Power generation facilities — including thermal, hydro, and combined-cycle plants — rely on the S7-400H platform with the 6ES7417-4HL04-0AB0 for turbine governor control, boiler protection, and generator excitation interlocks. In these applications, a control interruption lasting even a few hundred milliseconds can trigger turbine overspeed protection or boiler pressure relief, causing forced outages that take hours to recover. The sub-100 ms switchover time of the 6ES7417-4HL04-0AB0 redundancy system keeps these critical loops active through CPU-level faults.

In mining and mineral processing operations, where high-voltage motor drives, conveyor systems, and crusher controls operate in dusty, vibration-intensive environments, the 6ES7417-4HL04-0AB0 provides the control backbone for continuous haulage and processing lines. Its vibration tolerance and wide operating temperature range make it suitable for surface and underground installations where environmental conditions are far outside the range of standard office-grade automation equipment.

Water and wastewater treatment plants operating under regulatory compliance requirements use the S7-400H platform for pump station control, chemical dosing interlocks, and SCADA-integrated monitoring. The 6ES7417-4HL04-0AB0 ensures that treatment process continuity is maintained even during scheduled maintenance windows, as the redundant CPU architecture allows one CPU to be serviced while the other maintains full process control — a critical capability for facilities that cannot interrupt treatment operations.

Safety and Quality FAQ

Q: What support terms is provided with the 6ES7417-4HL04-0AB0?
A: All units carry a support terms confirmed by quotation covering functional failure and manufacturing defects under normal operating conditions. Support terms support includes technical assistance for integration and fault diagnosis.

Q: How is each unit tested before shipment?
A: Every 6ES7417-4HL04-0AB0 undergoes pre-shipment functional testing including CPU initialization verification, redundancy switchover simulation, memory integrity check, and communication port validation. Units failing any test parameter are not dispatched.

Q: Is the 6ES7417-4HL04-0AB0 compatible with existing S7-400H racks and firmware versions?
A: The module is compatible with standard S7-400H rack configurations. Firmware version compatibility is verified prior to dispatch. If your installation requires a specific firmware baseline, please provide rack configuration details at the time of order.

Q: Can long-term supply be guaranteed for ongoing maintenance programs?
A: Yes. Multi-region stock is maintained to support ongoing spare parts programs, emergency replacement orders, and planned maintenance schedules. Lead time and stock availability can be confirmed at the time of inquiry for volume or scheduled supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Siemens
Siemens

Model / Series

6ES7417-4HL04-0AB0
SIMATIC Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Siemens 6ES7417-4HL04-0AB0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
