Siemens 6ES7414-4HR14-0AB0 Migration-Ready Redundant CPU

Overview

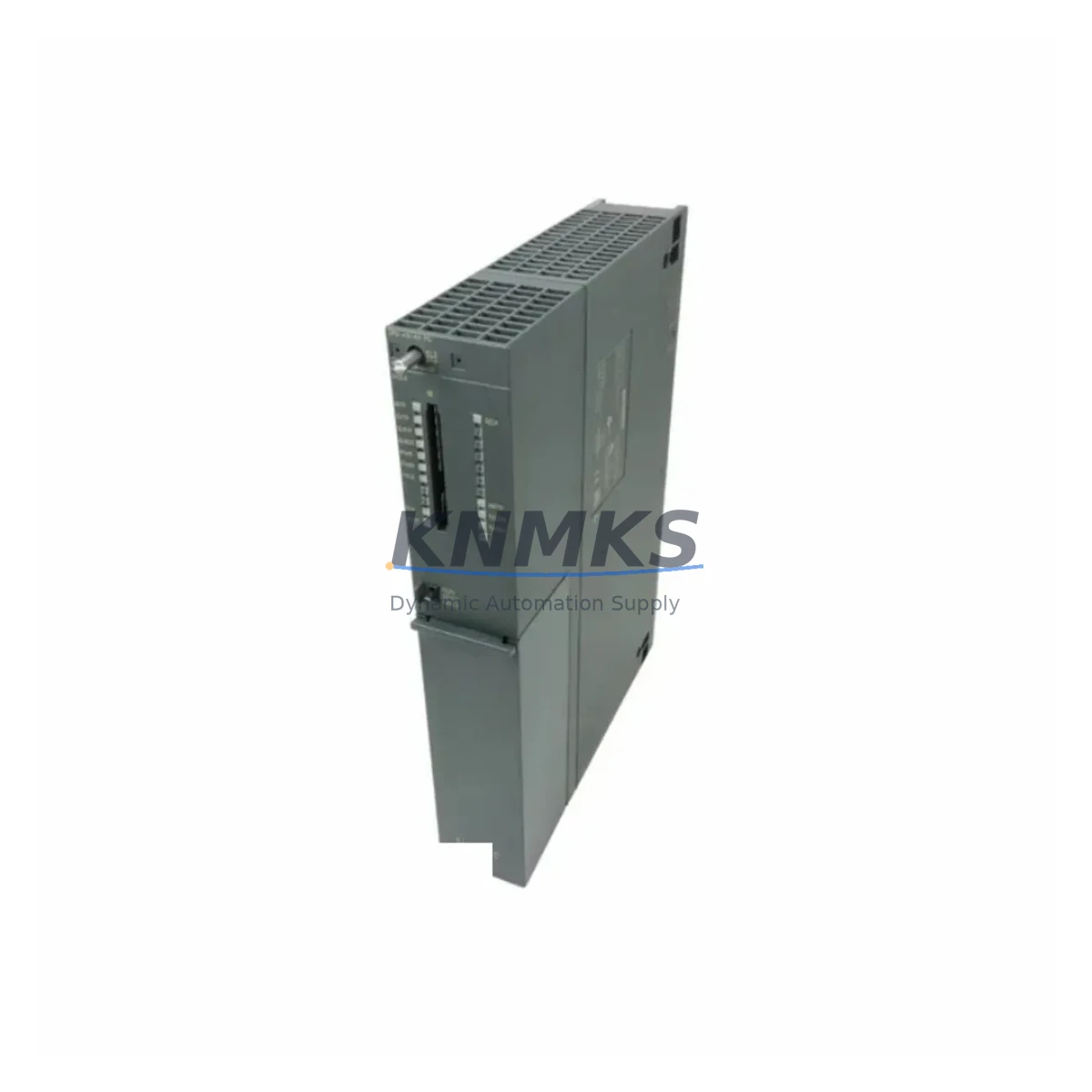

Siemens 6ES7414-4HR14-0AB0 Migration-Ready Redundant CPU for Legacy Control Systems

The Siemens 6ES7414-4HR14-0AB0 is a CPU 414-4H redundant processor module designed for the SIMATIC S7-400H high-availability control platform. As legacy S7-400 and S7-400H installations approach end-of-life, this module serves as a verified migration-ready replacement for facilities managing continuous-process environments where unplanned downtime carries significant operational and safety risk. Whether you are replacing a failed unit, building a warm-standby spare inventory, or executing a phased control system modernization, the 6ES7414-4HR14-0AB0 provides a direct hardware path that preserves existing program logic, rack geometry, and field wiring without requiring a full system redesign.

This CPU supports H-synchronization via fiber-optic sync cable, enabling bumpless switchover between the active and standby CPUs in under 100 ms. It integrates a PROFIBUS-DP master interface and supports MPI communication, making it compatible with existing HMI panels, distributed I/O racks, and engineering workstations running STEP 7 or TIA Portal in S7-400 compatibility mode. Before installation, engineers should verify the firmware version loaded on the replacement unit against the project’s existing CPU firmware to avoid program download conflicts or DB initialization errors during hot restart.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6ES7414-4HR14-0AB0 into an existing S7-400H installation requires a structured pre-migration audit. Begin by documenting the current rack layout: confirm slot assignments for the PS 407 power supply module, the CPU pair positions in the UR2-H rack, and any installed CP 443-1 Ethernet communication processors or CP 443-5 PROFIBUS modules that handle plant-level SCADA connectivity. These communication processors must remain undisturbed during CPU replacement to avoid dropping the PROFIBUS-DP network or losing OPC-DA/UA data feeds to the DCS historian.

For facilities running distributed I/O over PROFIBUS-DP, verify that all ET 200M remote I/O stations — including their IM 153-2 interface modules — are listed in the hardware configuration (HW Config) and that GSD files are current. If the legacy CPU was running with a specific DP master system address, the replacement 6ES7414-4HR14-0AB0 must be configured with an identical DP master address to avoid re-addressing all slave stations on the network. Similarly, if the plant uses IM 460/IM 461 expansion modules for multi-rack I/O, confirm that the inter-rack send/receive configuration is preserved in the new CPU’s hardware configuration before downloading.

HMI panels connected via MPI — such as legacy TP 270 or MP 370 operator panels — should be tested for communication continuity after CPU swap. If the facility has migrated HMI to WinCC flexible or TIA Portal-based Comfort Panels, verify that the S7 connection parameters (CPU slot, rack number, MPI address) match the replacement module’s configuration. Signal isolators installed between field instruments and analog input modules (SM 431 or SM 432) should be inspected for calibration drift if the system has been offline during the replacement window.

Downtime Control During System Migration

The primary advantage of the S7-400H redundant architecture is the ability to perform CPU replacement with minimal process interruption. In a healthy redundant system, the standby CPU can be swapped while the active CPU maintains control — a procedure known as single-fault replacement. However, if both CPUs require replacement or the system has already entered single-CPU mode due to a fault, a controlled shutdown window must be planned.

Before initiating replacement, back up the complete project from the active CPU using STEP 7 or TIA Portal, including all data blocks (DBs), organization blocks (OBs), and the hardware configuration. Confirm that the backup includes the current actual values of retentive data areas, as these may contain critical process setpoints or batch counters. After installing the 6ES7414-4HR14-0AB0, perform a full download to the new CPU in STOP mode, then execute a controlled STOP-to-RUN transition while monitoring the H-sync LED indicators to confirm redundancy is re-established before returning the process to automatic mode.

To further reduce risk, stage the replacement during a scheduled maintenance window and have a tested spare 6ES7960-1AA04-0XA0 sync module and fiber-optic patch cables on hand. Verify that the PS 407 power supply output voltage is within specification under full rack load before powering the new CPU. Document all terminal wiring on the front connectors of any SM 321 digital input or SM 322 digital output modules that were disturbed during rack access, and perform a point-to-point I/O check before releasing the system to operations.

Retrofit Support FAQ

Q1: Is the 6ES7414-4HR14-0AB0 a direct replacement for the 6ES7414-4HR13-0AB0?
Yes. The HR14 variant is the successor to the HR13 and earlier HR1x revisions. It is mechanically and electrically compatible with the same UR2-H rack slots and uses the same fiber-optic sync interface. A firmware update may be required; verify using STEP 7 HW Config before commissioning.

Q2: Can this CPU be used in a non-redundant S7-400 rack?
Yes. The 6ES7414-4HR14-0AB0 can operate in standard (non-redundant) mode in a single UR2 rack without the sync module. This is useful for staging, testing, or as a temporary operational configuration while the redundant rack is being prepared.

Q3: What pre-shipment testing is performed, and is a support terms confirmed by quotation included?
Each unit undergoes functional power-on testing and communication interface verification prior to dispatch. A support terms confirmed by quotation is included from the date of shipment, covering hardware defects under normal operating conditions. Units are packaged with ESD protection and shipped with tracking.

Q4: How quickly can the unit be dispatched, and is stock available?
Stock is maintained across multiple regional warehouses to support emergency replacement requirements. Standard dispatch is within 1–3 business days. Express shipping options are available for critical plant situations. Contact the sales team to confirm current stock availability and lead time for your region.
