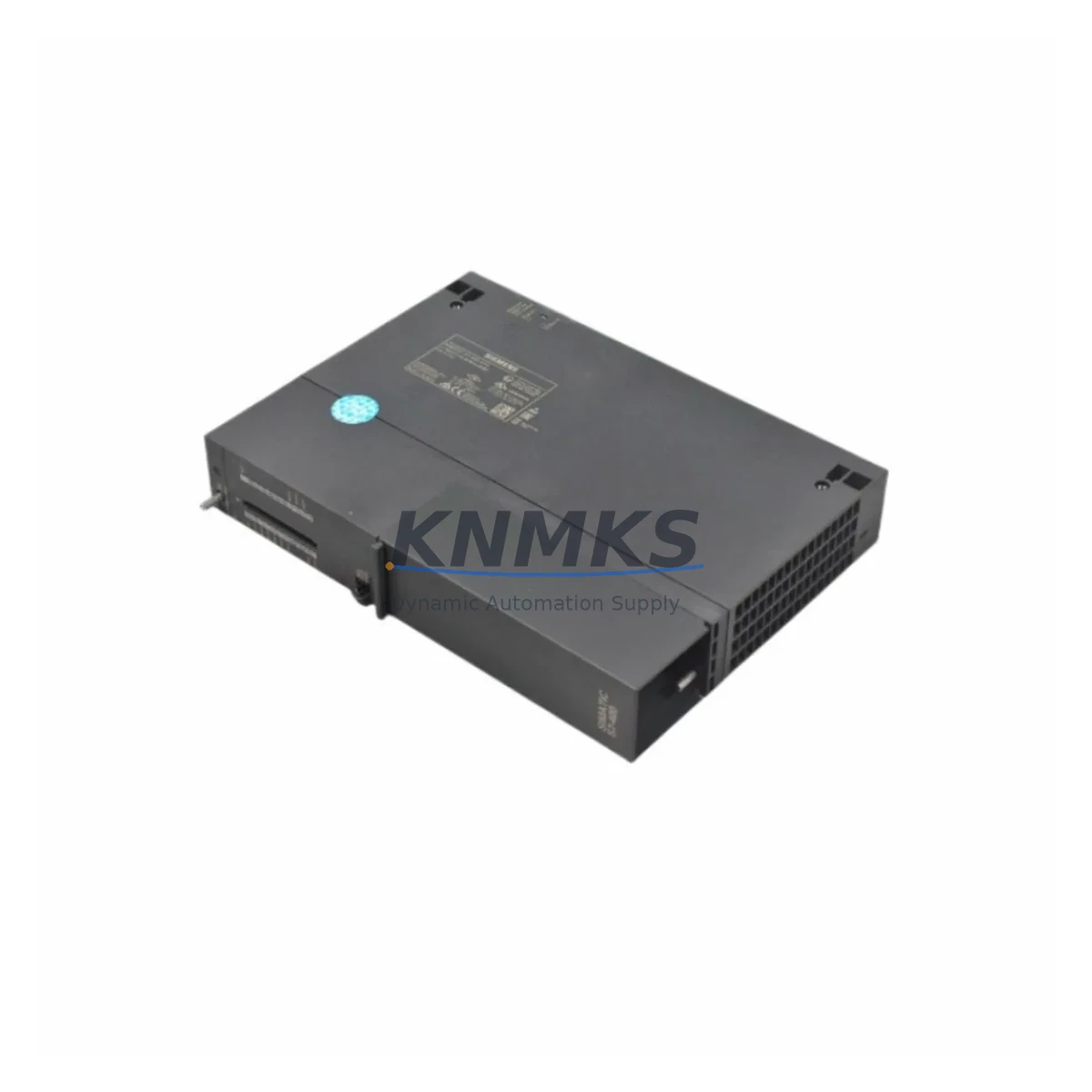

Siemens 6ES7414-4HM14-0AB0 Fail-Safe Redundant CPU

Overview

Siemens 6ES7414-4HM14-0AB0 Fail-Safe Redundant CPU: Fault Protection and Critical Industrial Reliability

The Siemens 6ES7414-4HM14-0AB0 is a high-availability, fault-tolerant CPU module designed for the SIMATIC S7-400H redundant controller platform. Built to sustain continuous production in the most demanding industrial environments, this CPU delivers hardware-level redundancy that eliminates single points of failure across critical control loops. Whether deployed in petrochemical processing, power generation, metallurgical smelting, or continuous manufacturing, the 6ES7414-4HM14-0AB0 ensures that control interruptions, spurious trips, and unplanned shutdowns are systematically prevented — not merely managed after the fact.

At its core, the CPU 414-4H architecture operates in a synchronized hot-standby configuration. Two CPU modules run in parallel, continuously mirroring program execution and I/O states. In the event of a primary CPU fault, the standby unit assumes control within milliseconds — with zero process disruption and no operator intervention required. This bumpless switchover capability is essential for safety-critical interlocks, emergency shutdown (ESD) systems, and high-consequence control loops where even a momentary lapse in control authority can trigger cascading failures or regulatory non-compliance.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7414-4HM14-0AB0 within a redundant S7-400H control cabinet demands a carefully coordinated protection architecture. The CPU module operates in conjunction with the 6ES7960-1AA04-0XA0 fiber-optic synchronization cable, which maintains sub-millisecond state alignment between the active and standby CPUs — immune to electrical noise and ground loop interference that would compromise copper-based sync links in high-EMI environments such as variable frequency drive (VFD) rooms, arc furnace control buildings, or high-voltage switchgear enclosures.

Power integrity is foundational to redundant CPU reliability. The PS407 power supply modules (6ES7407-0DA02-0AA0 for 4A and 6ES7407-0KA02-0AA0 for 10A configurations) provide regulated, filtered DC power to the S7-400 rack. In installations where mains voltage fluctuations, surge events, or momentary outages are a risk — common in port facilities, mining substations, and steel mills — pairing the CPU with a redundant PS407 configuration eliminates power-induced CPU resets and preserves program execution continuity.

For field-level I/O protection, the 6ES7400-1TA01-0AA0 S7-400 interface module and distributed ET 200M remote I/O stations connected via PROFIBUS DP extend the redundant control architecture to the process floor. Signal integrity across long cable runs in dusty, humid, or chemically aggressive environments is maintained through proper shielding practices and the use of PROFIBUS repeaters where segment lengths exceed standard limits.

Cabinet thermal management is equally critical. In high-density S7-400H racks operating in ambient temperatures above 40 °C, supplementary forced-air cooling or heat exchanger units prevent CPU thermal throttling and premature component aging. The 6ES7414-4HM14-0AB0 is rated for continuous operation up to 60 °C, but sustained operation near this limit without adequate airflow management accelerates electrolytic capacitor degradation and increases the risk of memory errors. Integrating SIMATIC S7-400 fan subassemblies (6ES7408-1TB00-0XA0) into the rack design is a recommended preventive measure for high-ambient installations.

For safety-instrumented system (SIS) integration, the 6ES7414-4HM14-0AB0 can be coordinated with SIMATIC S7-400F/FH fail-safe I/O modules such as the SM 326 series, enabling IEC 61511-compliant safety loops within the same control cabinet. This architecture supports SIL 2 and SIL 3 safety functions without requiring a separate safety PLC, reducing cabinet footprint and simplifying maintenance procedures.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous distillation, catalytic cracking, and pipeline compression stations, the 6ES7414-4HM14-0AB0 governs emergency shutdown sequences, pressure relief valve actuation, and compressor surge control. Its bumpless redundancy ensures that a CPU module failure during a high-pressure event does not result in a loss of protective function — a scenario with potentially catastrophic consequences under API 670 and IEC 61511 frameworks.

Power Generation and Grid Substations: Turbine governor control, boiler drum level regulation, and transformer protection relay coordination demand microsecond-level response consistency. The S7-400H platform with the 6ES7414-4HM14-0AB0 CPU provides the deterministic scan cycle performance required for these applications, with hot-standby redundancy ensuring that planned maintenance on one CPU does not require a process shutdown.

Mining and Mineral Processing: Conveyor interlocking, crusher protection, and flotation cell control in underground and open-pit mining environments expose control hardware to extreme vibration, coal dust ingress, and wide temperature swings. The 6ES7414-4HM14-0AB0’s compliance with IEC 60068-2-6 vibration and IEC 60068-2-27 shock standards, combined with its IP20 cabinet-mounted design, makes it suitable for hardened control room enclosures in these environments.

Water and Wastewater Treatment: SCADA-integrated pump station control, chemical dosing automation, and effluent monitoring systems in municipal and industrial water treatment plants rely on uninterrupted PLC operation. The redundant CPU architecture prevents control gaps during module replacement, supporting zero-downtime maintenance strategies mandated by environmental compliance requirements.

Metallurgy and Steel Production: Electric arc furnace (EAF) electrode regulation, rolling mill speed synchronization, and ladle crane interlocking represent some of the highest-EMI, highest-consequence control applications in industrial automation. The 6ES7414-4HM14-0AB0’s EN 61000-6-2 industrial immunity rating and fiber-optic sync architecture make it a proven choice for these environments.

Port and Marine Terminal Automation: Ship-to-shore crane control, automated stacking crane (ASC) systems, and bulk material handling conveyors in port logistics require continuous, fault-tolerant PLC operation across large physical distances and variable environmental conditions. The S7-400H platform’s distributed I/O capability via PROFIBUS DP supports these architectures effectively.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 6ES7414-4HM14-0AB0?
All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes replacement or repair, with documentation provided upon request for maintenance records and audit compliance.

Q2: What pre-shipment testing is performed before dispatch?
Every 6ES7414-4HM14-0AB0 unit undergoes full functional verification prior to shipment, including power-on self-test (POST) validation, communication interface checks, and memory integrity verification. Test records are available upon request to support incoming inspection procedures.

Q3: Is this CPU compatible with existing S7-400H racks and I/O configurations?
The 6ES7414-4HM14-0AB0 is fully compatible with standard S7-400 UR1 and UR2 rack configurations and supports the complete range of S7-400 signal modules, communication processors, and interface modules. Firmware version compatibility with existing STEP 7 projects should be verified prior to installation; our technical team can assist with compatibility assessment.

Q4: Can long-term supply continuity be guaranteed for this module?
We maintain multi-region stock of the 6ES7414-4HM14-0AB0 to support emergency replacement, planned maintenance, and capital spares programs. For customers with ongoing maintenance contracts or multi-unit requirements, volume reservation and scheduled delivery arrangements are available to ensure supply continuity over 6–24 month planning horizons.
