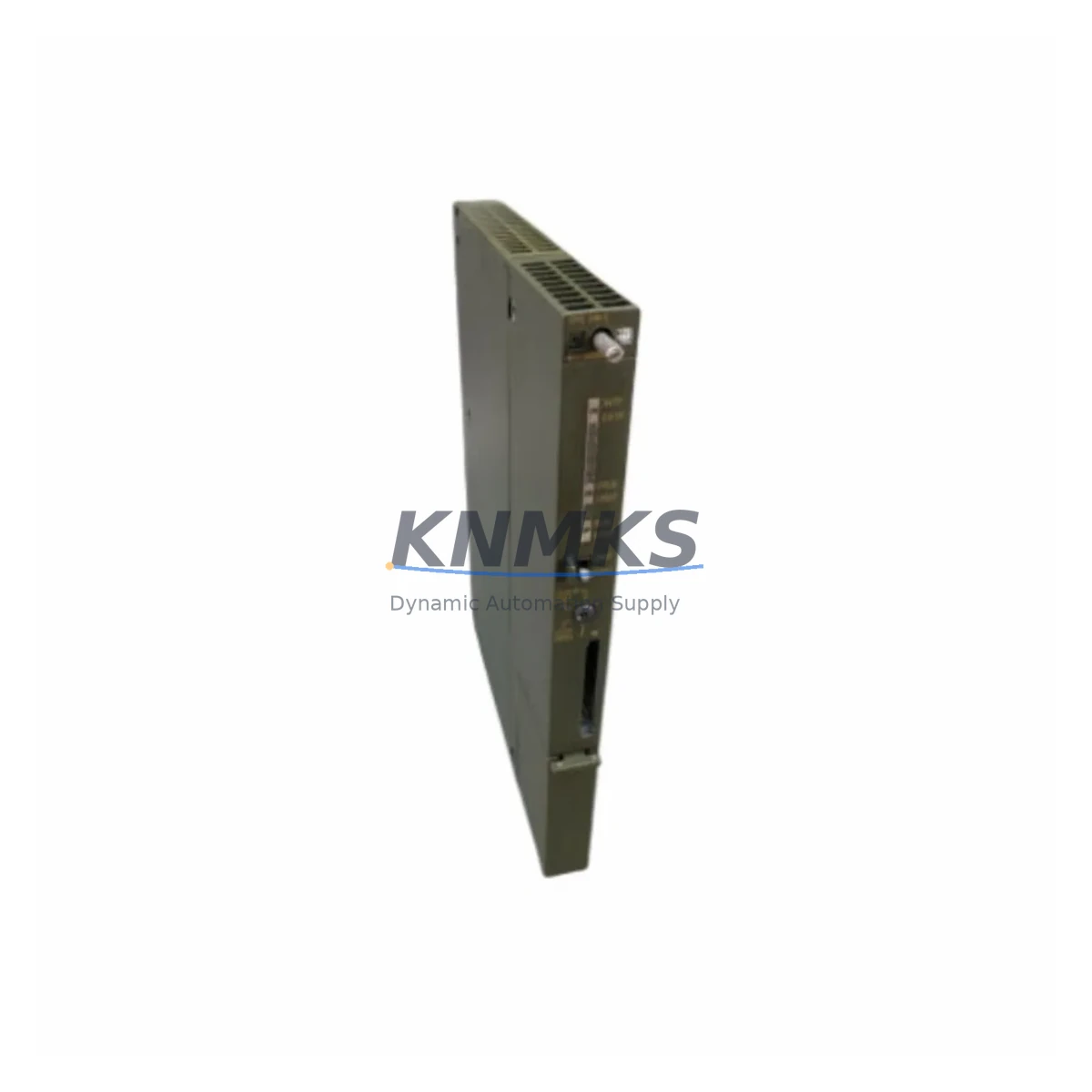

Siemens 6ES7414-1XG02-0AB0 Fail-Safe CPU for Industrial Control

Overview

Siemens 6ES7414-1XG02-0AB0 Fail-Safe CPU for Industrial Control Reliability

The Siemens 6ES7414-1XG02-0AB0 is a high-performance CPU module from the SIMATIC S7-400 series, engineered for mission-critical industrial automation environments where control interruption is not an option. Designed to operate reliably under extreme electromagnetic interference, power fluctuations, high ambient temperatures, mechanical vibration, and corrosive or dusty atmospheres, this CPU module delivers the fail-safe processing capability that continuous production facilities and safety-critical interlocking systems demand.

In petrochemical plants, power generation facilities, metallurgical operations, and heavy-duty manufacturing lines, the consequences of a CPU fault extend far beyond downtime — they represent safety hazards, environmental risk, and significant financial loss. The 6ES7414-1XG02-0AB0 addresses these risks through robust hardware architecture, deterministic cycle execution, and proven compatibility within the S7-400 platform ecosystem. Its ability to maintain stable program execution under surge events, communication anomalies, and thermal stress makes it a preferred choice for engineers specifying control cabinet solutions in demanding field environments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7414-1XG02-0AB0 as the central processing unit of a control cabinet requires a coordinated protection strategy across the entire automation architecture. In high-load or safety-critical cabinets, the CPU must be supported by a stable, filtered power supply — the Siemens 6ES7407-0DA02-0AA0 PS407 power supply module is a natural companion, providing regulated DC 24V with built-in overload protection to shield the CPU from upstream power grid disturbances.

For distributed I/O expansion and field signal acquisition in environments with long cable runs or high EMI exposure, the Siemens 6ES7153-1AA03-0XB0 IM153 interface module enables reliable PROFIBUS-DP communication between the central rack and remote ET 200M stations, maintaining signal integrity even in electrically noisy substations or motor control centers. Pairing this with shielded PROFIBUS-DP cables and bus connectors (such as the 6ES7972-0BA52-0XA0) further reduces the risk of communication anomalies and data frame errors under surge conditions.

In cabinets where thermal management is critical — particularly in foundries, cement plants, or outdoor enclosures in tropical climates — the Siemens 6ES7400-1TA01-0AA0 S7-400 rack with integrated backplane bus ensures low-resistance module seating and stable bus communication even under thermal cycling. Supplementing the cabinet with a Siemens 6EP1333-3BA00 SITOP PSU100S power supply at the 24VDC distribution level adds a further layer of voltage stabilization and short-circuit protection for field devices connected to the CPU’s I/O modules.

For applications requiring safety interlocking — such as emergency shutdown (ESD) systems, burner management, or turbine protection — the Siemens 6ES7326-1BK02-0AB0 SM326 F-DI digital input module integrates directly with the S7-400 platform to provide fail-safe discrete signal acquisition, forming a complete safety loop from field sensor through to the 6ES7414-1XG02-0AB0 CPU’s safety program execution layer.

Critical Industrial Safety Applications

The Siemens 6ES7414-1XG02-0AB0 has established a strong operational record across the most demanding industrial sectors:

Petrochemical & Refining: In continuous process plants where unplanned shutdowns trigger flaring events and safety system activations, this CPU module supports deterministic scan cycle execution for reactor temperature control, pressure relief interlocking, and compressor surge protection loops. Its tolerance for high-EMI environments — generated by large variable frequency drives and high-voltage switchgear — ensures that control logic remains unaffected by electrical noise propagating through the cabinet bus.

Power Generation & Utilities: Thermal power stations and hydroelectric facilities rely on S7-400 CPU modules for turbine governor control, boiler drum level regulation, and grid synchronization interlocking. The 6ES7414-1XG02-0AB0’s robust communication architecture supports real-time data exchange with SCADA systems and DCS platforms, enabling operators to monitor critical parameters without introducing latency into the control loop.

Mining & Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The S7-400 platform’s proven mechanical robustness and the CPU’s ability to maintain program execution through power micro-interruptions — supported by an appropriate UPS module — make it a reliable choice for conveyor interlocking, crusher control, and ventilation safety systems.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, unattended operation of pump stations, dosing systems, and filtration controls. The 6ES7414-1XG02-0AB0 supports long-term stable operation in humid, chemically aggressive environments, with its sealed module housing protecting internal circuitry from condensation and corrosive gases.

Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate some of the most severe electromagnetic disturbances in industrial settings. The S7-400 CPU’s EMI hardening and the platform’s differential signal communication architecture ensure that control commands are executed accurately even in the presence of high-frequency interference from induction heating systems and large motor drives.

Port & Maritime Logistics: Ship-to-shore cranes, automated stacking cranes, and vessel loading systems demand precise motion control with fail-safe interlocking to protect personnel and cargo. The 6ES7414-1XG02-0AB0 provides the processing headroom and communication bandwidth required for coordinated multi-axis control in these high-throughput logistics environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7414-1XG02-0AB0?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified functions within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6ES7414-1XG02-0AB0 unit undergoes full functional verification prior to dispatch, including power-on self-test, communication interface validation, and program execution checks. Units that do not pass all test criteria are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is this CPU module compatible with existing S7-400 racks and I/O modules?
Yes. The 6ES7414-1XG02-0AB0 is fully compatible with the standard SIMATIC S7-400 rack backplane and is designed to operate alongside S7-400 power supply modules, signal modules, communication processors, and interface modules. It supports STEP 7 programming and is compatible with TIA Portal for projects that have migrated to the unified engineering environment.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain stock of the 6ES7414-1XG02-0AB0 to support both planned maintenance schedules and emergency replacement requirements. For facilities operating S7-400 systems in long-lifecycle applications — such as power plants or chemical processing units with 20+ year operational horizons — we recommend establishing a spare parts agreement to ensure availability. Contact our team to discuss stocking arrangements tailored to your maintenance strategy.
